Workshop Safety
1、When the equipment is in normal operation, it is strictly prohibited to touch any part of the equipment except the safety door in front of the injection molding machine and the control panel.
2, any production abnormalities must wait until after the equipment stops running.
3、Each equipment must establish a person in charge of the system (fixed person fixed mechanism), without equipment safety training, and by obtaining the qualification of operation, shall not operate the equipment; fault maintenance by the workshop designated personnel, non-designated personnel shall not carry out maintenance operations.
4, according to the operating procedures for the correct operation, careful maintenance of equipment, keep the operating environment clean, and civilized production.
5, the strict implementation of process discipline and operational discipline, make a good record, shift handover must hand over the safety situation.
6, all kinds of equipment safety protection devices must be complete, such as damage, must be promptly reported to repair, to be repaired before use.
7、Correctly analyze, judge and deal with all kinds of accident seeds, nip accidents in the bud. If an accident occurs, it should be dealt with decisively and correctly, reported to the superior in a timely and truthful manner, and the scene should be protected and detailed records should be made.
8, on duty must be in accordance with the provisions of the dress code, long hair should be tied up, not allowed to cloak hair, not allowed to wear undershirts, shorts or skirts, not allowed to wear slippers.
9, the use of power tools must be checked before the wire, plug, plastic shell with or without damage.
10、Replace the gas connector when closing the gas source, to prevent the connector fly out and hurt people.
11, to maintain a clear channel, in the channel is strictly prohibited for a long time or stacking workpiece.
12, equipment use must be turned off, the exception is the injection molding machine PC material insulation.

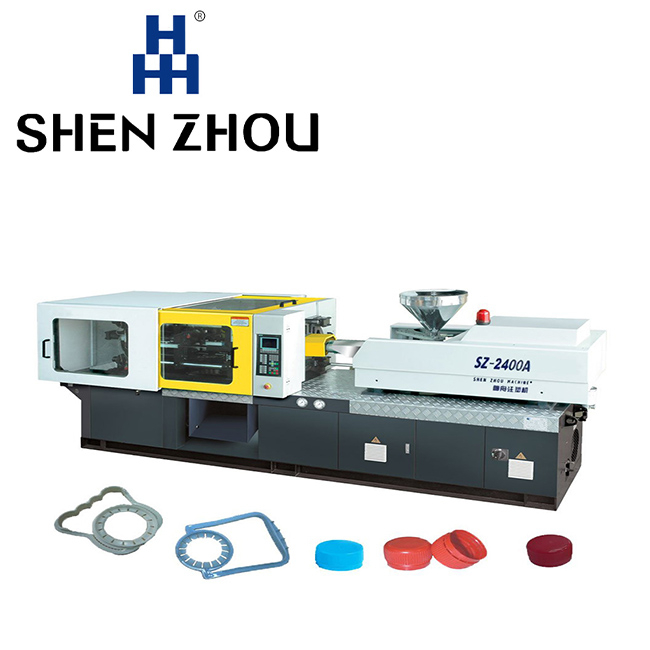

项目 ITEM | 单位UNIT | SZ—2400A | |||
注射装置 INJECTION UNIT | |||||
螺杆直径 | SCREW DIAMETER | mm | 55 | 60 | 65 |
螺杆长径比 | SCREW LID RATIO | L/D | 22.9 | 21 | 19.4 |
理论注射容积 | THEORETICAL SHOT VOLUME | CM3 | 665 | 791 | 929 |
注射质量(PS料) | SHOT WEIGHT(PS) | g | 605 | 720 | 845 |
注射压力 | INJECTION PRESSURE | Mpa | 210 | 176 | 150 |
理论注射速率(PS料) | THEORETICAL INJECTION RATE(PS) | g/s | 176.5 | 210 | 245 |
塑化能力(PS料) | PLASTICISING CAPACITY | g/s | 26.4 | 32.5 | 40 |
螺杆驱动扭矩 | SCREW TORQUE | N.m | 2000 | ||
螺杆转速 | MAX.SCREW ROTATE SPEED | r/min | 150 | ||
洼射行程 | INJECTION STROKE | mm | 280 | ||
合模装置 CLAMPING UNIT | |||||
合模力 | MAX.CLAMPING FORCE K | KN | 2400 | ||
移模行程 | MAX.OPENING STROKE | mm | 530 | ||
拉杆有效间距(VxH) | SPACE BETWEEN TIE BARS | mm | 555×555 | ||
允许模厚(MIN-MAX) | MOULD HEIGHT | mm | 200-570 | ||
模板开距 | MAX.DAYLIGHT | mm | 1100 | ||
液压顶出力 | EJECTOR FORCE | KN | 61.5 | ||
液压顶出行程 | EJECTOR STROKE | mm | 135 | ||
液压顶出杆总数 | EJECTOR QUANTITY | 9 | |||
其它 OTHER | |||||
油泵电动机功率 | PUMP MOTOR POWER | KW | 22 | ||
油泵压力 | PUMP PRESSURE | Mpa | 16 | ||
料简加热功率 | HEATING POWER | KW | 18.5 | ||
加热区段 | HEATING ZONE | 5 | |||
机器外形(LxWxH) | SIZE | m | 6.2×1.6×2.1 | ||
机器净重 | NET WEIGHT | t | 8.0 | ||
油箱容积 | OIL TANK CAPACITY | L | 440 | ||
国际公认型号 | INTERNATIONAL DESIGNATION | 2400—1390 | |||

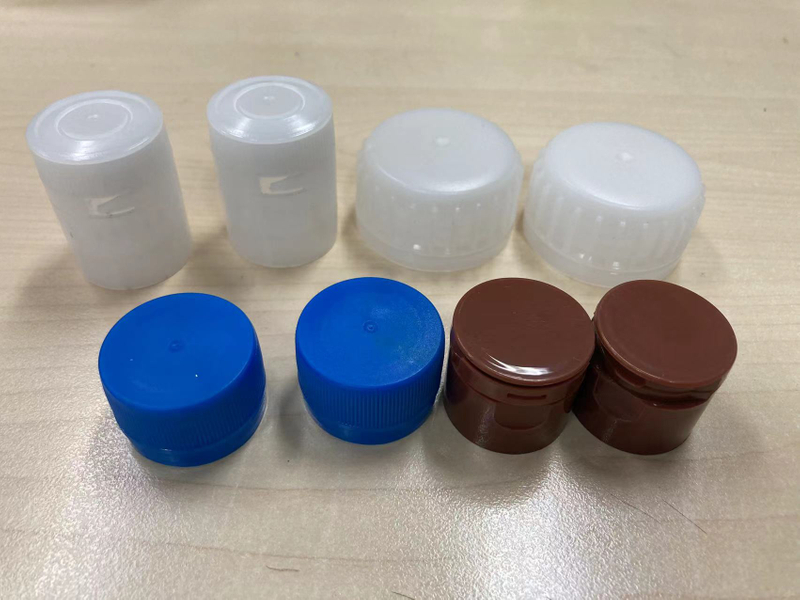

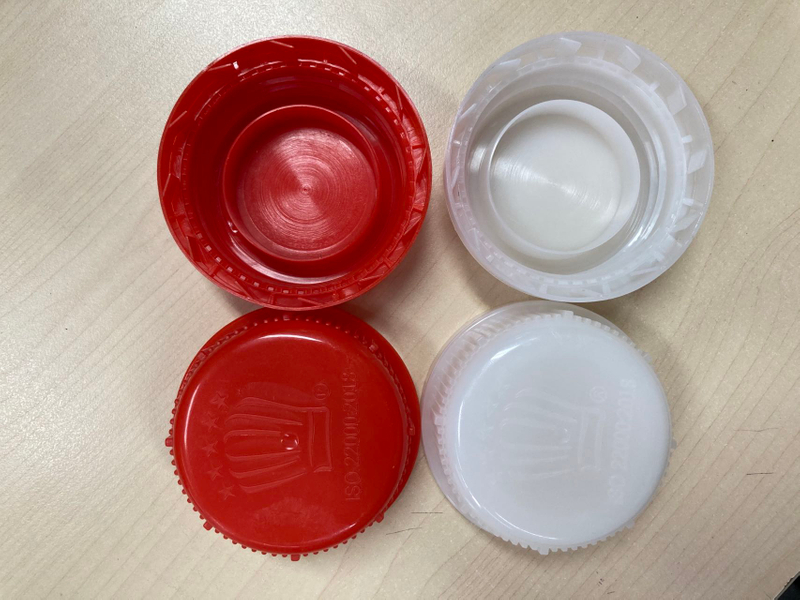

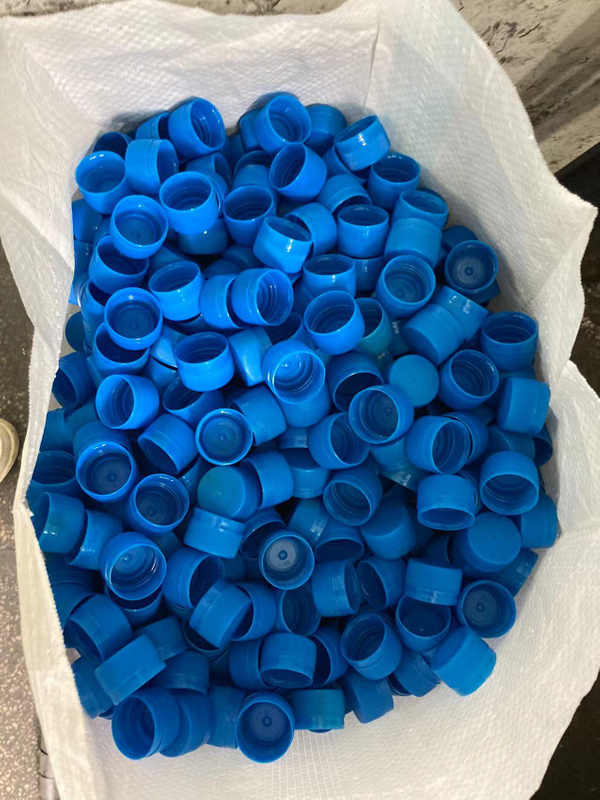

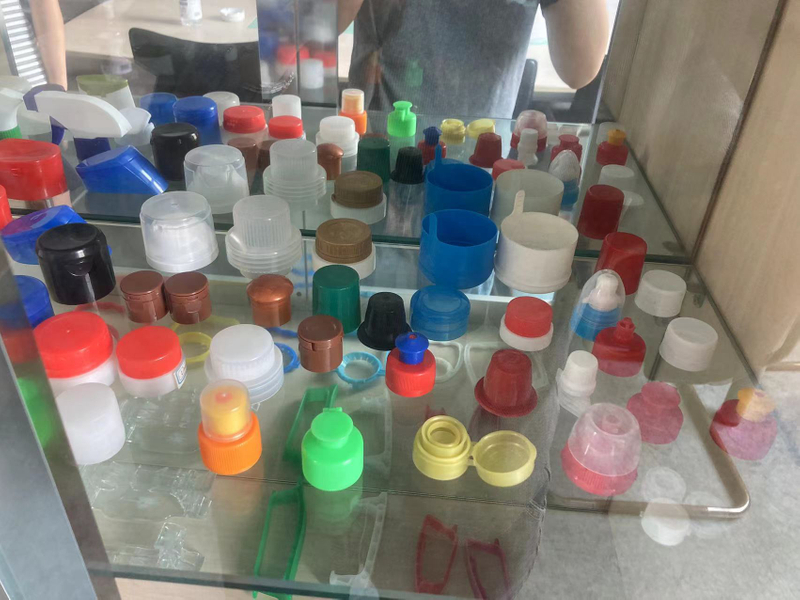

Bottle cap injection molding machine as a type of plastic machinery, to know whether it is a bottle cap injection molding machine or other plastic machinery, its development is often the need for medical plastics such as raw materials industry and the development of the plastic products processing industry, so far, it is moving towards the standardization, serialization, specialization, combined structure, intelligent, personalized, large-scale, miniaturization, composite direction of development.
In addition to the bottle cap injection molding machine should also be able to meet the material saving, energy saving and improve the efficiency of the requirements to adapt to the current plastic products, plastic raw materials factory cost saving needs.
From the current development prospects of bottle cap injection molding machine view
Injection molding technology is now developing at a very rapid pace, some of the new equipment and new technologies can be said to be endless.
bottle cap injection molding machine has become more automated, computerized, single multi-function, and has a variety of auxiliary equipment, while in the combination of the process is very fast, and no matter whether it is the installation of repair and maintenance work is very convenient, which is all-electric bottle cap injection molding machine, steam-assisted as well as water injection molding technology, oil and electricity composite injection molding machine.
And the injection molding machine can meet the demand for plastic products and plastic raw materials factory. Technology, oil and electricity composite injection molding machine more, layer injection technology is widely used in bottle caps, magnetic materials CD-ROM, as well as some engineering plastics thin-walled products are becoming increasingly important, in order to match the development of some heavy industrial areas of the automobile, so some of the large-scale injection molding machine is also in demand.
