项目 ITEM | 单位UNIT | SZ—1300A | |||
注射装置 INJECTION UNIT | |||||
螺杆直径 | SCREW DIAMETER | mm | 35 | 40 | 45 |
螺杆长径比 | SCREW LID RATIO | L/D | 24 | 21 | 18.7 |
理论注射容积 | THEORETICAL SHOT VOLUME | CM3 | 173 | 226 | 286 |
注射质量(PS料) | SHOT WEIGHT(PS) | g | 158 | 206 | 260 |
注射压力 | INJECTION PRESSURE | Mpa | 235 | 180 | 142 |
理论注射速率(PS料) | THEORETICAL INJECTION RATE(PS) | g/s | 110 | 143 | 181 |
塑化能力(PS料) | PLASTICISING CAPACITY | g/s | 13.8 | 19.7 | 27.1 |
螺杆驱动扭矩 | SCREW TORQUE | N.m | 740 | ||
螺杆转速 | MAX.SCREW ROTATE SPEED | r/min | 250 | ||
洼射行程 | INJECTION STROKE | mm | 180 | ||
合模装置 CLAMPING UNIT | |||||
合模力 | MAX.CLAMPING FORCE K | KN | 1300 | ||
移模行程 | MAX.OPENING STROKE | mm | 400 | ||
拉杆有效间距(VxH) | SPACE BETWEEN TIE BARS | mm | 420×420 | ||
允许模厚(MIN-MAX) | MOULD HEIGHT | mm | 160-440 | ||
模板开距 | MAX.DAYLIGHT | mm | 840 | ||
液压顶出力 | EJECTOR FORCE | KN | 31.4 | ||
液压顶出行程 | EJECTOR STROKE | mm | 100 | ||
液压顶出杆总数 | EJECTOR QUANTITY | 5 | |||
其它 OTHER | |||||
油泵电动机功率 | PUMP MOTOR POWER | KW | 13 | ||
油泵压力 | PUMP PRESSURE | Mpa | 16 | ||
料简加热功率 | HEATING POWER | KW | 9.2 | ||
加热区段 | HEATING ZONE | 4 | |||
机器外形(LxWxH) | SIZE | m | 4.7×1.25×1.85 | ||
机器净重 | NET WEIGHT | t | 4.3 | ||
油箱容积 | OIL TANK CAPACITY | L | 360 | ||
国际公认型号 | INTERNATIONAL DESIGNATION | 1300—410 | |||

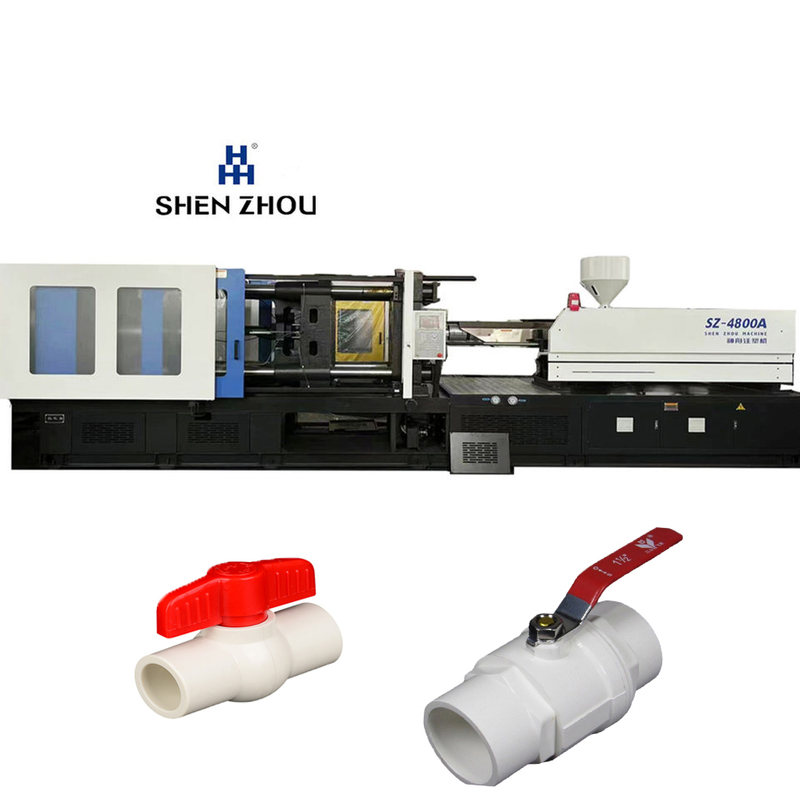

Custom High Precision 1300KN Quality PVC Ball Valve Fitting Injection Molding Machine for plumbing, irrigation systems, or industrial applications
High Precision Injection Molding: Our Fitting Injection Molding Machine utilizes advanced technology and precision components to ensure accurate and consistent injection molding of PVC materials. This results in high-quality ball valves with precise dimensions and smooth surfaces.

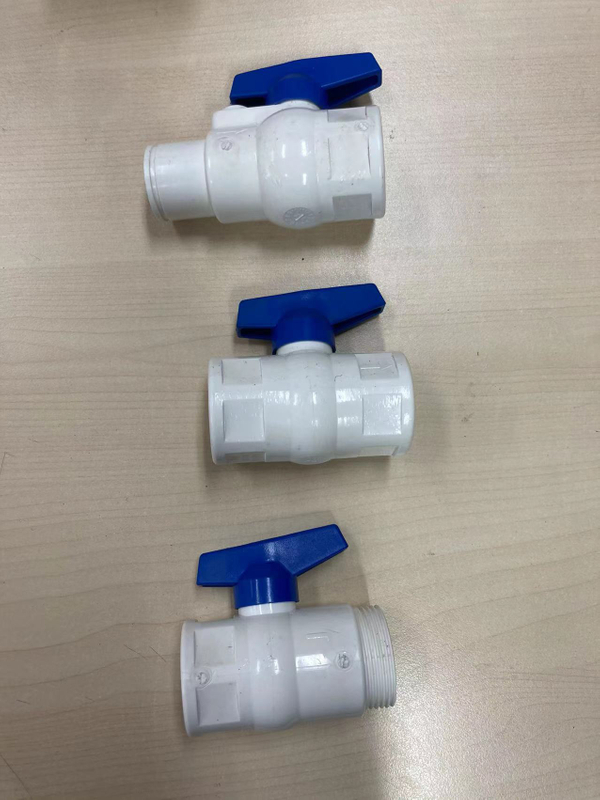

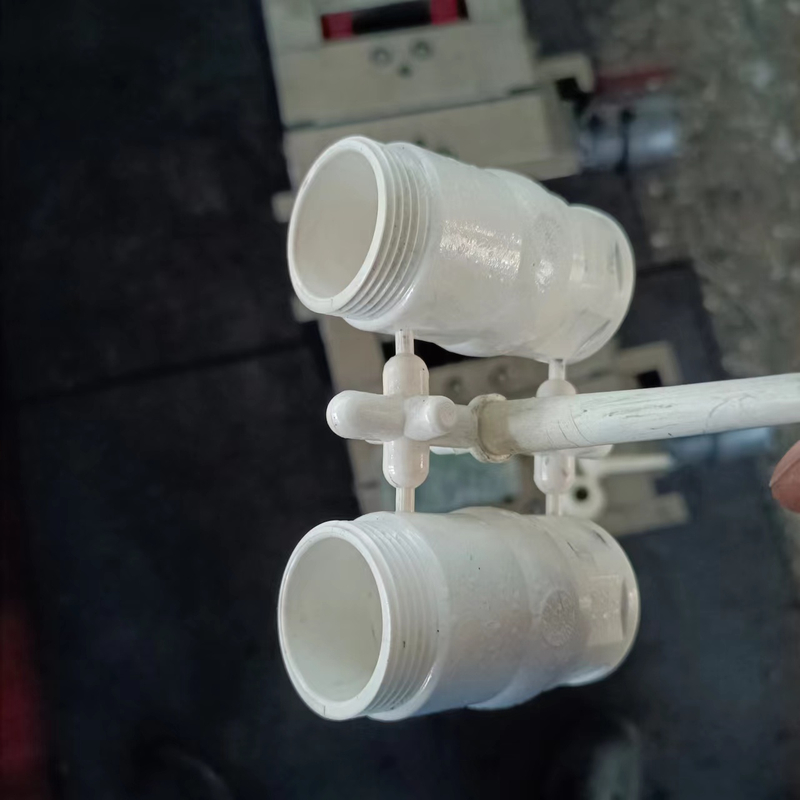

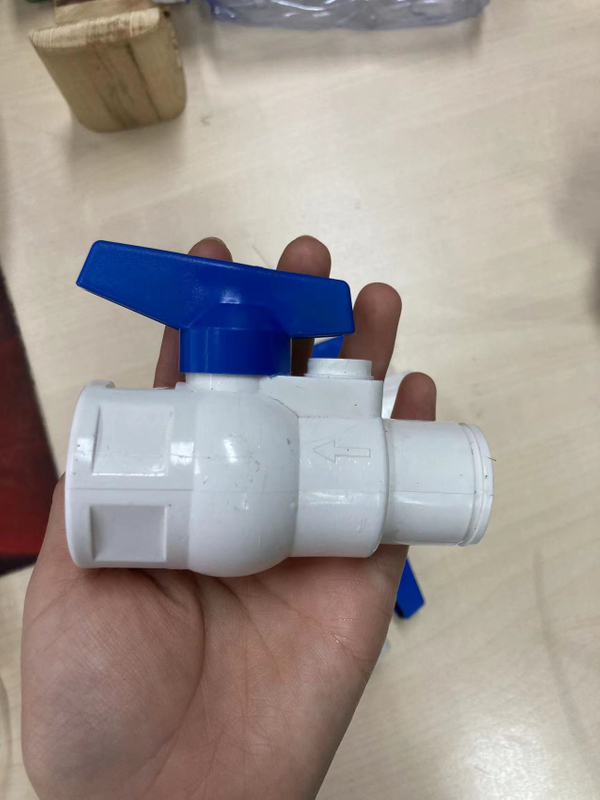

Versatile Applications: Our PVC Ball Valves Making Machine Injection Molding Machine is suitable for producing a wide range of ball valves used in various industries. Whether it's for plumbing, irrigation systems, or industrial applications, this machine can efficiently manufacture PVC ball valves of different sizes and specifications.

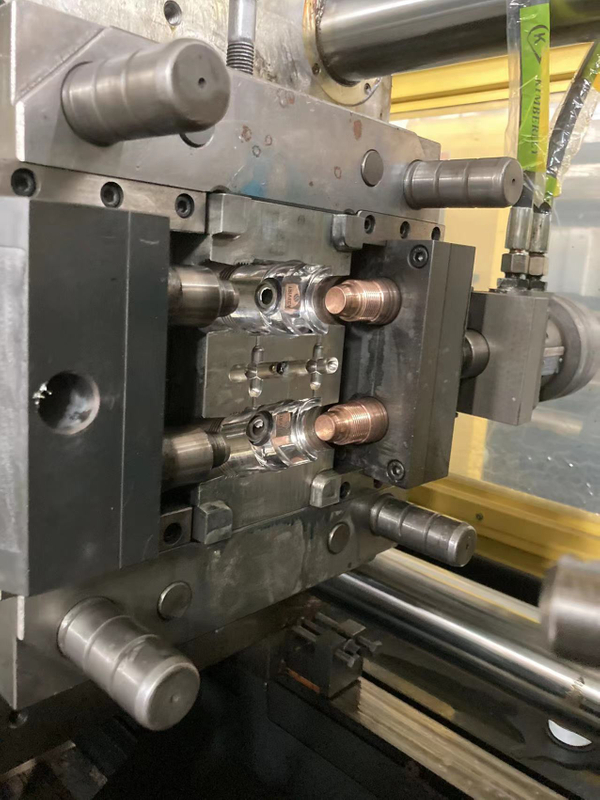

Customization Options: We understand that different customers may have specific requirements for PVC ball valves. Our machine can be customized to accommodate various molds and produce ball valves with different designs, sizes, and functionalities, allowing for flexibility in meeting specific customer needs.
Our Campany
ZHANG JIA GANG SHEN ZHOU MACHINERY CO.,LTD.located in Zhangjiagang City-new Port City of China, We are close to the port city and have great convenience on transportation.
We are an entity factory with a whole line of injection molding machines. We gather many years of rich experience to make “SZ” series automatic computer Injection Molding Machine and its
equipment. Its excellent quality, stable performance, attractive price-performance meet the client's demands and profits.
We are a manufacture of injection molding machine .Our machines are sold to more than 20 provinces of China and exported to 50 countries of Europe, USA. Latin and South America.
Middle East. Southeast Asia, Russia, Middle Asia. Africa. And all of our clients give high reputations for our machines and services.
We are the member of Germany TUV (IS09001:2000) registered and Italy CE certified (IG 0407). Our company is accredited for meeting
international standards in management responsibility, quality control, design control, process control, customer
service and other key criteria. And supply continuous satisfaction for our valuable customers at home and abroad.
Adhering to our long-established corporate spirit of 'Everything for Customers”, we will do our best to offer customers the best
quality products and service at the competitive prices, to meet the variable challenges and keep advantage.
SHEN ZHOU a reliable partner in Plastic Injection Processing.
After Sales Service
1.Expatriate Engineer Service
2.Free accessories
3.24-hour customer service specialists are available online to solve problems
4.Experience abroad in over 50 countries worldwide
