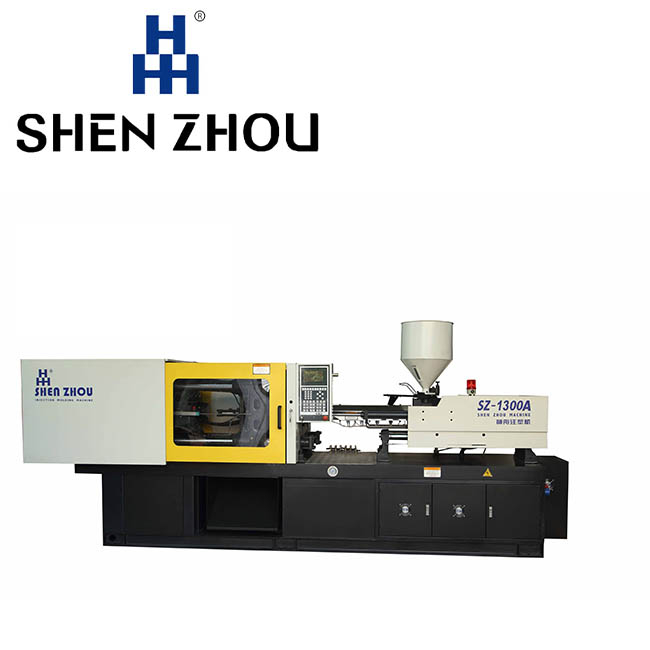

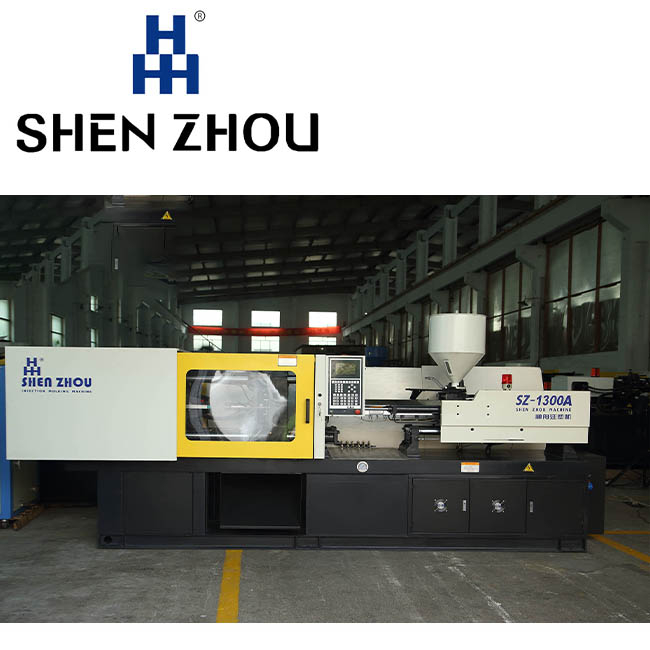

SZ—1300A Injection Molding Machine

1.We have many types of machines, suitable for various sizes of molds.

2.All our accessories are imported, with guaranteed quality and quantity.

3.The raw materials of the machine are excellent, with the characteristics of high ductility, wear resistance and heat resistance.

4.In the process of machine debugging, strictly control the error to ensure the efficiency of the machine.

5.We can make plans and samples according to customer requirements to meet the diverse needs of customers.

ITEM	UNIT	SZ—1300A
INJECTION UNIT
SCREW DIAMETER	mm	35	40	45
SCREW LID RATIO	L/D	24	21	18.7
THEORETICAL SHOT VOLUME	CM³	173	226	286
SHOT WEIGHT(PS)	g	158	206	260
INJECTION PRESSURE	Mpa	235	180	142
THEORETICAL INJECTION RATE(PS)	g/s	110	143	181
PLASTICISING CAPACITY	g/s	13.8	19.7	27.1
SCREW TORQUE	N.m	740
MAX.SCREW ROTATE SPEED	r/min	250
INJECTION STROKE	mm	180
CLAMPING UNIT
MAX.CLAMPING FORCE K	KN	1300
MAX.OPENING STROKE	mm	400
SPACE BETWEEN TIE BARS	mm	420×420
MOULD HEIGHT	mm	160-440
MAX.DAYLIGHT	mm	840
EJECTOR FORCE	KN	31.4
EJECTOR STROKE	mm	100
EJECTOR QUANTITY		5
OTHER
PUMP MOTOR POWER	KW	13
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	9.2
HEATING ZONE		4
SIZE	m	4.7×1.25×1.85
NET WEIGHT	t	4.3
OIL TANK CAPACITY	L	360
INTERNATIONAL DESIGNATION		1300—410
