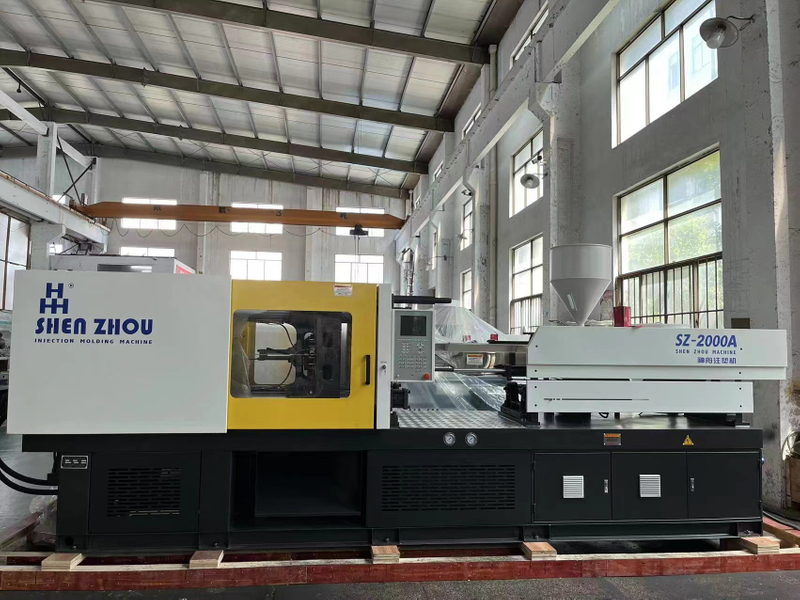

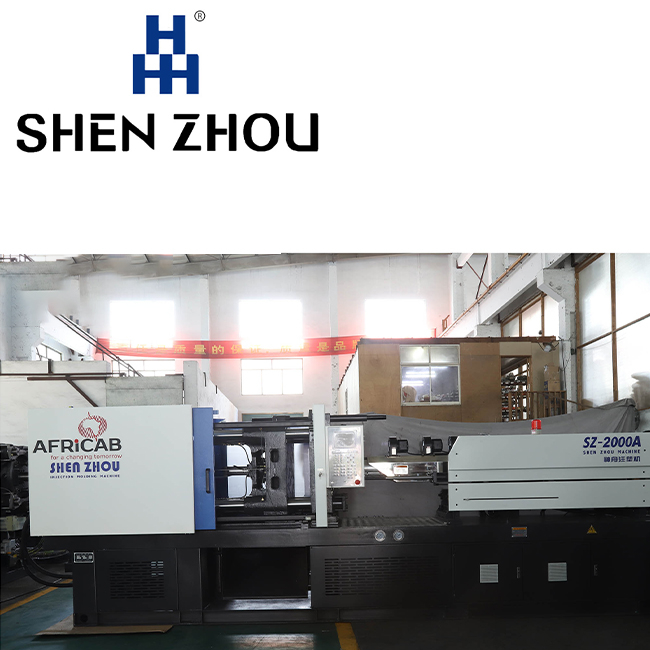

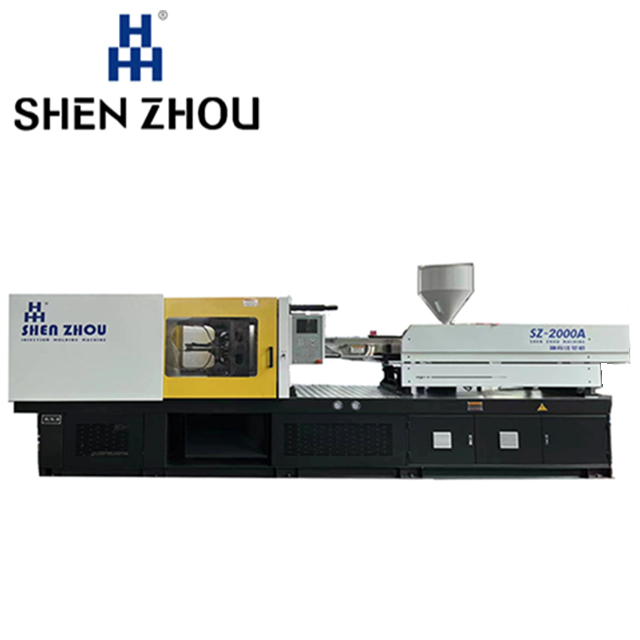

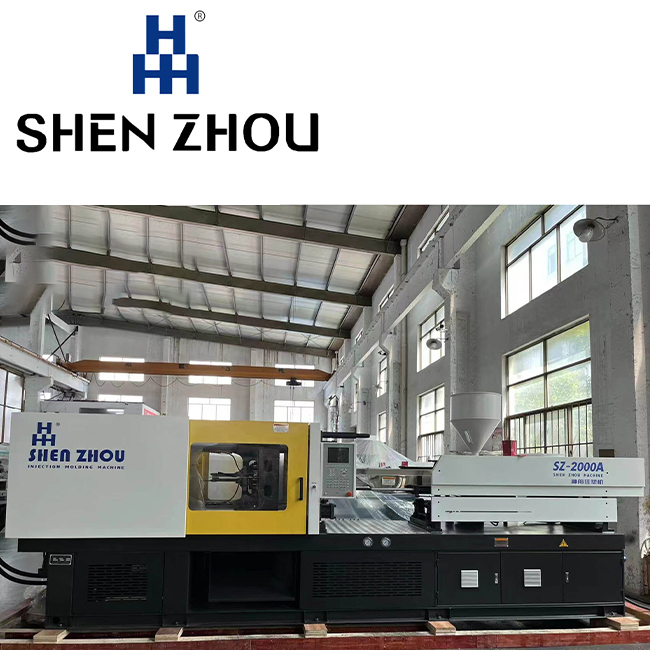

SZ—2000A Injection Molding Machine

1.We have many types of machines, suitable for various sizes of molds.

2.All our accessories are imported, with guaranteed quality and quantity.

3.The raw materials of the machine are excellent, with the characteristics of high ductility, wear resistance and heat resistance.

4.In the process of machine debugging, strictly control the error to ensure the efficiency of the machine.

5.We can make plans and samples according to customer requirements to meet the diverse needs of customers.

ITEM	UNIT	SZ—2000A
INJECTION UNIT
SCREW DIAMETER	mm	50	55	60
SCREW LID RATIO	L/D	23.1	21	19.3
THEORETICAL SHOT VOLUME	CM³	491	594	707
SHOT WEIGHT(PS)	g	447	540	643
INJECTION PRESSURE	Mpa	215	178	149
THEORETICAL INJECTION RATE(PS)	g/s	145	175	208
PLASTICISING CAPACITY	g/s	22.5	28.7	35.4
SCREW TORQUE	N.m	1510
MAX.SCREW ROTATE SPEED	r/min	170
INJECTION STROKE	mm	250
CLAMPING UNIT
MAX.CLAMPING FORCE K	KN	2000
MAX.OPENING STROKE	mm	500
SPACE BETWEEN TIE BARS	mm	505×505
MOULD HEIGHT	mm	190-530
MAX.DAYLIGHT	mm	1030
EJECTOR FORCE	KN	53.1
EJECTOR STROKE	mm	125
EJECTOR QUANTITY		5
OTHER
PUMP MOTOR POWER	KW	18.5
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	16.6
HEATING ZONE		4
SIZE	m	5.9×1.5×2
NET WEIGHT	t	6.8
OIL TANK CAPACITY	L	420
INTERNATIONAL DESIGNATION		2000—1060
