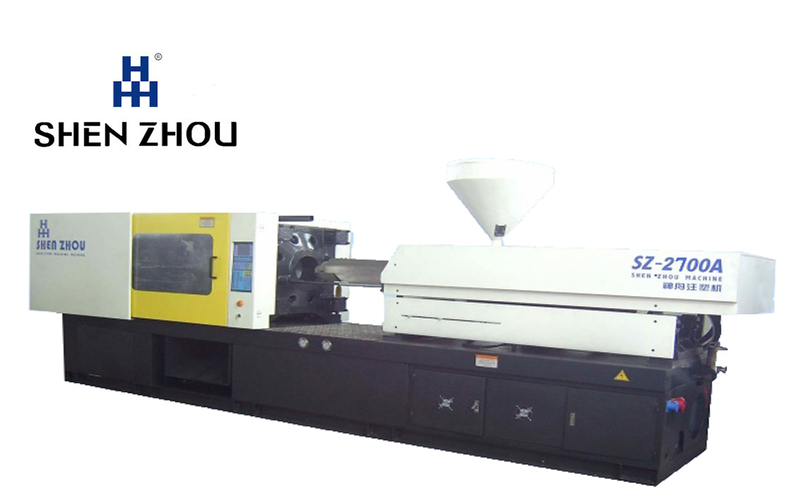

SZ—2700A
SZ
项目 ITEM | 单位UNIT | SZ—2700A | |||
注射装置 INJECTION UNIT | |||||
螺杆直径 | SCREW DIAMETER | mm | 55 | 60 | 65 |
螺杆长径比 | SCREW LID RATIO | L/D | 21.8 | 20 | 18.4 |
理论注射容积 | THEORETICAL SHOT VOLUME | CM3 | 598 | 712 | 836 |
注射质量(PS料) | SHOT WEIGHT(PS) | g | 538 | 641 | 752 |
注射压力 | INJECTION PRESSURE | Mpa | 200 | 168 | 143 |
理论注射速率(PS料) | THEORETICAL INJECTION RATE(PS) | g/s | 240 | 285 | 334 |
塑化能力(PS料) | PLASTICISING CAPACITY | g/s | 38 | 45 | 52 |
螺杆驱动扭矩 | SCREW TORQUE | N.m | 2530 | ||
螺杆最高转速 | MAX.SCREW ROTATE SPEED | r/min | 190 | ||
洼射行程 | INJECTION STROKE | mm | 250 | ||
合模装置 CLAMPING UNIT | |||||
合模力 | MAX.CLAMPING FORCE K | KN | 2700 | ||
移模行程 | MAX.OPENING STROKE | mm | 550 | ||
拉杆有效间距(VxH) | SPACE BETWEEN TIE BARS | mm | 570×570 | ||
允许模厚(MIN-MAX) | MOULD HEIGHT | mm | 220-600 | ||
模板最大开距 | MAX.DAYLIGHT | mm | 1150 | ||
液压顶出力 | EJECTOR FORCE | KN | 65 | ||
液压顶出行程 | EJECTOR STROKE | mm | 150 | ||
液压顶出杆总数 | EJECTOR QUANTITY | 9 | |||
其它 OTHER | |||||
油泵电动机功率 | PUMP MOTOR POWER | KW | 30 | ||
油泵最高压力 | PUMP PRESSURE | Mpa | 16 | ||
料简加热功率 | HEATING POWER | KW | 18.5 | ||
加热区段 | HEATING ZONE | 4 | |||
机器外形(LxWxH) | SIZE | m | 6.3×1.6×2.15 | ||
机器净重 | NET WEIGHT | t | 9 | ||
油箱容积 | OIL TANK CAPACITY | L | 560 | ||
国际公认型号 | INTERNATIONAL DESIGNATION | 2700—1200 | |||
