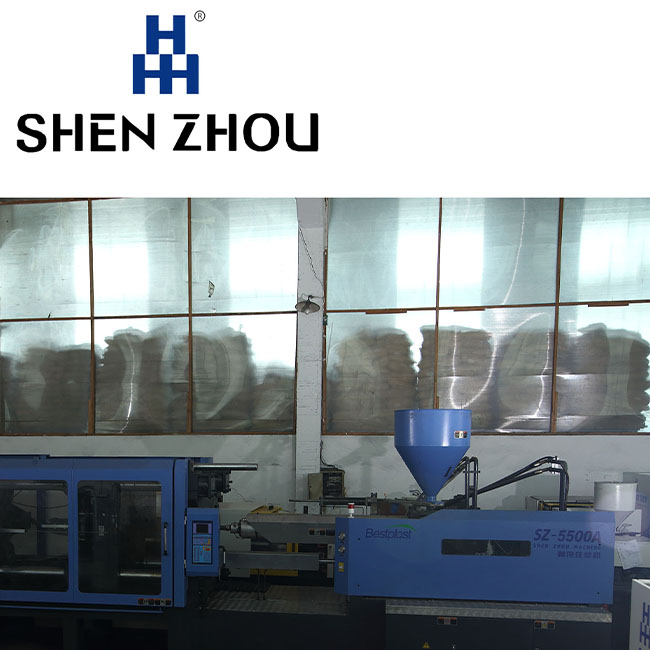

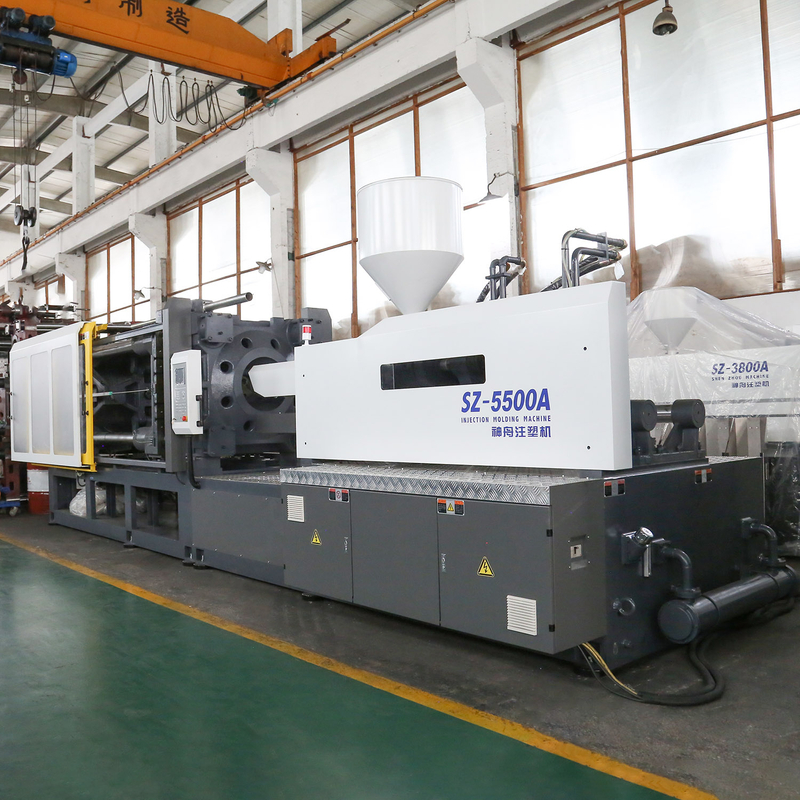

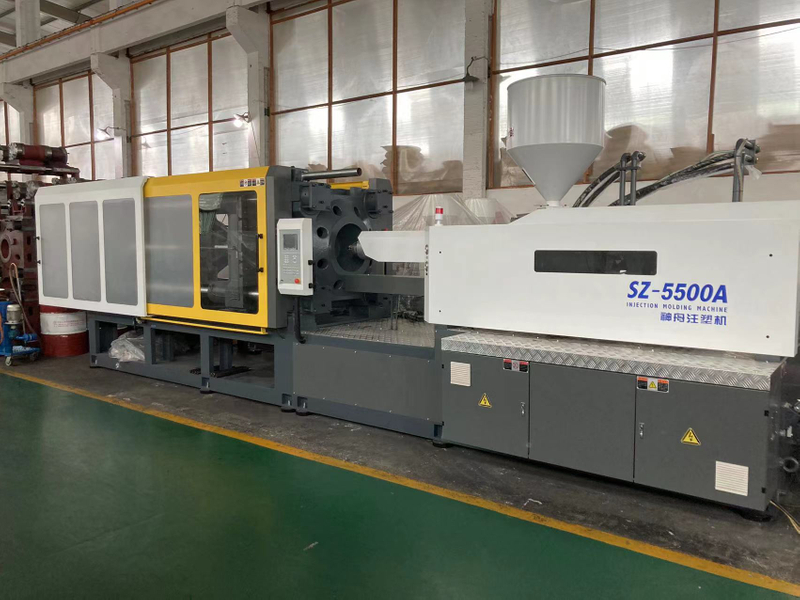

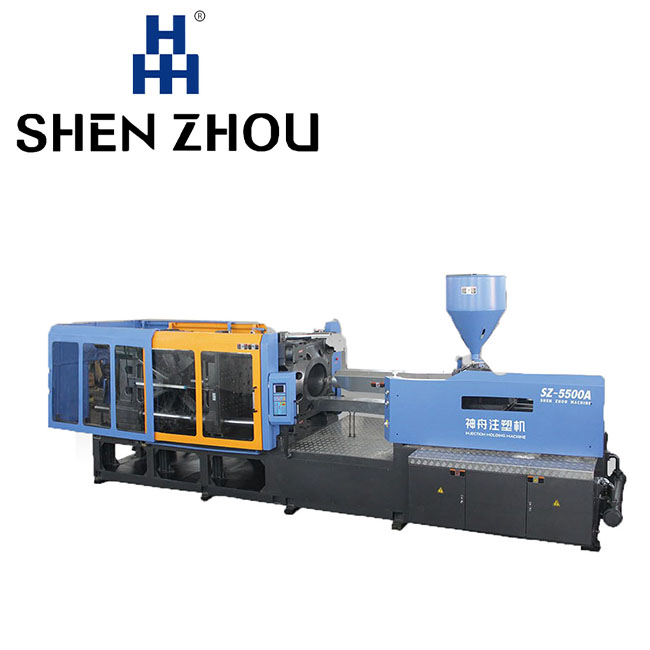

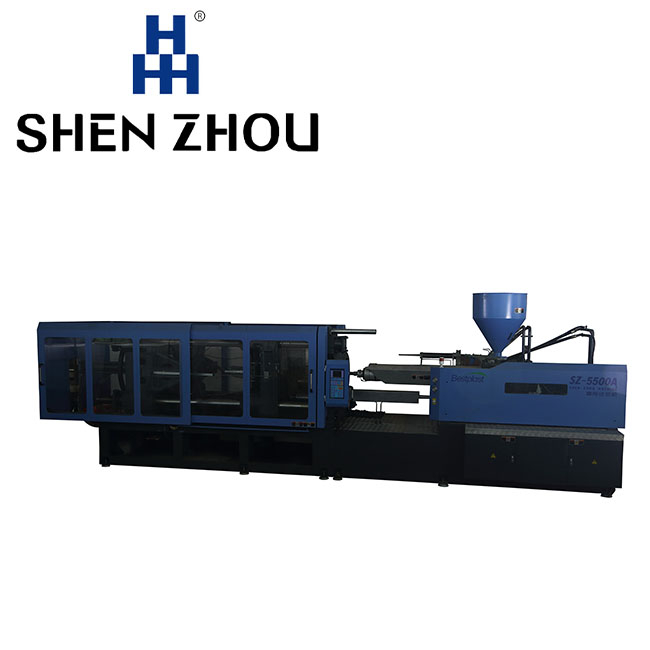

ITEM | UNIT | SZ—5500A | ||
INJECTION UNIT | ||||
SCREW DIAMETER | mm | 80 | 85 | 90 |
SCREW LID RATIO | L/D | 22.3 | 21 | 19.8 |
THEORETICAL SHOT VOLUME | CM3 | 2141 | 2418 | 2710 |
SHOT WEIGHT(PS) | g | 1948 | 2200 | 2466 |
INJECTION PRESSURE | Mpa | 188 | 167 | 149 |
THEORETICAL INJECTION RATE(PS) | g/s | 427 | 482 | 541 |
PLASTICISING CAPACITY | g/s | 80 | 100 | 118 |
SCREW TORQUE | N.m | 5170 | ||
MAX.SCREW ROTATE SPEED | r/min | 150 | ||
INJECTION STROKE | mm | 425 | ||
CLAMPING UNIT | ||||
MAX.CLAMPING FORCE K | KN | 5500 | ||
MAX.OPENING STROKE | mm | 820 | ||
SPACE BETWEEN TIE BARS | mm | 810×810 | ||
MOULD HEIGHT | mm | 350-820 | ||
MAX.DAYLIGHT | mm | 1640 | ||
EJECTOR FORCE | KN | 150 | ||
EJECTOR STROKE | mm | 210 | ||
EJECTOR QUANTITY | 13 | |||
OTHER | ||||
PUMP MOTOR POWER | KW | 55 | ||
PUMP PRESSURE | Mpa | 16 | ||
HEATING POWER | KW | 33 | ||
HEATING ZONE | 6 | |||
SIZE | m | 8.4×2.2×2.6 | ||
NET WEIGHT | t | 23.5 | ||
OIL TANK CAPACITY | L | 1000 | ||
INTERNATIONAL DESIGNATION | 5500—4040 | |||
