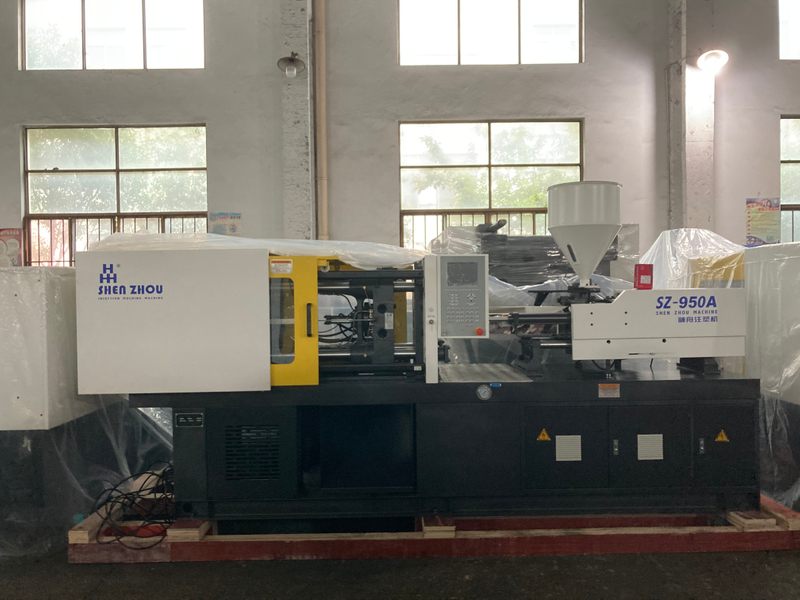

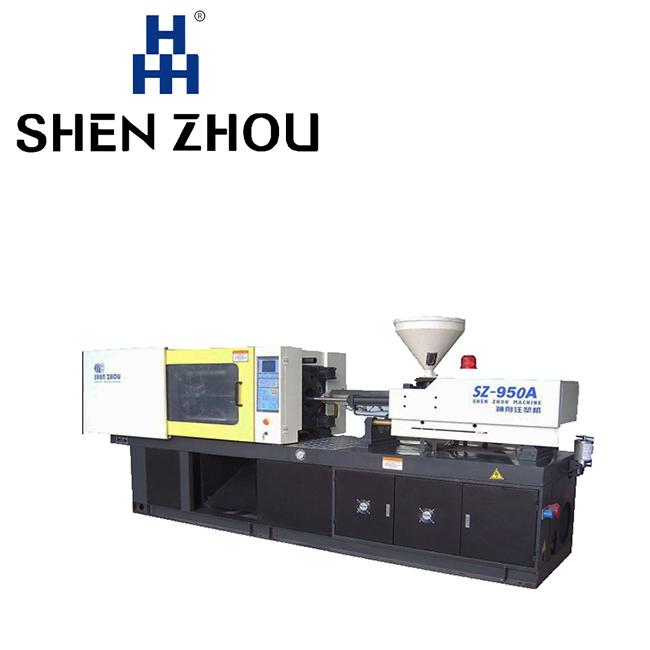

SZ—950A
SZ
ITEM | UNIT | SZ—950A | ||
INJECTION UNIT | ||||
SCREW DIAMETER | mm | 30 | 35 | 40 |
SCREW LID RATIO | L/D | 24.5 | 21 | 18.4 |
THEORETICAL SHOT VOLUME | CM3 | 113 | 154 | 201 |
SHOT WEIGHT(PS) | g | 103 | 140 | 183 |
INJECTION PRESSURE | Mpa | 249 | 183 | 140 |
THEORETICAL INJECTION RATE(PS) | g/s | 67.5 | 91.8 | 120 |
PLASTICISING CAPACITY | g/s | 8.3 | 12.5 | 18 |
SCREW TORQUE | N.m | 510 | ||
MAX.SCREW ROTATE SPEED | r/min | 260 | ||
INJECTION STROKE | mm | 160 | ||
CLAMPING UNIT | ||||
MAX.CLAMPING FORCE K | KN | 950 | ||
MAX.OPENING STROKE | mm | 340 | ||
SPACE BETWEEN TIE BARS | mm | 360×360 | ||
MOULD HEIGHT | mm | 135-380 | ||
MAX.DAYLIGHT | mm | 720 | ||
EJECTOR FORCE | KN | 25.4 | ||
EJECTOR STROKE | mm | 85 | ||
EJECTOR QUANTITY | 5 | |||
OTHER | ||||
PUMP MOTOR POWER | KW | 11 | ||
PUMP PRESSURE | Mpa | 16 | ||
HEATING POWER | KW | 7.3 | ||
HEATING ZONE | 4 | |||
SIZE | m | 4.25×1.2×1.8 | ||
NET WEIGHT | t | 3.2 | ||
OIL TANK CAPACITY | L | 260 | ||
INTERNATIONAL DESIGNATION | 950—280 | |||
