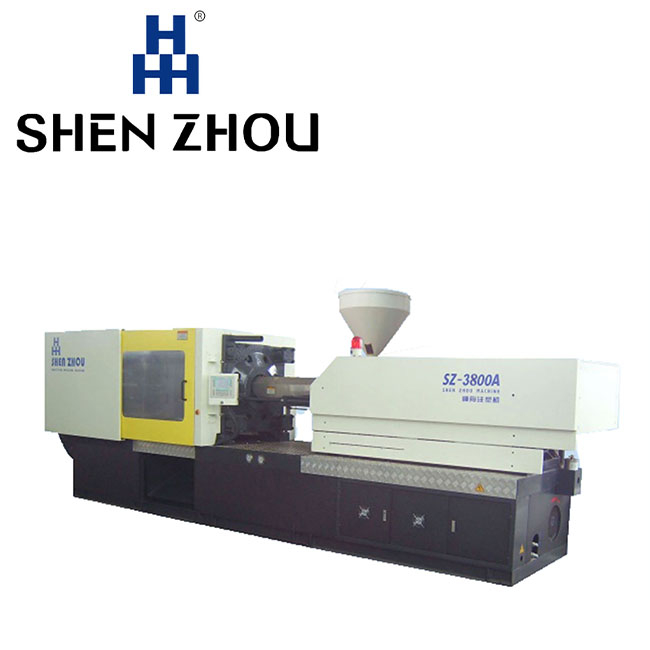

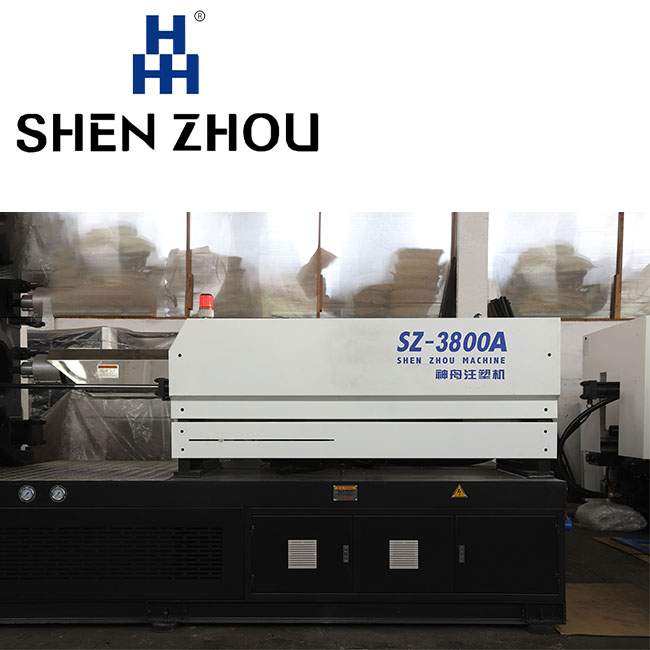

SZ—3800A
ITEM | UNIT | SZ—3800A | ||
INJECTION UNIT | ||||
SCREW DIAMETER | mm | 65 | 70 | 75 |
SCREW LID RATIO | L/D | 22.6 | 21 | 19.6 |
THEORETICAL SHOT VOLUME | CM3 | 1061 | 1231 | 1413 |
SHOT WEIGHT(PS) | g | 966 | 1120 | 1286 |
INJECTION PRESSURE | Mpa | 203 | 175 | 152 |
THEORETICAL INJECTION RATE(PS) | g/s | 308 | 357 | 410 |
PLASTICISING CAPACITY | g/s | 50.6 | 60.5 | 71.5 |
SCREW TORQUE | N.m | 2860 | ||
MAX.SCREW ROTATE SPEED | r/min | 150 | ||
INJECTION STROKE | mm | 320 | ||
CLAMPING UNIT | ||||
MAX.CLAMPING FORCE K | KN | 3800 | ||
MAX.OPENING STROKE | mm | 680 | ||
SPACE BETWEEN TIE BARS | mm | 680×680 | ||
MOULD HEIGHT | mm | 250-710 | ||
MAX.DAYLIGHT | mm | 1390 | ||
EJECTOR FORCE | KN | 90.7 | ||
EJECTOR STROKE | mm | 170 | ||
EJECTOR QUANTITY | 13 | |||
OTHER | ||||
PUMP MOTOR POWER | KW | 37 | ||
PUMP PRESSURE | Mpa | 16 | ||
HEATING POWER | KW | 25 | ||
HEATING ZONE | 5 | |||
SIZE | m | 6.8×2.0×2.3 | ||
NET WEIGHT | t | 15 | ||
OIL TANK CAPACITY | L | 820 | ||
INTERNATIONAL DESIGNATION | 3800—2150 | |||
