High Precision Flexible Customize Plastic PET Bottle Cap Making Mould

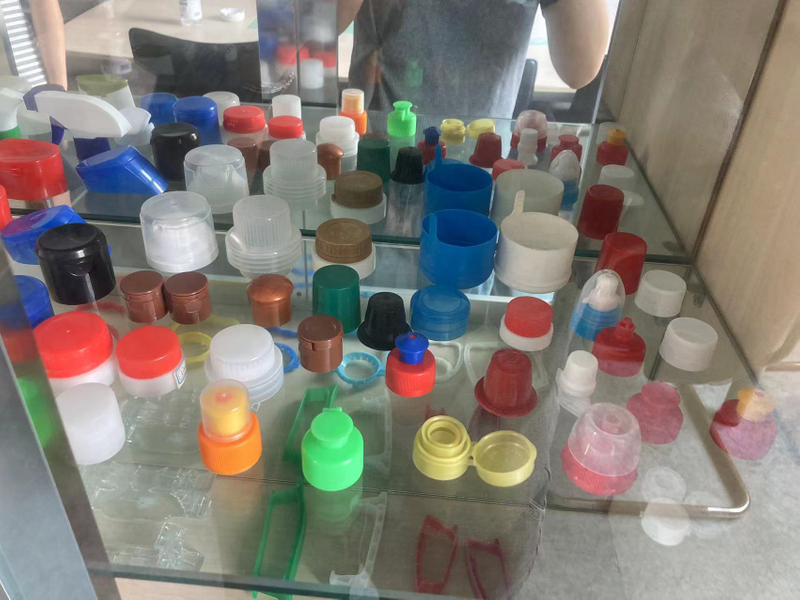

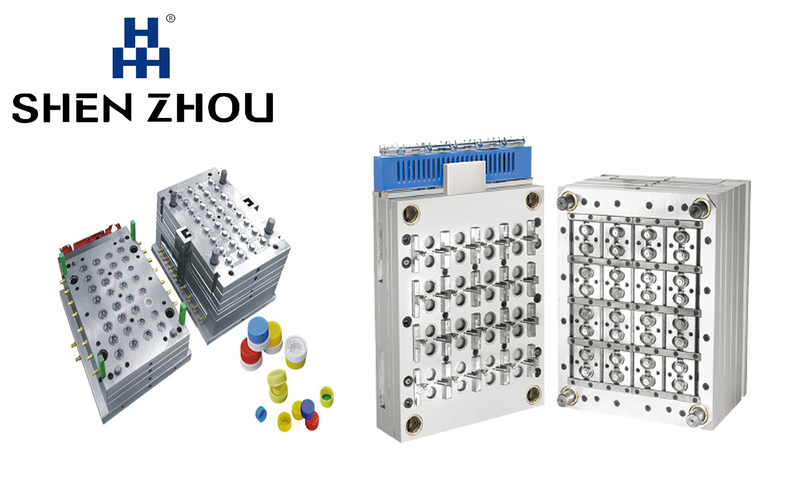

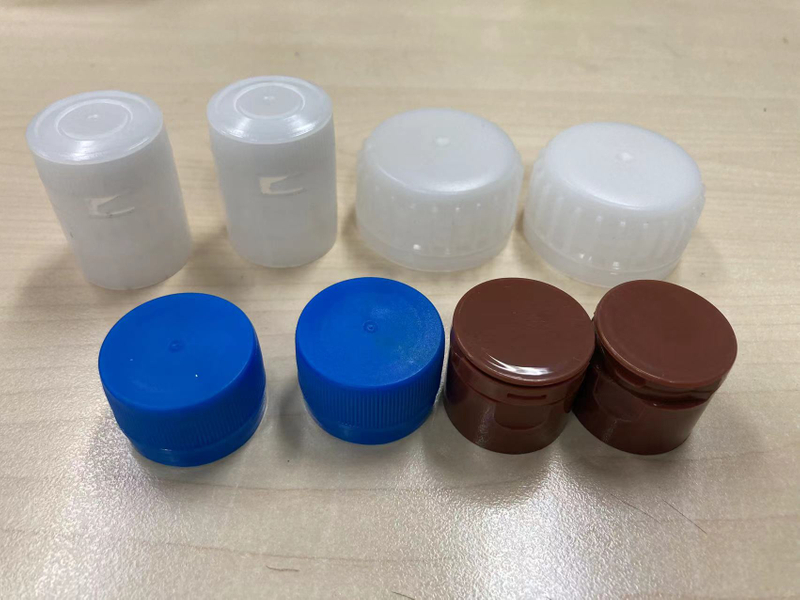

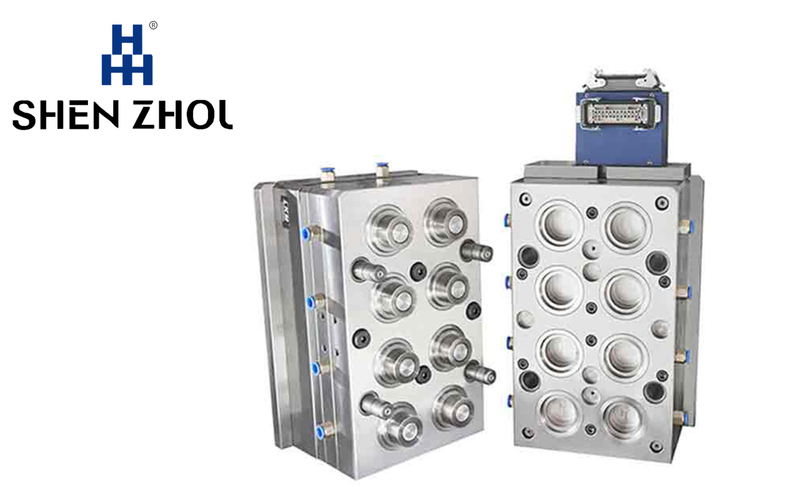

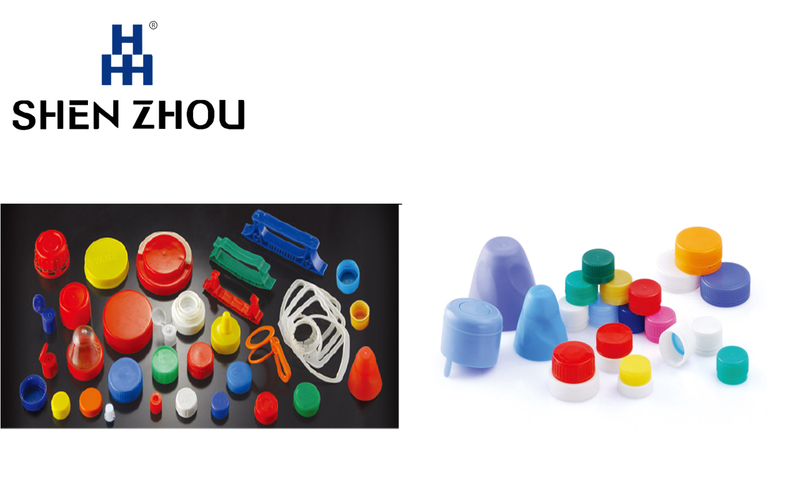

Mold Display
Customization Options: We understand that different customers may have specific requirements for their bottle caps. Our machine allows for customization options, such as interchangeable moulds, to produce caps with different colors, logos, or special features, providing flexibility in meeting unique branding or packaging needs.
项目 ITEM | 单位UNIT | SZ—2000A | |||
注射装置 INJECTION UNIT | |||||
螺杆直径 | SCREW DIAMETER | mm | 50 | 55 | 60 |
螺杆长径比 | SCREW LID RATIO | L/D | 23.1 | 21 | 19.3 |
理论注射容积 | THEORETICAL SHOT VOLUME | CM3 | 491 | 594 | 707 |
注射质量(PS料) | SHOT WEIGHT(PS) | g | 447 | 540 | 643 |
注射压力 | INJECTION PRESSURE | Mpa | 215 | 178 | 149 |
理论注射速率(PS料) | THEORETICAL INJECTION RATE(PS) | g/s | 145 | 175 | 208 |
塑化能力(PS料) | PLASTICISING CAPACITY | g/s | 22.5 | 28.7 | 35.4 |
螺杆驱动扭矩 | SCREW TORQUE | N.m | 1510 | ||
螺杆转速 | MAX.SCREW ROTATE SPEED | r/min | 170 | ||
洼射行程 | INJECTION STROKE | mm | 250 | ||
合模装置 CLAMPING UNIT | |||||
合模力 | MAX.CLAMPING FORCE K | KN | 2000 | ||
移模行程 | MAX.OPENING STROKE | mm | 500 | ||
拉杆有效间距(VxH) | SPACE BETWEEN TIE BARS | mm | 505×505 | ||
允许模厚(MIN-MAX) | MOULD HEIGHT | mm | 190-530 | ||
模板开距 | MAX.DAYLIGHT | mm | 1030 | ||
液压顶出力 | EJECTOR FORCE | KN | 53.1 | ||
液压顶出行程 | EJECTOR STROKE | mm | 125 | ||
液压顶出杆总数 | EJECTOR QUANTITY | 5 | |||
其它 OTHER | |||||
油泵电动机功率 | PUMP MOTOR POWER | KW | 18.5 | ||
油泵压力 | PUMP PRESSURE | Mpa | 16 | ||
料简加热功率 | HEATING POWER | KW | 16.6 | ||
加热区段 | HEATING ZONE | 4 | |||
机器外形(LxWxH) | SIZE | m | 5.9×1.5×2 | ||
机器净重 | NET WEIGHT | t | 6.8 | ||
油箱容积 | OIL TANK CAPACITY | L | 420 | ||
国际公认型号 | INTERNATIONAL DESIGNATION | 2000—1060 | |||
Certificate
1Q.Do you have an entity factory?
A1 Yes，We are a factory integrating industry and trade and have a whole set of production process.
Q2.How long is our delivery period?
A2 Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q3.What is the price of your injection molding machine？
A3 Our cost-effective performance is very high, the original parts of the machine are imported, wear-resistant, heat-resistant, high ductility.
Q4.How ahout your after-sales service?
A4 Our machines are guaranteed for life, if conditions permit, we will send engineers to overhaul.
