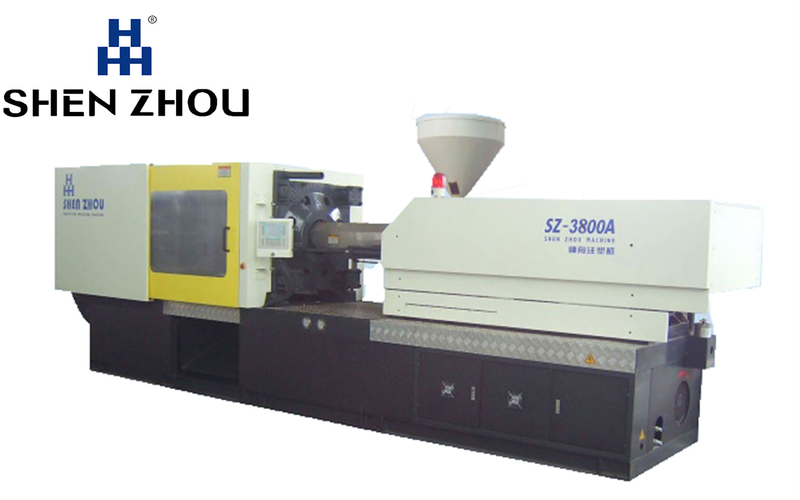

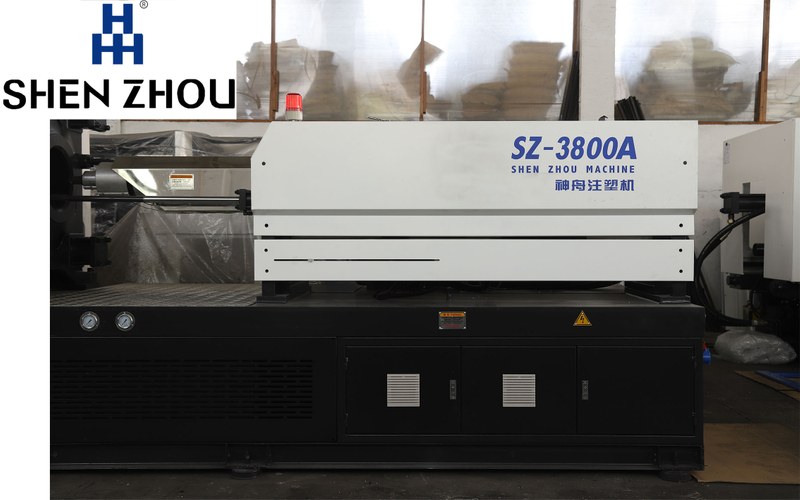

Precise Mobile Phone Servo Injection Molding Machine

1.We have many types of machines, suitable for various sizes of molds. 2.All our accessories are imported, with guaranteed quality and quantity. 3.The raw materials of the machine are excellent, with the characteristics of high ductility, wear resistance and heat resistance. 4.In the process of machine debugging, strictly control the error to ensure the efficiency of the machine. 12.We can make plans and samples according to customer requirements to meet the diverse needs of customers.

Availability:

Quantity:



Inquire Add to Basket

Model:
SZ—3800A
Brand:
SZ

clamping force:380ton ，space between tie bars:680x680mm，screw diameter:65mm--75mm

项目 ITEM		单位UNIT	SZ—3800A
注射装置 INJECTION UNIT
螺杆直径	SCREW DIAMETER	mm	65	70	75
螺杆长径比	SCREW LID RATIO	L/D	22.6	21	19.6
理论注射容积	THEORETICAL SHOT VOLUME	CM³	1061	1231	1413
注射质量(PS料)	SHOT WEIGHT(PS)	g	966	1120	1286
注射压力	INJECTION PRESSURE	Mpa	203	175	152
理论注射速率(PS料)	THEORETICAL INJECTION RATE(PS)	g/s	308	357	410
塑化能力(PS料)	PLASTICISING CAPACITY	g/s	50.6	60.5	71.5
螺杆驱动扭矩	SCREW TORQUE	N.m	2860
螺杆转速	MAX.SCREW ROTATE SPEED	r/min	150
洼射行程	INJECTION STROKE	mm	320
合模装置 CLAMPING UNIT
合模力	MAX.CLAMPING FORCE K	KN	3800
移模行程	MAX.OPENING STROKE	mm	680
拉杆有效间距(VxH)	SPACE BETWEEN TIE BARS	mm	680×680
允许模厚(MIN-MAX)	MOULD HEIGHT	mm	250-710
模板开距	MAX.DAYLIGHT	mm	1390
液压顶出力	EJECTOR FORCE	KN	90.7
液压顶出行程	EJECTOR STROKE	mm	170
液压顶出杆总数	EJECTOR QUANTITY		13
其它 OTHER
油泵电动机功率	PUMP MOTOR POWER	KW	37
油泵压力	PUMP PRESSURE	Mpa	16
料简加热功率	HEATING POWER	KW	25
加热区段	HEATING ZONE		5
机器外形(LxWxH)	SIZE	m	6.8×2.0×2.3
机器净重	NET WEIGHT	t	15
油箱容积	OIL TANK CAPACITY	L	820
国际公认型号	INTERNATIONAL DESIGNATION		3800—2150
