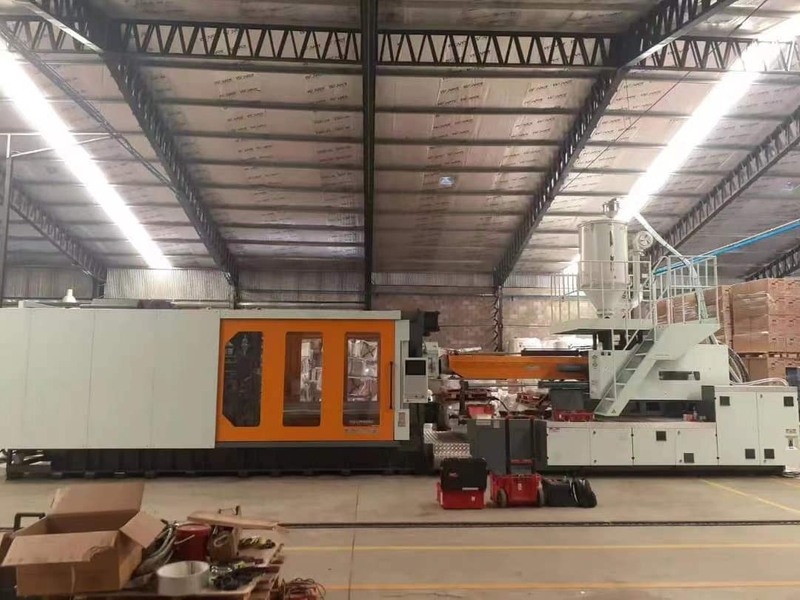

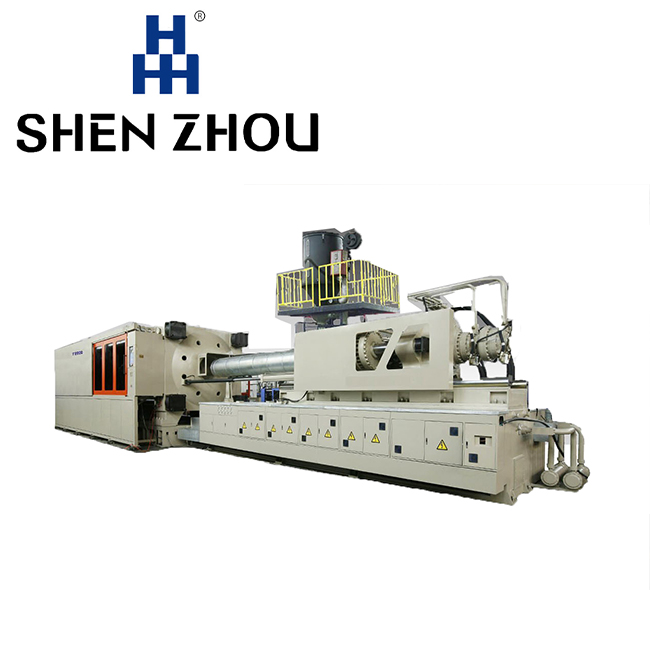

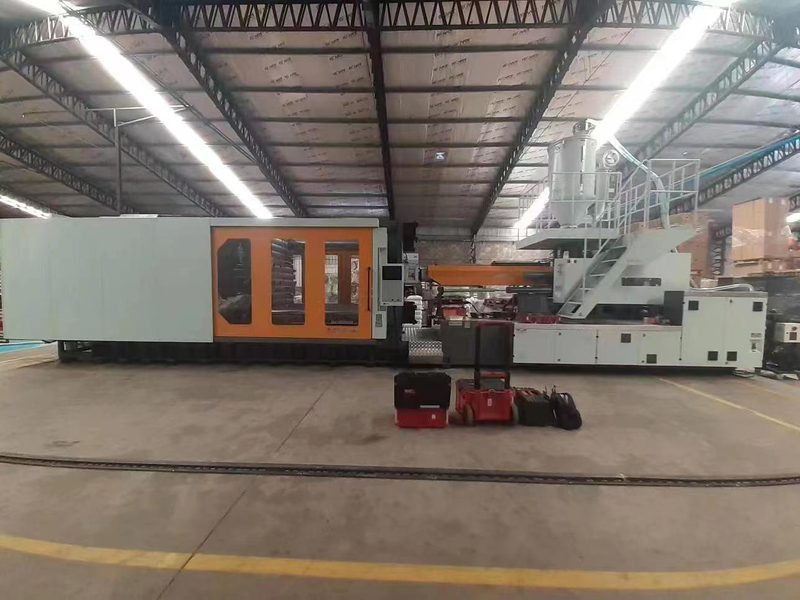

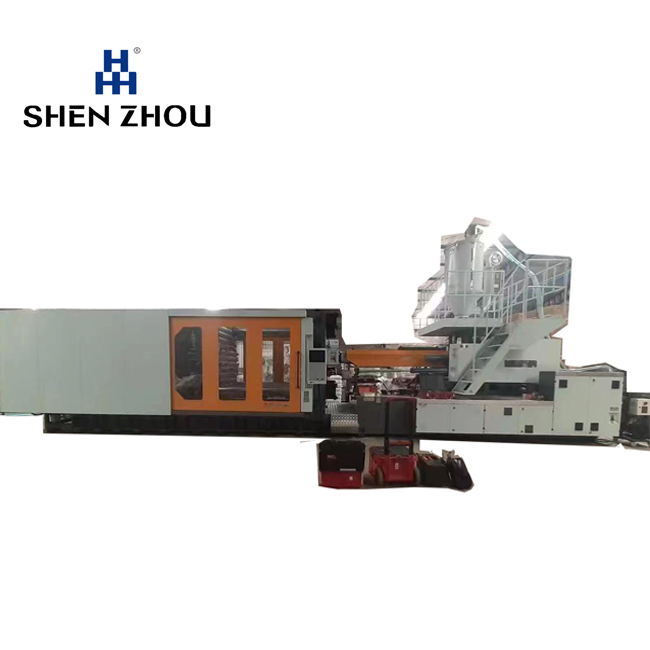

SZ—16000A Injection Molding Machine
You are here: Home » Product Category » Injection Molding Machine » Jumbo Injection Molding Machine » SZ—16000A Injection Molding Machine
Share to:

SZ—16000A Injection Molding Machine

Availability:
Quantity:

SZ—16000Injection Molding Machine Technical Parameter

机器型号Model

SZ-16000A

螺杆直径

Screw diameter

mm

135

145

螺杆长/径比

Screw L/D ratio

L/D

22

20.4

最大理论射胶容积

Max. Theoretical injection capacity

cm3

9445

10901

射胶量

Shot weight(PS)

g

8594

9920

最大射胶压力

Max. injection pressure

kg/cm2

1630

1410

最大射胶速率

Max. injection speed

g/sec

1138

1312

最大塑化能力

Max. plasticizing capacity

g/sec

150

173

螺杆行程

Screw stroke

mm

560

螺杆转速

Screw speed range

r.p.m

0-75

电热量

Heating power

Kw

100

电热控制区

Heating number

qty

8

最大锁模力

Clamping force

MT

1600

最大开模行程

Max. opening stroke

mm

1500

最小/大容模厚

Mould height

mm

600-1500

模板最大开距

Distance between mould platens

mm

3000

哥林柱内距

(水平×垂直)

space between tie bars(V×H)

mm

1500×1400

模板尺寸(宽×高)

Mould platen size(W×H)

mm

2170×2170

顶针推力/行程

Ejector force/stroke

ton/mm

30/350

顶针数量

Ejector number

pcs

1 or 29

油泵马达功率

Oil pump power

Kw

55*3

油泵最大压力

Pump P. max.

MPa

16

外型尺寸

(长×宽×高)

Machine size

(L×W×H)

m

15.3.50×4.5

净重

Net weight

ton

102

油箱容积

Oil Tank

Liter

2230
