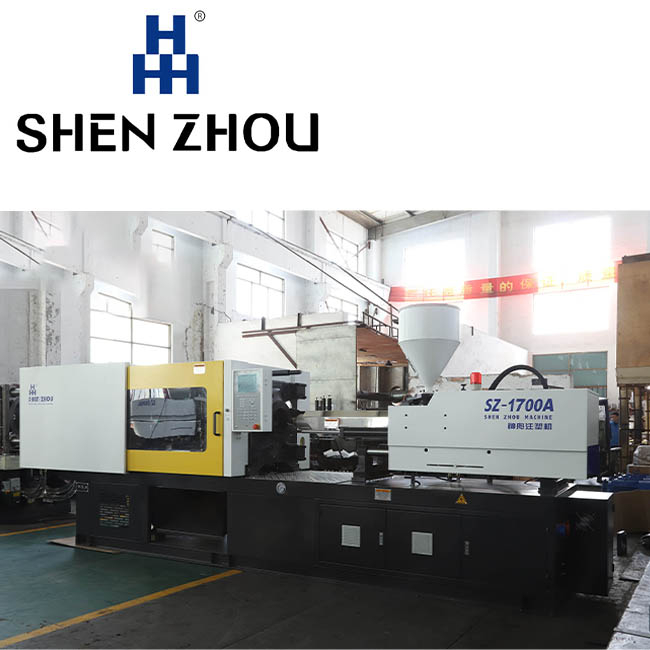

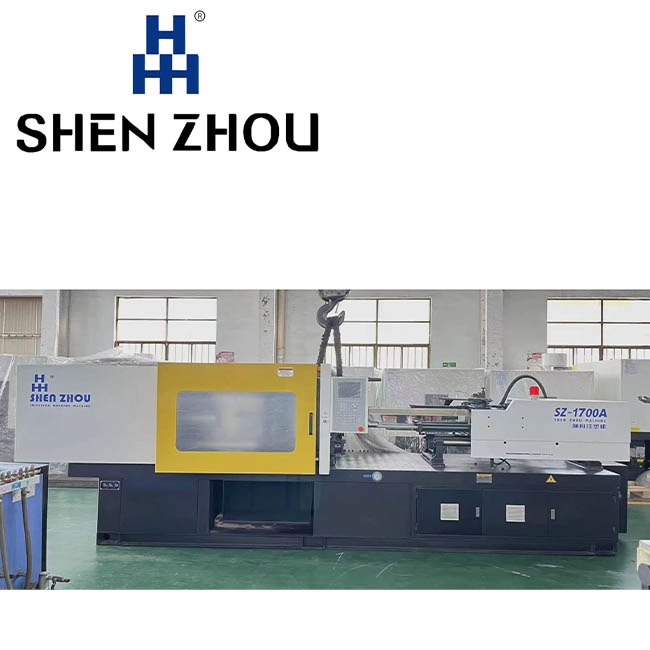

SZ—1700A Injection Molding Machine

Availability:
Quantity:

ITEM

UNIT

SZ—1700A

INJECTION UNIT

SCREW DIAMETER

mm

45

50

55

SCREW LID RATIO

L/D

23.3

21

19.1

THEORETICAL SHOT VOLUME

CM3

358

442

534

SHOT WEIGHT(PS)

g

326

402

486

INJECTION  PRESSURE

Mpa

219

178

147

THEORETICAL  INJECTION RATE(PS)

g/s

142

175

212

PLASTICISING CAPACITY

g/s

20.1

26.5

34.2

SCREW TORQUE

N.m

1250

MAX.SCREW ROTATE SPEED

r/min

200

INJECTION STROKE

mm

225

CLAMPING UNIT

MAX.CLAMPING FORCE K

KN

1700

MAX.OPENING STROKE

mm

460

SPACE BETWEEN TIE BARS

mm

480×480

MOULD HEIGHT

mm

180-500

MAX.DAYLIGHT

mm

960

EJECTOR FORCE

KN

45.2

EJECTOR STROKE

mm

115

EJECTOR QUANTITY


5

OTHER

PUMP MOTOR POWER

KW

15

PUMP PRESSURE

Mpa

16

HEATING POWER

KW

13.6

HEATING ZONE


4

SIZE

m

5.3×1.35×1.9

NET WEIGHT

t

5.6

OIL TANK CAPACITY

L

420

INTERNATIONAL DESIGNATION


1700—785


Our advantages

1.We have many types of machines, suitable for various sizes of molds.

2.All our accessories are imported, with guaranteed quality and quantity.

3.The raw materials of the machine are excellent, with the characteristics of high ductility, wear resistance and heat resistance.

4.In the process of machine debugging, strictly control the error to ensure the efficiency of the machine.

5.We can make plans and samples according to customer requirements to meet the diverse needs of customers.
