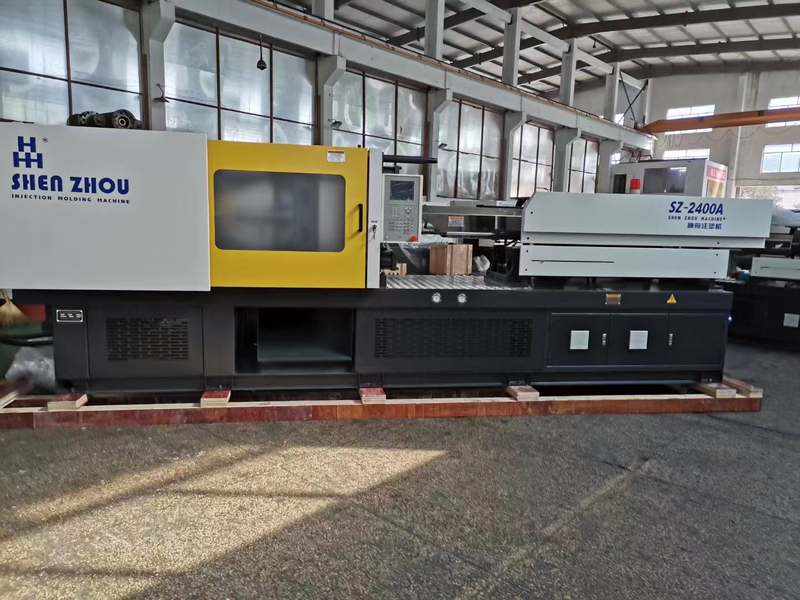

SZ—2400A Injection Molding Machine

1.We have many types of machines, suitable for various sizes of molds.
2.All our accessories are imported, with guaranteed quality and quantity.
3.The raw materials of the machine are excellent, with the characteristics of high ductility, wear resistance and heat resistance.
4.In the process of machine debugging, strictly control the error to ensure the efficiency of the machine.
5.We can make plans and samples according to customer requirements to meet the diverse needs of customers.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SZ—2400A

  • SZ

 ITEM

UNIT

SZ—2400A

 INJECTION UNIT



SCREW DIAMETER

mm

55

60

65

SCREW LID RATIO

L/D

22.9

21

19.4

THEORETICAL SHOT VOLUME

CM3

665

791

929

SHOT WEIGHT(PS)

g

605

720

845

INJECTION  PRESSURE

Mpa

210

176

150

THEORETICAL  INJECTION RATE(PS)

g/s

176.5

210

245

PLASTICISING CAPACITY

g/s

26.4

32.5

40

SCREW TORQUE

N.m

2000

MAX.SCREW ROTATE SPEED

r/min

150

INJECTION STROKE

mm

280

CLAMPING UNIT


MAX.CLAMPING FORCE K

KN

2400

MAX.OPENING STROKE

mm

530

SPACE BETWEEN TIE BARS

mm

555×555

MOULD HEIGHT

mm

200-570

MAX.DAYLIGHT

mm

1100

EJECTOR FORCE

KN

61.5

EJECTOR STROKE

mm

135

EJECTOR QUANTITY


9

OTHER


PUMP MOTOR POWER

KW

22

PUMP PRESSURE

Mpa

16

HEATING POWER

KW

18.5

HEATING ZONE


5

SIZE

m

6.2×1.6×2.1

NET WEIGHT

t

8.0

OIL TANK CAPACITY

L

440

INTERNATIONAL DESIGNATION


2400—1390
