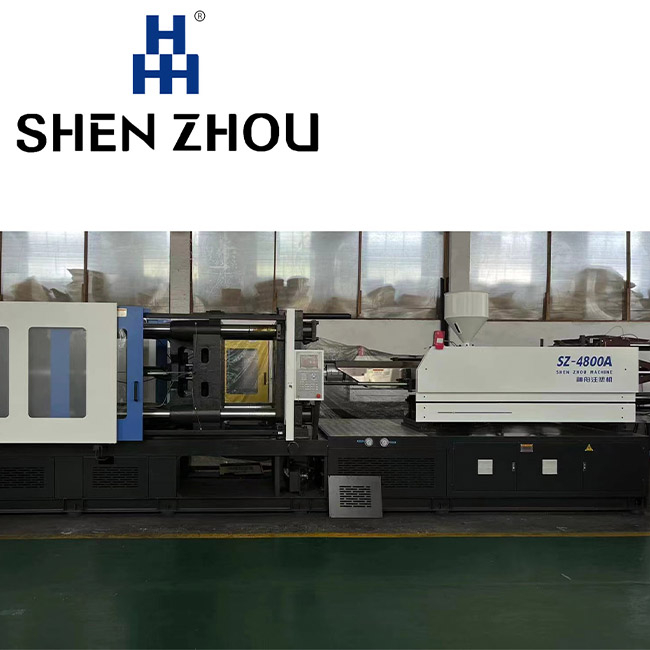

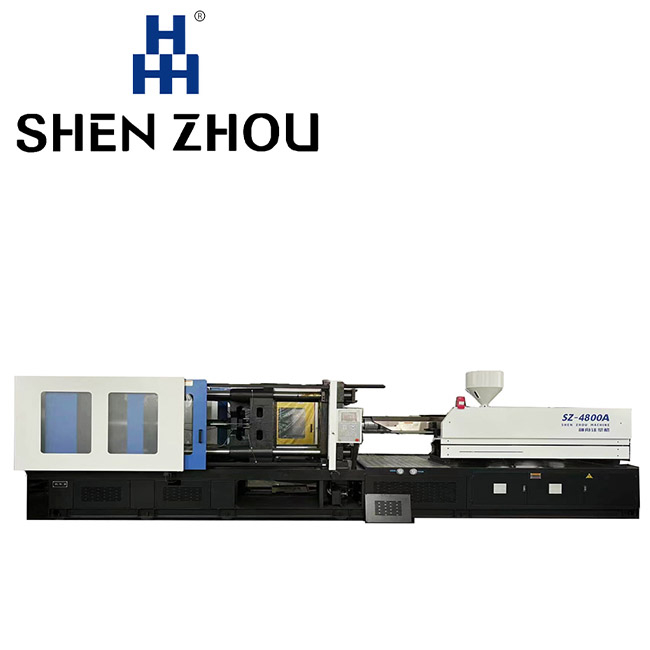

SZ—4800A Injection Molding Machine

ITEM	UNIT	SZ—4800A
INJECTION UNIT
SCREW DIAMETER	mm		70	75	80
SCREW LID RATIO	L/D		22.6	21	19.7
THEORETICAL SHOT VOLUME	CM³		1346	1545	1758
SHOT WEIGHT(PS)	g		1225	1406	1600
INJECTION PRESSURE	Mpa		201	175	154
THEORETICAL INJECTION RATE(PS)	g/s		370	423	484
PLASTICISING CAPACITY	g/s		60.4	71.4	83.7
SCREW TORQUE	N.m		3490
MAX.SCREW ROTATE SPEED	r/min		150
INJECTION STROKE	mm		350
CLAMPING UNIT
MAX.CLAMPING FORCE K	KN		4800
MAX.OPENING STROKE	mm		770
SPACE BETWEEN TIE BARS	mm		760×760
MOULD HEIGHT	mm		280-790
MAX.DAYLIGHT	mm		1560
EJECTOR FORCE	KN		113.4
EJECTOR STROKE	mm		195
EJECTOR QUANTITY			13
OTHER
PUMP MOTOR POWER	KW		45
PUMP PRESSURE	Mpa		16
HEATING POWER	KW	28
HEATING ZONE		5
SIZE	m	7.5×2.1×2.45
NET WEIGHT	t	20
OIL TANK CAPACITY	L	850
INTERNATIONAL DESIGNATION		4800—2710
