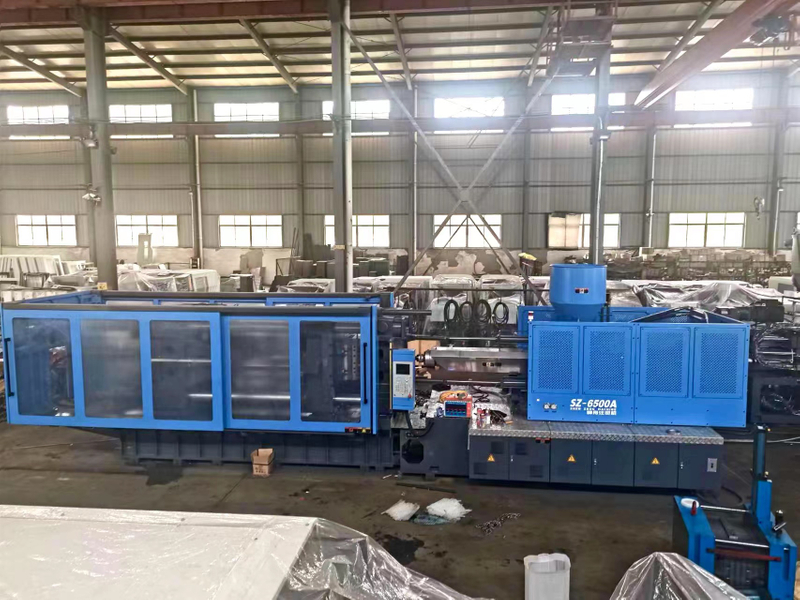

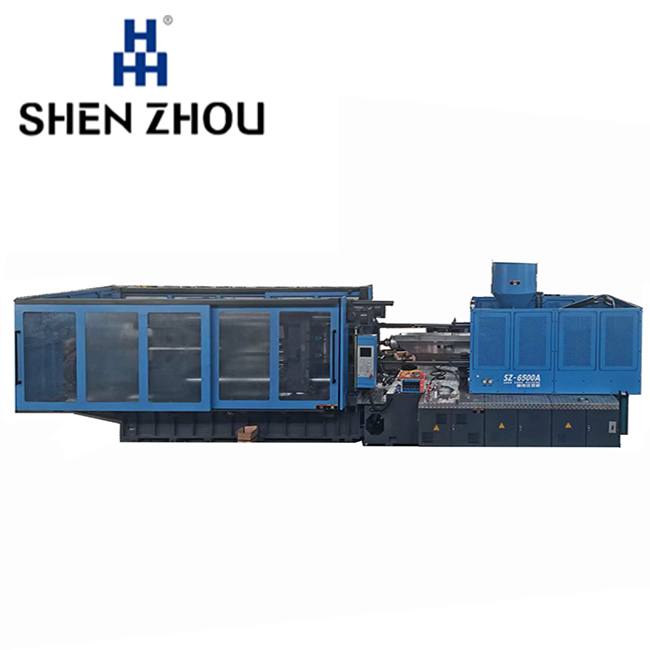

ITEM | UNIT | SZ—6500A | |||
INJECTION UNIT | |||||
SCREW DIAMETER | mm | 85 | 90 | 95 | 100 |
SCREW LID RATIO | L/D | 22.3 | 21 | 19.9 | 18.9 |
THEORETICAL SHOT VOLUME | CM3 | 2298 | 2576 | 2870 | 3181 |
SHOT WEIGHT(PS) | g | 2091 | 2344 | 2611 | 2895 |
INJECTION PRESSURE | Mpa | 206 | 184 | 164 | 149 |
THEORETICAL INJECTION RATE(PS) | g/s | 400 | 448 | 499 | 553 |
PLASTICISING CAPACITY | g/s | 60 | 75 | 85 | 100 |
SCREW TORQUE | N.m | 6580 | |||
MAX.SCREW ROTATE SPEED | r/min | 125 | |||
INJECTION STROKE | mm | 405 | |||
CLAMPING UNIT | |||||
MAX.CLAMPING FORCE K | KN | 6500 | |||
MAX.OPENING STROKE | mm | 870 | |||
SPACE BETWEEN TIE BARS | mm | 850×850 | |||
MOULD HEIGHT | mm | 350-900 | |||
MAX.DAYLIGHT | mm | 1770 | |||
EJECTOR FORCE | KN | 200 | |||
EJECTOR STROKE | mm | 260 | |||
EJECTOR QUANTITY | 17 | ||||
OTHER | |||||
PUMP MOTOR POWER | KW | 55 | |||
PUMP PRESSURE | Mpa | 16 | |||
HEATING POWER | KW | 37.15 | |||
HEATING ZONE | 6 | ||||
SIZE | m | 9.3×2.3×2.7 | |||
NET WEIGHT | t | 32 | |||
OIL TANK CAPACITY | L | 1200 | |||
INTERNATIONAL DESIGNATION | 6300—4710 |
The screw diameter of 7500 injection molding machine reaches 90-105mm, and the maximum theoretical injection volume reaches 3894m ³, The clamping force has reached an amazing 7500KN. It can be used to produce plastic chairs, water meter frames, fruit baskets and other large plastic products |
ITEM | UNIT | SZ—6500A | |||
INJECTION UNIT | |||||
SCREW DIAMETER | mm | 85 | 90 | 95 | 100 |
SCREW LID RATIO | L/D | 22.3 | 21 | 19.9 | 18.9 |
THEORETICAL SHOT VOLUME | CM3 | 2298 | 2576 | 2870 | 3181 |
SHOT WEIGHT(PS) | g | 2091 | 2344 | 2611 | 2895 |
INJECTION PRESSURE | Mpa | 206 | 184 | 164 | 149 |
THEORETICAL INJECTION RATE(PS) | g/s | 400 | 448 | 499 | 553 |
PLASTICISING CAPACITY | g/s | 60 | 75 | 85 | 100 |
SCREW TORQUE | N.m | 6580 | |||
MAX.SCREW ROTATE SPEED | r/min | 125 | |||
INJECTION STROKE | mm | 405 | |||
CLAMPING UNIT | |||||
MAX.CLAMPING FORCE K | KN | 6500 | |||
MAX.OPENING STROKE | mm | 870 | |||
SPACE BETWEEN TIE BARS | mm | 850×850 | |||
MOULD HEIGHT | mm | 350-900 | |||
MAX.DAYLIGHT | mm | 1770 | |||
EJECTOR FORCE | KN | 200 | |||
EJECTOR STROKE | mm | 260 | |||
EJECTOR QUANTITY | 17 | ||||
OTHER | |||||
PUMP MOTOR POWER | KW | 55 | |||
PUMP PRESSURE | Mpa | 16 | |||
HEATING POWER | KW | 37.15 | |||
HEATING ZONE | 6 | ||||
SIZE | m | 9.3×2.3×2.7 | |||
NET WEIGHT | t | 32 | |||
OIL TANK CAPACITY | L | 1200 | |||
INTERNATIONAL DESIGNATION | 6300—4710 |
The screw diameter of 7500 injection molding machine reaches 90-105mm, and the maximum theoretical injection volume reaches 3894m ³, The clamping force has reached an amazing 7500KN. It can be used to produce plastic chairs, water meter frames, fruit baskets and other large plastic products |
1.We have many types of machines, suitable for various sizes of molds.
2.All our accessories are imported, with guaranteed quality and quantity.
3.The raw materials of the machine are excellent, with the characteristics of high ductility, wear resistance and heat resistance.
4.In the process of machine debugging, strictly control the error to ensure the efficiency of the machine.
5.We can make plans and samples according to customer requirements to meet the diverse needs of customers.
