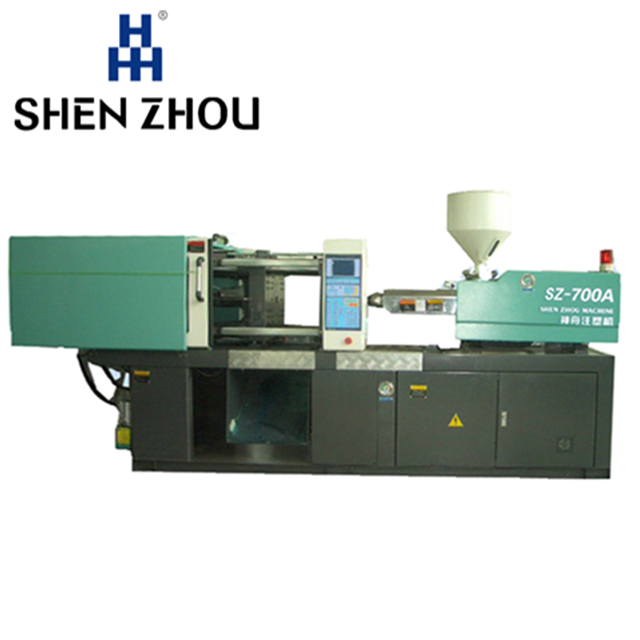

SZ—700A injection molding machine
You are here: Home » Product Category » Injection Molding Machine » Servo Injection Molding Machine » SZ—700A injection molding machine
Share to:

SZ—700A injection molding machine

1.We have many types of machines, suitable for various sizes of molds.
2.All our accessories are imported, with guaranteed quality and quantity.
3.The raw materials of the machine are excellent, with the characteristics of high ductility, wear resistance and heat resistance.
4.In the process of machine debugging, strictly control the error to ensure the efficiency of the machine.
5.We can make plans and samples according to customer requirements to meet the diverse needs of customers.
Availability:
Quantity:
  • SZ—700A
  • SZ

ITEM

UNIT

SZ—700A

INJECTION UNIT



SCREW DIAMETER

mm

32

35

38

SCREW LID RATIO

L/D

20

18.5

17.8

THEORETICAL SHOT VOLUME

CM3

112.5

135

158.6

SHOT WEIGHT(PS)

g

101

121

142

INJECTION PRESSURE

Mpa

203

170

114

THEORETICAL  INJECTION RATE(PS)

g/s

62

72

84

PLASTICISING CAPACITY

g/s

11

12

14

SCREW TORQUE

N.m

390

MAX.SCREW ROTATE SPEED

r/min

200

INJECTION STROKE

mm

140

CLAMPING UNIT


MAX.CLAMPING FORCE K

KN

700

MAX.OPENING STROKE

mm

290

SPACE BETWEEN TIE BARS

mm

320×320

MOULD HEIGHT

mm

100-320

MAX.DAYLIGHT

mm

610

EJECTOR FORCE

KN

27

EJECTOR STROKE

mm

60

EJECTOR QUANTITY


1

OTHER


PUMP MOTOR POWER

KW

9

PUMP PRESSURE

Mpa

14

HEATING POWER

KW

6.2

HEATING ZONE


4

SIZE

m

3.6×1.2×1.6

NET WEIGHT

t

2.7

OIL TANK CAPACITY

L

250

INTERNATIONAL DESIGNATION


700—210
