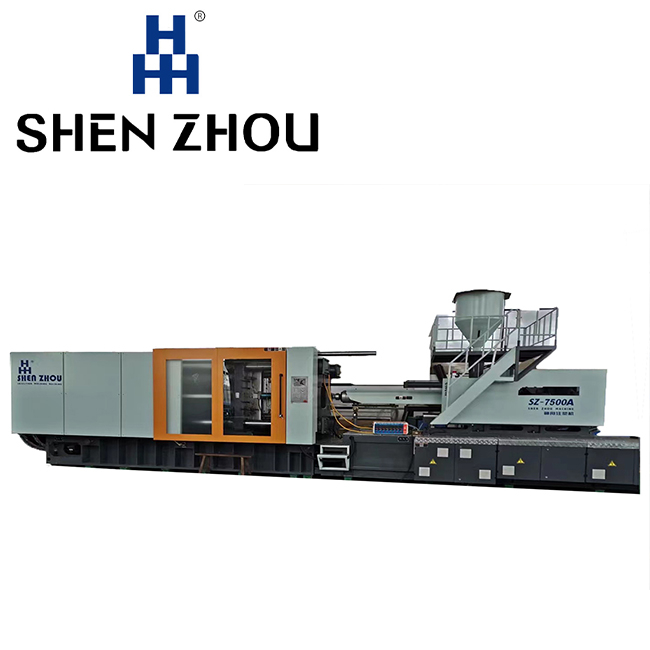

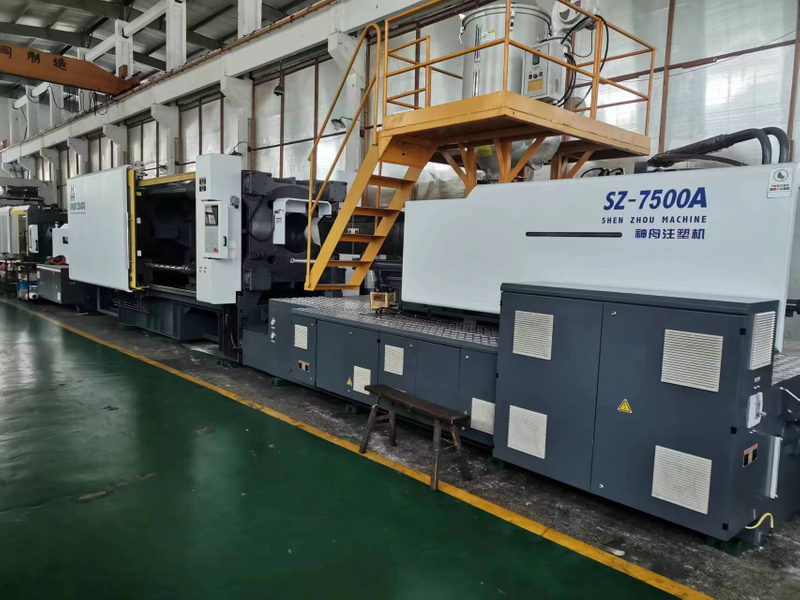

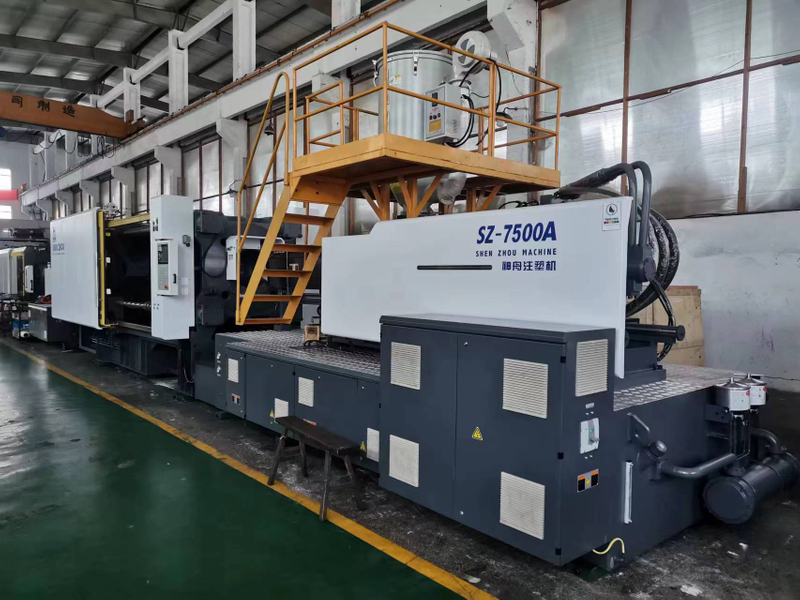

ITEM | UNIT | SZ—7500A | ||
INJECTION UNIT | ||||
SCREW DIAMETER | mm | 90 | 95 | 105 |
SCREW LID RATIO | L/D | 23.2 | 22 | 19.9 |
THEORETICAL SHOT VOLUME | CM3 | 2861 | 3188 | 3894 |
SHOT WEIGHT(PS) | g | 2603 | 2901 | 3543 |
INJECTION PRESSURE | Mpa | 195 | 175 | 143 |
THEORETICAL INJECTION RATE(PS) | g/s | 560 | 610 | 700 |
PLASTICISING CAPACITY | g/s | 85 | 100 | 110 |
SCREW TORQUE | N.m | 7180 | ||
MAX.SCREW ROTATE SPEED | r/min | 130 | ||
INJECTION STROKE | mm | 450 | ||
CLAMPING UNIT | ||||
MAX.CLAMPING FORCE K | KN | 7500 | ||
MAX.OPENING STROKE | mm | 950 | ||
SPACE BETWEEN TIE BARS | mm | 950×950 | ||
MOULD HEIGHT | mm | 400-960 | ||
MAX.DAYLIGHT | mm | 1910 | ||
EJECTOR FORCE | KN | 200 | ||
EJECTOR STROKE | mm | 280 | ||
EJECTOR QUANTITY | 17 | |||
OTHER | ||||
PUMP MOTOR POWER | KW | 67 | ||
PUMP PRESSURE | Mpa | 16 | ||
HEATING POWER | KW | 46.45 | ||
HEATING ZONE | 6 | |||
SIZE | m | 10.1×2.6×2.8 | ||
NET WEIGHT | t | 40 | ||
OIL TANK CAPACITY | L | 1500 | ||
INTERNATIONAL DESIGNATION | 7500—5580 | |||
