Description
Product Description
|
项目 ITEM
|
单位UNIT
|
SZ—3000A
|
|||||||
|
注射装置 INJECTION UNIT
|
|||||||||
|
螺杆直径
|
SCREW DIAMETER
|
mm
|
60
|
65
|
70
|
||||
|
螺杆长径比
|
SCREW LID RATIO
|
L/D
|
22.7
|
21
|
19.5
|
||||
|
理论注射容积
|
THEORETICAL SHOT VOLUME
|
CM3
|
848
|
995
|
1154
|
||||
|
注射质量(PS料)
|
SHOT WEIGHT(PS)
|
g
|
772
|
905
|
1050
|
||||
|
注射压力
|
INJECTION PRESSURE
|
Mpa
|
207
|
176
|
152
|
||||
|
理论注射速率(PS料)
|
THEORETICAL INJECTION RATE(PS)
|
g/s
|
241
|
283
|
328
|
||||
|
塑化能力(PS料)
|
PLASTICISING CAPACITY
|
g/s
|
35.2
|
43.3
|
51.8
|
||||
|
螺杆驱动扭矩
|
SCREW TORQUE
|
N.m
|
2530
|
||||||
|
螺杆最高转速
|
MAX.SCREW ROTATE SPEED
|
r/min
|
150
|
||||||
|
洼射行程
|
INJECTION STROKE
|
mm
|
300
|
||||||
|
合模装置 CLAMPING UNIT
|
|||||||||
|
合模力
|
MAX.CLAMPING FORCE K
|
KN
|
3000
|
||||||
|
移模行程
|
MAX.OPENING STROKE
|
mm
|
590
|
||||||
|
拉杆有效间距(VxH)
|
SPACE BETWEEN TIE BARS
|
mm
|
610×610
|
||||||
|
允许模厚(MIN-MAX)
|
MOULD HEIGHT
|
mm
|
220-630
|
||||||
|
模板最大开距
|
MAX.DAYLIGHT
|
mm
|
1220
|
||||||
|
液压顶出力
|
EJECTOR FORCE
|
KN
|
70.6
|
||||||
|
液压顶出行程
|
EJECTOR STROKE
|
mm
|
150
|
||||||
|
液压顶出杆总数
|
EJECTOR QUANTITY
|
9
|
|||||||
|
其它 OTHER
|
|||||||||
|
油泵电动机功率
|
PUMP MOTOR POWER
|
KW
|
30
|
||||||
|
油泵最高压力
|
PUMP PRESSURE
|
Mpa
|
16
|
||||||
|
料简加热功率
|
HEATING POWER
|
KW
|
22
|
||||||
|
加热区段
|
HEATING ZONE
|
5
|
|||||||
|
机器外形(LxWxH)
|
SIZE
|
m
|
6.7×1.75×2.25
|
||||||
|
机器净重
|
NET WEIGHT
|
t
|
11
|
||||||
|
油箱容积
|
OIL TANK CAPACITY
|
L
|
560
|
||||||
|
国际公认型号
|
INTERNATIONAL DESIGNATION
|
3000—1750
|
|||||||
Plastic Injection Molding Machine

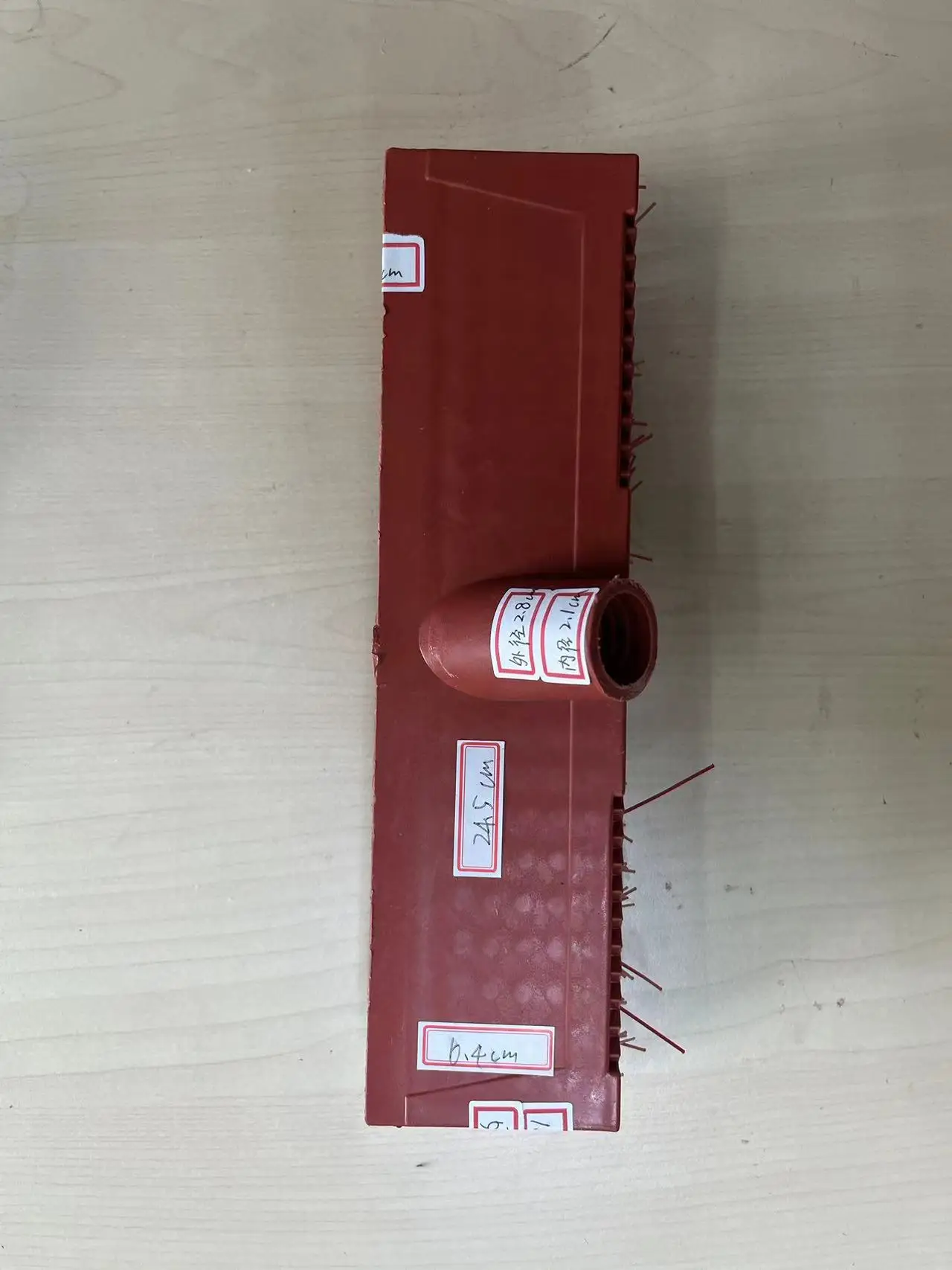

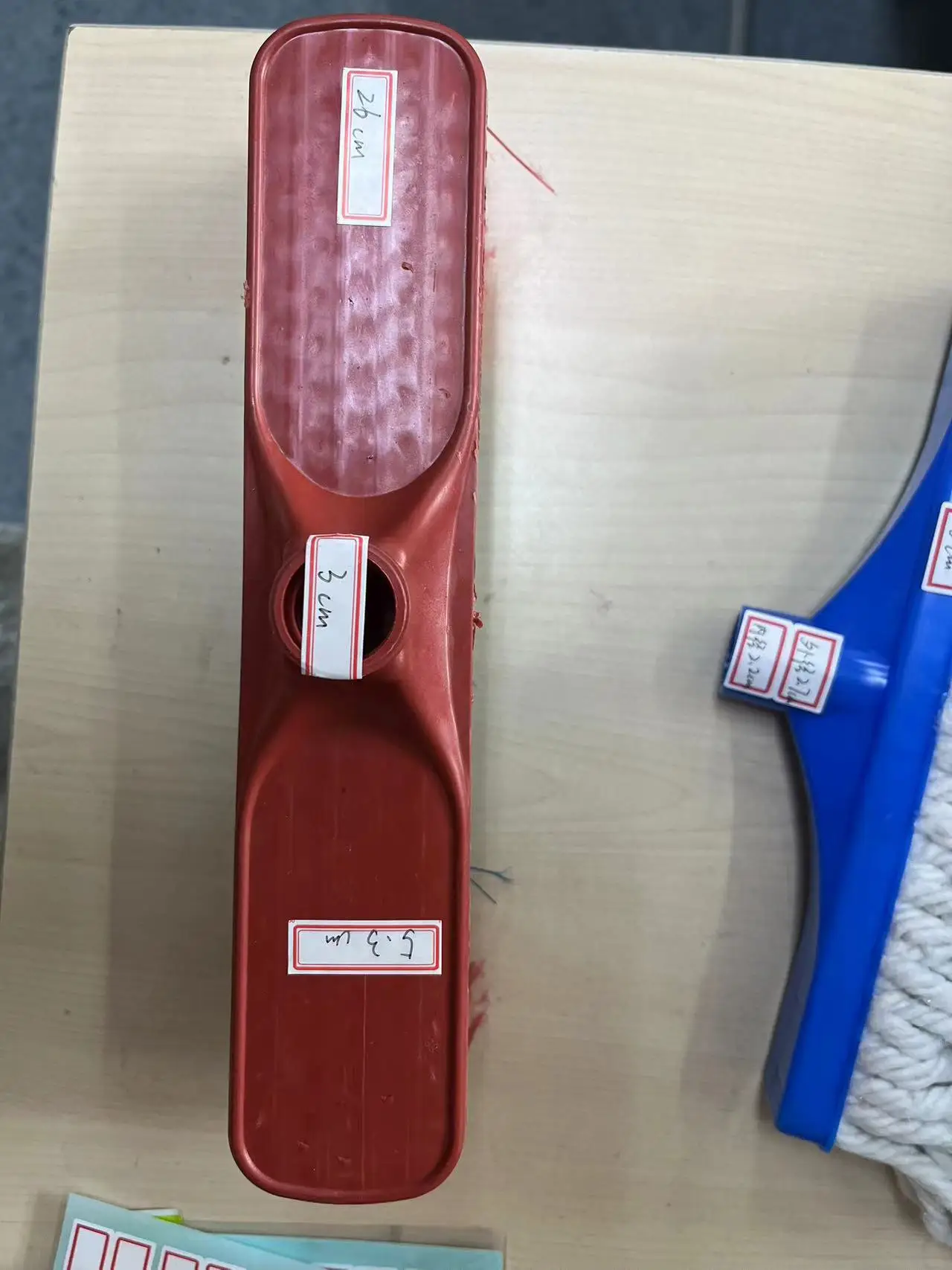

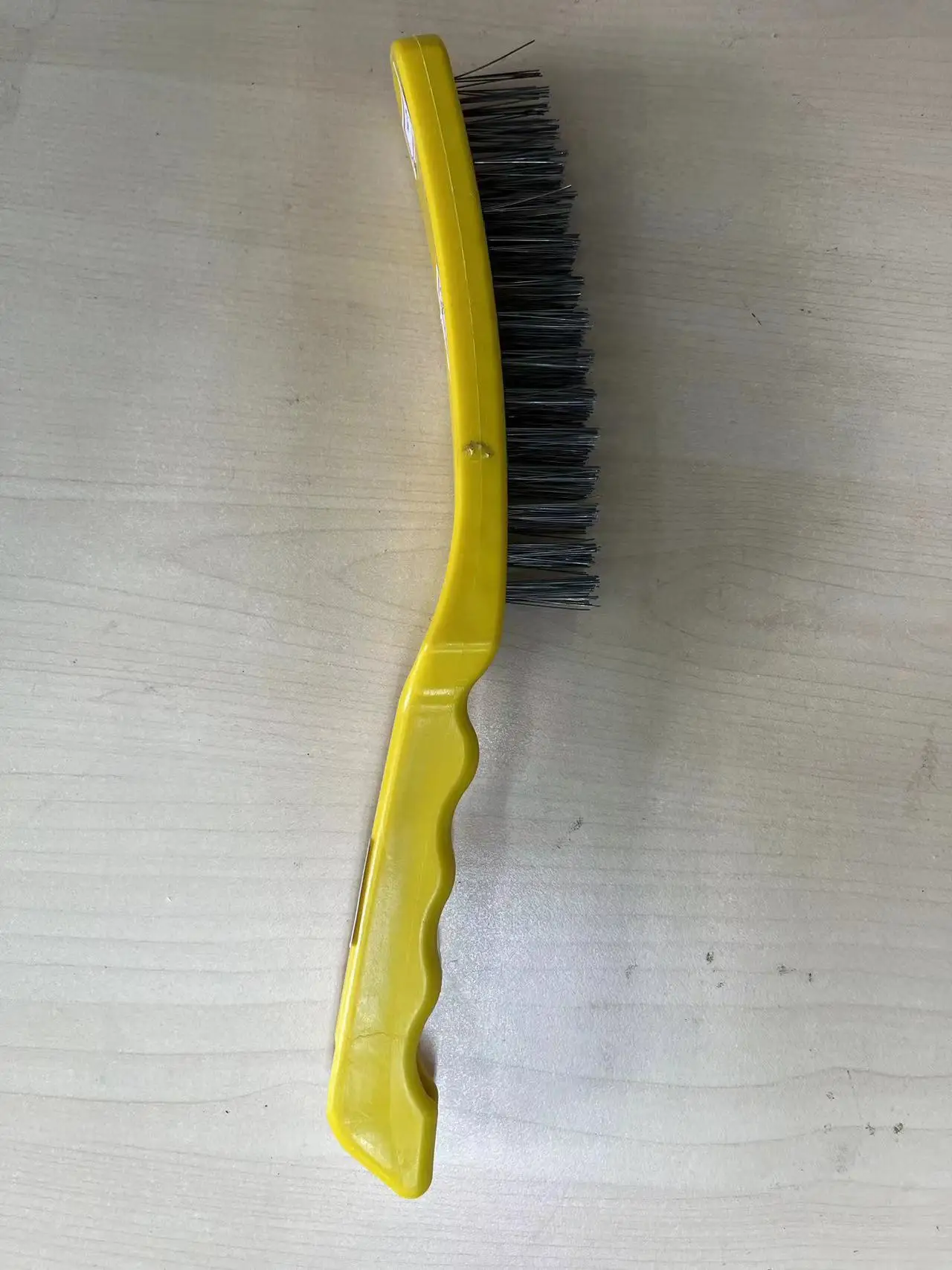

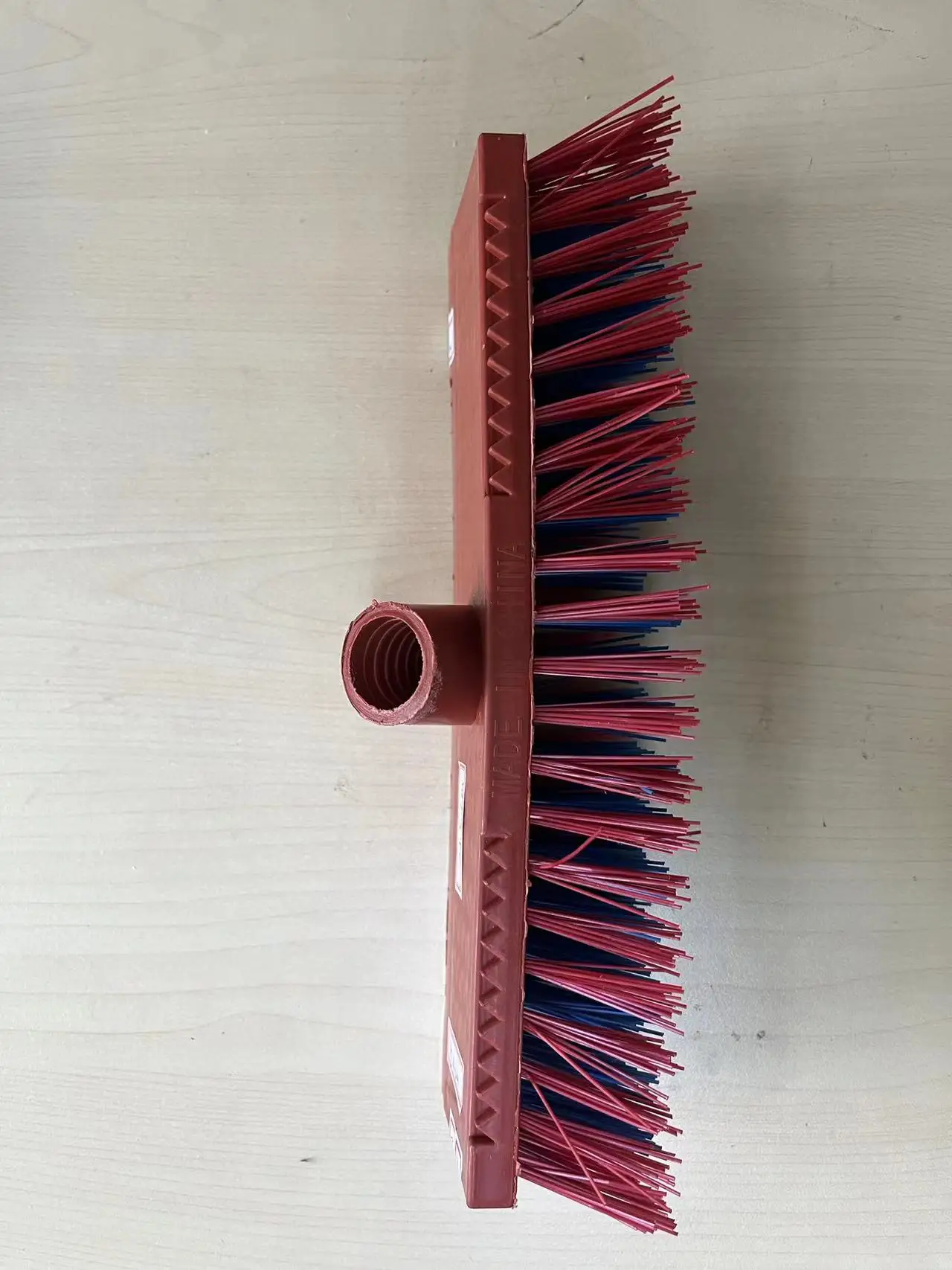

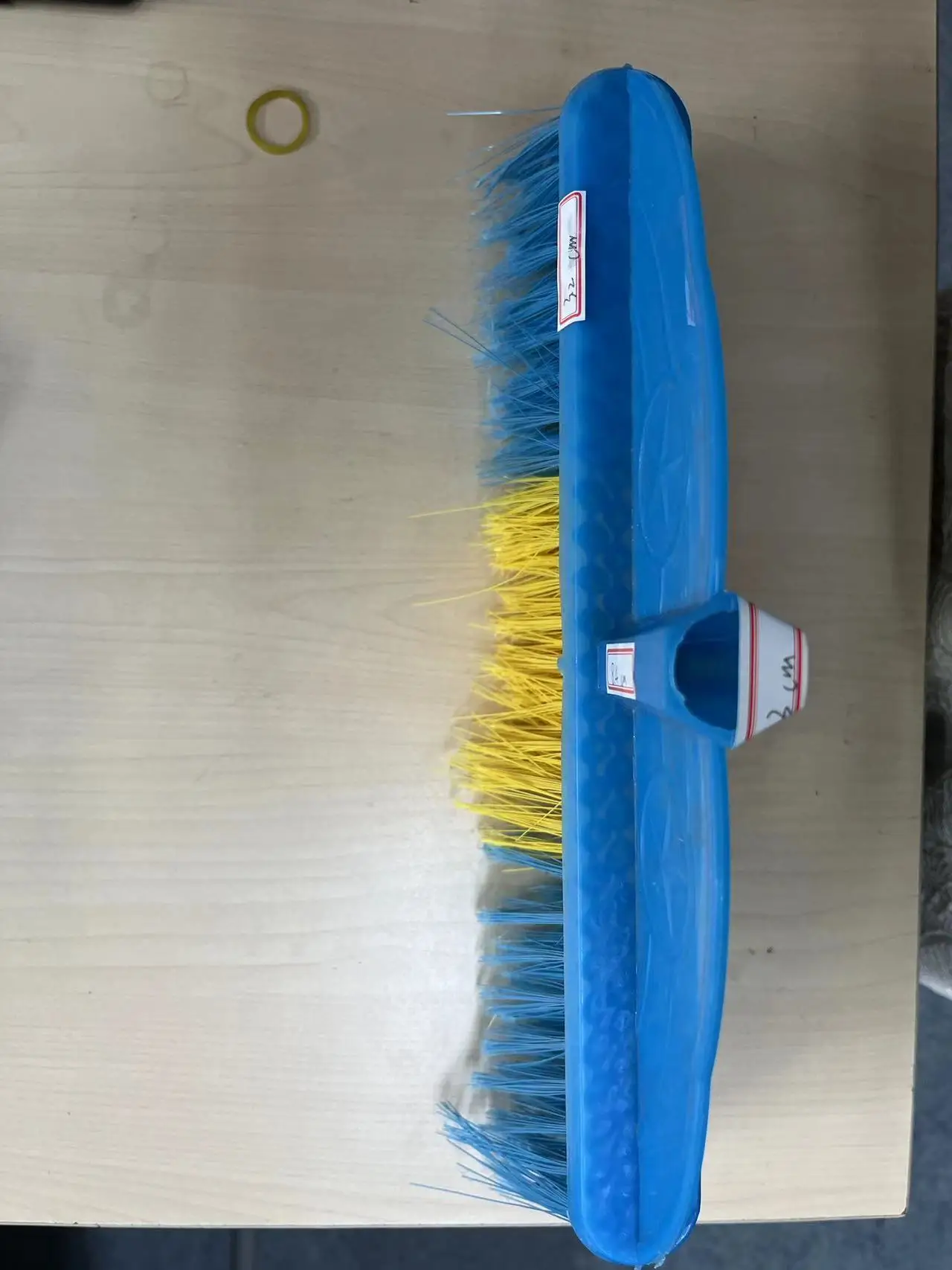

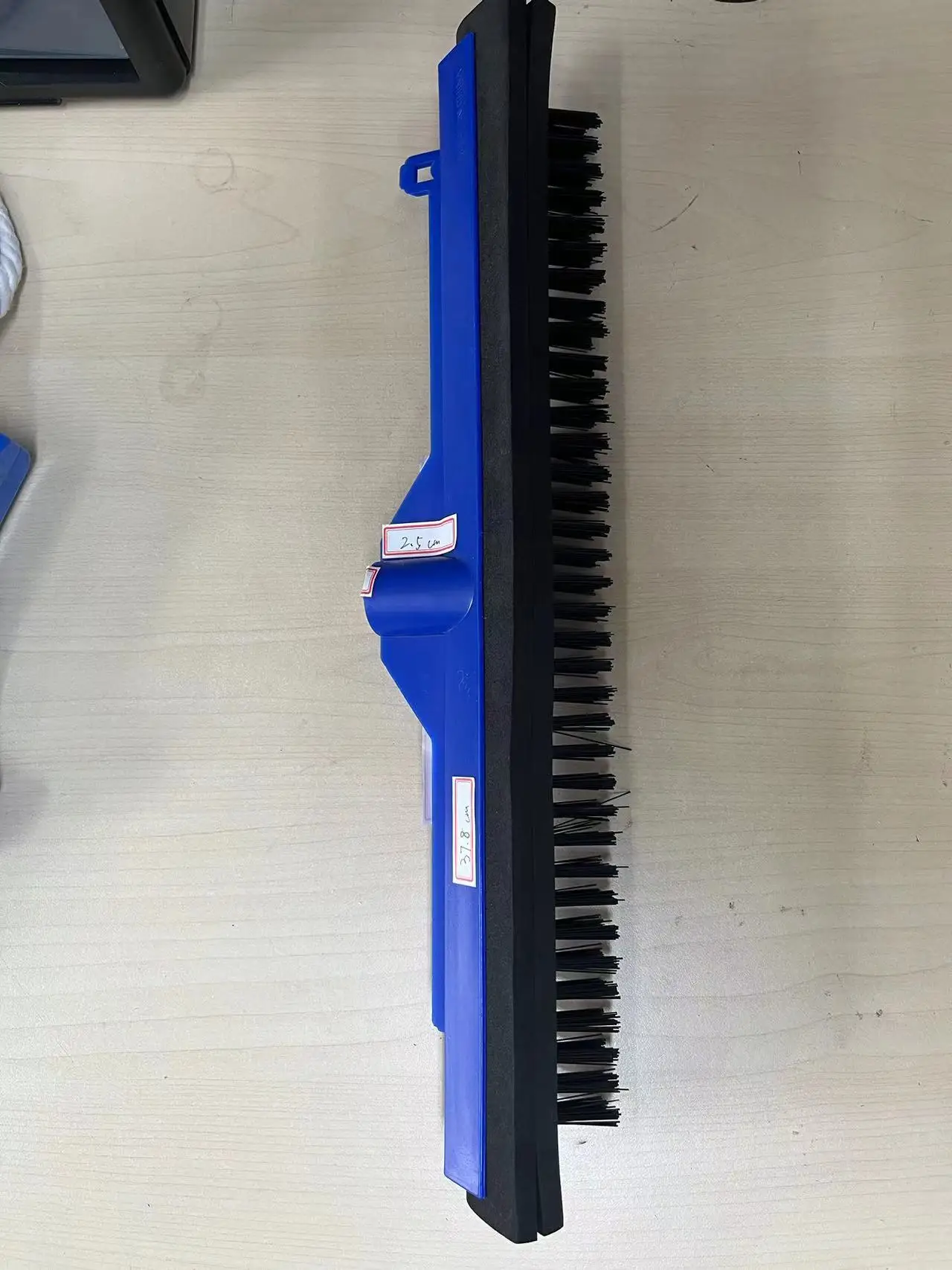

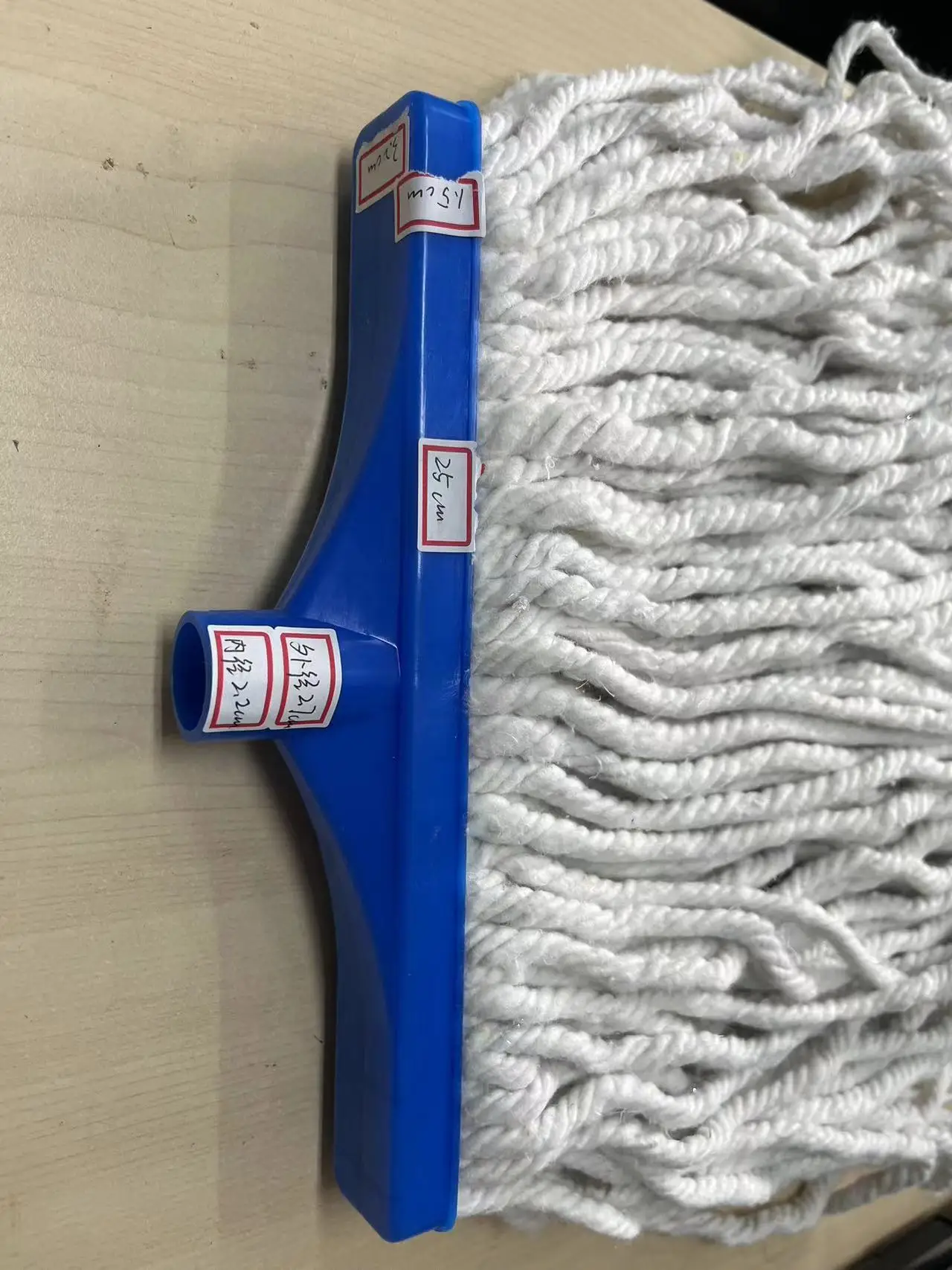

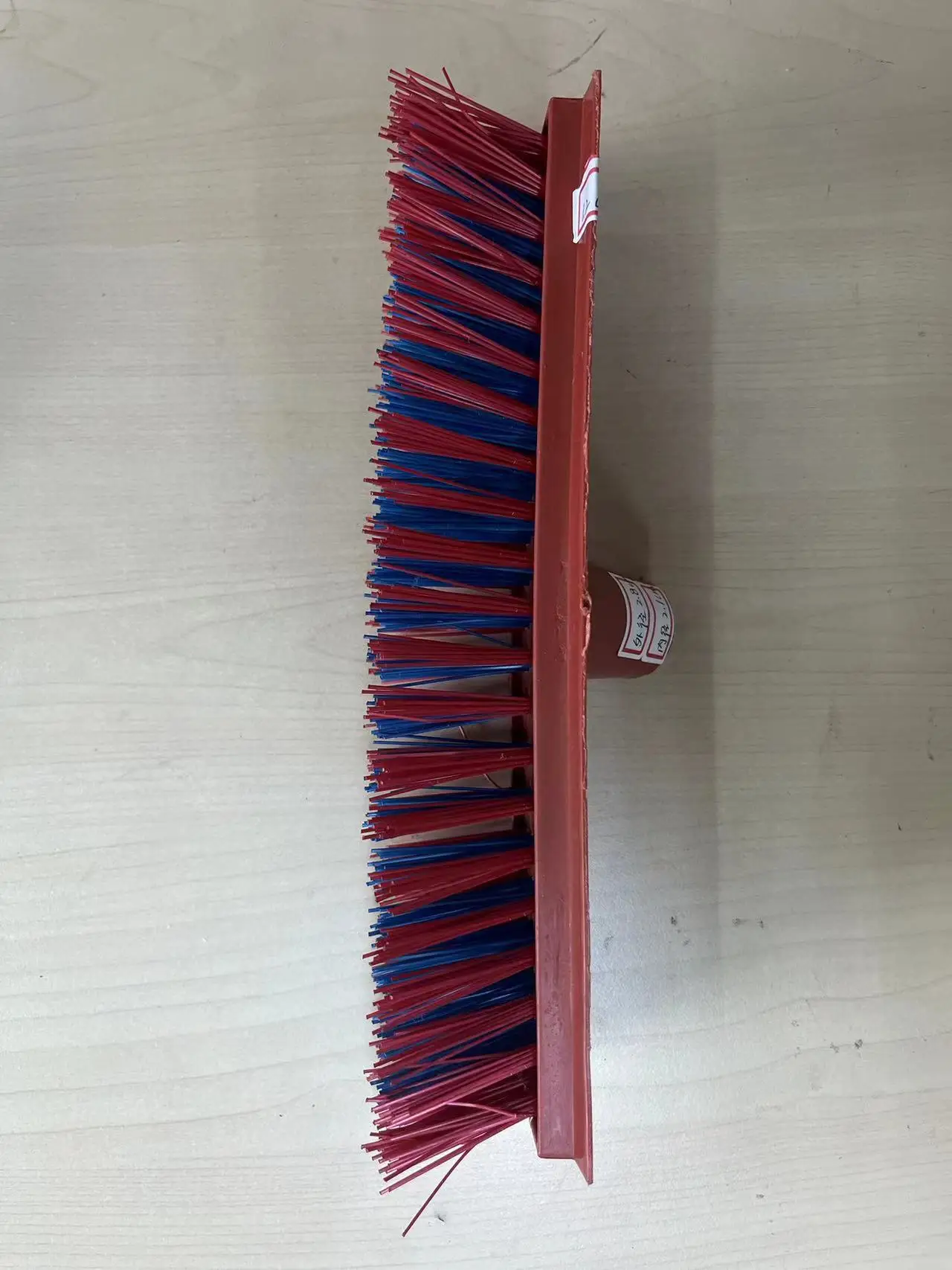

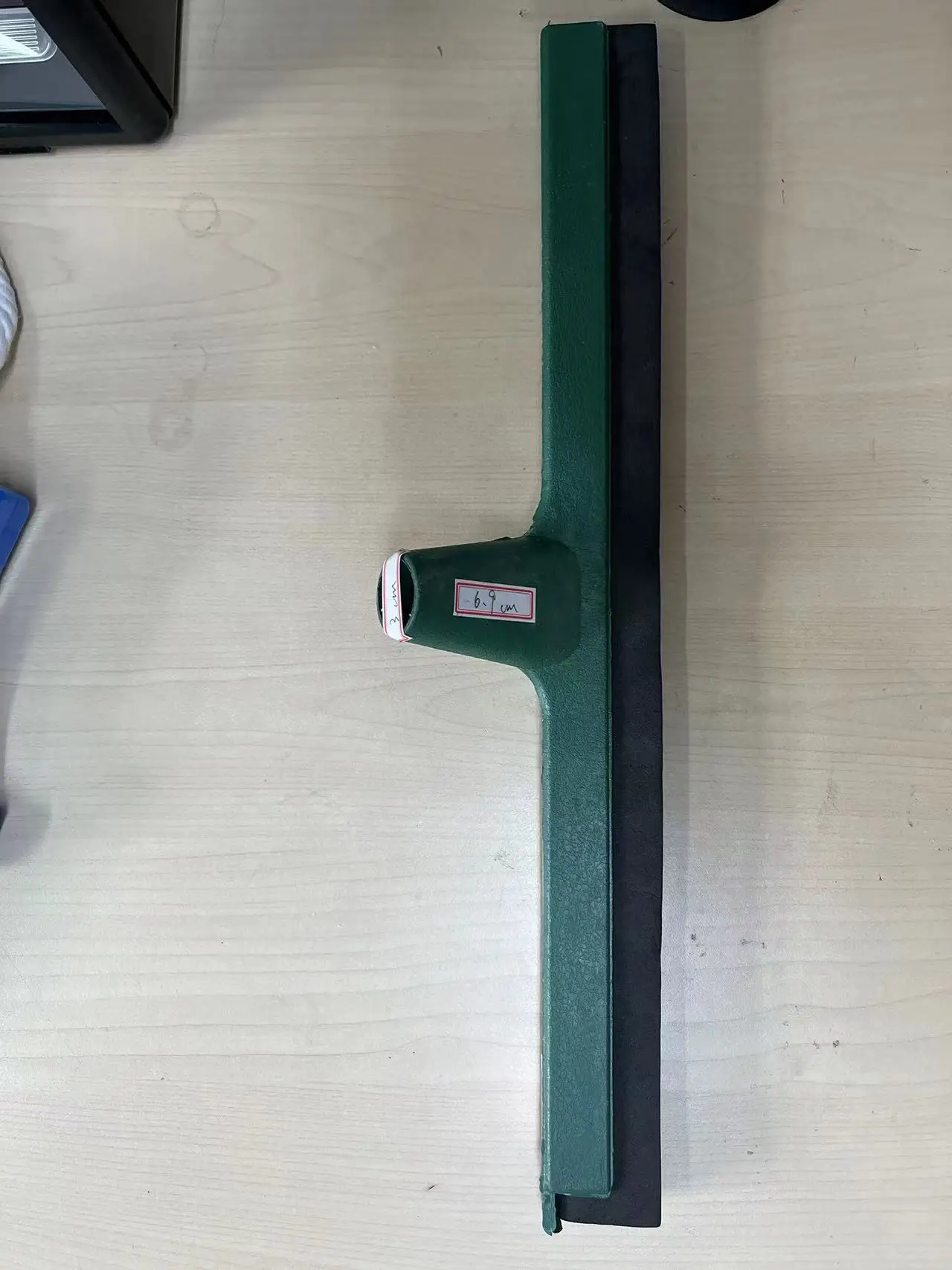

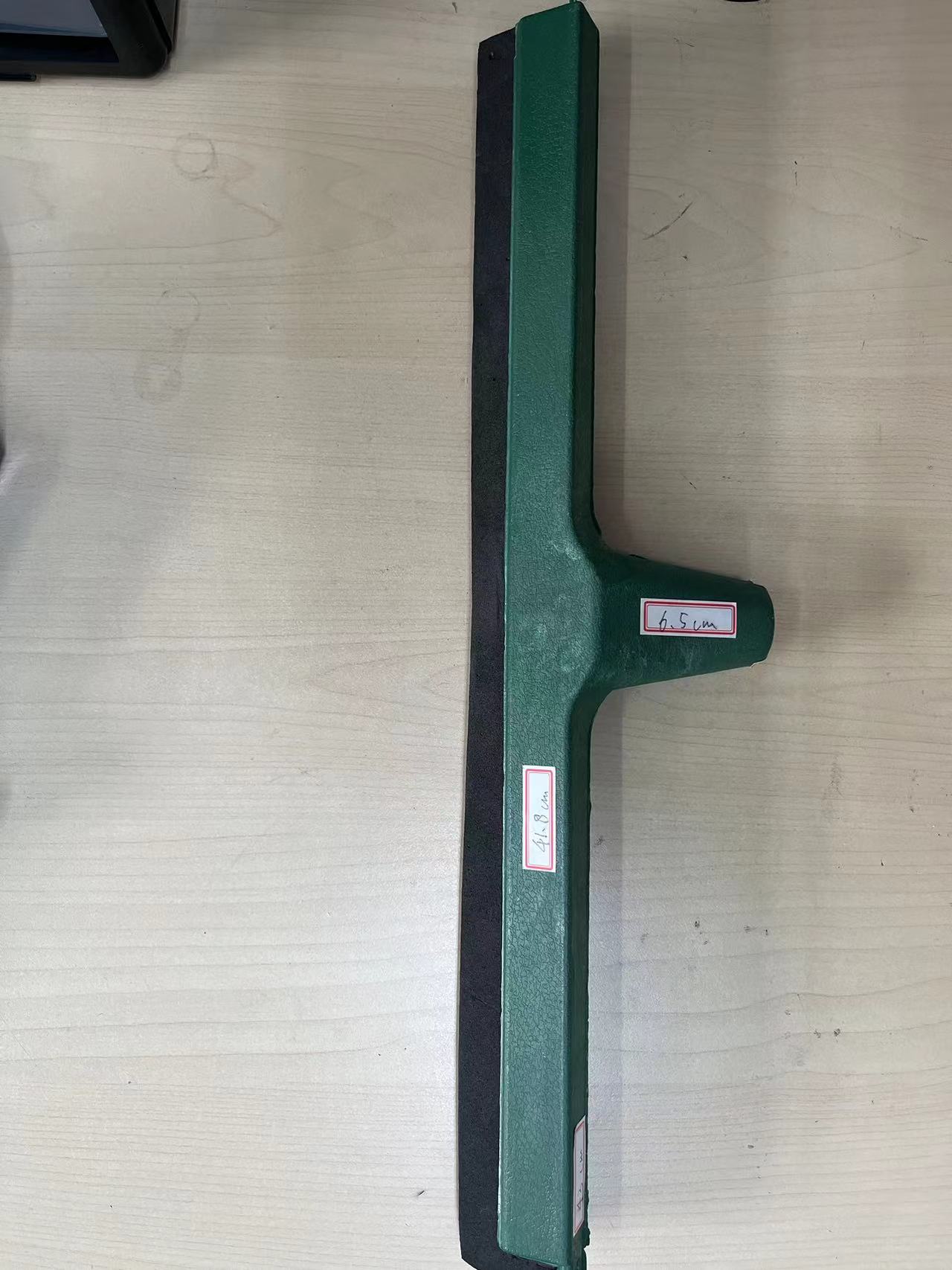

Products show
