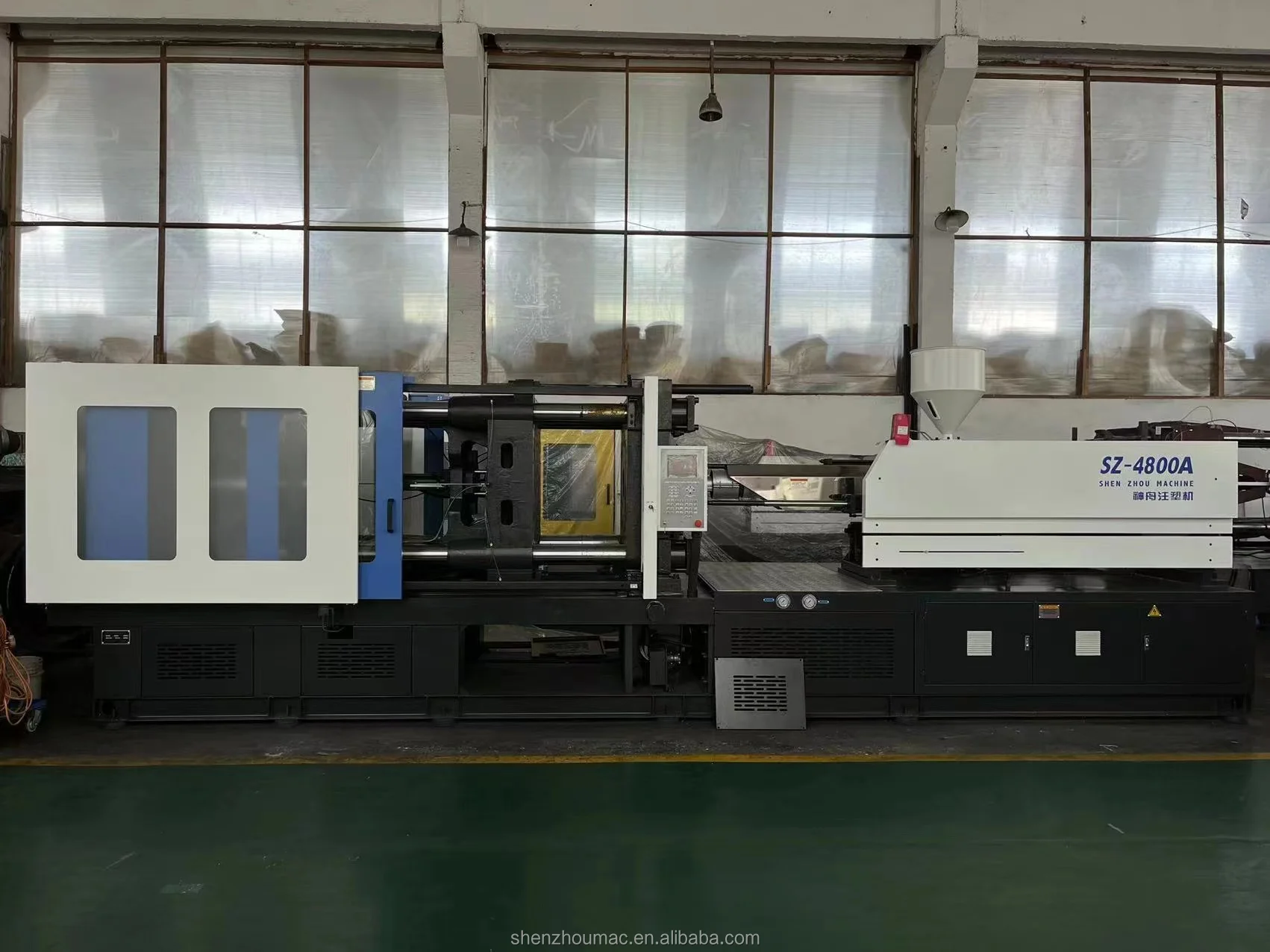

Introducing, the SHENZHOU’s 20 Years Experience Multifunctional HDPE/Preform/Food Containers/Pallets Injection Molding Machine. This top-of-the-line molding machine combines expert craftsmanship with innovative technology to deliver outstanding results for your manufacturing needs.
With over two decades of experience in the industry, SHENZHOU has perfected their injection molding machines to provide precision and efficiency. The machine is capable of molding a variety of materials, including HDPE, preform, food containers, and pallets, making it a versatile solution for a wide range of applications.

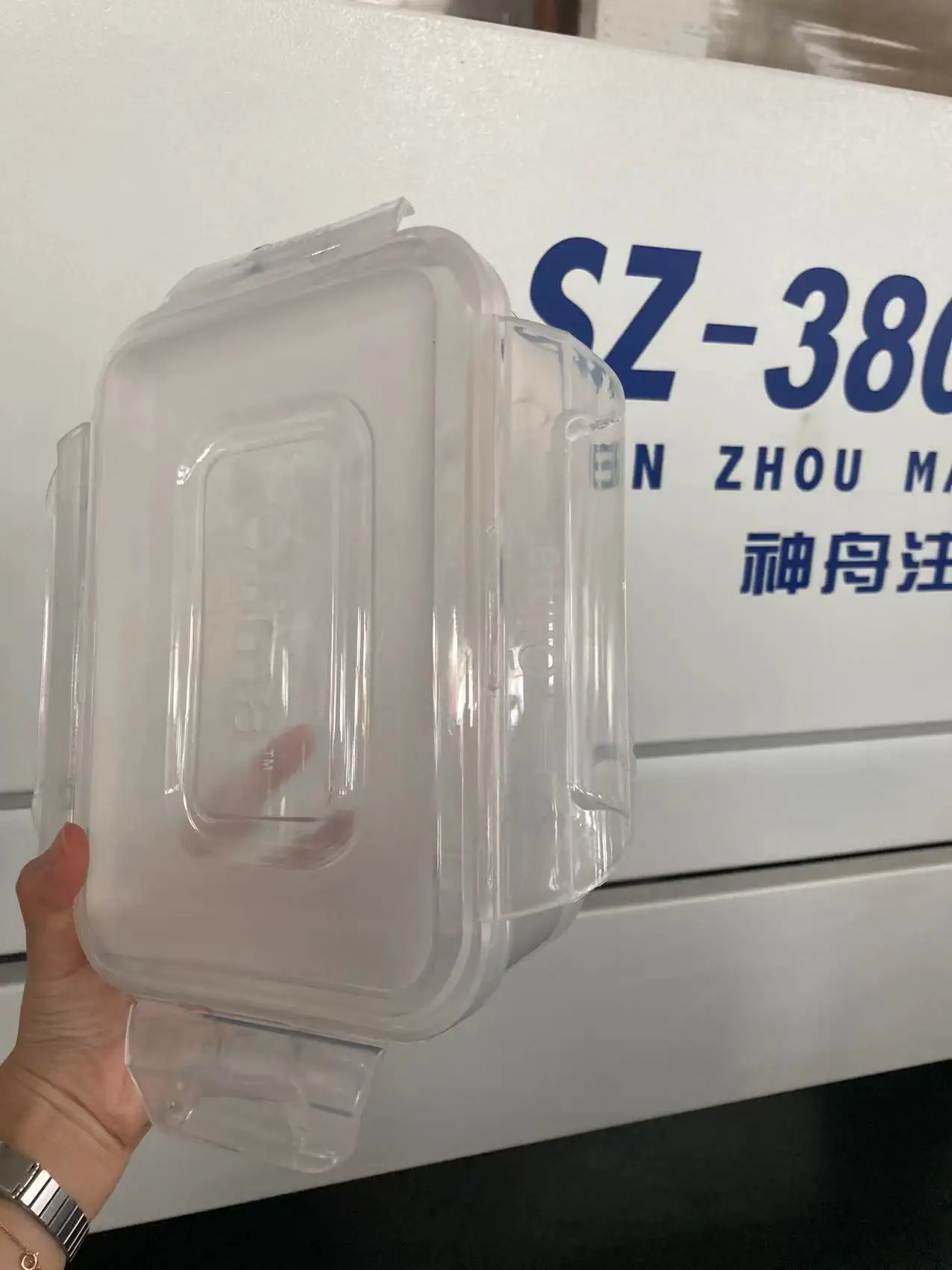

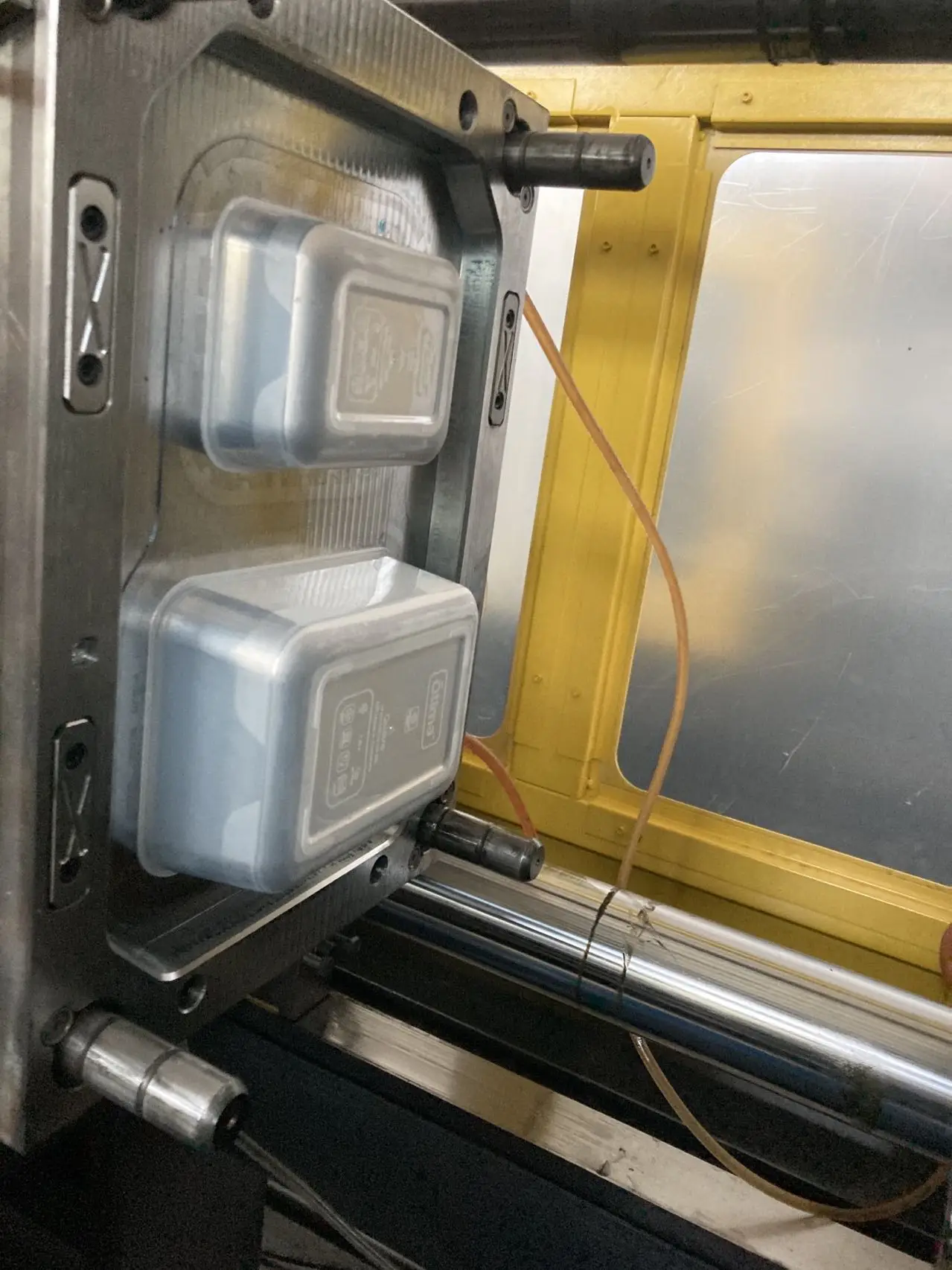

One of the standout features of the SHENZHOU’s injection molding machine is its multifunctional capabilities. Whether you need to produce food containers for your packaging line or create durable pallets for shipping and storage, this machine can handle it all with ease. You can switch between different molds quickly and easily, allowing you to adapt to changing production needs without missing a beat.
In addition to its versatility, the SHENZHOU’s injection molding machine is also known for its high-definition performance. The machine is designed to deliver precise and consistent results, ensuring that every product meets your exact specifications. This level of quality control is essential for maintaining the integrity of your brand and ensuring customer satisfaction.
Despite its advanced features and capabilities, the SHENZHOU’s injection molding machine is surprisingly affordable. With a competitive price point, this machine offers exceptional value for businesses of all sizes. Plus, with its durable construction and long-lasting performance, you can trust that your investment will continue to pay off for years to come.
The SHENZHOU’s 20 Years Experience Multifunctional HDPE/Preform/Food Containers/Pallets Injection Molding Machine is a top-of-the-line solution for businesses looking to streamline their production process and improve product quality. With its versatile capabilities, high-definition performance, and affordable price point, this machine is a smart choice for manufacturers in any industry. Upgrade your manufacturing operation today with the SHENZHOU injection molding machine
|
|
|
|
|
|
UNIT |
|
|
|
|
|
SCREW DIAMETER |
mm |
70 |
75 |
80 |
|
|
|
|
SCREW L/D RATIO |
L/D |
22.6 |
21 |
19.7 |
|
|
|
|
Theoretical Shot Volume |
cm^3 |
1346 |
1545 |
1758 |
|
|
|
|
SHOW WEIGHT - PS |
g |
1225 |
1406 |
1600 |
|
|
|
|
INJECTION PRESSURE |
Mpa |
201 |
175 |
154 |
|
|
|
|
THEORETICAL INJECTION RATE - PS |
g/s |
370 |
423 |
484 |
|
|
|
|
PLASTICISING CAPACITY |
g/s |
60.4 |
71.4 |
83.7 |
|
|
|
|
SCREW TORQUE |
N/m |
|
|
|
|
|
MAX. SCREW ROTATE SPEED |
r/min |
|
|
|
|
|
INJECTION STROKE |
mm |
|
|
|
|
|
|
|
|
ITEM |
UNIT |
VALUE |
|
|
MAX. CLAMPING FORCE |
KN |
4800 |
|
|
MAX. OPENING STROKE |
mm |
770 |
|
|
SPACE BETWEEN TIE BARS |
mm |
760*760 |
|
|
MOULD HEIGHT |
mm |
280-790 |
|
|
MAX. DAYLIGHT |
mm |
1560 |
|
|
EJECTOR FORCE |
KN |
113.4 |
|
|
EJECTOR STROKE |
mm |
195 |
|
|
EJECTOR QUANTITY |
|
13 |
|
|
|
|
|
ITEM |
UNIT |
VALUE |
|
|
PUMP MOTOR POWER |
kw |
45 |
|
|
PUMP PRESSURE |
Mpa |
16 |
|
|
HEATING POWER |
kw |
28 |
|
|
HEATING ZONE |
|
5 |
|
|
SIZE |
m |
7.5*2.1*2.45 |
|
|
NET WEIGHT |
t |
20 |
|
|
OIL TANK CAPACITY |
L |
850 |
|
|
INTERNATIONAL DESIGNATION |
|
4800-2710 |
|
|
●New type 5-point toggle device of stable movement curve, gentle shock.●Superior mould platen to ensure no out of shape if high-pressure clamping.
●Hard chrome plated high tensile strength tie bars made of superior alloy.
●Wear-resistant guide for moving platen.
●Transducer control clamping stroke.
●Many step control for speed and pressure of clamping and opening.
●Eiection device offer dwell, single, more, vibration function.
●Low pressure mould protection function.
●Hydraulic mould height adjustment with rough and fine operation.
●Mechanical and electrical dual safety interlock.
●Automatic centralized lubrication system with far pressure detector.
●Proportional pressure and flow control with fine adjustment and precision.
●Know-how manifold design, compact, reasonable and fast respond.
●Imported world famous hydraulic valves.
●Imported world famous hydraulic sealing rings.
●Imported technology hydraulic hose and fittings.
●Low noise hydraulic system.
●Precision oil filter and oil cooler.
●Nitrided screw and barrel with long service life
●Smelted screw with big L/D ratio with good plasticizing and color-fixing.
●Double injection cylinder of compact construction and good equilibrant.
●Transducer control injection stroke.
●The speed of low speed and large torque hydraulic motor can be adjusted.
●Screw back pressure control and nozzle anti-leakage control movable hopper for easy remove material.
●Injection-catriage can be used for slacking, re-feedingor fixed-feeding.
●Speed and pressure of injecting and holding controlled by time or position.
●Equipped with reverse device to be easily removed and cleaned
Hydraulic pump
ECKERLE—GERMANY
Proportional Valve
YUKEN-JAPAN
Reversing Valve
YUKEN-JAPAN
Oil Hose
KIMBERLER —GERMANY
Computer
TECHMATION —TAIWAN
Soild State Relay
RORTEK —TAIWAN
Proximity Swith
FORTEK—TAIWAN
Contactor
SCHNEIDER—FRENCE
Air—break Switch
SCHNEIDER—FRENCE
1. 20 years of professional injection molding machine and mold manufacturer, excellent quality, honest management
2. Continuous technological innovation, optimized product structure, longer service life
3. Lifetime maintenance of the product, 24 hours after-sales service
4. The main components are all world-renowned brands
5. Dedicated quality control department
6. Ex-factory price
SHENZHOU-Your trusted plastic processing partner
Our company - injection molding machine, blow molding machine, main blower, mold, computer embroidery machine professional manufacturer - located in the national new port city of Zhangjiagang City, Xizhang Town, close to the Yanjiang Expressway and 204 National Road, close to Shanghai, Nanjing, Suzhou, Wuxi Large and medium-sized cities such as Nantong have convenient transportation.
The company has accumulated rich experience in manufacturing injection molding machines for many years, high standard design and precision processing, using imported famous brand hydraulic, electrical and sealing components, and fully creating SZ series automatic computer injection molding machine and peripheral supporting equipment, with its excellent quality and stability. The performance, superior price performance ratio, to the greatest extent to meet the interests and needs of customers
We will apply lubricating oil and spray anti-rust agent to the products before shipment, prepare enough spare parts, and confirm that they are fully fixed before shipment. We pay attention to details and hope to bring you a better experience
1. Q:Are you a factory or trading company
A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit
2. Q:How does your factory do regarding quality control
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department.
3. Q:What are your normal lead times
A:Our company typical lead times range from 25-35days after receipt of order. We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks.
4. Q:About the price
A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions.
5. Q:How is your machine different from other businesses
A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use.
6. Q:Where is your factory located? How can I visit thereA: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China. All our clients, from home or abroad, are warmly welcome to visit us
You are welcome to send us samples, we will customize high-quality machines for you! Best wishes for you
