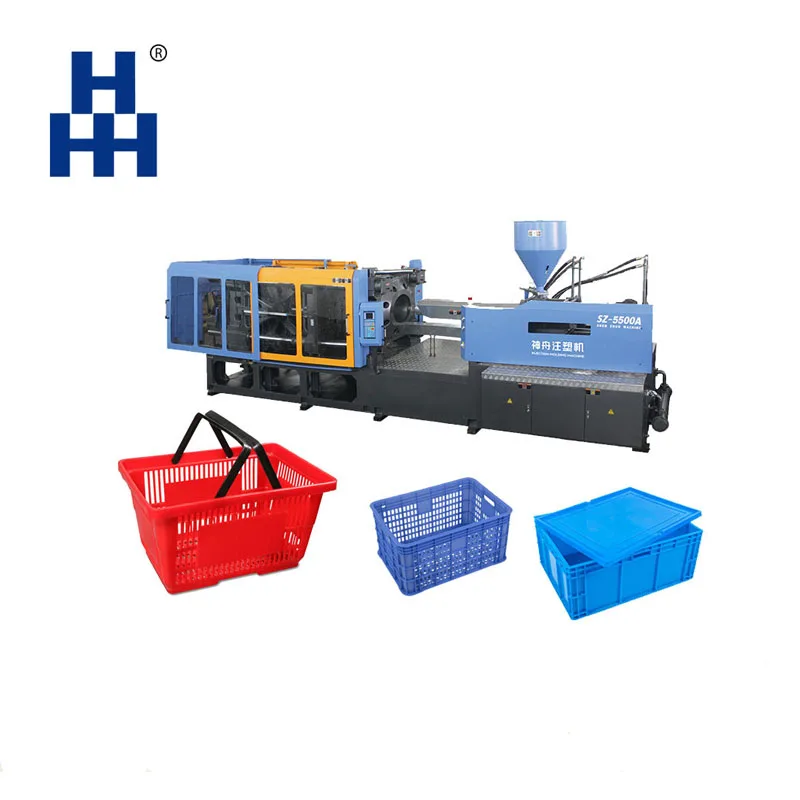

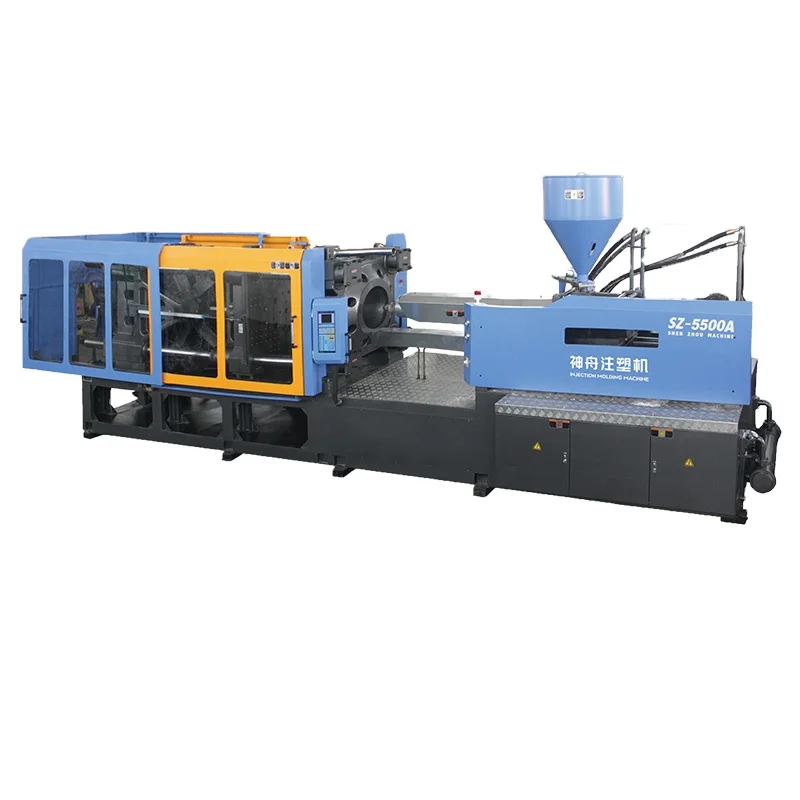

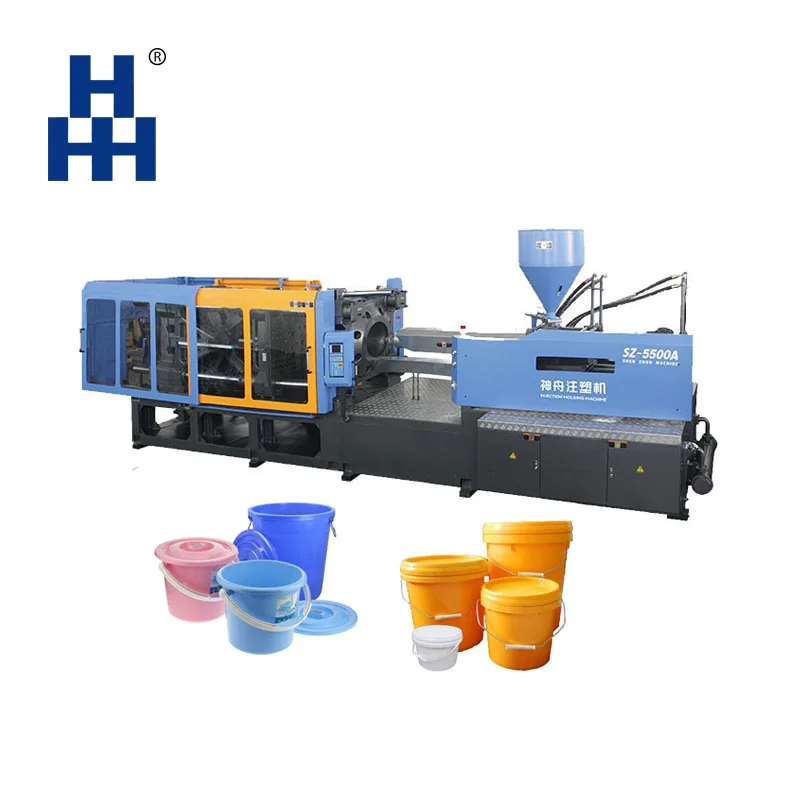

Introducing, the SHENZHOU’s Injection Molding Machine, the perfect solution for creating a wide variety of plastic products at an affordable price. Whether you're looking to produce fruit crates, bottle caps, buckets, chairs, pipe hangers, or any other plastic item, this reliable machine has got you covered.
With its user-friendly design and efficient operation, the SHENZHOU’s Injection Molding Machine makes it easy to create high-quality plastic products with precision and speed. Its durable construction ensures long-lasting performance, making it a valuable investment for any business looking to streamline their production process.
What sets the SHENZHOU’s Injection Molding Machine apart is its versatility - it can easily switch between different molds to produce a range of products, giving you the flexibility to meet your changing production needs. Plus, with its low price point, this machine offers exceptional value for money, making it an ideal choice for businesses of all sizes.
Whether you're a small start-up or a large manufacturing facility, the SHENZHOU’s Injection Molding Machine is the perfect choice for anyone looking to create plastic products efficiently and cost-effectively. Its reliable performance and affordable price make it a smart investment that will help you boost your production output and grow your business.
Don't miss out on the opportunity to enhance your production capabilities with the SHENZHOU’s Injection Molding Machine. With its quality construction, easy-to-use features, and unbeatable price, this machine is a must-have for any business looking to take their plastic manufacturing to the next level. Order yours today and start creating top-quality plastic products with ease and efficiency
|
|
|
|
|
|
|
|
|
|
|
|
CSCREW DIAMETER |
mm |
80 |
85 |
90 |
|
|
|
|
SCREW L/D RATIO |
L/D |
22.3 |
21 |
19.8 |
|
|
|
|
Theoretical Shot Volume |
cm^3 |
2141 |
2418 |
2710 |
|
|
|
|
SHOW WEIGHT - PS |
g |
1948 |
2200 |
2466 |
|
|
|
|
INJECTION PRESSURE |
Mpa |
188 |
167 |
149 |
|
|
|
|
THEORETICAL INJECTION RATE - PS |
g/s |
427 |
482 |
541 |
|
|
|
|
PLASTICISING CAPACITY |
g/s |
80 |
100 |
118 |
|
|
|
|
SCREW TORQUE |
N/m |
5170 |
|
|
|
|
MAX. SCREW ROTATE SPEED |
r/min |
150 |
|
|
|
|
INJECTION STROKE |
mm |
425 |
|
|
|
|
|
|
|
|
|
|
|
|
MAX. CLAMPING FORCE |
KN |
5500 |
|
|
MAX. OPENING STROKER |
mm |
820 |
|
|
SPACE BETWEEN TIE BARS |
mm |
810×810 |
|
|
MOULD HEIGHT |
mm |
350~820 |
|
|
MAX. DAYLIGHT |
mm |
1640 |
|
|
EJECTOR FORCE |
kn |
150 |
|
|
EJECTOR STROKE |
mm |
210 |
|
|
EJECTOR QUANTITY |
pc |
13 |
|
|
|
|
|
|
|
|
|
|
PUMP MOTOR POWER |
KW |
55 |
|
|
PUMP PRESSURE |
Mpa |
16 |
|
|
HEATING POWER |
KW |
33 |
|
|
HEATING ZONE |
|
6 |
|
|
SIZE |
m |
8.4×2.2×2.6 |
|
|
NET WEIGHT |
t |
23.5 |
|
|
OIL TANK CAPACITY |
L |
1000 |
|
|
INTERNATIONAL DESIGNATION |
|
5500-4040 |
|
|
●New type 5-point toggle device of stable movement curve, gentle shock.●Superior mould platen to ensure no out of shape if high-pressure clamping.
●Hard chrome plated high tensile strength tie bars made of superior alloy.
●Wear-resistant guide for moving platen.
●Transducer control clamping stroke.
●Many step control for speed and pressure of clamping and opening.
●Eiection device offer dwell, single, more, vibration function.
●Low pressure mould protection function.
●Hydraulic mould height adjustment with rough and fine operation.
●Mechanical and electrical dual safety interlock.
●Automatic centralized lubrication system with far pressure detector.
●Proportional pressure and flow control with fine adjustment and precision.
●Know-how manifold design, compact, reasonable and fast respond.
●Imported world famous hydraulic valves.
●Imported world famous hydraulic sealing rings.
●Imported technology hydraulic hose and fittings.
●Low noise hydraulic system.
●Precision oil filter and oil cooler
●Nitrided screw and barrel with long service life.
●Smelted screw with big L/D ratio with good plasticizing and color-fixing.
●Double injection cylinder of compact construction and good equilibrant.
●Transducer control injection stroke.
●The speed of low speed and large torque hydraulic motor can be adjusted.
●Screw back pressure control and nozzle anti-leakage control movable hopper for easy remove material.
●Injection-catriage can be used for slacking, re-feedingor fixed-feeding.
●Speed and pressure of injecting and holding controlled by time or position.
●Equipped with reverse device to be easily removed and cleaned

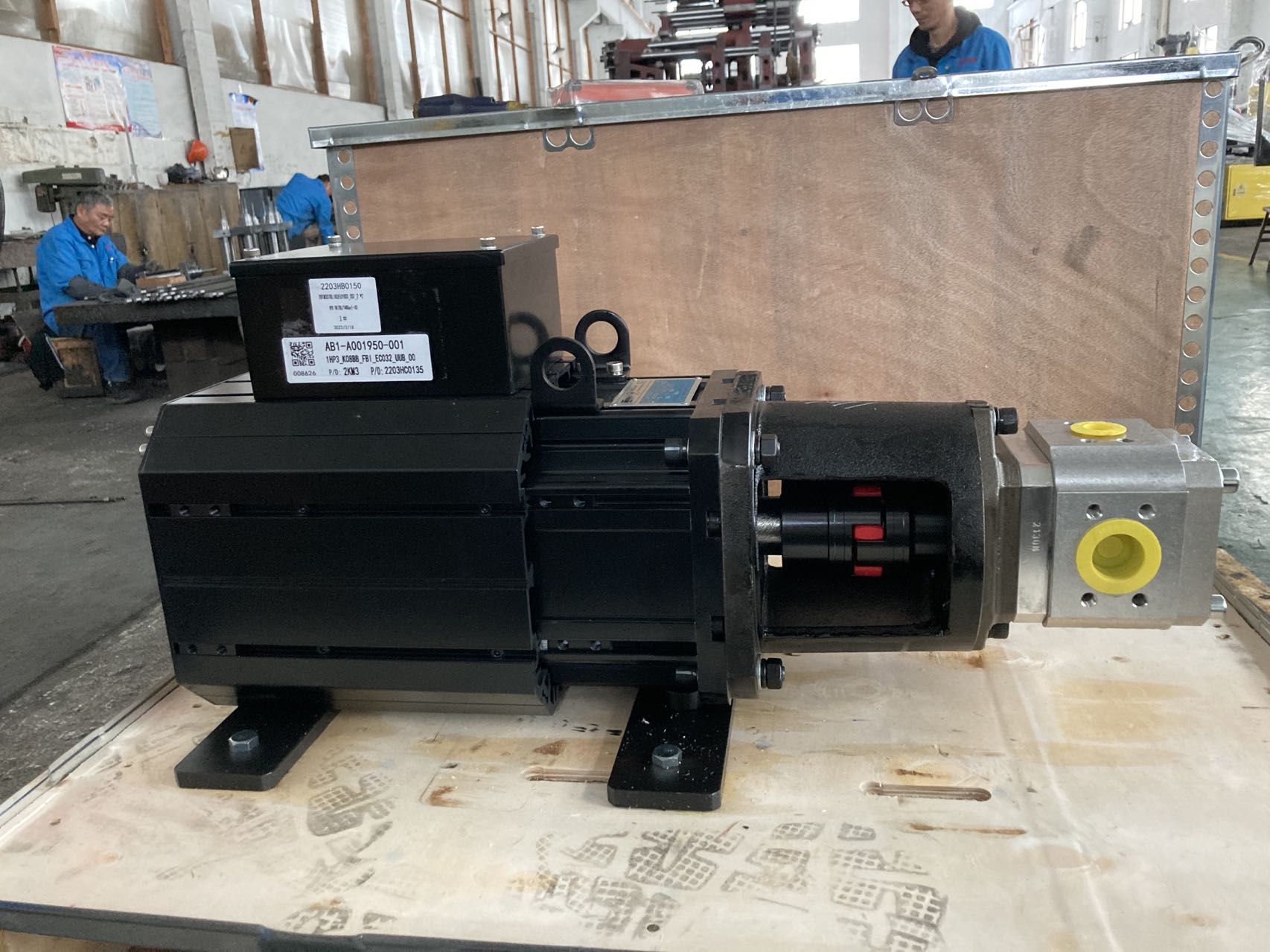

Hydraulic pump
ECKERLE—GERMANY
Proportional Valve
YUKEN-JAPAN

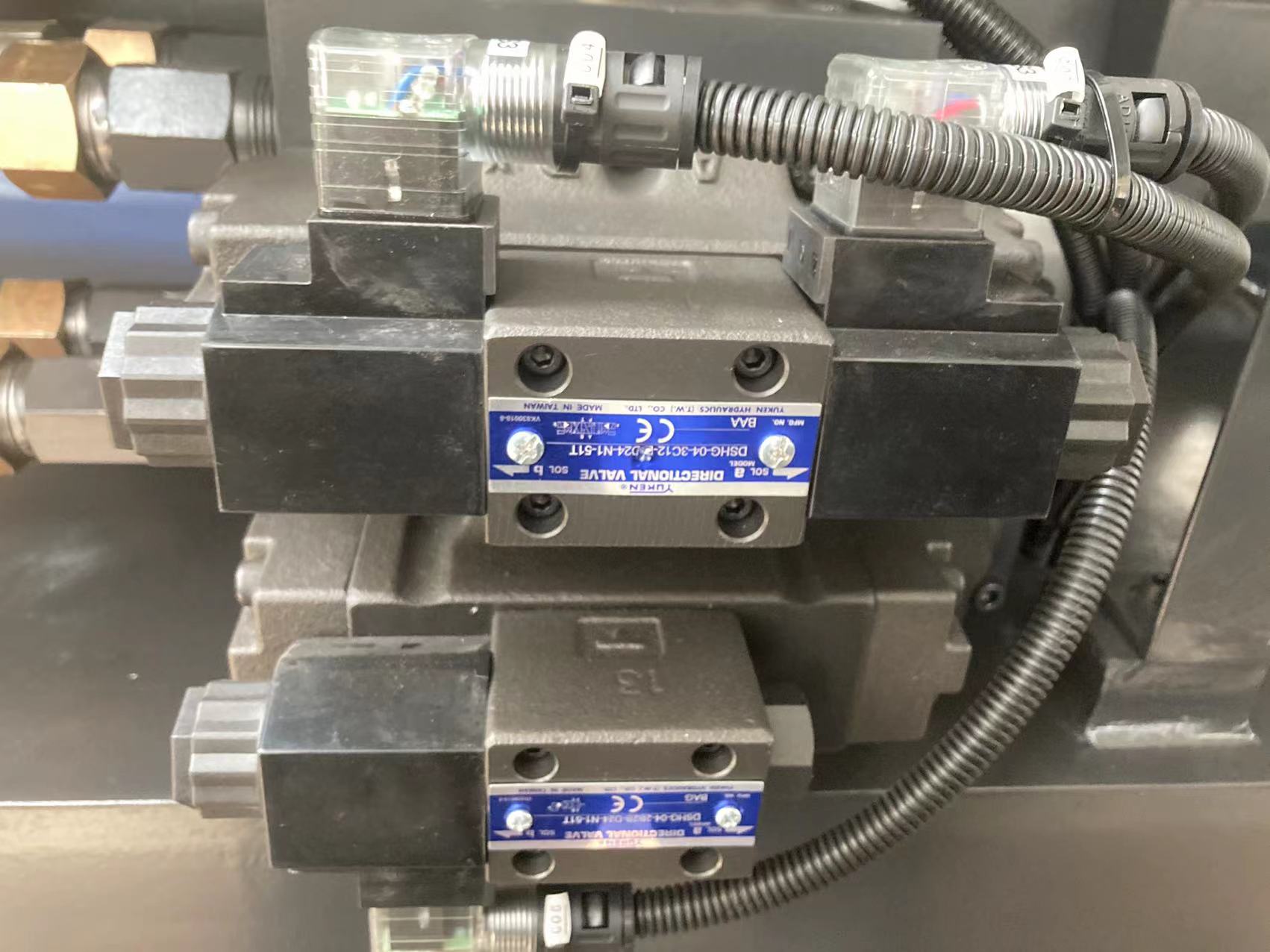

Reversing Valve
YUKEN-JAPAN
Oil Hose
KIMBERLER —GERMANY
Computer
TECHMATION —TAIWAN
Proximity Swith
FORTEK—TAIWAN
Air—break Switch
SCHNEIDER—FRENCE
Soilid State Relay
RORTEK —TAIWAN
Contactor
SCHNEIDER—FRENCE
1. 20 years of professional injection molding machine and mold manufacturer, excellent quality, honest management
2. Continuous technological innovation, optimized product structure, longer service life
3. Lifetime maintenance of the product, 24 hours after-sales service
4. The main components are all world-renowned brands
5. Dedicated quality control department
6. Ex-factory price
Old friend
The client's name is Obed, from Tanzania. He is our old friend. We have been working with him for more than 15 years and we have
established a deep friendship. At the beginning, Obed was our ordinary customer. After a period of mutual cooperation and
understanding, he has become our technical representative in Tanzania and can provide various technical support to our customers
in Tanzania. At the end of 2020, we will have 23 injection molding machines and a large number of molds sent to Tanzania
Large Orders
The order is from Turkmenistan. A customer friend of ours bought 26 injection molding machines of various models and a large
number of molds and auxiliary equipment at a time. After receiving the order, we attach great importance to it, speed up the operation of the workshop, and complete the scheduled tasks in advance. The picture shows a customer in Uzbekistan. We have a vast market in this region
Government program
This project is a cooperation project between us and Ethiopian AG pipe fitting company in 2019. Our company started cooperation
with Ethiopia long ago. We have delivered more than 15 injection molding machines and more molds to Ethiopia
We will apply lubricating oil and spray anti-rust agent to the products before shipment, prepare enough spare parts, and confirm that they are fully fixed before shipment. We pay attention to details and hope to bring you a better experience
1. Q:Are you a factory or trading company
A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit
2. Q:How does your factory do regarding quality controlA:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department.
3. Q:What are your normal lead times
A:Our company typical lead times range from 25-35days after receipt of order. We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks.
4. Q:About the price
A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions.
5. Q:How is your machine different from other businesses
A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use.
6. Q:Where is your factory located? How can I visit thereA: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China. All our clients, from home or abroad, are warmly welcome to visit us
You are welcome to send us samples, we will customize high-quality machines for you! Best wishes for you
