Electrical Industry-Processing PET PC PP ABS PA PVC Junction Box Hydraulic Injection Molding Machines

Introducing, the SHENZHOU’s Electrical Industry-Processing Hydraulic Injection Molding Machines. These top-of-the-line machines are designed for precision and efficiency in producing junction boxes made from PET, PC, PP, ABS, PA, and PVC materials.

With the increasing demand for high-quality electrical components, having a reliable and fast injection molding machine is crucial for manufacturers in the industry. The SHENZHOU machines are built to deliver consistent and superior results with every cycle, ensuring that your production process runs smoothly and seamlessly.

One of the key features of the SHENZHOU’s Hydraulic Injection Molding Machines is their advanced technology that allows for precise control over the injection process. This ensures that each junction box is molded with precision and accuracy, resulting in a finished product that meets the highest standards of quality and durability.

In addition to their precision, the SHENZHOU machines are also designed for efficiency. With their high-speed hydraulic systems, these machines can produce junction boxes at a rapid pace, allowing you to meet tight deadlines and fulfill large orders with ease.

Furthermore, the SHENZHOU’s Hydraulic Injection Molding Machines are easy to operate and maintain, making them a practical choice for manufacturers of all sizes. The user-friendly interface and intuitive controls allow for quick setup and adjustments, while the durable construction ensures long-lasting performance with minimal downtime.

Whether you are a small-scale workshop or a large-scale manufacturing plant, the SHENZHOU’s Hydraulic Injection Molding Machines are the ideal solution for all your junction box production needs. Trust in the reliability and efficiency of SHENZHOU products to take your electrical industry processing to the next level. Invest in a SHENZHOU machine today and experience the difference in quality and performance

3D SHOW ROOM

VR

Products Description

SZ-1300A

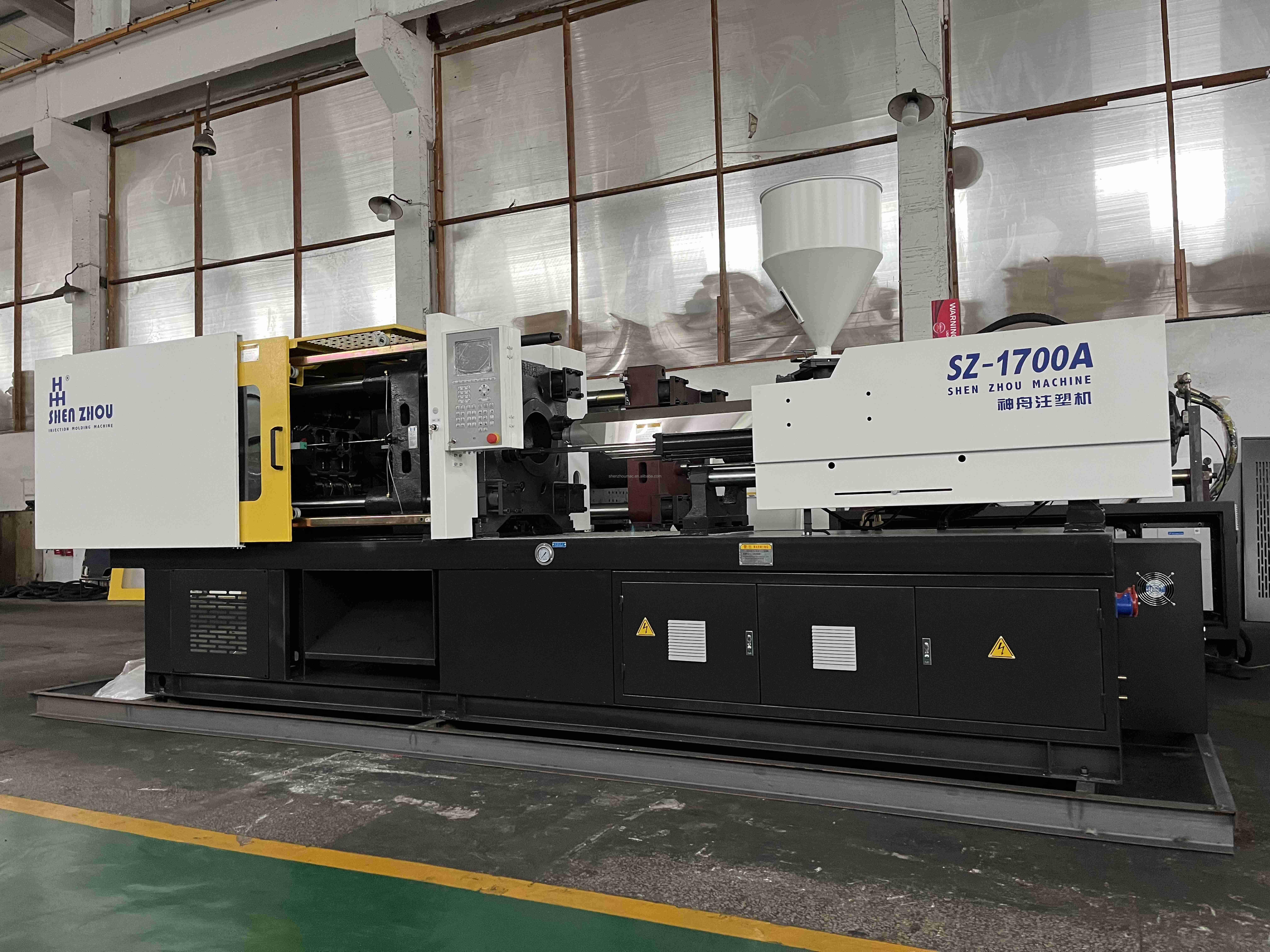

SZ-1700A

SZ-2000A

SZ-2400A

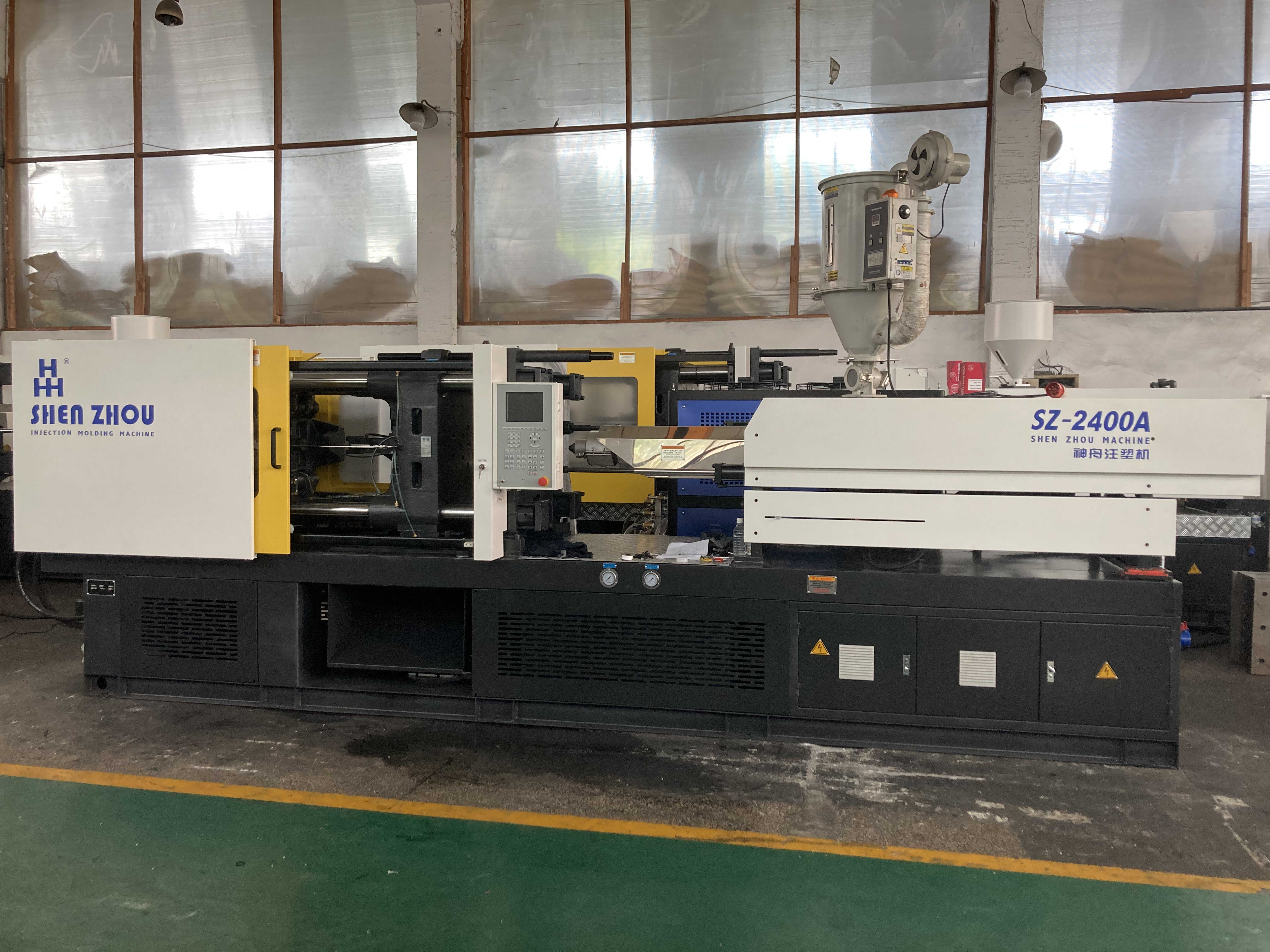

SZ-3000A

SZ-4000A

SZ-4800A

SZ-7500A

Our Advantages

reviews

Certifications

Company Information

Technical Parameter

项目 ITEM			单位UNIT	SZ—2400A
注射装置 INJECTION UNIT
螺杆直径	SCREW DIAMETER	mm	55	60	65
螺杆长径比	SCREW LID RATIO	L/D	22.9	21	19.4
理论注射容积	THEORETICAL SHOT VOLUME	CM3	665	791	929
注射质量 - PS料	SHOT WEIGHT - PS	g	605	720	845
注射压力	INJECTION PRESSURE	Mpa	210	176	150
理论注射速率 - PS料	THEORETICAL INJECTION RATE - PS	g/s	176.5	210	245
塑化能力 - PS料	PLASTICISING CAPACITY	g/s	26.4	32.5	40
螺杆驱动扭矩	SCREW TORQUE	N/m	2000
螺杆最高转速	MAX. SCREW ROTATE SPEED	r/min	150
洼射行程	INJECTION STROKE	mm	280
合模装置 CLAMPING UNIT
合模力	MAX. CLAMPING FORCE K	KN	2400
移模行程	MAX. OPENING STROKE	mm	530
拉杆有效间距 - VxH	SPACE BETWEEN TIE BARS	mm	555×555
允许模厚 - MIN-MAX	MOULD HEIGHT	mm	200-570
模板最大开距	MAX. DAYLIGHT	mm	1100
液压顶出力	EJECTOR FORCE	KN	61.5
液压顶出行程	EJECTOR STROKE	mm	135
液压顶出杆总数	EJECTOR QUANTITY		9
其它 OTHER
油泵电动机功率	PUMP MOTOR POWER	KW	22
油泵最高压力	PUMP PRESSURE	Mpa	16
料简加热功率	HEATING POWER	KW	18.5
加热区段	HEATING ZONE		5
机器外形 - LxWxH	SIZE	m	6.2×1.6×2.1
机器净重	NET WEIGHT	t	8.0
油箱容积	OIL TANK CAPACITY	L	440
国际公认型号	INTERNATIONAL DESIGNATION		2400—1390

Exhibition

We will apply lubricating oil and spray anti-rust agent to the products before shipment, prepare enough spare parts, and confirm that they are fully fixed before shipment. We pay attention to details and hope to bring you a better experience

FAQ

1. Q:Are you a factory or trading company A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit 2. Q:How does your factory do regarding quality control A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department 3. Q:What are your normal lead times A:Our company typical lead times range from 25-35days after receipt of order. We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks 4. Q:About the price A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions 5. Q:How is your machine different from other businesses A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use 6. Q:Where is your factory located? How can I visit there

A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China. All our clients, from home or abroad, are warmly welcome to visit us

You are welcome to send us samples, we will customize high-quality machines for you! Best wishes for you
