Plastic 6 D 13 D 19 D 30 D 60 Dram Containers Plastic Tube Vials Dram Pop Top Bottles Injection Molding Machine

Introducing, the SHENZHOU’s Plastic Containers and Bottles, the perfect solution for all your packaging needs. Our plastic tube vials come in 6 D, 13 D, 19 D, 30 D, and 60 Dram sizes, offering a variety of options to suit your specific requirements. Whether you need to store small items or larger quantities, our containers are designed to meet all your needs.

Made from high-quality plastic materials, our containers are durable and sturdy, ensuring that your products are kept safe and secure. The airtight seal on our dram pop top bottles ensures that your contents stay fresh and free from contamination. Whether you are storing food, vitamins, cosmetics, or any other products, our containers are the ideal choice for keeping them in pristine condition.

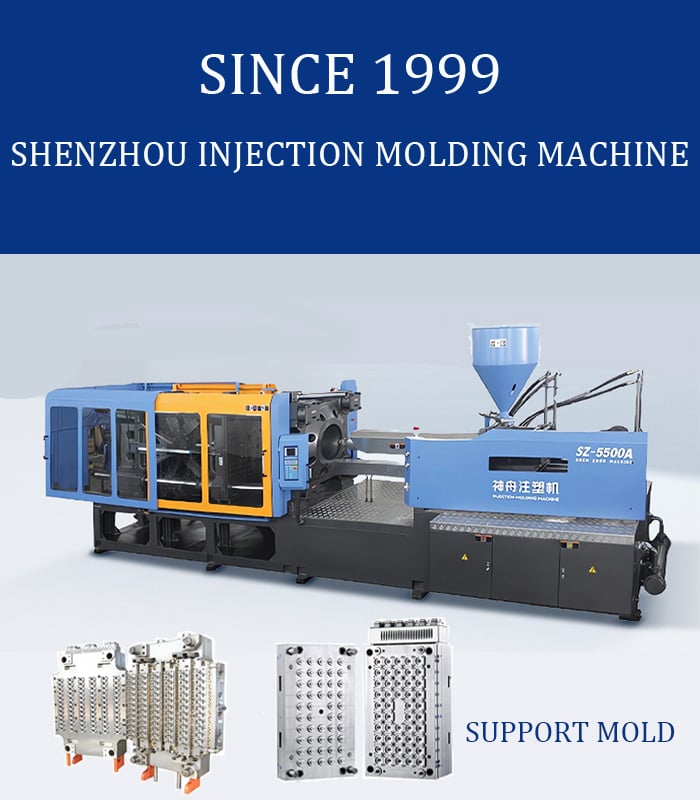

With our injection molding machine, we are able to produce containers and bottles with precision and accuracy. This ensures that each product meets the highest standards of quality and consistency. Our state-of-the-art technology allows us to create custom designs and shapes to meet your specific needs, making our products versatile and adaptable to any situation.

The SHENZHOU brand is synonymous with quality and reliability. Our products are trusted by customers around the world for their exceptional performance and durability. Whether you are a small business or a large corporation, our containers and bottles are the perfect choice for your packaging needs.

In addition to their practicality, our containers are also environmentally friendly. Made from recyclable materials, our products are a sustainable choice for those looking to reduce their carbon footprint. By choosing SHENZHOU’s Plastic Containers and Bottles, you are making a conscious decision to support the environment and minimize waste.

The SHENZHOU’s Plastic Containers and Bottles are the ultimate solution for all your packaging needs. With their durability, versatility, and eco-friendly design, our products are the perfect choice for storing and protecting your valuables. Trust in the SHENZHOU brand for quality you can rely on

3D SHOW ROOM

VR

Products Description

SZ-1300A

SZ-1700A

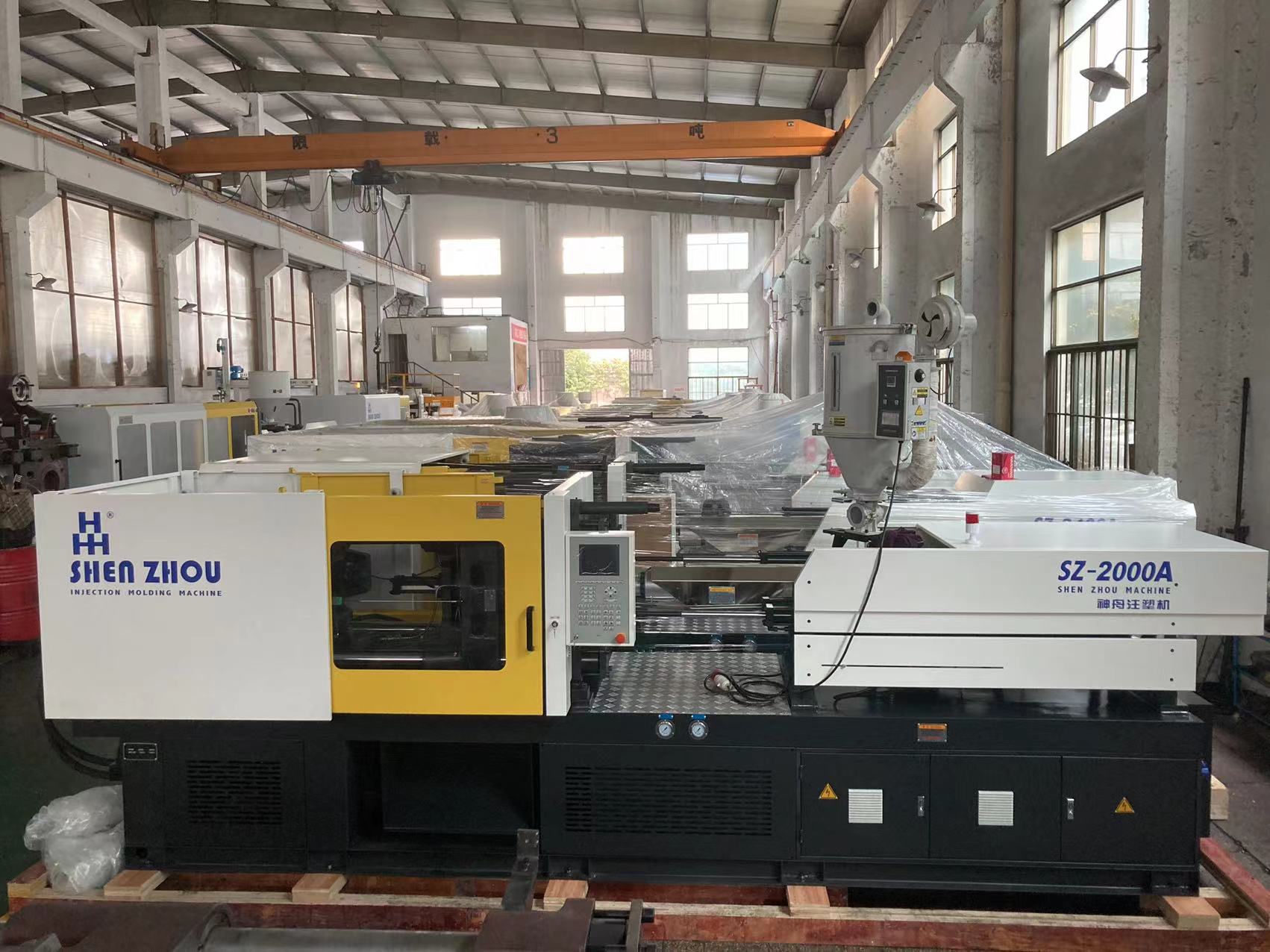

SZ-2000A

SZ-2400A

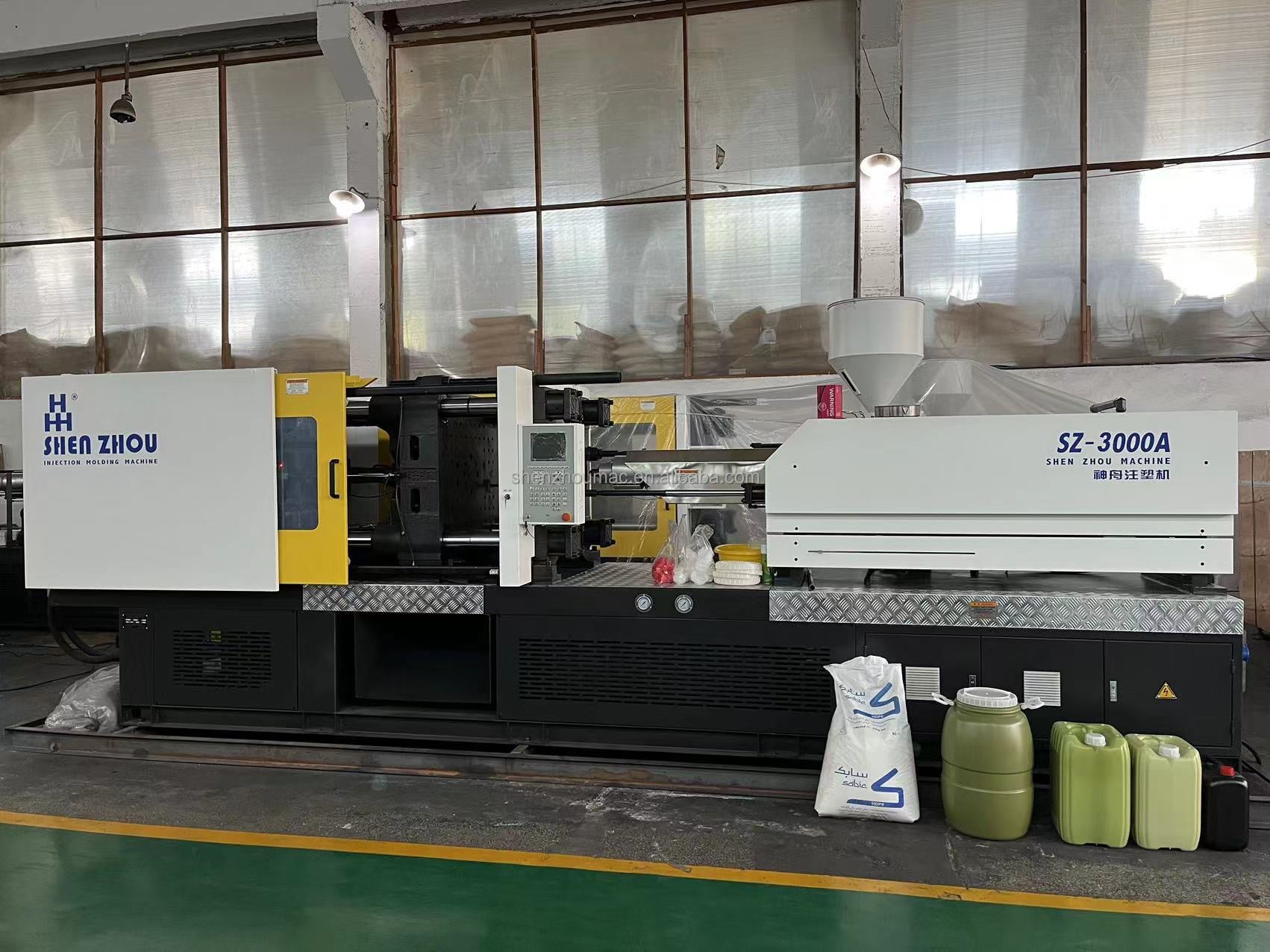

SZ-3000A

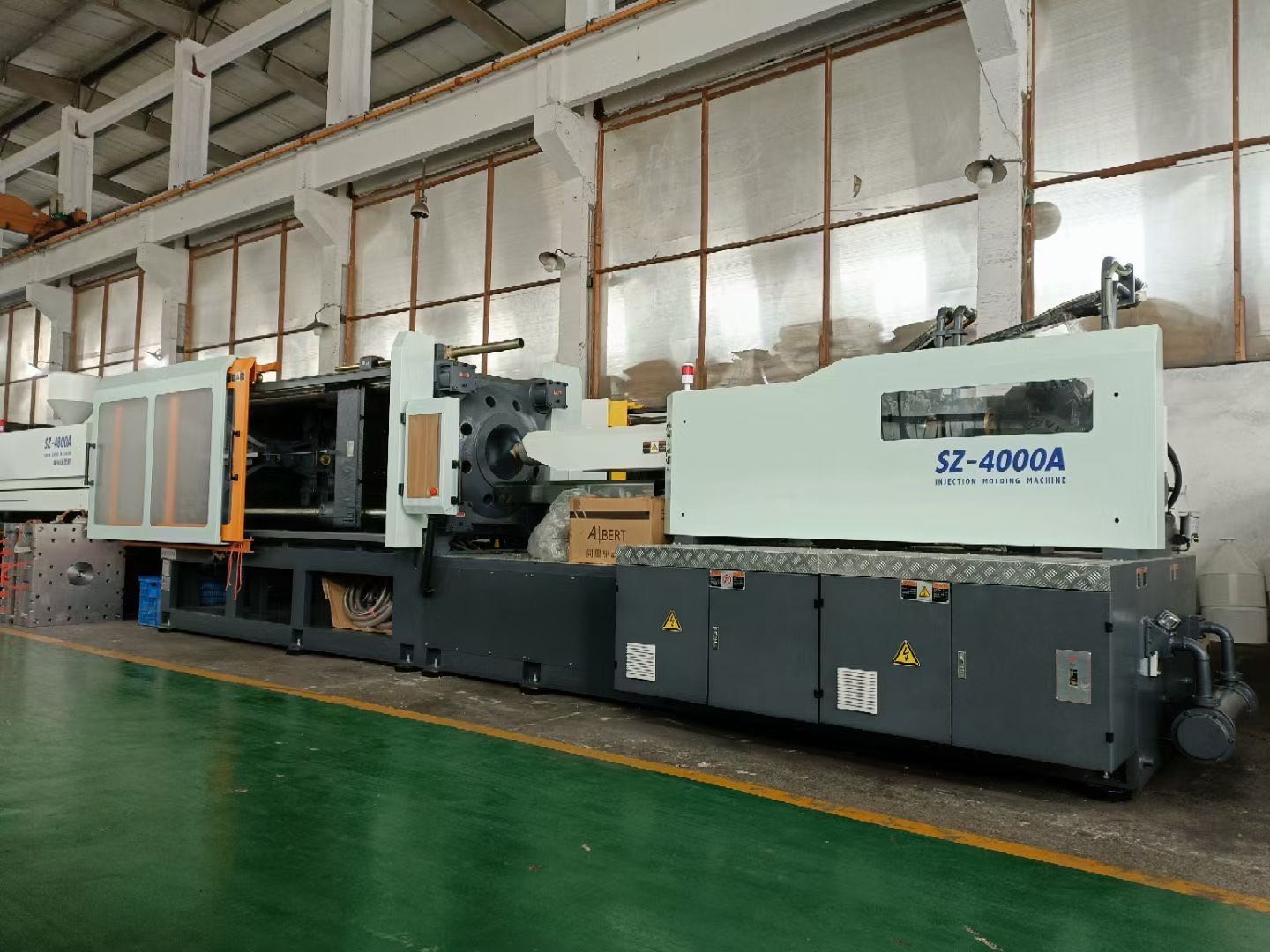

SZ-4000A

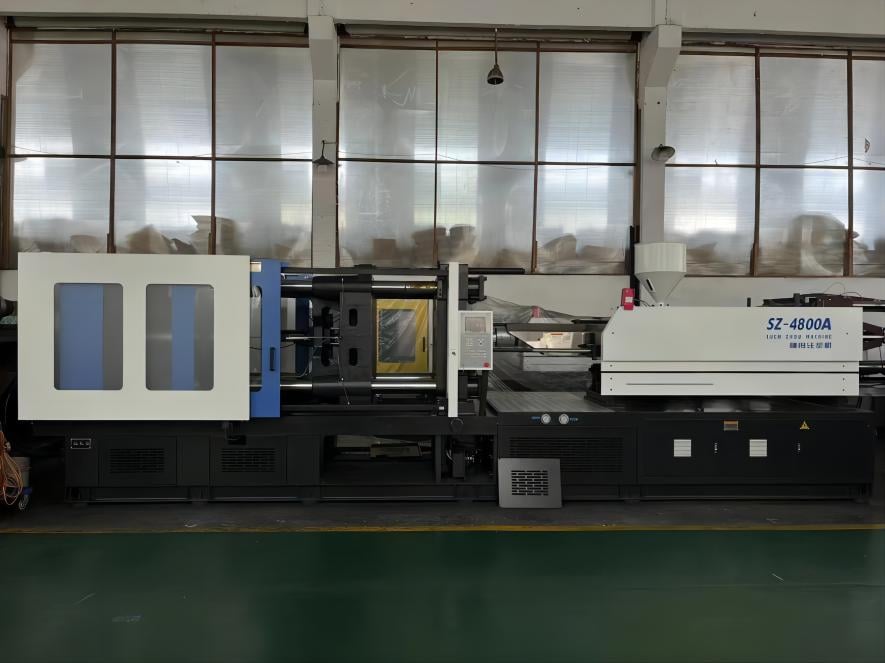

SZ-4800A

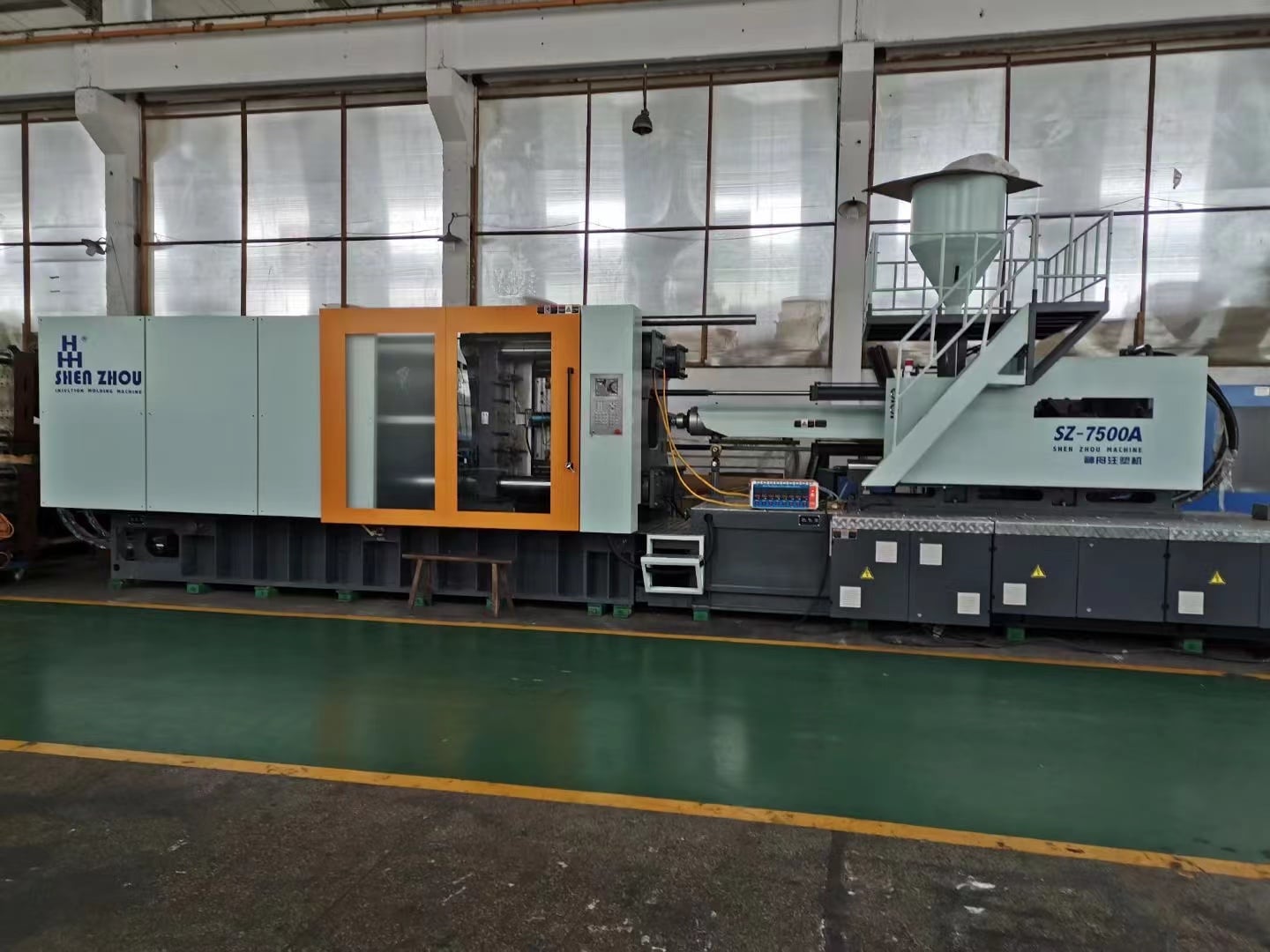

SZ-7500A

Our Advantages

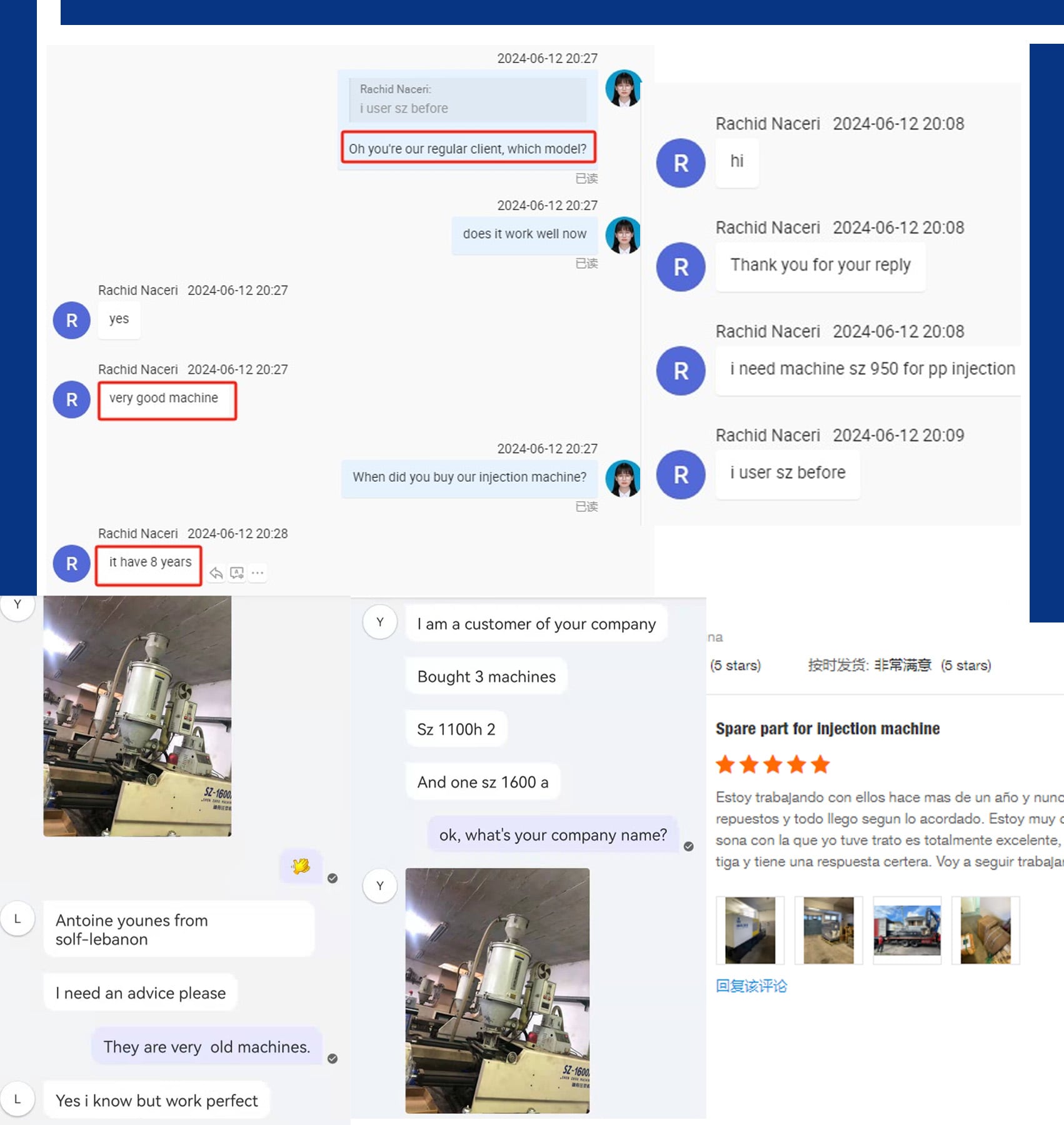

reviews

Certifications

Company Information

Technical Parameter

项目 ITEM			单位UNIT	SZ—2400A
注射装置 INJECTION UNIT
螺杆直径	SCREW DIAMETER	mm	55	60	65
螺杆长径比	SCREW LID RATIO	L/D	22.9	21	19.4
理论注射容积	THEORETICAL SHOT VOLUME	CM3	665	791	929
注射质量 - PS料	SHOT WEIGHT - PS	g	605	720	845
注射压力	INJECTION PRESSURE	Mpa	210	176	150
理论注射速率 - PS料	THEORETICAL INJECTION RATE - PS	g/s	176.5	210	245
塑化能力 - PS料	PLASTICISING CAPACITY	g/s	26.4	32.5	40
螺杆驱动扭矩	SCREW TORQUE	N/m	2000
螺杆最高转速	MAX. SCREW ROTATE SPEED	r/min	150
洼射行程	INJECTION STROKE	mm	280
合模装置 CLAMPING UNIT
合模力	MAX. CLAMPING FORCE K	KN	2400
移模行程	MAX. OPENING STROKE	mm	530
拉杆有效间距 - VxH	SPACE BETWEEN TIE BARS	mm	555×555
允许模厚 - MIN-MAX	MOULD HEIGHT	mm	200-570
模板最大开距	MAX. DAYLIGHT	mm	1100
液压顶出力	EJECTOR FORCE	KN	61.5
液压顶出行程	EJECTOR STROKE	mm	135
液压顶出杆总数	EJECTOR QUANTITY		9
其它 OTHER
油泵电动机功率	PUMP MOTOR POWER	KW	22
油泵最高压力	PUMP PRESSURE	Mpa	16
料简加热功率	HEATING POWER	KW	18.5
加热区段	HEATING ZONE		5
机器外形 - LxWxH	SIZE	m	6.2×1.6×2.1
机器净重	NET WEIGHT	t	8.0
油箱容积	OIL TANK CAPACITY	L	440
国际公认型号	INTERNATIONAL DESIGNATION		2400—1390

Exhibition

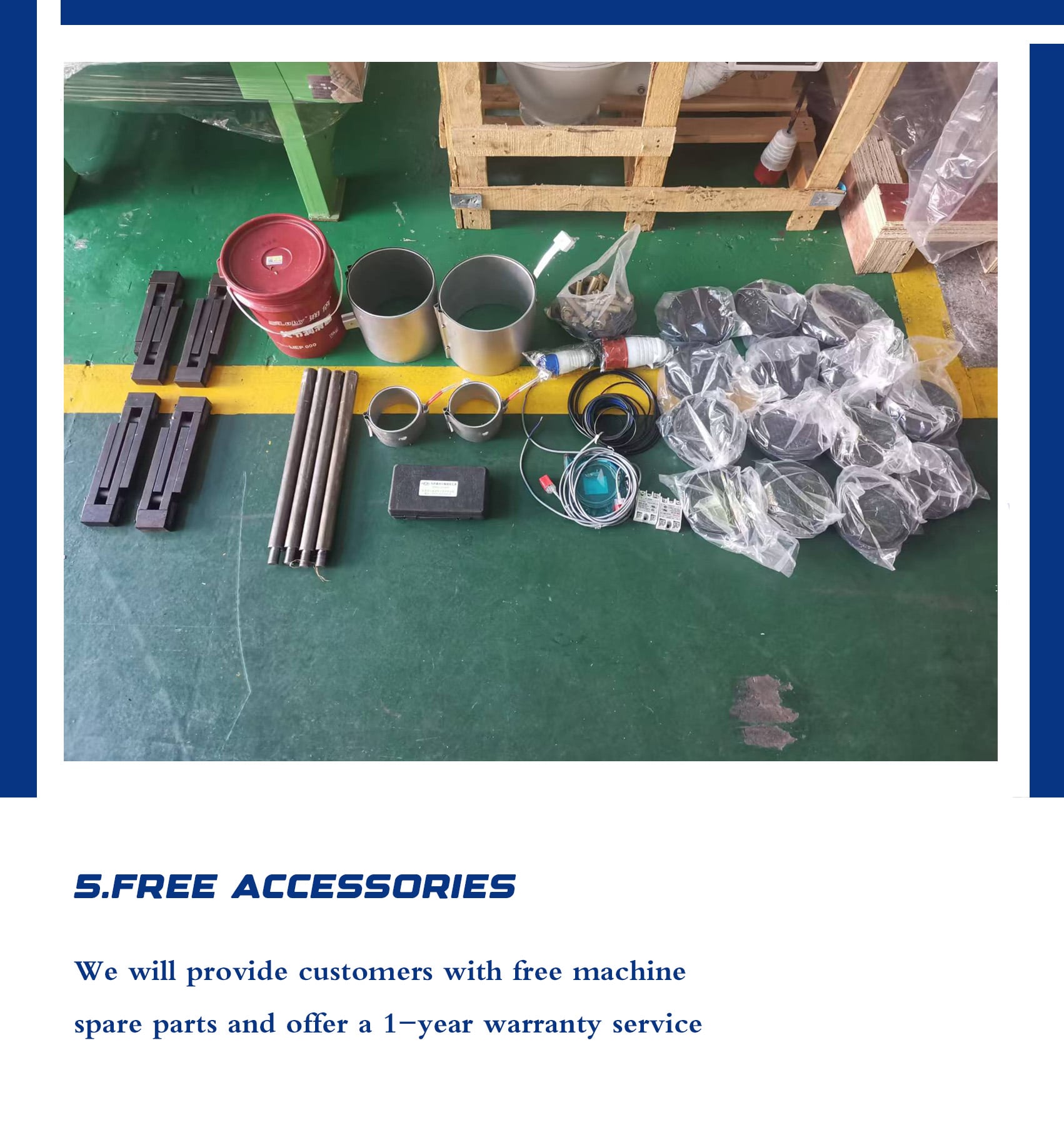

We will apply lubricating oil and spray anti-rust agent to the products before shipment, prepare enough spare parts, and confirm that they are fully fixed before shipment. We pay attention to details and hope to bring you a better experience

FAQ

1. Q:Are you a factory or trading company A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit 2. Q:How does your factory do regarding quality control A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department 3. Q:What are your normal lead times A:Our company typical lead times range from 25-35days after receipt of order. We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks 4. Q:About the price A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions 5. Q:How is your machine different from other businesses A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use 6. Q:Where is your factory located? How can I visit there

A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China. All our clients, from home or abroad, are warmly welcome to visit us

You are welcome to send us samples, we will customize high-quality machines for you! Best wishes for you
