Description
|
ITEM |
UNIT |

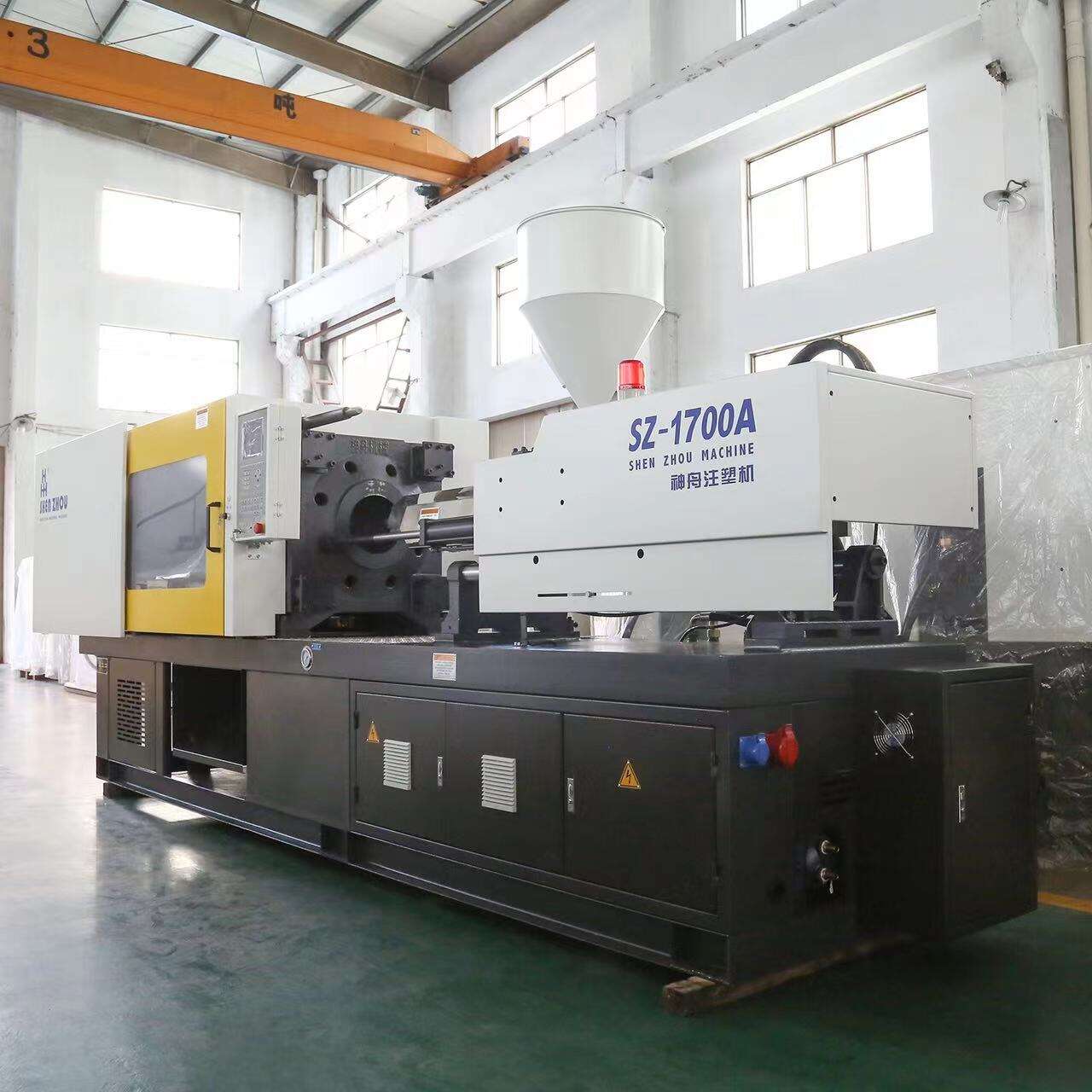

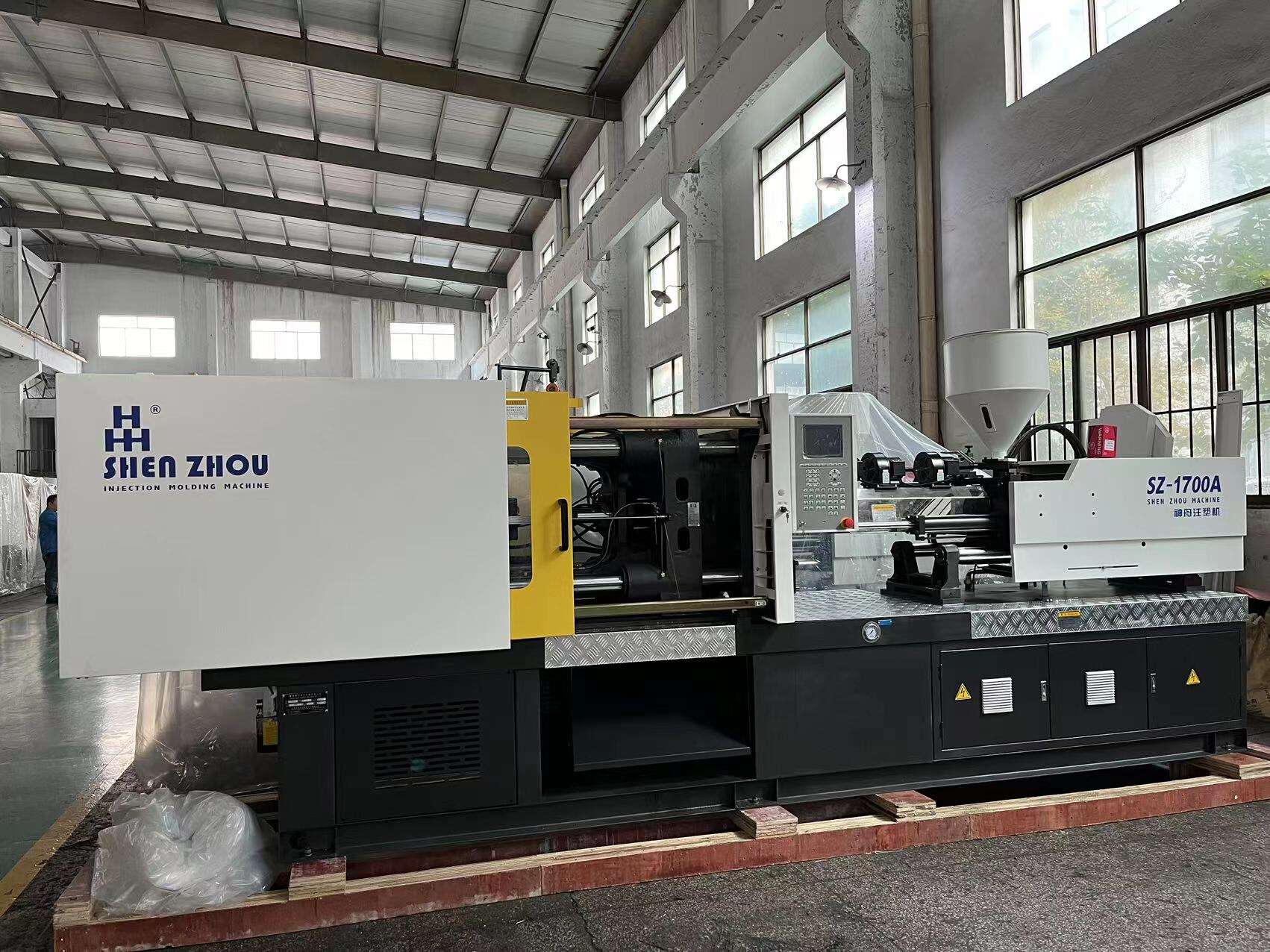

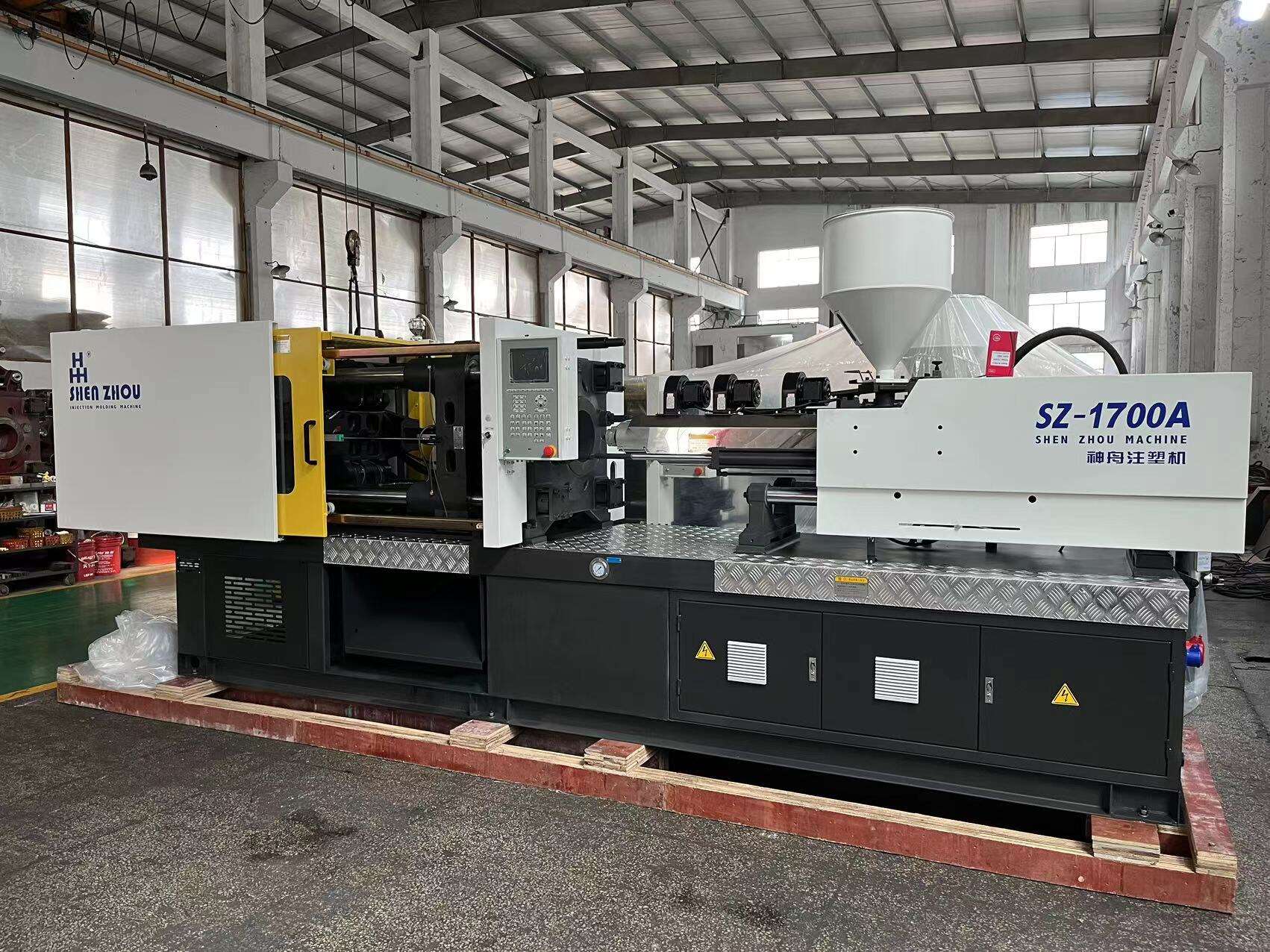

SZ—1700A |
||
|
INJECTION UNIT |
|
|
||
|
SCREW DIAMETER |
mm |
45 |
50 |
55 |
|
SCREW LID RATIO |
L/D |
23.3 |
21 |
19.1 |
|
THEORETICAL SHOT VOLUME |
CM3 |
358 |
442 |
534 |
|
SHOT WEIGHT(PS) |
g |
326 |
402 |
486 |
|
INJECTION PRESSURE |
Mpa |
219 |
178 |
147 |
|
THEORETICAL INJECTION RATE(PS) |
g/s |
142 |
175 |
212 |
|
PLASTICISING CAPACITY |
g/s |
20.1 |
26.5 |
34.2 |
|
SCREW TORQUE |
N.m |
1250 |
||
|
MAX.SCREW ROTATE SPEED |
r/min |
200 |
||
|
INJECTION STROKE |
mm |
225 |
||
|
CLAMPING UNIT |
|
|||
|
MAX.CLAMPING FORCE K |
KN |
1700 |
||
|
MAX.OPENING STROKE |
mm |
460 |
||
|
SPACE BETWEEN TIE BARS |
mm |
480×480 |
||
|
MOULD HEIGHT |
mm |
180-500 |
||
|
MAX.DAYLIGHT |
mm |
960 |
||
|
EJECTOR FORCE |
KN |
45.2 |
||
|
EJECTOR STROKE |
mm |
115 |
||
|
EJECTOR QUANTITY |
|
5 |
||
|
OTHER |
|
|||
|
PUMP MOTOR POWER |
KW |
15 |
||
|
PUMP PRESSURE |
Mpa |
16 |
||
|
HEATING POWER |
KW |
13.6 |
||
|
HEATING ZONE |
|
4 |
||
|
SIZE |
m |
5.3×1.35×1.9 |
||
|
NET WEIGHT |
t |
5.6 |
||
|
OIL TANK CAPACITY |
L |
420 |
||
|
INTERNATIONAL DESIGNATION |
|
1700—785 |
||
