Product Description
Products Advantage
|
ITEM |
UNIT |

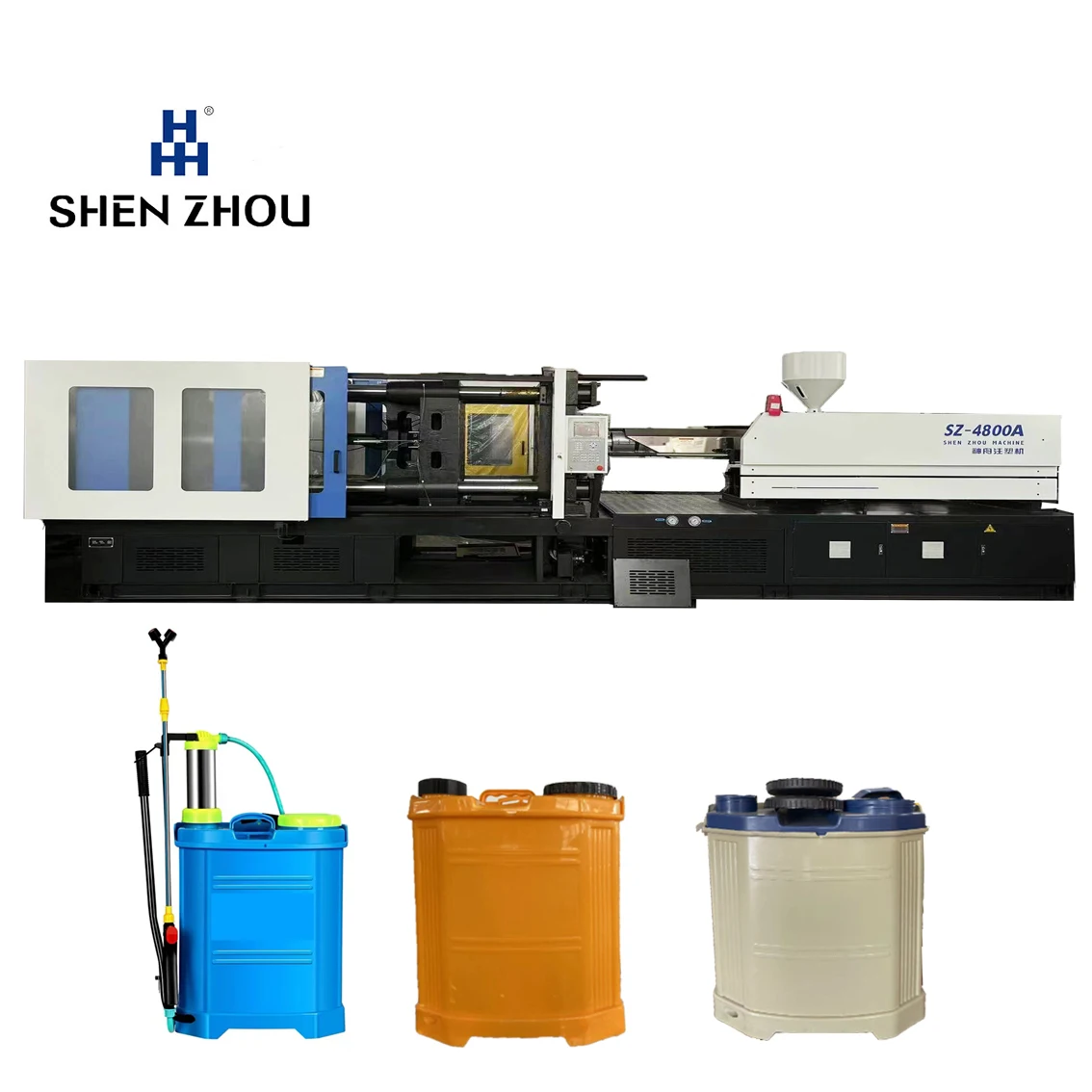

SZ—4800A |
||
|
INJECTION UNIT |
||||
|
SCREW DIAMETER |
mm |
70 |
75 |
80 |
|
SCREW LID RATIO |
L/D |
22.6 |
21 |
19.7 |
|
THEORETICAL SHOT VOLUME |
CM3 |
1346 |
1545 |
1758 |
|
SHOT WEIGHT(PS) |
g |
1225 |
1406 |
1600 |
|
INJECTION PRESSURE |
Mpa |
201 |
175 |
154 |
|
THEORETICAL INJECTION RATE(PS) |
g/s |
370 |
423 |
484 |
|
PLASTICISING CAPACITY |
g/s |
60.4 |
71.4 |
83.7 |
|
SCREW TORQUE |
N.m |
3490 |
||
|
MAX.SCREW ROTATE SPEED |
r/min |
150 |
||
|
INJECTION STROKE |
mm |
350 |
||
|
MAX.CLAMPING FORCE K |
KN |
4800 |
||
|
MAX.OPENING STROKE |
mm |
770 |
||
|
SPACE BETWEEN TIE BARS |
mm |
760×760 |
||
|
MOULD HEIGHT |
mm |
280-790 |
||
|
MAX.DAYLIGHT |
mm |
1560 |
||
|
EJECTOR FORCE |
KN |
113.4 |
||
|
EJECTOR STROKE |
mm |
195 |
||
|
EJECTOR QUANTITY |
|
13 |
||
|
PUMP MOTOR POWER |
KW |
45 |
||
|
PUMP PRESSURE |
Mpa |
16 |
||
|
HEATING POWER |
KW |
28 |
||
|
HEATING ZONE |
|
5 |
||
|
SIZE |
m |
7.5×2.1×2.45 |
||
|
NET WEIGHT |
t |
20 |
||
|
OIL TANK CAPACITY |
L |
850 |
||
|
INTERNATIONAL DESIGNATION |
|
4800—2710 |
||
