Plastic Fruit Box Spoon Preform Making Machine Mould Price List Injection Molding Machine
Description

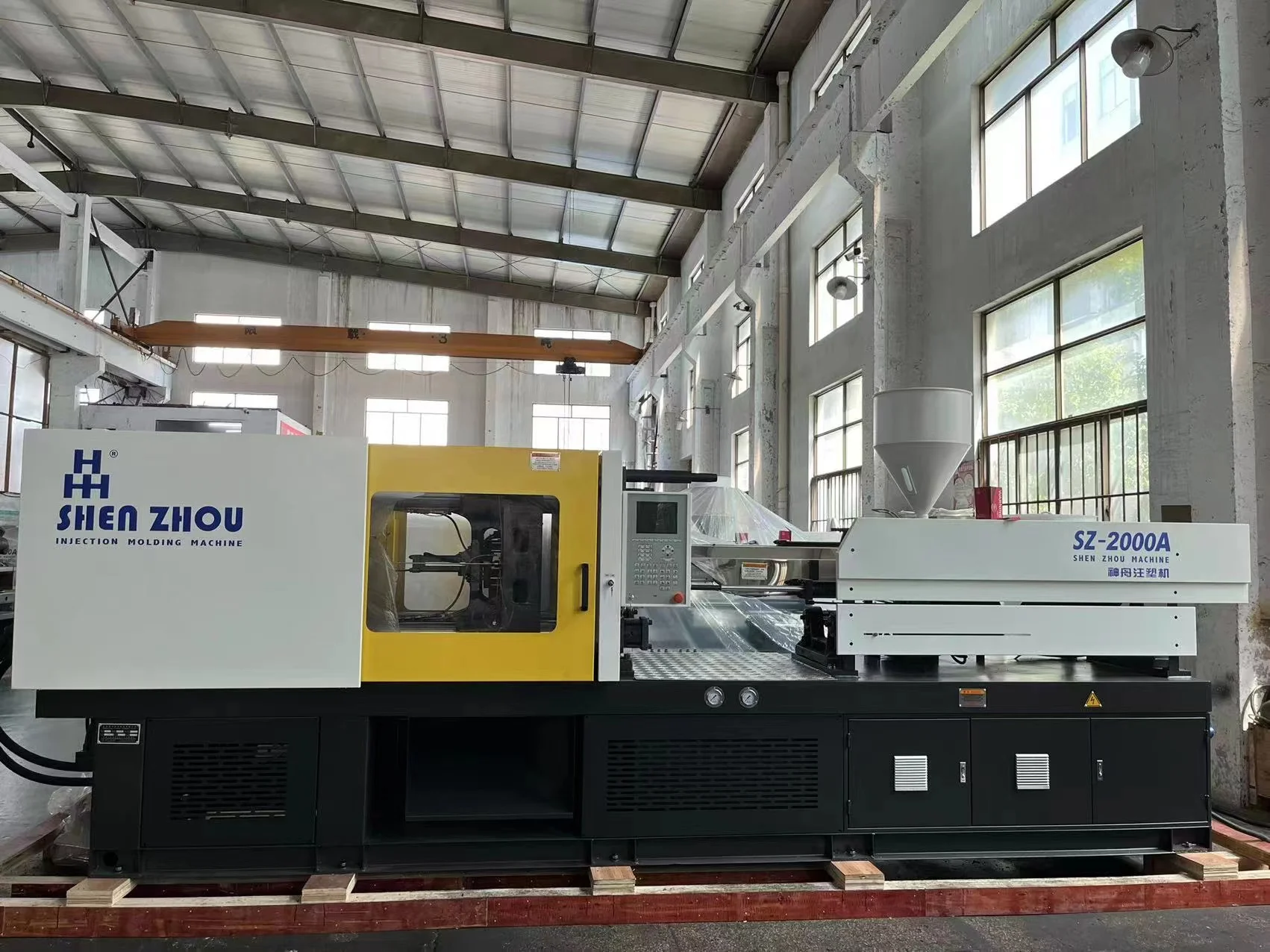

Lunch box injection molding machine technical specification
|
Screw diameter |
mm |
50 |
55 |
60 |
|
Screw L/D ratio |
L/D |
23.1 |
21 |
19.3 |
|
Shot weight |
gram |
447 |
540 |
643 |
|
Plasticising capacity |
g/s |
22.5 |
28.7 |
35.4 |
|
Injection pressure |
Mpa |
215 |
178 |
149 |
|
Theoretical injection rate |
g/s |
145 |
175 |
208 |
|
Injection stroke |
mm |
250 |
||
|
Screw torque |
N.m |
1510 |
||
|
Max screw rotate speed |
r/min |
170 |
||
|
Opening stroke |
mm |
400 |
||
|
Space between tie bars |
mm |
505×505 |
||
|
Mould height |
mm |
190~530 |
||
|
Max daylight |
mm |
840 |
||
|
Ejector force |
ton |
53.1 |
||
|
Ejector stroke |
mm |
125 |
||
|
Ejector quantity |
|
5 |
||
|
Oil pump motor |
kw |
18.5 |
||
|
Pump pressure |
Mpa |
16 |
||
|
Heating power |
kw |
16.6 |
||
|
Machine size |
M |
5.9*1.5*2 |
||
|
Machine weight |
ton |
4 |
||
|
Oil tank capacity |
L |
420 |
||
|
International designation |
|
2000-1060 |
||
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection
molding machine?
yes,we have established a highly strict quality control department
to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate
