Description
|
项目 ITEM |
单位UNIT |

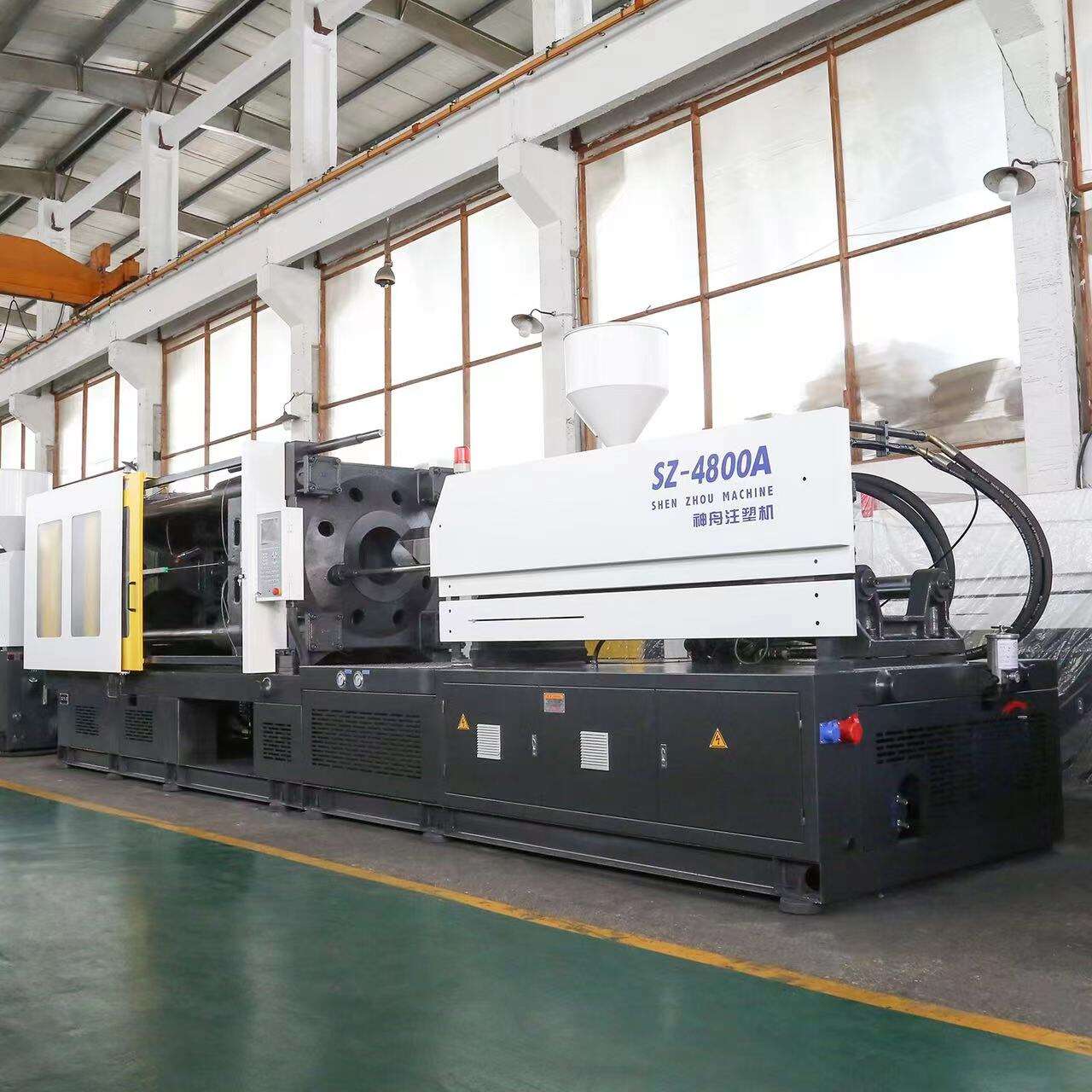

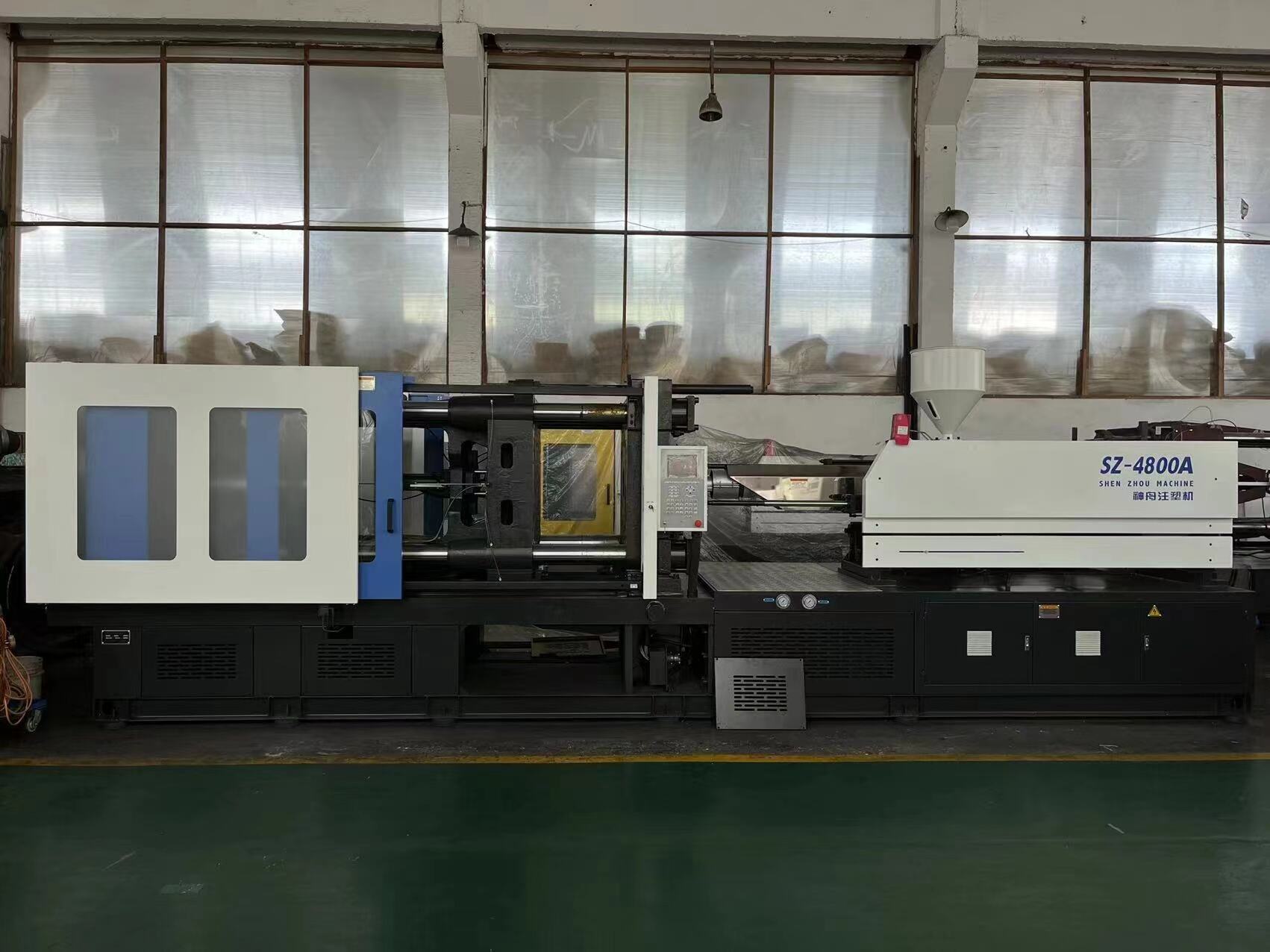

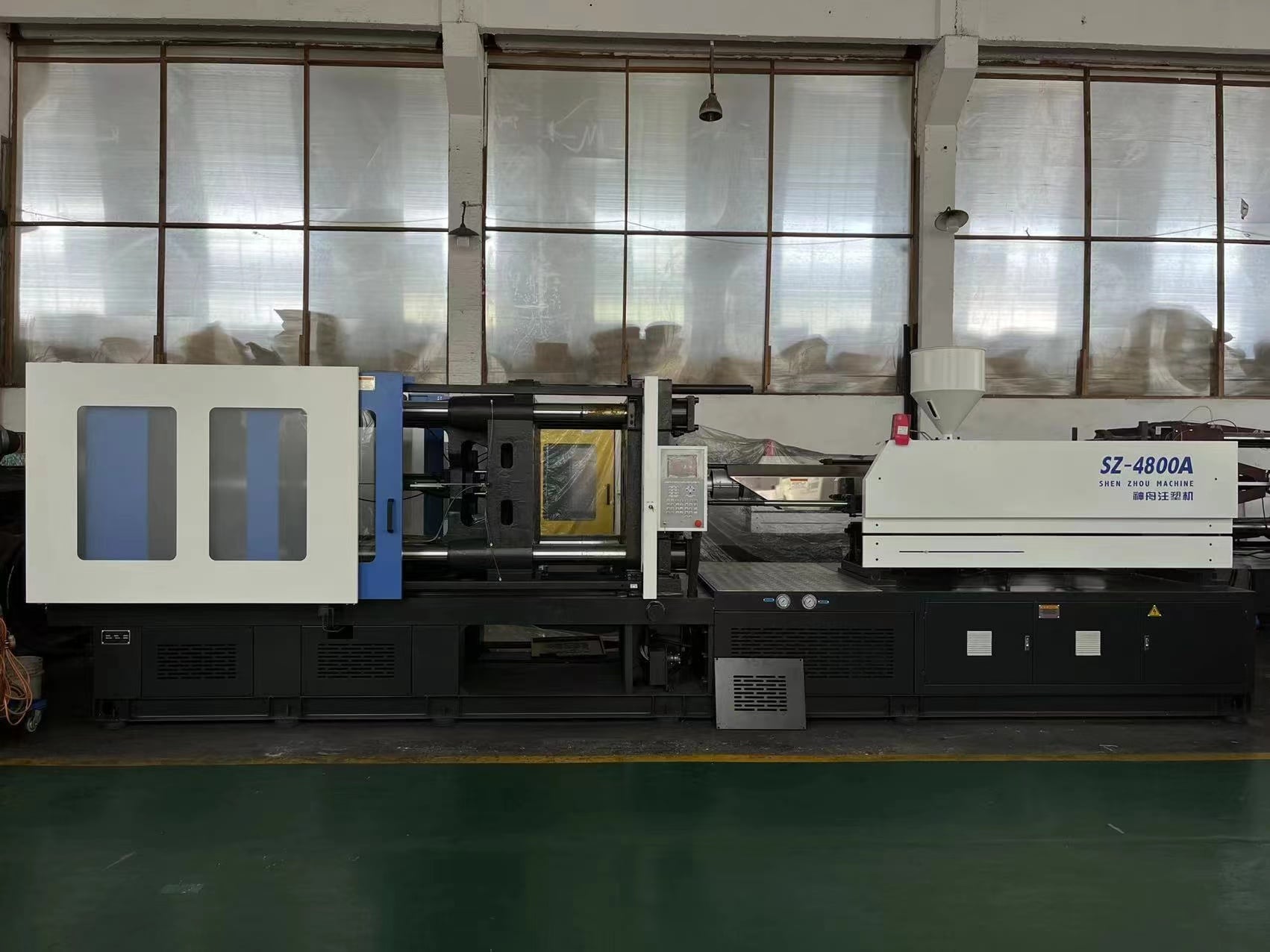

SZ—4800A |
|||
|
注射装置 INJECTION UNIT |
|
|
|||
|
螺杆直径 |
SCREW DIAMETER |
mm |
70 |
75 |
80 |
|
螺杆长径比 |
SCREW LID RATIO |
L/D |
22.6 |
21 |
19.7 |
|
理论注射容积 |
THEORETICAL SHOT VOLUME |
CM3 |
1346 |
1545 |
1758 |
|
注射质量(PS料) |
SHOT WEIGHT(PS) |
g |
1225 |
1406 |
1600 |
|
注射压力 |
INJECTION PRESSURE |
Mpa |
201 |
175 |
154 |
|
理论注射速率(PS料) |
THEORETICAL INJECTION RATE(PS) |
g/s |
370 |
423 |
484 |
|
塑化能力(PS料) |
PLASTICISING CAPACITY |
g/s |
60.4 |
71.4 |
83.7 |
|
螺杆驱动扭矩 |
SCREW TORQUE |
N.m |
3490 |
||
|
螺杆最高转速 |
MAX.SCREW ROTATE SPEED |
r/min |
150 |
||
|
洼射行程 |
INJECTION STROKE |
mm |
350 |
||
|
合模装置 CLAMPING UNIT |
|
||||
|
合模力 |
MAX.CLAMPING FORCE K |
KN |
4800 |
||
|
移模行程 |
MAX.OPENING STROKE |
mm |
770 |
||
|
拉杆有效间距(VxH) |
SPACE BETWEEN TIE BARS |
mm |
760×760 |
||
|
允许模厚(MIN-MAX) |
MOULD HEIGHT |
mm |
280-790 |
||
|
模板最大开距 |
MAX.DAYLIGHT |
mm |
1560 |
||
|
液压顶出力 |
EJECTOR FORCE |
KN |
113.4 |
||
|
液压顶出行程 |
EJECTOR STROKE |
mm |
195 |
||
|
液压顶出杆总数 |
EJECTOR QUANTITY |
|
13 |
||
|
其它 OTHER |
|
||||
|
油泵电动机功率 |
PUMP MOTOR POWER |
KW |
45 |
||
|
油泵最高压力 |
PUMP PRESSURE |
Mpa |
16 |
||
|
料简加热功率 |
HEATING POWER |
KW |
28 |
||
|
加热区段 |
HEATING ZONE |
|
5 |
||
|
机器外形(LxWxH) |
SIZE |
m |
7.5×2.1×2.45 |
||
|
机器净重 |
NET WEIGHT |
t |
20 |
||
|
油箱容积 |
OIL TANK CAPACITY |
L |
850 |
||
|
国际公认型号 |
INTERNATIONAL DESIGNATION |
|
4800—2710 |
||
