Plastic Lids Bottle Pet Preform 5 Gallon Water Bottle Cap Making Molding Mold Machine

Introducing, the SHENZHOU’s Plastic Lids Bottle Pet Preform 5 Gallon Water Bottle Cap Making Molding Mold Machine, a top-of-the-line solution for producing high-quality bottle caps for 5 gallon water bottles. This innovative machine is designed to streamline the manufacturing process and deliver consistent results every time.

With the SHENZHOU’s Plastic Lids Bottle Pet Preform 5 Gallon Water Bottle Cap Making Molding Mold Machine, you can easily create custom bottle caps in a variety of colors and designs. Whether you are looking to create branded caps for your business or unique caps for personal use, this machine has you covered. The high-quality molds ensure precise detailing and a perfect fit every time.

One of the standout features of the SHENZHOU’s Plastic Lids Bottle Pet Preform 5 Gallon Water Bottle Cap Making Molding Mold Machine is its user-friendly interface. The intuitive controls make it easy to set up and operate the machine, allowing you to focus on creating beautiful bottle caps without any hassle. Additionally, the machine is equipped with safety features to ensure a secure working environment for you and your team.

In addition to its user-friendly design, the SHENZHOU’s Plastic Lids Bottle Pet Preform 5 Gallon Water Bottle Cap Making Molding Mold Machine is also highly efficient. The advanced molding technology enables fast production speeds without compromising on quality. This means you can create large quantities of bottle caps in a short amount of time, helping you meet demand and maximize productivity.

The SHENZHOU’s Plastic Lids Bottle Pet Preform 5 Gallon Water Bottle Cap Making Molding Mold Machine is built to last. Constructed from durable materials, this machine is designed to withstand heavy use and provide reliable performance for years to come. Whether you are a small business looking to expand your product line or a large manufacturer in need of a dependable molding machine, this product is the perfect choice.

The SHENZHOU’s Plastic Lids Bottle Pet Preform 5 Gallon Water Bottle Cap Making Molding Mold Machine is a top-of-the-line solution for creating high-quality bottle caps. Its user-friendly interface, efficient production capabilities, and durable construction make it a valuable addition to any manufacturing operation. Invest in this machine today and take your bottle cap production to the next level

The price is for reference only

3D SHOW ROOM

VR

Certifications

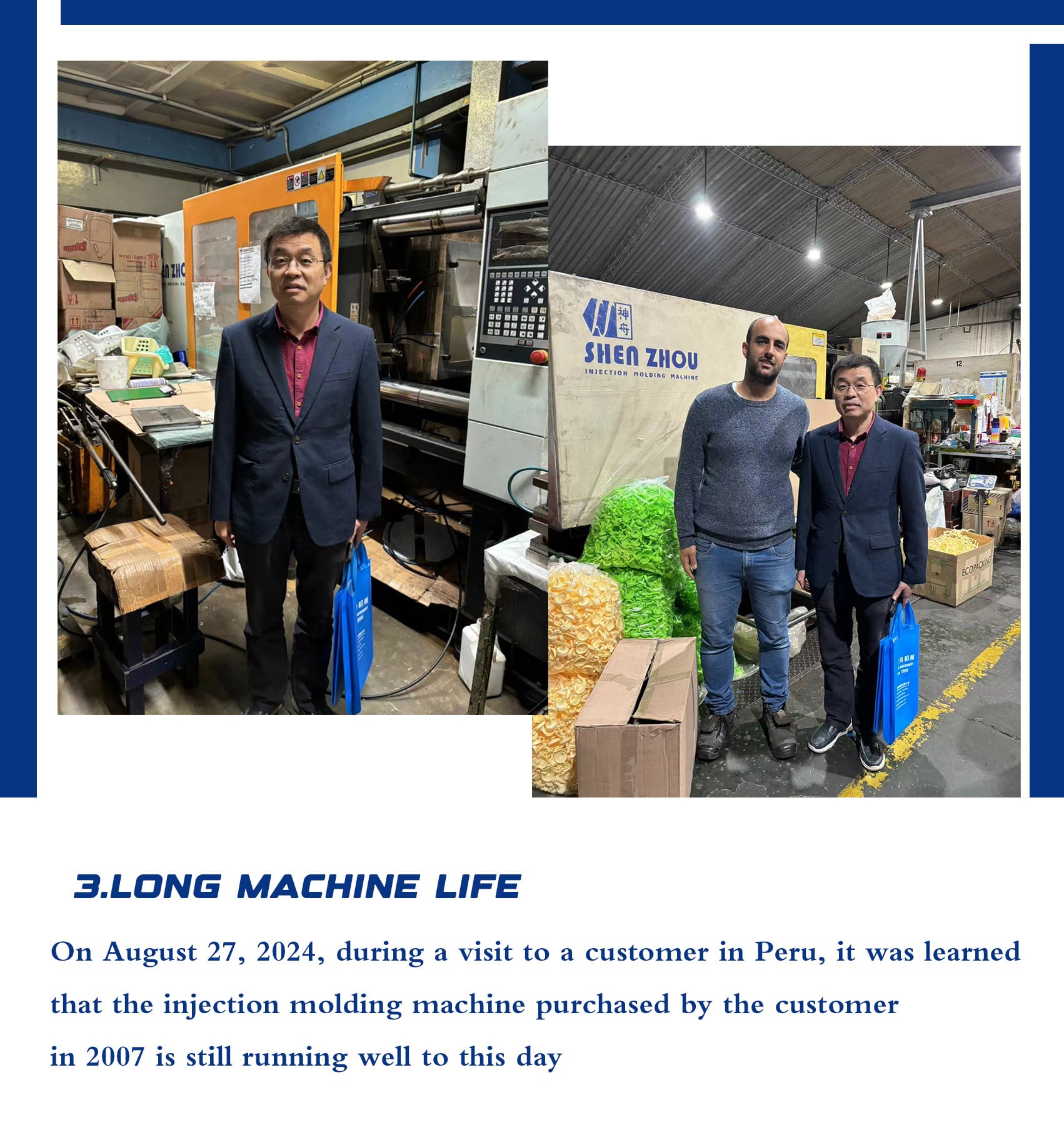

Why Choose Us

Product Description

项目 ITEM			单位UNIT	SZ—1700A
注射装置 INJECTION UNIT
螺杆直径	SCREW DIAMETER	mm	45	50	55
螺杆长径比	SCREW LID RATIO	L/D	23.3	21	19.1
理论注射容积	THEORETICAL SHOT VOLUME	CM3	358	442	534
注射质量 - PS料	SHOT WEIGHT - PS	g	326	402	486
注射压力	INJECTION PRESSURE	Mpa	219	178	147
理论注射速率 - PS料	THEORETICAL INJECTION RATE - PS	g/s	142	175	212
塑化能力 - PS料	PLASTICISING CAPACITY	g/s	20.1	26.5	34.2
螺杆驱动扭矩	SCREW TORQUE	N/m	1250
螺杆最高转速	MAX. SCREW ROTATE SPEED	r/min	200
洼射行程	INJECTION STROKE	mm	225
合模装置 CLAMPING UNIT
合模力	MAX. CLAMPING FORCE K	KN	1700
移模行程	MAX. OPENING STROKE	mm	460
拉杆有效间距 - VxH	SPACE BETWEEN TIE BARS	mm	480×480
允许模厚 - MIN-MAX	MOULD HEIGHT	mm	180-500
模板最大开距	MAX. DAYLIGHT	mm	960
液压顶出力	EJECTOR FORCE	KN	45.2
液压顶出行程	EJECTOR STROKE	mm	115
液压顶出杆总数	EJECTOR QUANTITY		5
其它 OTHER
油泵电动机功率	PUMP MOTOR POWER	KW	15
油泵最高压力	PUMP PRESSURE	Mpa	16
料简加热功率	HEATING POWER	KW	13.6
加热区段	HEATING ZONE		4
机器外形 - LxWxH	SIZE	m	5.3×1.35×1.9
机器净重	NET WEIGHT	t	5.6
油箱容积	OIL TANK CAPACITY	L	420
国际公认型号	INTERNATIONAL DESIGNATION		1700—785

Plastic  Injection Molding Machine

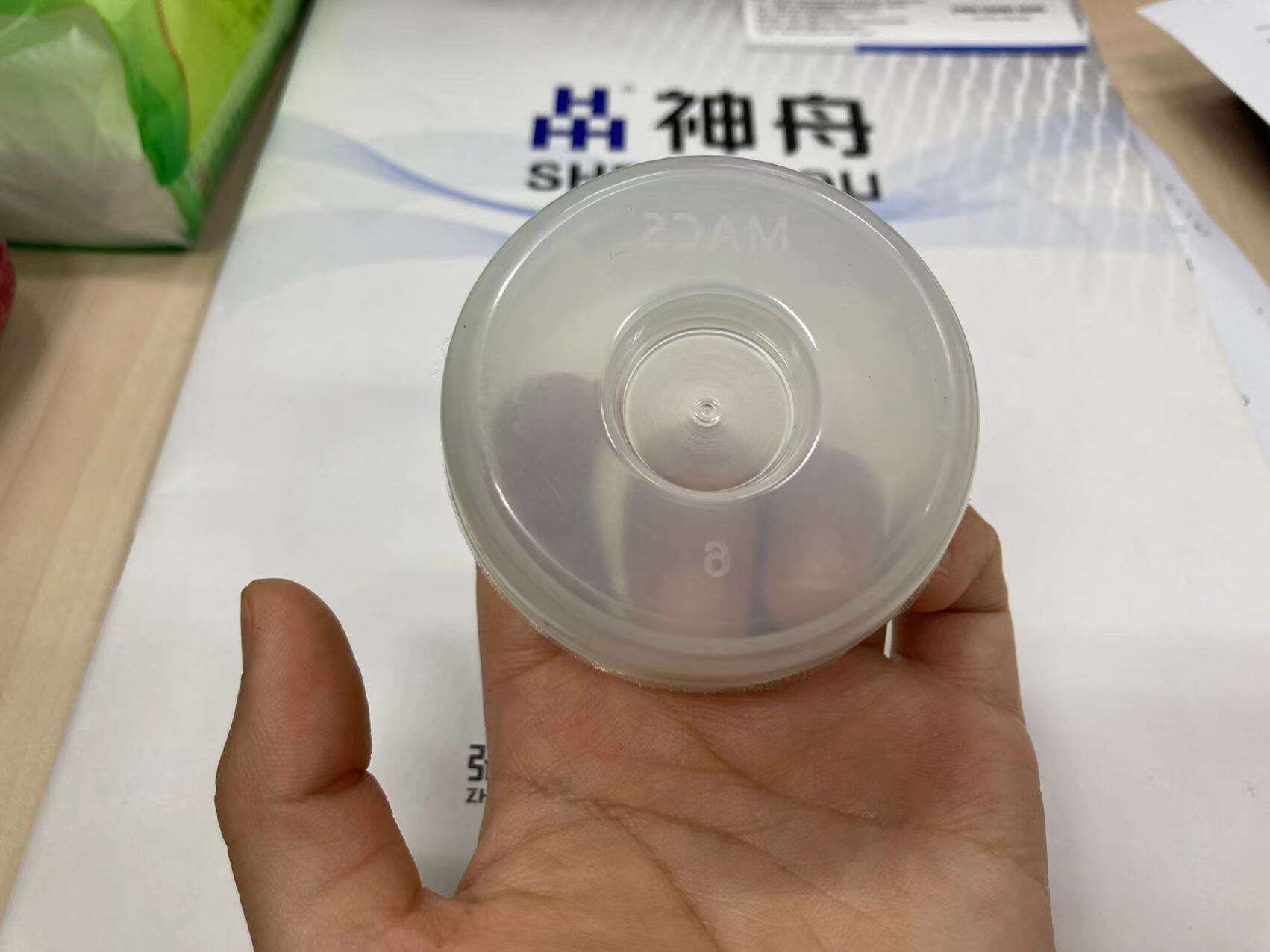

Products show

What can we do ？

Customer presentation

Company Information

packaging

FAQ

1. Q:Are you a factory or trading company A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit 2. Q:How does your factory do regarding quality control A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department 3. Q:What are your normal lead times A:Our company typical lead times range from 25-35days after receipt of order. We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks 4. Q:About the price A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions 5. Q:How is your machine different from other businesses A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use 6. Q:Where is your factory located? How can I visit there

A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China. All our clients, from home or abroad, are warmly welcome to visit us

You are welcome to send us samples, we will customize high-quality machines for you! Best wishes for you
