Description
|
ITEM |
UNIT |

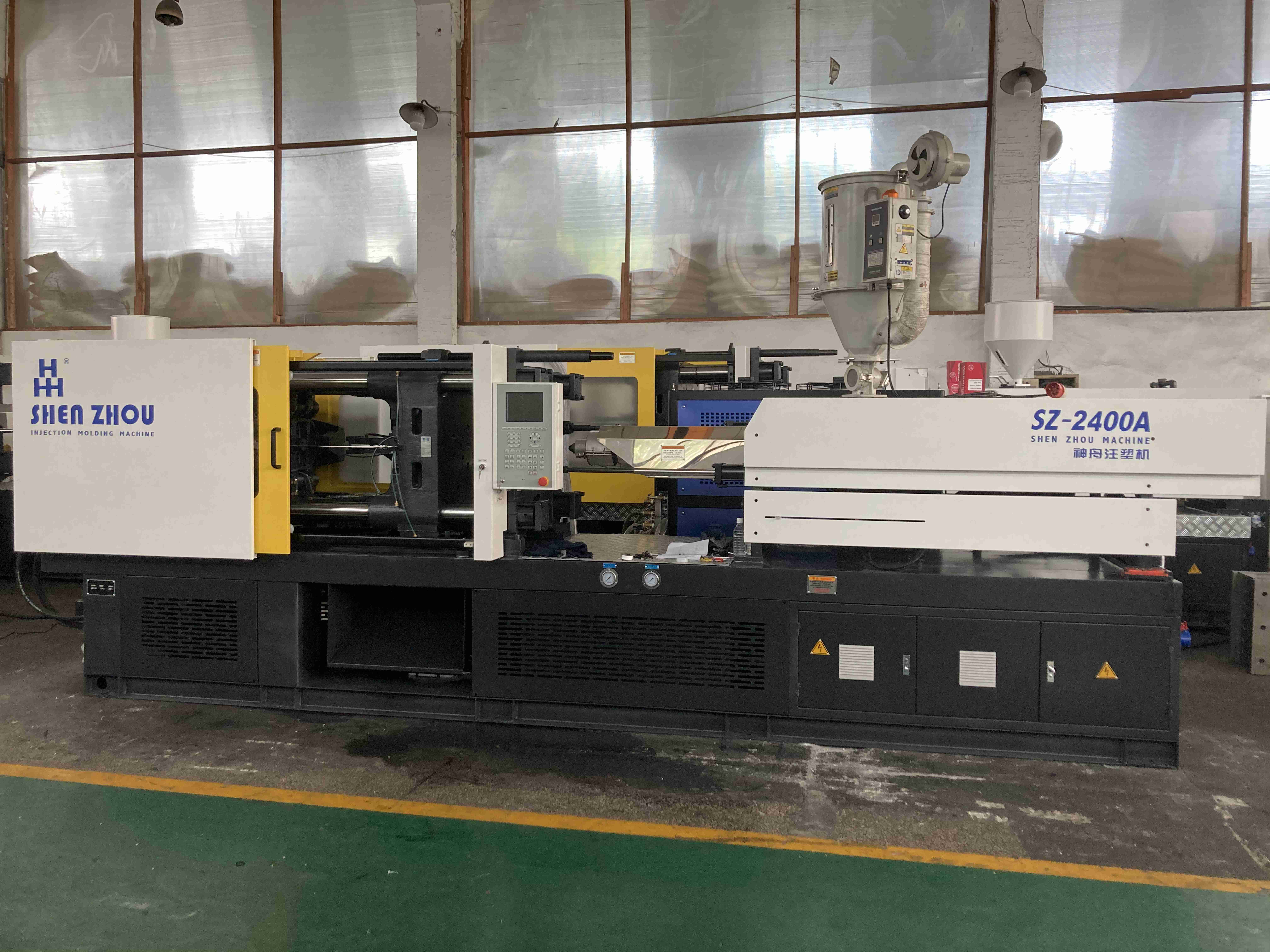

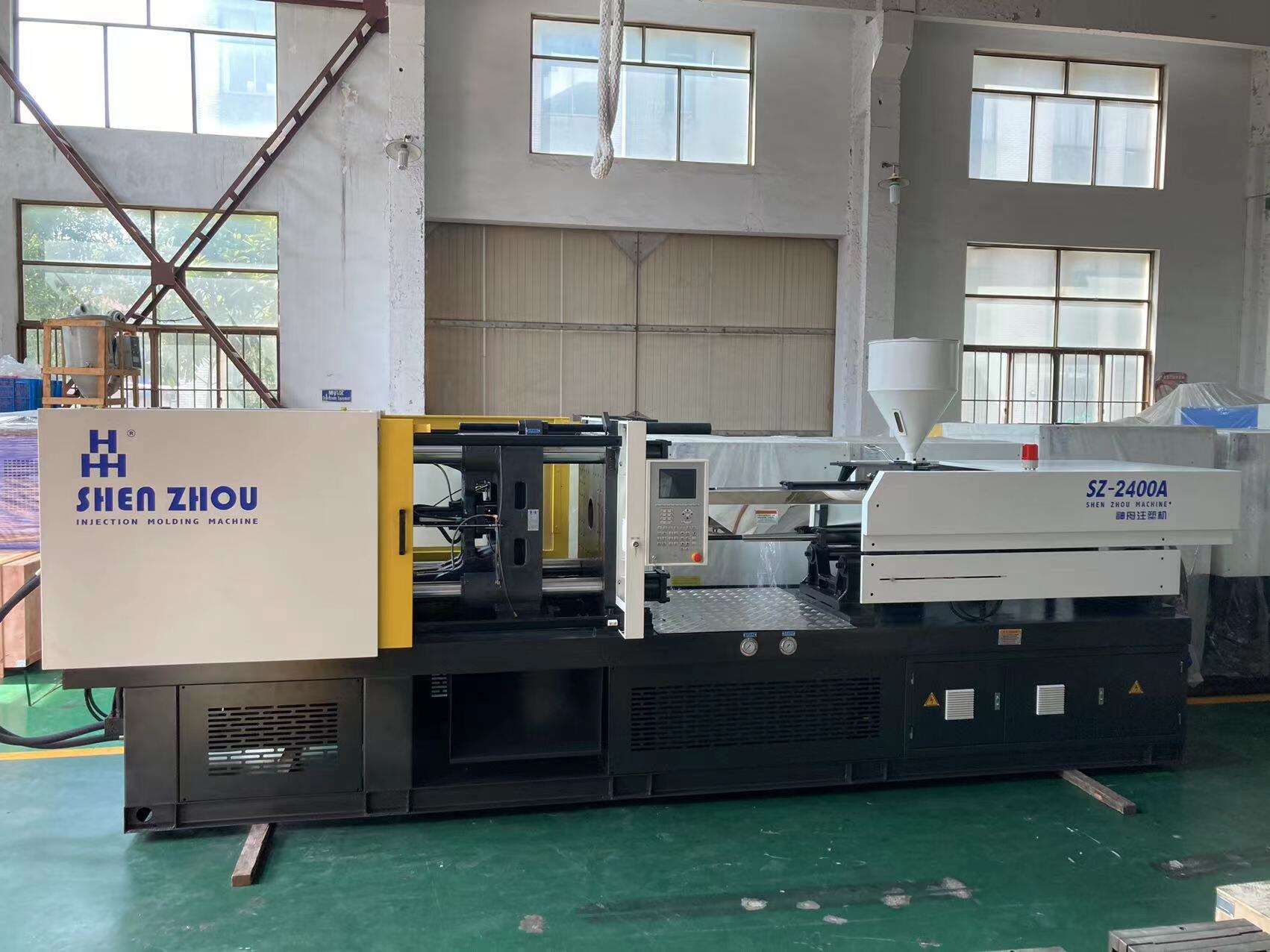

SZ—2400A |
||
|
INJECTION UNIT |
|
|
||
|
SCREW DIAMETER |
mm |
55 |
60 |
65 |
|
SCREW LID RATIO |
L/D |
22.9 |
21 |
19.4 |
|
THEORETICAL SHOT VOLUME |
CM3 |
665 |
791 |
929 |
|
SHOT WEIGHT(PS) |
g |
605 |
720 |
845 |
|
INJECTION PRESSURE |
Mpa |
210 |
176 |
150 |
|
THEORETICAL INJECTION RATE(PS) |
g/s |
176.5 |
210 |
245 |
|
PLASTICISING CAPACITY |
g/s |
26.4 |
32.5 |
40 |
|
SCREW TORQUE |
N.m |
2000 |
||
|
MAX.SCREW ROTATE SPEED |
r/min |
150 |
||
|
INJECTION STROKE |
mm |
280 |
||
|
CLAMPING UNIT |
|
|||
|
MAX.CLAMPING FORCE K |
KN |
2400 |
||
|
MAX.OPENING STROKE |
mm |
530 |
||
|
SPACE BETWEEN TIE BARS |
mm |
555×555 |
||
|
MOULD HEIGHT |
mm |
200-570 |
||
|
MAX.DAYLIGHT |
mm |
1100 |
||
|
EJECTOR FORCE |
KN |
61.5 |
||
|
EJECTOR STROKE |
mm |
135 |
||
|
EJECTOR QUANTITY |
|
9 |
||
|
其它 OTHER |
|
|||
|
PUMP MOTOR POWER |
KW |
22 |
||
|
PUMP PRESSURE |
Mpa |
16 |
||
|
HEATING POWER |
KW |
18.5 |
||
|
HEATING ZONE |
|
5 |
||
|
SIZE |
m |
6.2×1.6×2.1 |
||
|
NET WEIGHT |
t |
8.0 |
||
|
OIL TANK CAPACITY |
L |
440 |
||
|
INTERNATIONAL DESIGNATION |
|
2400—1390 |
||
