Description
|
ITEM |
单位UNIT |

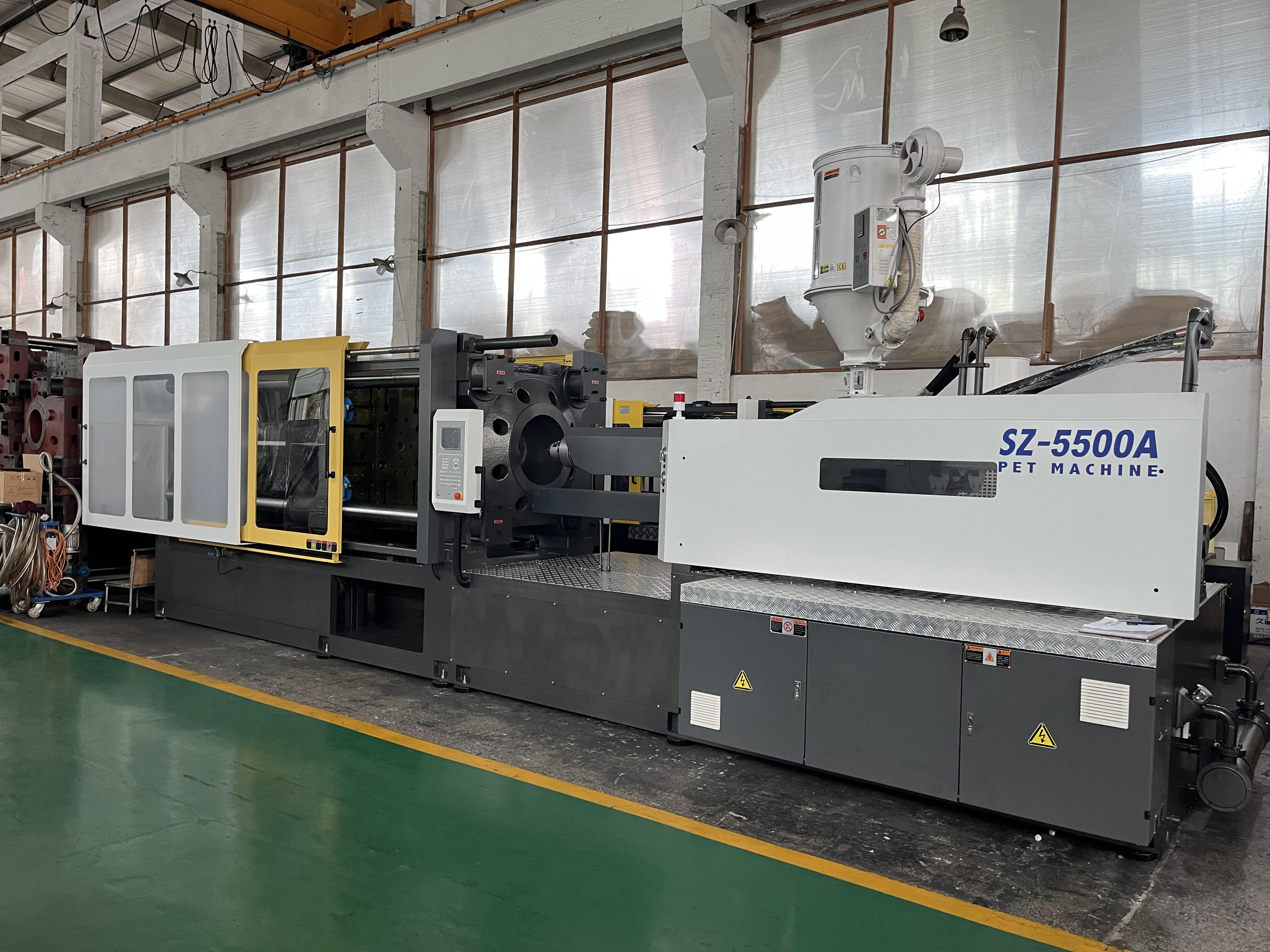

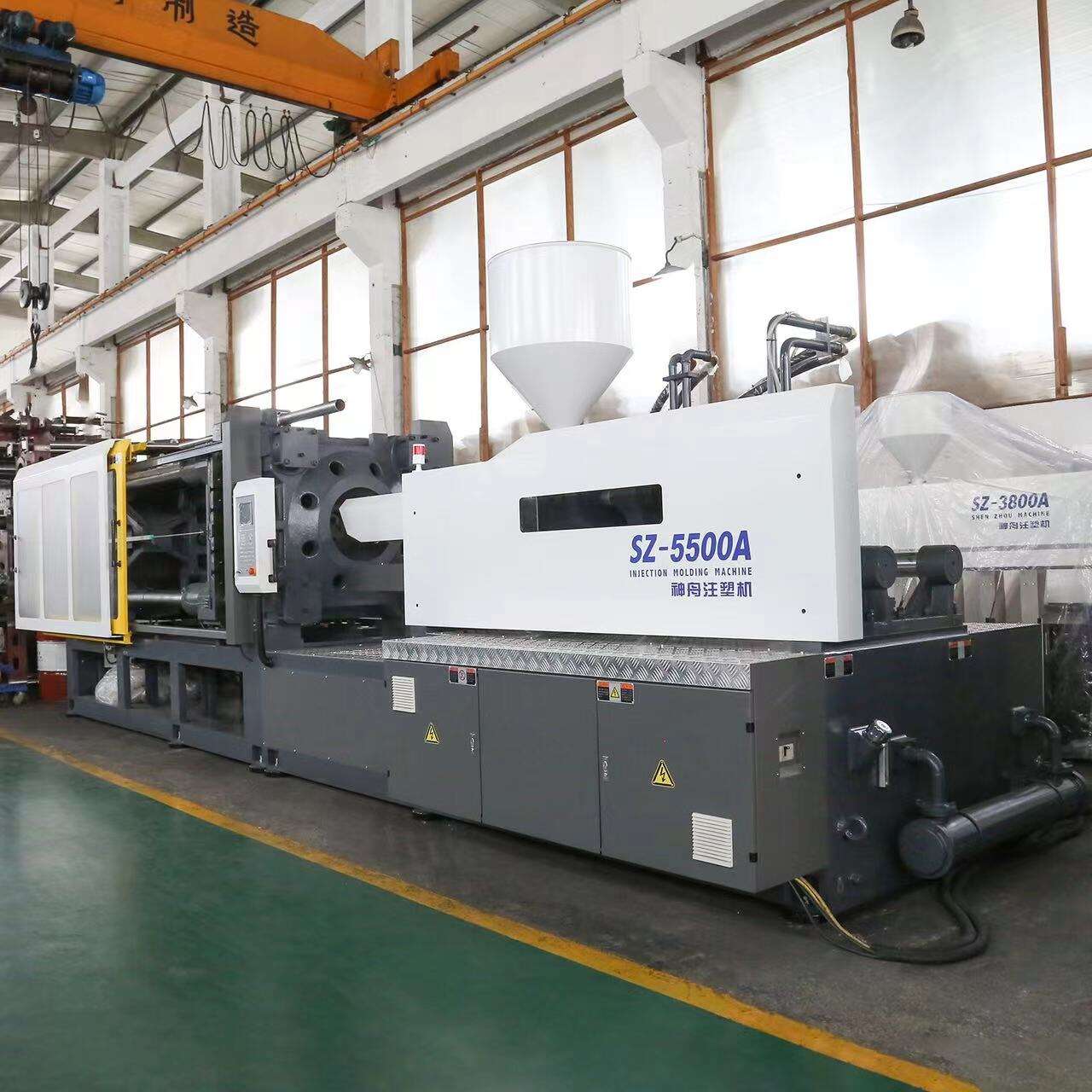

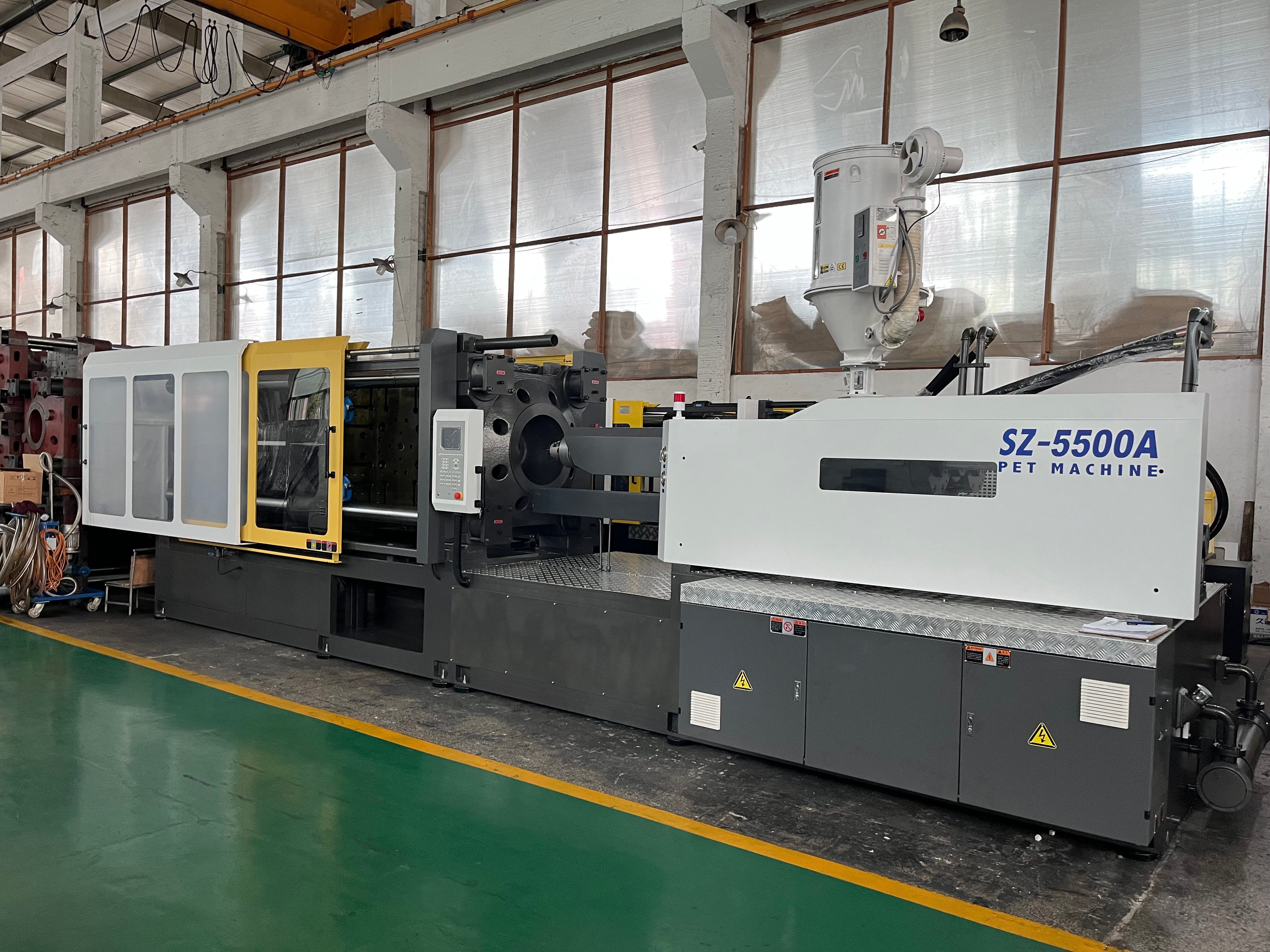

SZ—5500A |
||
|
INJECTION UNIT |
|
|
||
|
SCREW DIAMETER |
mm |
80 |
85 |
90 |
|
SCREW LID RATIO |
L/D |
22.3 |
21 |
19.8 |
|
THEORETICAL SHOT VOLUME |
CM3 |
2141 |
2418 |
2710 |
|
SHOT WEIGHT(PS) |
g |
1948 |
2200 |
2466 |
|
INJECTION PRESSURE |
Mpa |
188 |
167 |
149 |
|
THEORETICAL INJECTION RATE(PS) |
g/s |
427 |
482 |
541 |
|
PLASTICISING CAPACITY |
g/s |
80 |
100 |
118 |
|
SCREW TORQUE |
N.m |
5170 |
||
|
MAX.SCREW ROTATE SPEED |
r/min |
150 |
||
|
INJECTION STROKE |
mm |
425 |
||
|
CLAMPING UNIT |
|
|||
|
MAX.CLAMPING FORCE K |
KN |
5500 |
||
|
MAX.OPENING STROKE |
mm |
820 |
||
|
SPACE BETWEEN TIE BARS |
mm |
810×810 |
||
|
MOULD HEIGHT |
mm |
350-820 |
||
|
MAX.DAYLIGHT |
mm |
1640 |
||
|
EJECTOR FORCE |
KN |
150 |
||
|
EJECTOR STROKE |
mm |
210 |
||
|
EJECTOR QUANTITY |
|
13 |
||
|
OTHER |
|
|||
|
PUMP MOTOR POWER |
KW |
55 |
||
|
PUMP PRESSURE |
Mpa |
16 |
||
|
HEATING POWER |
KW |
33 |
||
|
HEATING ZONE |
|
6 |
||
|
SIZE |
m |
8.4×2.2×2.6 |
||
|
NET WEIGHT |
t |
23.5 |
||
|
OIL TANK CAPACITY |
L |
1000 |
||
|
INTERNATIONAL DESIGNATION |
|
5500—4040 |
||
