项目 ITEM | 单位UNIT | SZ—4000A | |||
注射装置 INJECTION UNIT | |||||
螺杆直径 | SCREW DIAMETER | mm | 70 | 75 | 80 |
螺杆长径比 | SCREW LID RATIO | L/D | 21.4 | 20 | 18.8 |
理论注射容积 | THEORETICAL SHOT VOLUME | CM3 | 1293 | 1485 | 1689 |
注射质量(PS料) | SHOT WEIGHT(PS) | g | 1176 | 1351 | 1537 |
注射压力 | INJECTION PRESSURE | Mpa | 199 | 173 | 152 |
理论注射速率(PS料) | THEORETICAL INJECTION RATE(PS) | g/s | 366 | 395 | 446 |
塑化能力(PS料) | PLASTICISING CAPACITY | g/s | 60 | 65 | 70 |
螺杆驱动扭矩 | SCREW TORQUE | N.m | 4200 | ||
螺杆转速 | MAX.SCREW ROTATE SPEED | r/min | 165 | ||
洼射行程 | INJECTION STROKE | mm | 335 | ||
合模装置 CLAMPING UNIT | |||||
合模力 | MAX.CLAMPING FORCE K | KN | 4000 | ||
移模行程 | MAX.OPENING STROKE | mm | 700 | ||
拉杆有效间距(VxH) | SPACE BETWEEN TIE BARS | mm | 720×720 | ||
允许模厚(MIN-MAX) | MOULD HEIGHT | mm | 280-800 | ||
模板开距 | MAX.DAYLIGHT | mm | 1500 | ||
液压顶出力 | EJECTOR FORCE | KN | 126 | ||
液压顶出行程 | EJECTOR STROKE | mm | 180 | ||
液压顶出杆总数 | EJECTOR QUANTITY | 13 | |||
其它 OTHER | |||||
油泵电动机功率 | PUMP MOTOR POWER | KW | 37 | ||
油泵压力 | PUMP PRESSURE | Mpa | 16 | ||
料简加热功率 | HEATING POWER | KW | 25 | ||
加热区段 | HEATING ZONE | 5 | |||
机器外形(LxWxH) | SIZE | m | 7.15×2.1×2.35 | ||
机器净重 | NET WEIGHT | t | 16.7 | ||
油箱容积 | OIL TANK CAPACITY | L | 820 | ||
国际公认型号 | INTERNATIONAL DESIGNATION | 4000—2570 | |||

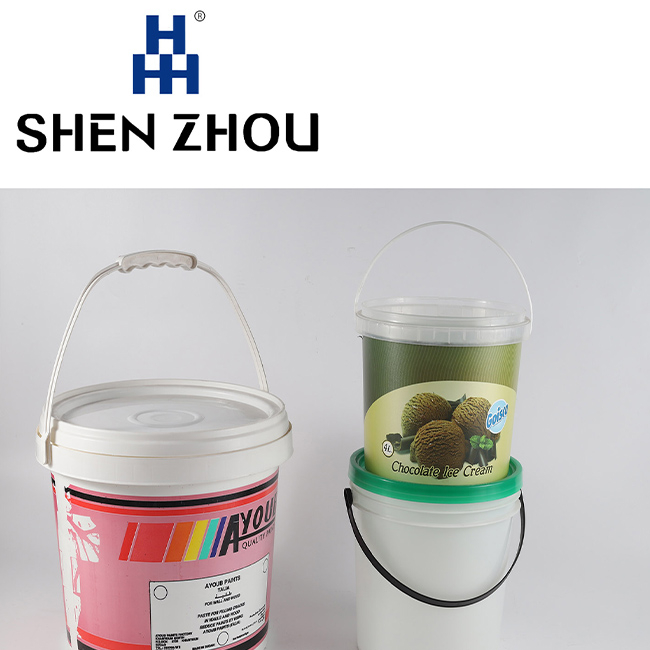

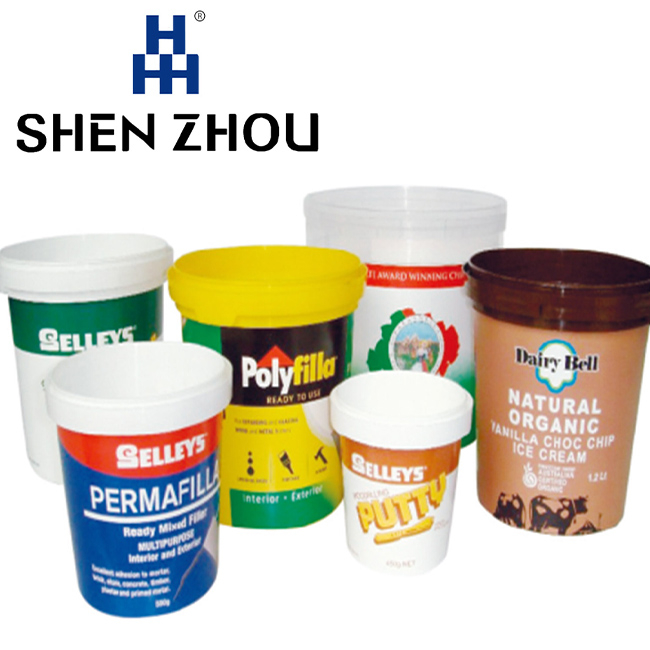

custom desktop electrical plastic bucket injection molding machine
