ITEM | UNIT | SZ—4800A | ||
INJECTION UNIT | ||||
SCREW DIAMETER | mm | 70 | 75 | 80 |
SCREW LID RATIO | L/D | 22.6 | 21 | 19.7 |
THEORETICAL SHOT VOLUME | CM3 | 1346 | 1545 | 1758 |
SHOT WEIGHT(PS) | g | 1225 | 1406 | 1600 |
INJECTION PRESSURE | Mpa | 201 | 175 | 154 |
THEORETICAL INJECTION RATE(PS) | g/s | 370 | 423 | 484 |
PLASTICISING CAPACITY | g/s | 60.4 | 71.4 | 83.7 |
SCREW TORQUE | N.m | 3490 | ||
MAX.SCREW ROTATE SPEED | r/min | 150 | ||
INJECTION STROKE | mm | 350 | ||
CLAMPING UNIT | ||||
MAX.CLAMPING FORCE K | KN | 4800 | ||
MAX.OPENING STROKE | mm | 770 | ||
SPACE BETWEEN TIE BARS | mm | 760×760 | ||
MOULD HEIGHT | mm | 280-790 | ||
MAX.DAYLIGHT | mm | 1560 | ||
EJECTOR FORCE | KN | 113.4 | ||
EJECTOR STROKE | mm | 195 | ||
EJECTOR QUANTITY | 13 | |||
OTHER | ||||
PUMP MOTOR POWER | KW | 45 | ||
PUMP PRESSURE | Mpa | 16 | ||
HEATING POWER | KW | 28 | ||
HEATING ZONE | 5 | |||
SIZE | m | 7.5×2.1×2.45 | ||
NET WEIGHT | t | 20 | ||
OIL TANK CAPACITY | L | 850 | ||
INTERNATIONAL DESIGNATION | 4800—2710 | |||

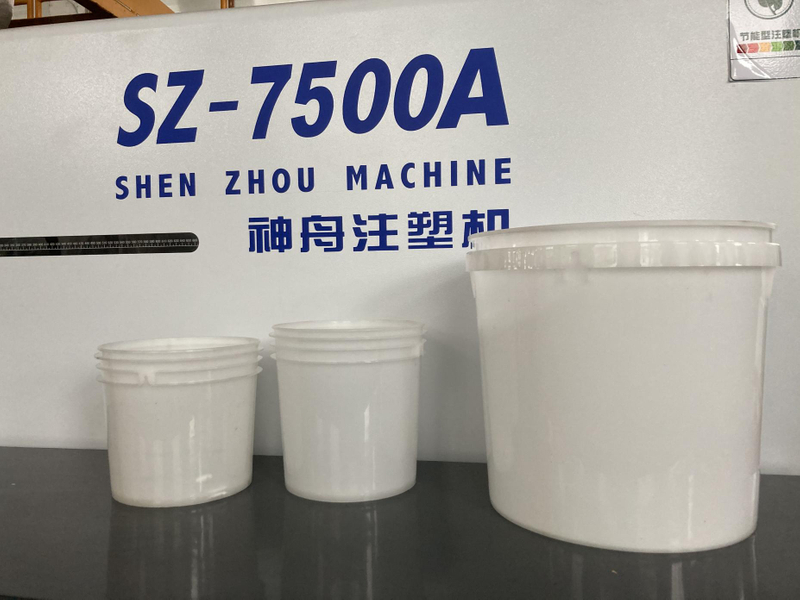

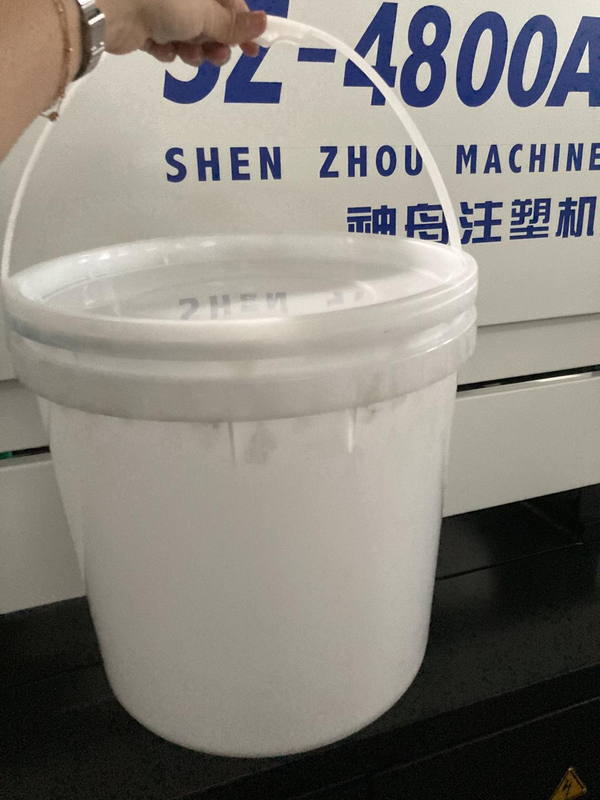

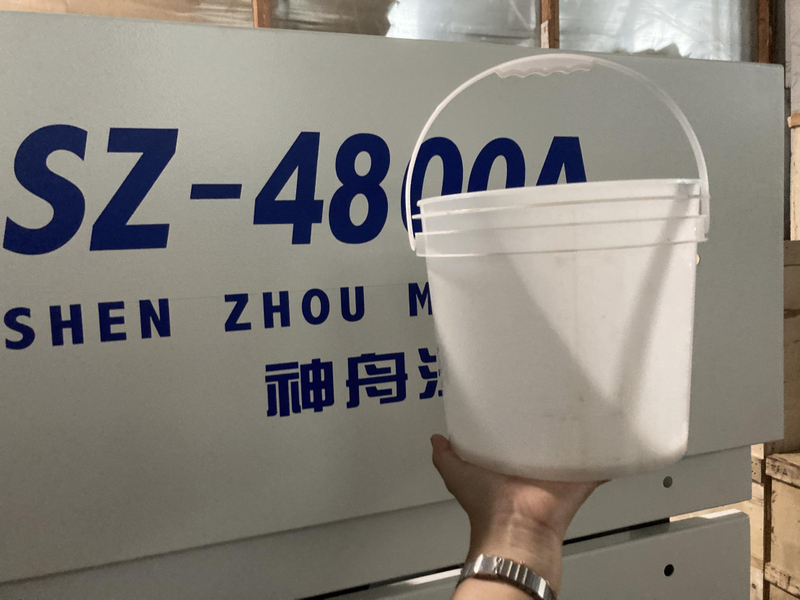

Versatile Molding Capability: The machine is designed to accommodate various bucket sizes and shapes, providing flexibility in production and meeting diverse customer needs.
Energy Efficiency: Our injection molding machine is engineered to optimize energy consumption, reducing operational costs while minimizing environmental impact.
User-Friendly Interface: The machine features a user-friendly interface, making it easy to operate and monitor the molding process. It enhances productivity and reduces downtime.
Robust Construction: Built with durable materials, our machine ensures long-lasting performance and reliability, even in demanding production environments.
Our Campany
ZHANG JIA GANG SHEN ZHOU MACHINERY CO.,LTD.located in Zhangjiagang City-new Port City of China, We are close to the port city and have great convenience on transportation.
We are an entity factory with a whole line of injection molding machines. We gather many years of rich experience to make “SZ” series automatic computer Injection Molding Machine and its
equipment. Its excellent quality, stable performance, attractive price-performance meet the client's demands and profits.
We are a manufacture of injection molding machine .Our machines are sold to more than 20 provinces of China and exported to 50 countries of Europe, USA. Latin and South America.
Middle East. Southeast Asia, Russia, Middle Asia. Africa. And all of our clients give high reputations for our machines and services.
We are the member of Germany TUV (IS09001:2000) registered and Italy CE certified (IG 0407). Our company is accredited for meeting
international standards in management responsibility, quality control, design control, process control, customer
service and other key criteria. And supply continuous satisfaction for our valuable customers at home and abroad.
Adhering to our long-established corporate spirit of 'Everything for Customers”, we will do our best to offer customers the best
quality products and service at the competitive prices, to meet the variable challenges and keep advantage.
SHEN ZHOU a reliable partner in Plastic Injection Processing.
