SZ—10000A Injection Molding Machine
You are here: Home » Product Category » Injection Molding Machine » General Injection Molding Machine » SZ—10000A Injection Molding Machine
Share to:

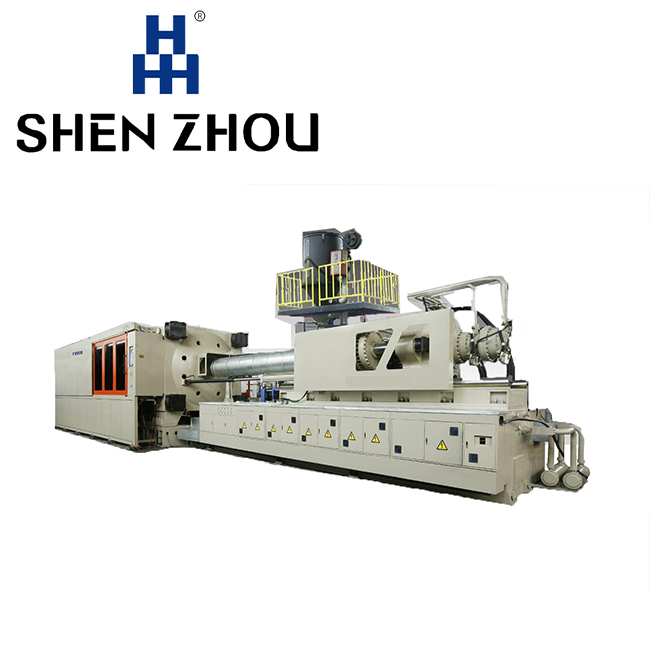

SZ—10000A Injection Molding Machine

Availability:
Quantity:

ITEM

UNIT

SZ—10000A

INJECTION UNIT

SCREW DIAMETER

mm

100

110

120

130

SCREW LID RATIO

L/D

24.2

22

20.2

18.6

THEORETICAL SHOT VOLUME

CM3

4083

4941

5880

6901

SHOT WEIGHT(PS)

g

3715

4496

5350

6280

INJECTION  PRESSURE

Mpa

206

171

143

122

THEORETICAL  INJECTION RATE(PS)

g/s

695

841

1001

1175

PLASTICISING CAPACITY

g/s

96

116

130

148

SCREW TORQUE

N.m

8690

MAX.SCREW ROTATE SPEED

r/min

110

INJECTION STROKE

mm

520

CLAMPING UNIT

MAX.CLAMPING FORCE K

KN

10000

MAX.OPENING STROKE

mm

1160

SPACE BETWEEN TIE BARS

mm

1110×1110

MOULD HEIGHT

mm

450-1200

MAX.DAYLIGHT

mm

2360

EJECTOR FORCE

KN

245

EJECTOR STROKE

mm

350

EJECTOR QUANTITY


21

OTHER

PUMP MOTOR POWER

KW

90

PUMP PRESSURE

Mpa

16

HEATING POWER

KW

68.45

HEATING ZONE


6

SIZE

m

12.38×2.8×3.5

NET WEIGHT

t

60

OIL TANK CAPACITY

L

1700

INTERNATIONAL DESIGNATION


10000—8410


Our advantages

1.We have many types of machines, suitable for various sizes of molds.

2.All our accessories are imported, with guaranteed quality and quantity.

3.The raw materials of the machine are excellent, with the characteristics of high ductility, wear resistance and heat resistance.

4.In the process of machine debugging, strictly control the error to ensure the efficiency of the machine.

5.We can make plans and samples according to customer requirements to meet the diverse needs of customers.
