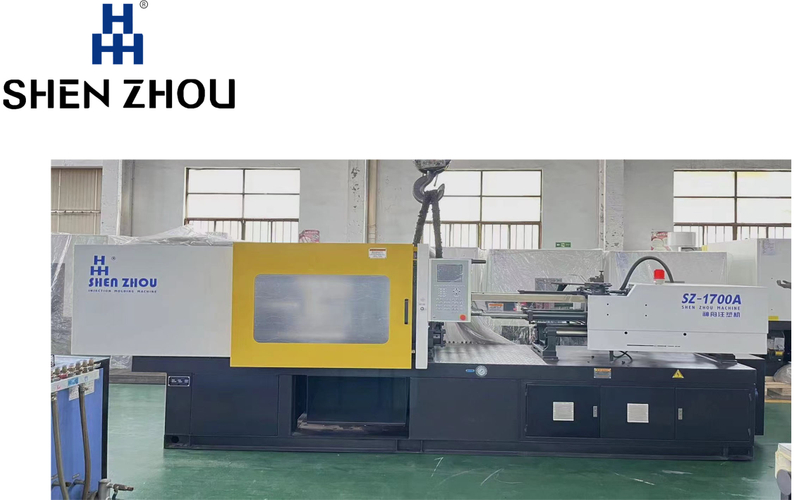

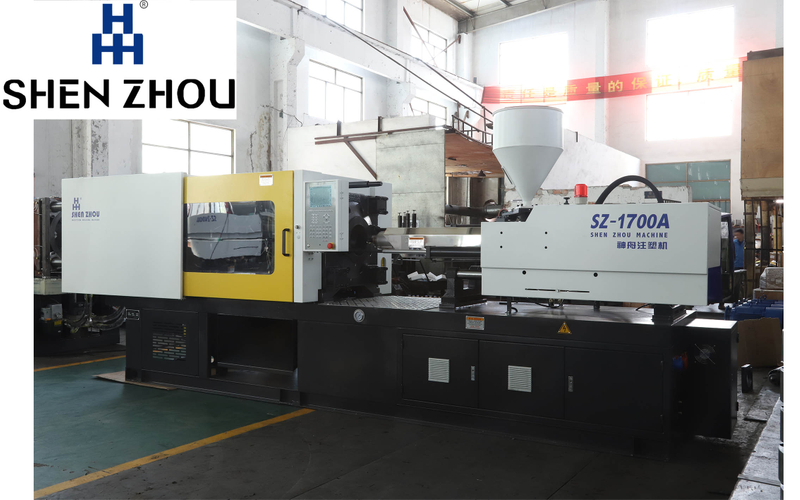

SZ—1700A Injection Molding Machine

1.We have many types of machines, suitable for various sizes of molds.

2.All our accessories are imported, with guaranteed quality and quantity.

3.The raw materials of the machine are excellent, with the characteristics of high ductility, wear resistance and heat resistance.

4.In the process of machine debugging, strictly control the error to ensure the efficiency of the machine.

5.We can make plans and samples according to customer requirements to meet the diverse needs of customers.

ITEM	UNIT	SZ—1700A
INJECTION UNIT
SCREW DIAMETER	mm	45	50	55
SCREW LID RATIO	L/D	23.3	21	19.1
THEORETICAL SHOT VOLUME	CM³	358	442	534
SHOT WEIGHT(PS)	g	326	402	486
INJECTION PRESSURE	Mpa	219	178	147
THEORETICAL INJECTION RATE(PS)	g/s	142	175	212
PLASTICISING CAPACITY	g/s	20.1	26.5	34.2
SCREW TORQUE	N.m	1250
MAX.SCREW ROTATE SPEED	r/min	200
INJECTION STROKE	mm	225
CLAMPING UNIT
MAX.CLAMPING FORCE K	KN	1700
MAX.OPENING STROKE	mm	460
SPACE BETWEEN TIE BARS	mm	480×480
MOULD HEIGHT	mm	180-500
MAX.DAYLIGHT	mm	960
EJECTOR FORCE	KN	45.2
EJECTOR STROKE	mm	115
EJECTOR QUANTITY		5
OTHER
PUMP MOTOR POWER	KW	15
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	13.6
HEATING ZONE		4
SIZE	m	5.3×1.35×1.9
NET WEIGHT	t	5.6
OIL TANK CAPACITY	L	420
INTERNATIONAL DESIGNATION		1700—785
