PRODUCTS

Plastic Led Light Machine Low Price Electrical Equipment Manufacturing Machinery Injection Molding Machine

Description

Plastic Led Light Machine Low Price Electrical Equipment Manufacturing Machinery Injection Molding Machine supplier

Technical Parameter

SZ—1700A
SCREW DIAMETER	mm	45	50	55
SCREW LID RATIO	L/D	23.3	21	19.1
THEORETICAL SHOT VOLUME	CM3	358	442	534
SHOT WEIGHT(PS)	g	326	402	486
INJECTION PRESSURE	Mpa	219	178	147
THEORETICAL INJECTION RATE(PS)	g/s	142	175	212
PLASTICISING CAPACITY	g/s	20.1	26.5	34.2
SCREW TORQUE	N.m	1250
MAX.SCREW ROTATE SPEED	r/min	200
INJECTION STROKE	mm	225
MAX.CLAMPING FORCE K	KN	1700
MAX.OPENING STROKE	mm	460
SPACE BETWEEN TIE BARS	mm	480×480
MOULD HEIGHT	mm	180-500
MAX.DAYLIGHT	mm	960
EJECTOR FORCE	KN	45.2
EJECTOR STROKE	mm	115
EJECTOR QUANTITY		5
PUMP MOTOR POWER	KW	15
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	13.6
HEATING ZONE		4
SIZE	m	5.3×1.35×1.9
NET WEIGHT	t	5.6
OIL TANK CAPACITY	L	420
INTERNATIONAL DESIGNATION		1700—785

Product Description

Plastic Led Light Machine Low Price Electrical Equipment Manufacturing Machinery Injection Molding Machine details

●Proportional pressure and flow control with fine adjustment and precision.

●Know-how manifold design,compact,reasonable and fast respond.

●Imported world famous hydraulic valves.

●Imported world famous hydraulic sealing rings.

●Imported technology hydraulic hose and fittings.

●Low noise hydraulic system.

●Precision oil filter and oil cooler.

Plastic Led Light Machine Low Price Electrical Equipment Manufacturing Machinery Injection Molding Machine manufacture

●Nitrided screw and barrel with long service life.

●Smelted screw with big L/D ratio with good plasticizing and color-fixing.

●Double injection cylinder of compact construction and good equilibrant.

●Transducer control injection stroke.

●The speed of low speed and large torque hydraulic motor can be adjusted.

●Screw back pressure control and nozzle anti-leakage control movable hopper for easy remove material.

●Injection-catriage can be used for slacking,re-feedingor fixed-feeding.

●Speed and pressure of injecting and holding controlled by time or position.

●Equipped with reverse device to be easily removed and cleaned.

Company Profile

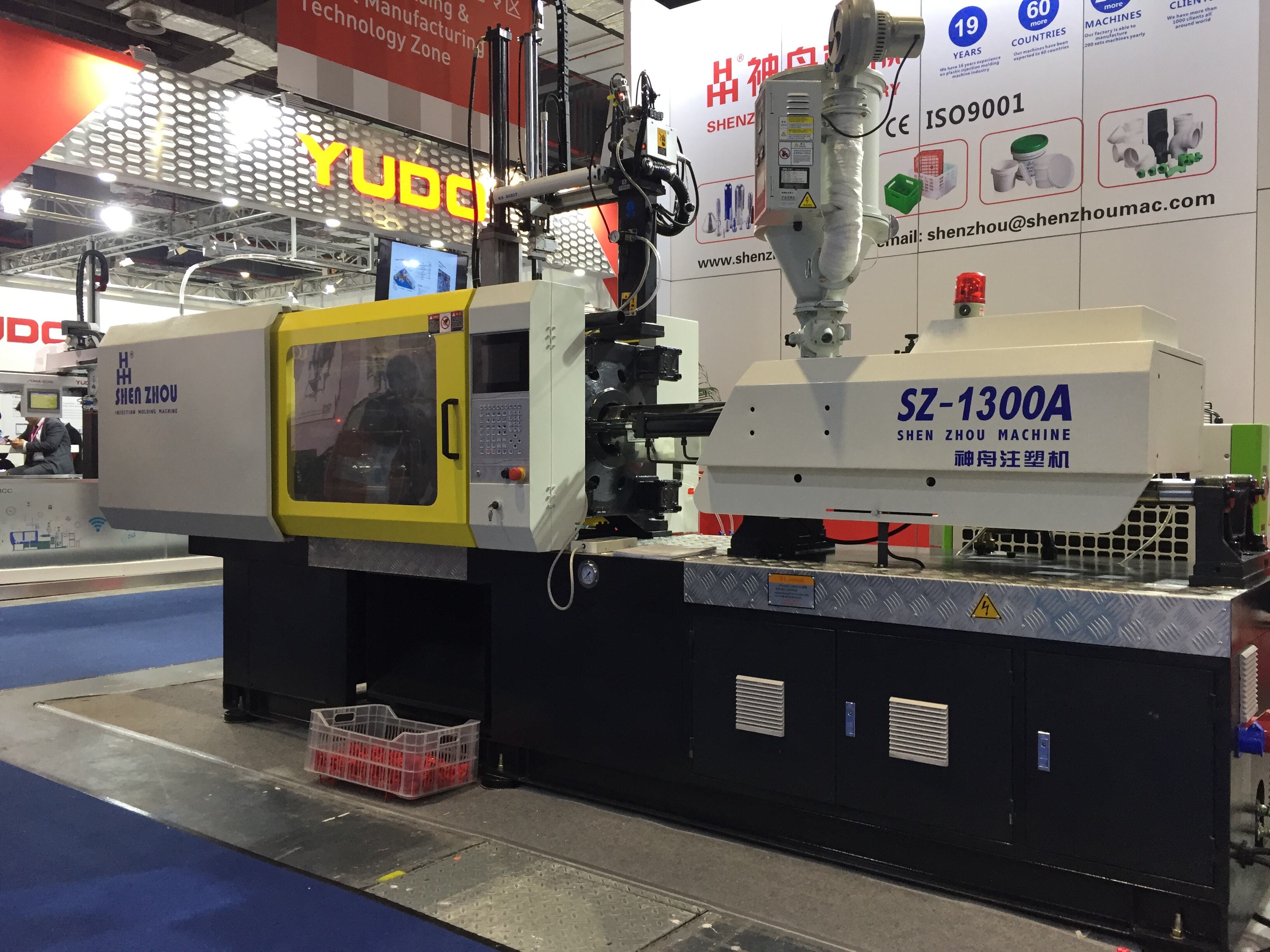

Exhibition

Why Choose Us

1. 20 years of professional injection molding machine and mold manufacturer, excellent quality, honest management 2. Continuous technological innovation, optimized product structure, longer service life 3. Lifetime maintenance of the product, 24 hours after-sales service 4. The main components are all world-renowned brands 5. Dedicated quality control department 6. Ex-factory price

Packing & Delivery

We will apply lubricating oil and spray anti-rust agent to the products before shipment, prepare enough spare parts, and confirm that they are fully fixed before shipment. We pay attention to details and hope to bring you a better experience.

FAQ

1.Q:Are you a factory or trading company? A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit ! 2.Q:How does your factory do regarding quality control? A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department. 3.Q:What are your normal lead times? A:Our company typical lead times range from 25-35days after receipt of order.We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks. 4.Q:About the price? A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions. 5.Q:How is your machine different from other businesses？ A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use. 6.Q:Where is your factory located? How can I visit there? A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China. All our clients,from home or abroad, are warmly welcome to visit us!

You are welcome to send us samples, we will customize high-quality machines for you! Best wishes for you!
