Description

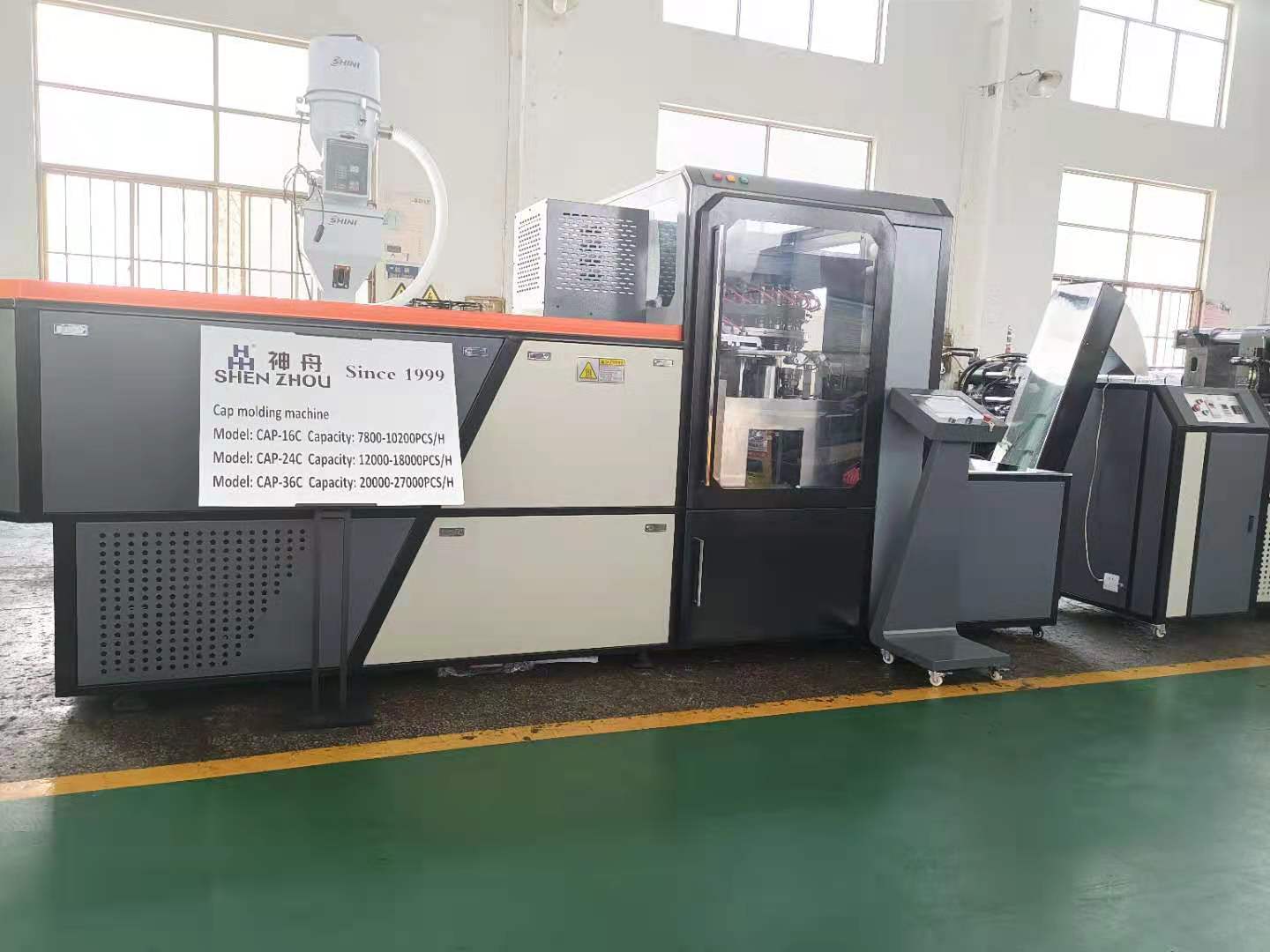

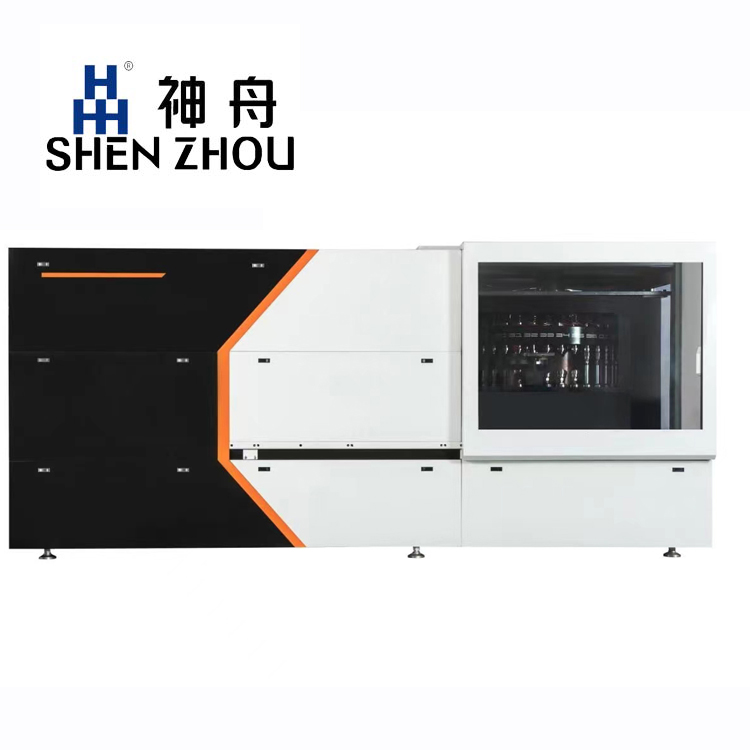

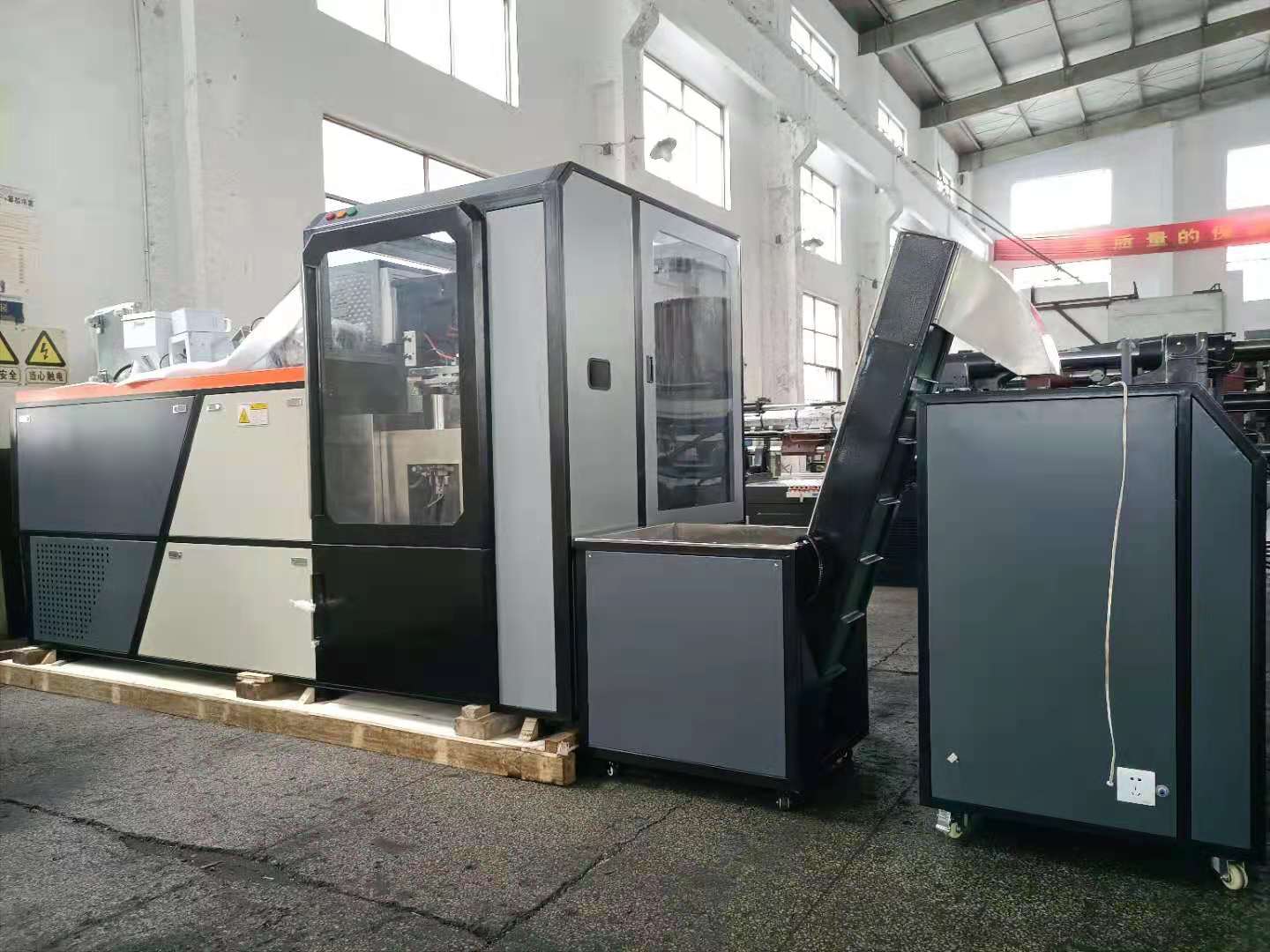

Compression molding machine components configuration | ||||
MACHINE |
ITEM |
NAME |
Brand Origin |
|
|
Plastic cap molding machine (Hydraulic)
|
Hydraulic system |
Oil pump |
DENISON |
USA |
Oil cylinder |
CUSTOMIZED |
CHINA |
||
Oil valve |
BEIBUJINGJI |
TAIWAN |
||
Hydraulic rotary valve |
YUKEN |
JAPAN |
||
Hydraulic station Motors |
WANNAN |
CHINA |
||
Extruder motor |
WANNAN |
CHINA |
||
Compression molding motor |
WANNAN |
CHINA |
||
Electric system |
Transducer for Mold plate |
SIEMENS |
GERMANY |
|
Transducer for Extruder |
SIEMENS |
GERMANY |
||
PLC |
SIEMENS |
GERMANY |
||
Touch screen |
FANSY |
CHINA |
||
Solid state Relay |
OMRON |
JAPAN |
||
Auxiliary relay |
OMRON |
JAPAN |
||
Temperature module |
SIEMENS |
GERMANY |
||
Breaker |
SCHNEIDER |
FRANCE |
||
Thermal relay |
SCHNEIDER |
FRANCE |
||
Contactor |
SCHNEIDER |
FRANCE |
||
Direct current switch power supply |
MEAN WELL |
TAIWAN |
||
Reduction box |
GUOMAO |
CHINA |
||
Cooling system |
High pressure chiller for oil fffpumpopumppump |
5HP |
CHINA |
|
High pressure chiller for mold |
10 HP |
CHINA |
||
Mold system |
Mold (core & cavity) |
S136HH |
SWEDEN |
|
Other system |
Nano-Heating Ring |
PAER |
CHINA |
|
Material Feeder |
SHINI |
TAIWAN |
||
Compression molding machine Specification | ||||
TYPE |
SZ-16CS |
|||
Cap diameter |
18mm-60mm |
|||
Cap height: |
12mm-50mm |
|||
Total installation power |
43KW |
|||
Actual production power |
32KW |
|||
Air consumption |
0.5m³/min |
|||
Supply voltage |
380V,50HZ |
|||
Machine weight |
5000kg |
|||
Size(L*W*H) |
3600mm*1620mm*2100mm |
|||
Compression molding machine Specification | ||||
TYPE |
SZ-24CS |
|||
Cap diameter |
18mm-60mm |
|||
Cap height: |
12mm-50mm |
|||
Total installation power |
58KW |
|||
Actual production power |
48KW |
|||
Air consumption |
0.5m³/min |
|||
Supply voltage |
380V,50HZ |
|||
Machine weight |
7000kg |
|||
Size(L*W*H) |
3900mm*1920mm*2100mm |
|||
Compression molding machine Specification | ||||
TYPE |
SZ-36CS |
|||
Cap diameter |
18mm-60mm |
|||
Cap height: |
12mm-50mm |
|||
Total installation power |
98KW |
|||
Actual production power |
77KW |
|||
Air consumption |
0.6m³/min |
|||
Supply voltage |
380V,50HZ |
|||
Machine weight |
9000kg |
|||
Size(L*W*H) |
4180mm*1920mm*2000mm |
|||
Spare part list
|
Spare part list |
||||
|
MACHINE |
SPARE PART |
QUANTITY |
UNIT |
|
|
Plastic cap molding machine (Hydraulic) |
Mold system |
Additional Mold |
2 |
set |
|
Mold Spring (big) |
2 |
pcs |
||
|
Mold Spring (small) |
4 |
pcs |
||
|
Mold Nut |
8 |
pcs |
||
|
Interlocking bar |
3 |
set |
||
|
Ball bearing retainer |
2 |
pcs |
||
|
Linkage spring |
6 |
pcs |
||
|
Linkage copper sleeve |
4 |
pcs |
||
|
Linkage bearing |
2 |
pcs |
||
|
Scraping knife base |
2 |
pcs |
||
|
Scraping knife |
4 |
pcs |
||
|
Hand operated wrench |
1 |
pcs |
||
|
Manual extrusion sleeve |
1 |
pcs |
||
|
Tool Box |
1 |
set |
||
|
Mold maintenance pack |
1 |
set |
||
|
Hydraulic system |
Oil cylinder |
1 |
pcs |
|
|
Oil valve |
1 |
pcs |
||
|
Oil tube |
4 |
rope |
||
|
U ring |
20 |
pcs |
||
|
Oil nozzle |
5 |
pcs |
||
|
oil seal |
10 |
pcs |
||
|
Air system |
Air tube |
2 |
rope |
|
|
Air tube adapter |
6 |
pcs |
||
|
Air gun |
1 |
pcs |
||
|
Heating system |
Nano Heating Ring |
1 |
set |
|
|
5 |
pcs |
|||
|
Solenoid valve |
1 |
pcs |
||
|
Solid state |
1 |
pcs |
||
|
Intermediate relay |
2 |
pcs |
||
|
Cooling system |
Water nozzle |
5 |
pcs |
|
|
Chiller adapter |
2 |
pcs |
||
|
1 |
pcs |
|||
|
Plastic cap slitting machine |
Blades |
5 |
set |
|
|
Heating Rod |
2 |
pcs |
||
|
Punch |
2 |
pcs |
||
