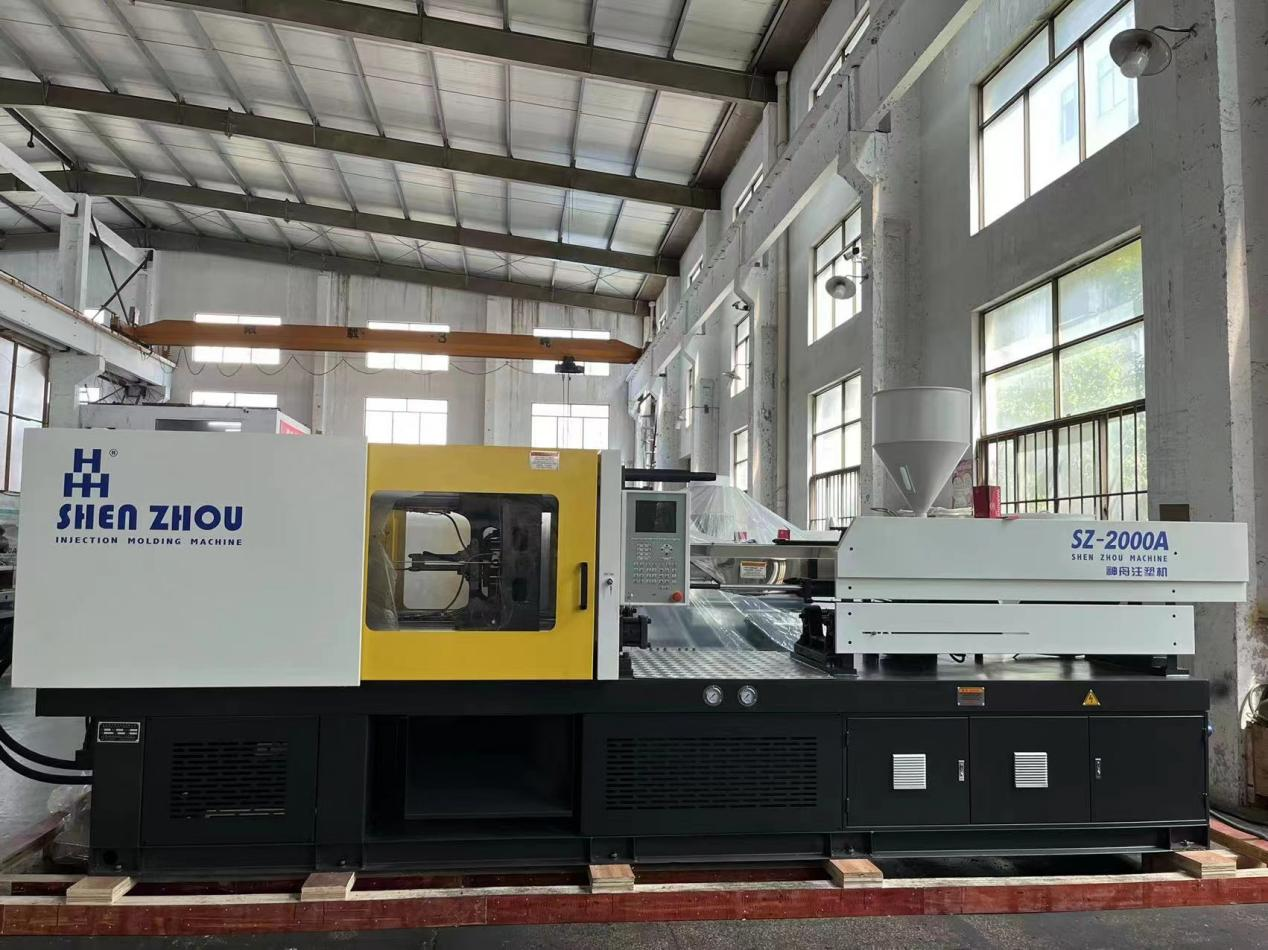

SHENZHOU Fully Automatic Servo Motor Disposable Plastic Spoon Fork Knife Cutlery Injection Molding Machine
Description
Highlights at a glance
25 years registered injection machine and mould factory
Exports to over 60 countries 10000 square meters
Founded in 1999
located in port city Certificate: SGS, TUV Overseas service
24-hour online after-sales service
Professional knowledge training Intelligent, faster, precision, stable Thin-wall thickness, double color
Electric charging motor Servo system
International quality with China local price Perfect ratio of performance to price
ITEM |
UNIT |
SZ—2400A |
||
INJECTION UNIT |
|
|
||
SCREW DIAMETER |
mm |
55 |
60 |
65 |
SCREW LID RATIO |
L/D |
22.9 |
21 |
19.4 |
THEORETICAL SHOT VOLUME |
CM3 |
665 |
791 |
929 |
SHOT WEIGHT(PS) |
g |
605 |
720 |
845 |
INJECTION PRESSURE |
Mpa |
210 |
176 |
150 |
THEORETICAL INJECTION RATE(PS) |
g/s |
176.5 |
210 |
245 |
PLASTICISING CAPACITY |
g/s |
26.4 |
32.5 |
40 |
SCREW TORQUE |
N.m |
2000 |
||
MAX.SCREW ROTATE SPEED |
r/min |
150 |
||
INJECTION STROKE |
mm |
280 |
||
CLAMPING UNIT |
|
|||
MAX.CLAMPING FORCEK |
KN |
2400 |
||
MAX.OPENING STROKE |
mm |
530 |
||
SPACE BETWEEN TIE BARS |
mm |
555×555 |
||
MOULD HEIGHT |
mm |
200-570 |
||
MAX.DAYLIGHT |
mm |
1100 |
||
EJECTOR FORCE |
KN |
61.5 |
||
EJECTOR STROKE |
mm |
135 |
||
EJECTOR QUANTITY |
|
9 |
||
其它 OTHER |
|
|||
PUMP MOTOR POWER |
KW |
22 |
||
PUMP PRESSURE |
Mpa |
16 |
||
HEATING POWER |
KW |
18.5 |
||
HEATING ZONE |
|
5 |
||
SIZE |
m |
6.2×1.6×2.1 |
||
NET WEIGHT |
t |
8.0 |
||
OIL TANK CAPACITY |
L |
440 |
||
INTERNATIONAL DESIGNATION |
|
2400—1390 |
||
