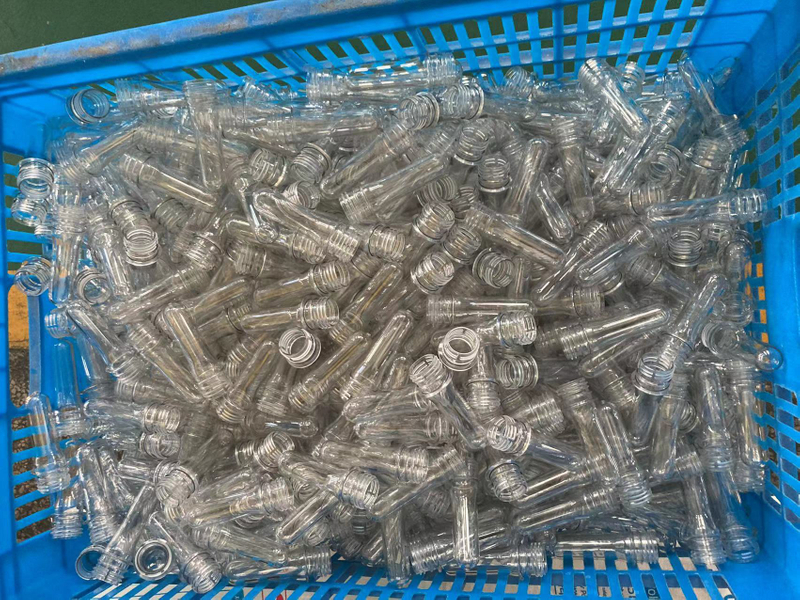

ShenZhou Plastic 72 Cavity Pet Preform—injection molding machine executing modern design and precise manufacturing ，using famous imported hydraulic and electrical . From assembly to the finished machine , it has been strictly controlled.
20 years of manufacturing experience with an aim of providing One-stop solution to meet the clients’ requirement.
So far, ShenZhou series machines and molds have been exported to more than 60 countries, We dispatch engineers to provide after-sales service for customers.
Product Features：
1. high efficiency
2.high production
3.energy conservation
项目 ITEM | 单位UNIT | SZ—5500A | |||
注射装置 INJECTION UNIT | |||||
螺杆直径 | SCREW DIAMETER | mm | 80 | 85 | 90 |
螺杆长径比 | SCREW LID RATIO | L/D | 22.3 | 21 | 19.8 |
理论注射容积 | THEORETICAL SHOT VOLUME | CM3 | 2141 | 2418 | 2710 |
注射质量(PS料) | SHOT WEIGHT(PS) | g | 1948 | 2200 | 2466 |
注射压力 | INJECTION PRESSURE | Mpa | 188 | 167 | 149 |
理论注射速率(PS料) | THEORETICAL INJECTION RATE(PS) | g/s | 427 | 482 | 541 |
塑化能力(PS料) | PLASTICISING CAPACITY | g/s | 80 | 100 | 118 |
螺杆驱动扭矩 | SCREW TORQUE | N.m | 5170 | ||
螺杆最高转速 | MAX.SCREW ROTATE SPEED | r/min | 150 | ||
洼射行程 | INJECTION STROKE | mm | 425 | ||
合模装置 CLAMPING UNIT | |||||
合模力 | MAX.CLAMPING FORCE K | KN | 5500 | ||
移模行程 | MAX.OPENING STROKE | mm | 820 | ||
拉杆有效间距(VxH) | SPACE BETWEEN TIE BARS | mm | 810×810 | ||
允许模厚(MIN-MAX) | MOULD HEIGHT | mm | 350-820 | ||
模板最大开距 | MAX.DAYLIGHT | mm | 1640 | ||
液压顶出力 | EJECTOR FORCE | KN | 150 | ||
液压顶出行程 | EJECTOR STROKE | mm | 210 | ||
液压顶出杆总数 | EJECTOR QUANTITY | 13 | |||
其它 OTHER | |||||
油泵电动机功率 | PUMP MOTOR POWER | KW | 55 | ||
油泵最高压力 | PUMP PRESSURE | Mpa | 16 | ||
料简加热功率 | HEATING POWER | KW | 33 | ||
加热区段 | HEATING ZONE | 6 | |||
机器外形(LxWxH) | SIZE | m | 8.4×2.2×2.6 | ||
机器净重 | NET WEIGHT | t | 23.5 | ||
油箱容积 | OIL TANK CAPACITY | L | 1000 | ||
国际公认型号 | INTERNATIONAL DESIGNATION | 5500—4040 | |||
Criteria for acceptance of molds
1. No defects are allowed on the surface of the product: lack of material, burning, top whitening, white lines, peaks, blistering, whitening (or cracking, breaking), drying marks, wrinkles.
2. Welding line: Generally, the length of circular perforation welding line is not more than 5mm, and the length of irregular perforation welding line is less than 15mm. The strength of the welding line can pass the functional safety test.
3. Shrinkage: No shrinkage is allowed in obvious areas of the appearance, and slight shrinkage (no dents to the touch) is allowed in inconspicuous areas.
4. Generally, the flatness of small products is less than 0.3mm. If there are assembly requirements, they must be ensured.
5. There should be no air marks or material marks in obvious areas of the appearance, and the product generally should not have bubbles.
6. The geometric shape and dimensional accuracy of the product should comply with the requirements of formal and effective mold drawings (or 3D files). The product tolerance should be based on the tolerance principle, with negative tolerance for shaft dimensions and positive tolerance for hole dimensions. If the customer has any requirements, it should comply with the requirements.
7. Product wall thickness: The general requirement for product wall thickness is to achieve average wall thickness. Non average wall thickness should meet the requirements of the drawing, and the tolerance should be -0.1mm according to the characteristics of the mold.
8. Product Matching: Shell to Shell Matching - The surface misalignment is less than 0.1mm, and there should be no scratching phenomenon. Holes, shafts, and surfaces with matching requirements should ensure matching spacing and usage requirements.
