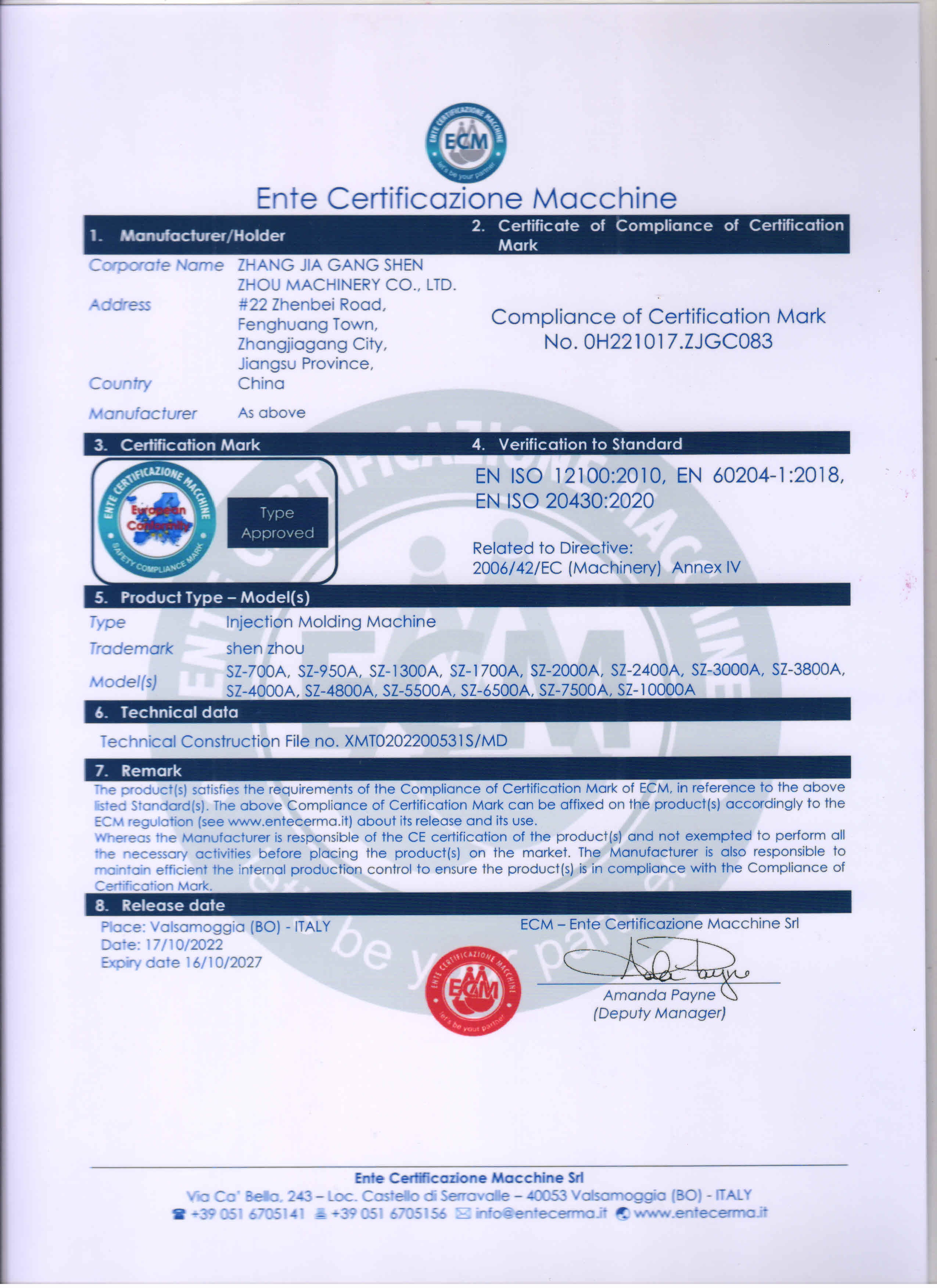

Certifications
Product Description
ITEM |
SZ—4800A |
|||||
SCREW DIAMETER |
mm |
70 |
75 |
80 |
||
SCREW LID RATIO |
L/D |
22.6 |
21 |
19.7 |
||
SHOT WEIGHT(PS) |
g |
1225 |
1406 |
1600 |
||
INJECTION PRESSURE |
Mpa |
201 |
175 |
154 |
||
THEORETICAL INJECTION RATE(PS) |
g/s |
370 |
423 |
484 |
||
PLASTICISING CAPACITY |
g/s |
60.4 |
71.4 |
83.7 |
||
SCREW TORQUE |
N.m |
3490 |
||||
MAX.SCREW ROTATE SPEED |
r/min |
150 |
||||
INJECTION STROKE |
mm |
350 |
||||
MAX.CLAMPING FORCE K |
KN |
4800 |
||||
MAX.OPENING STROKE |
mm |
770 |
||||
SPACE BETWEEN TIE BARS |
mm |
760×760 |
||||
MOULD HEIGHT |
mm |
280-790 |
||||
MAX.DAYLIGHT |
mm |
1560 |
||||
EJECTOR FORCE |
KN |
113.4 |
||||
EJECTOR STROKE |
mm |
195 |
||||
EJECTOR QUANTITY |
13 |
|||||
PUMP MOTOR POWER |
KW |
45 |
||||
PUMP PRESSURE |
Mpa |
16 |
||||
HEATING POWER |
KW |
28 |
||||
HEATING ZONE |
5 |
|||||
SIZE |
m |
7.5×2.1×2.45 |
||||
NET WEIGHT |
t |
20 |
||||
OIL TANK CAPACITY |
L |
850 |
||||
INTERNATIONAL DESIGNATION |
4800—2710 |
|||||

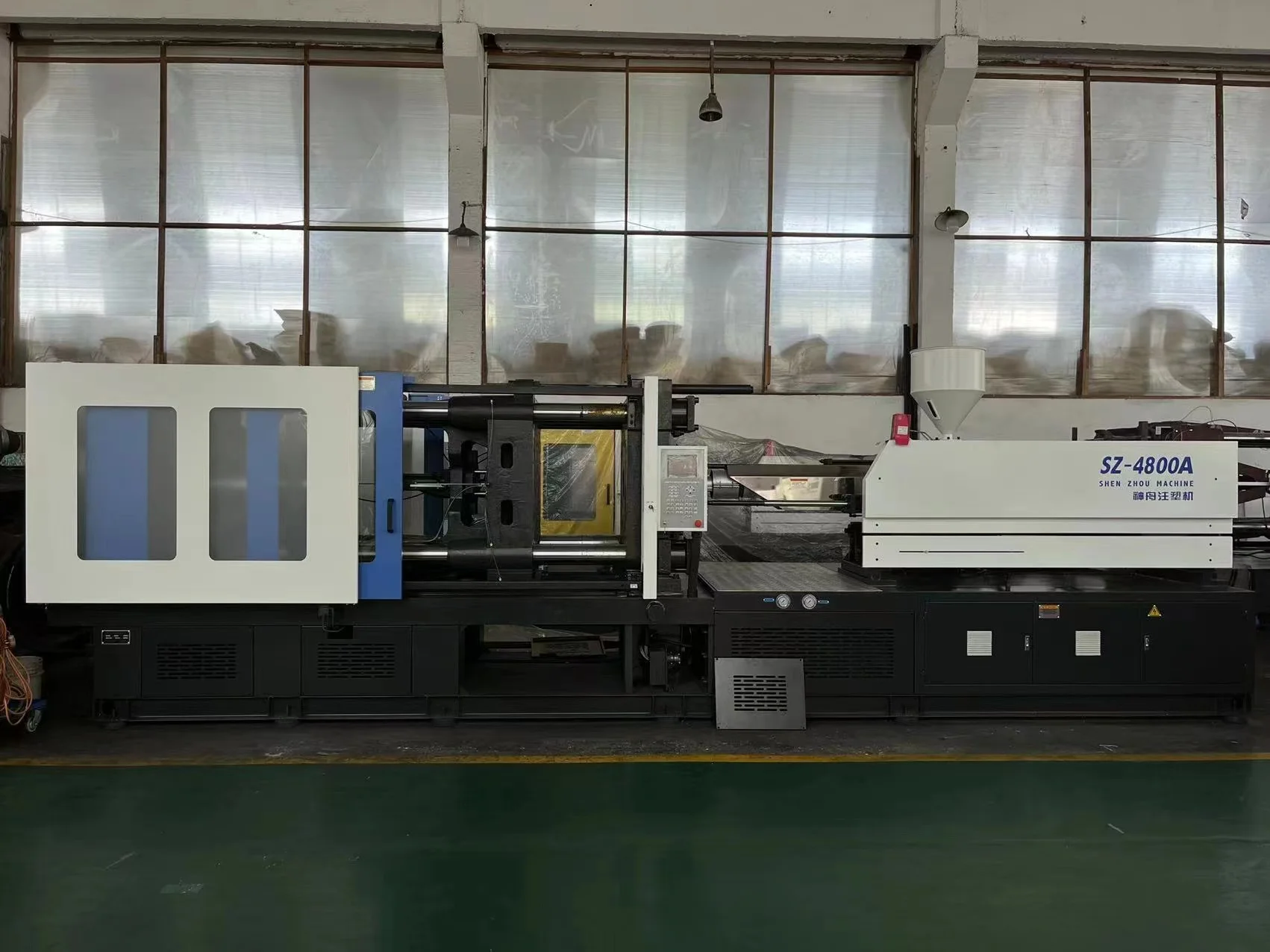

Plastic Cap Injection Molding Machine

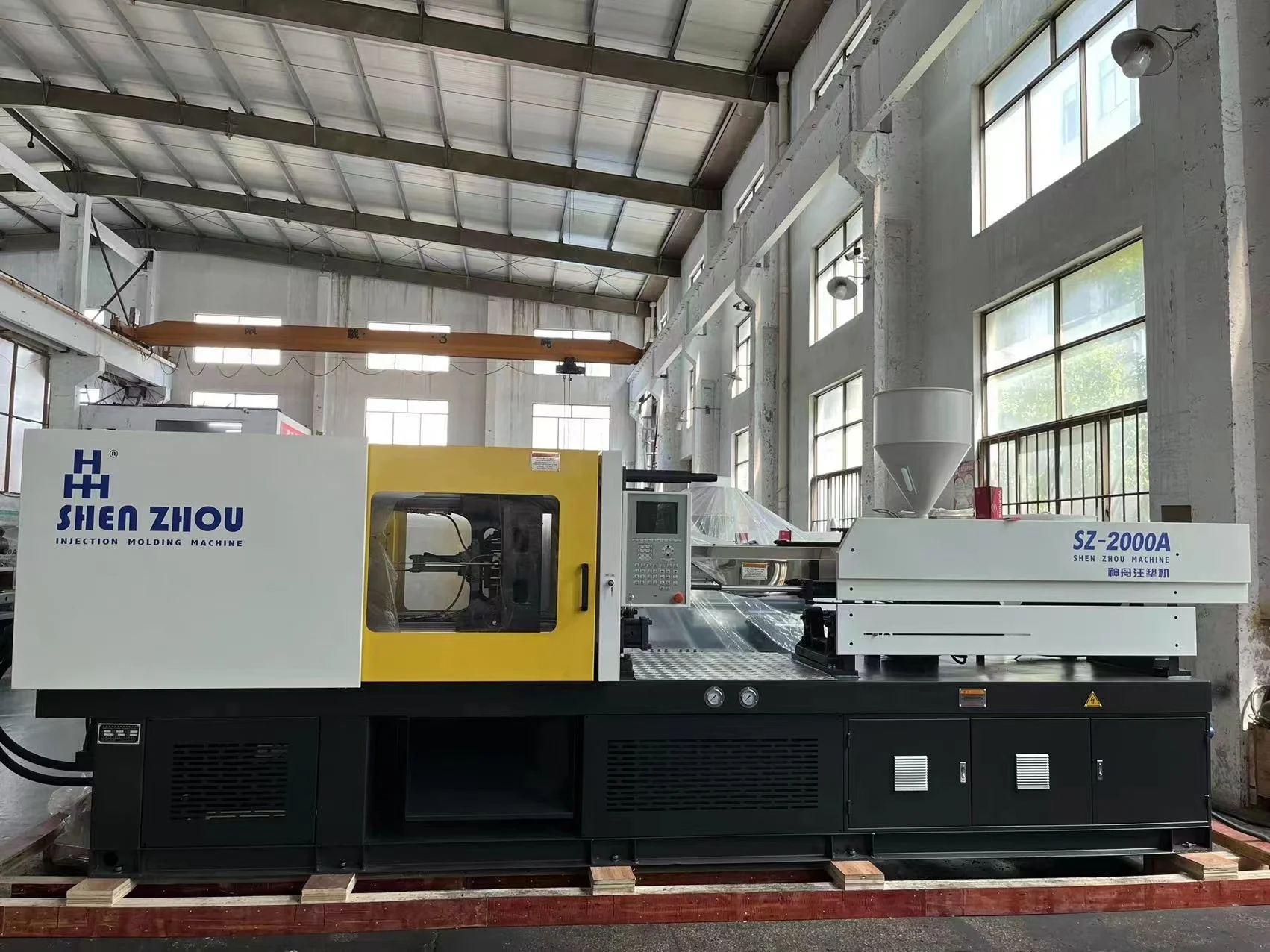

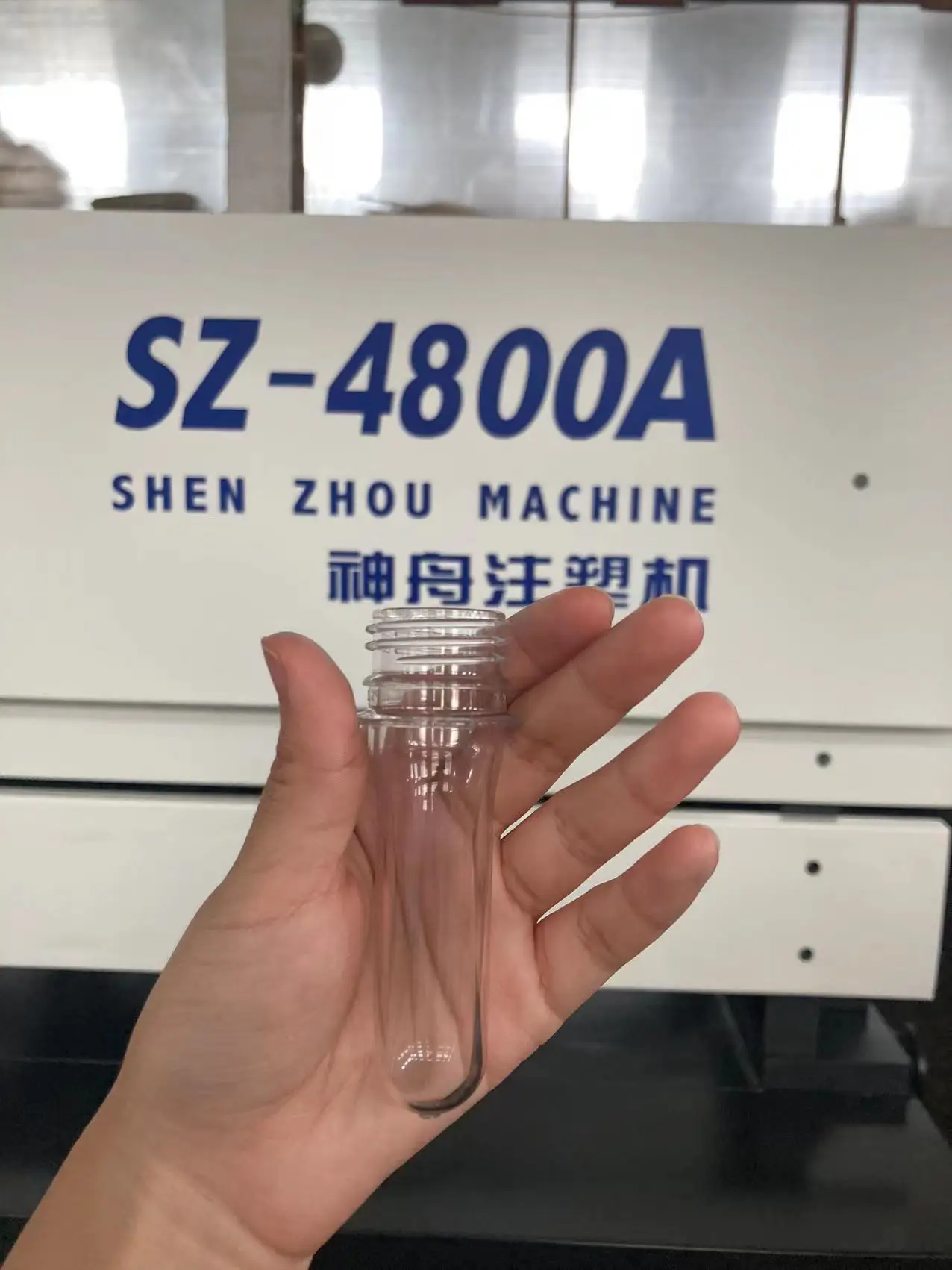

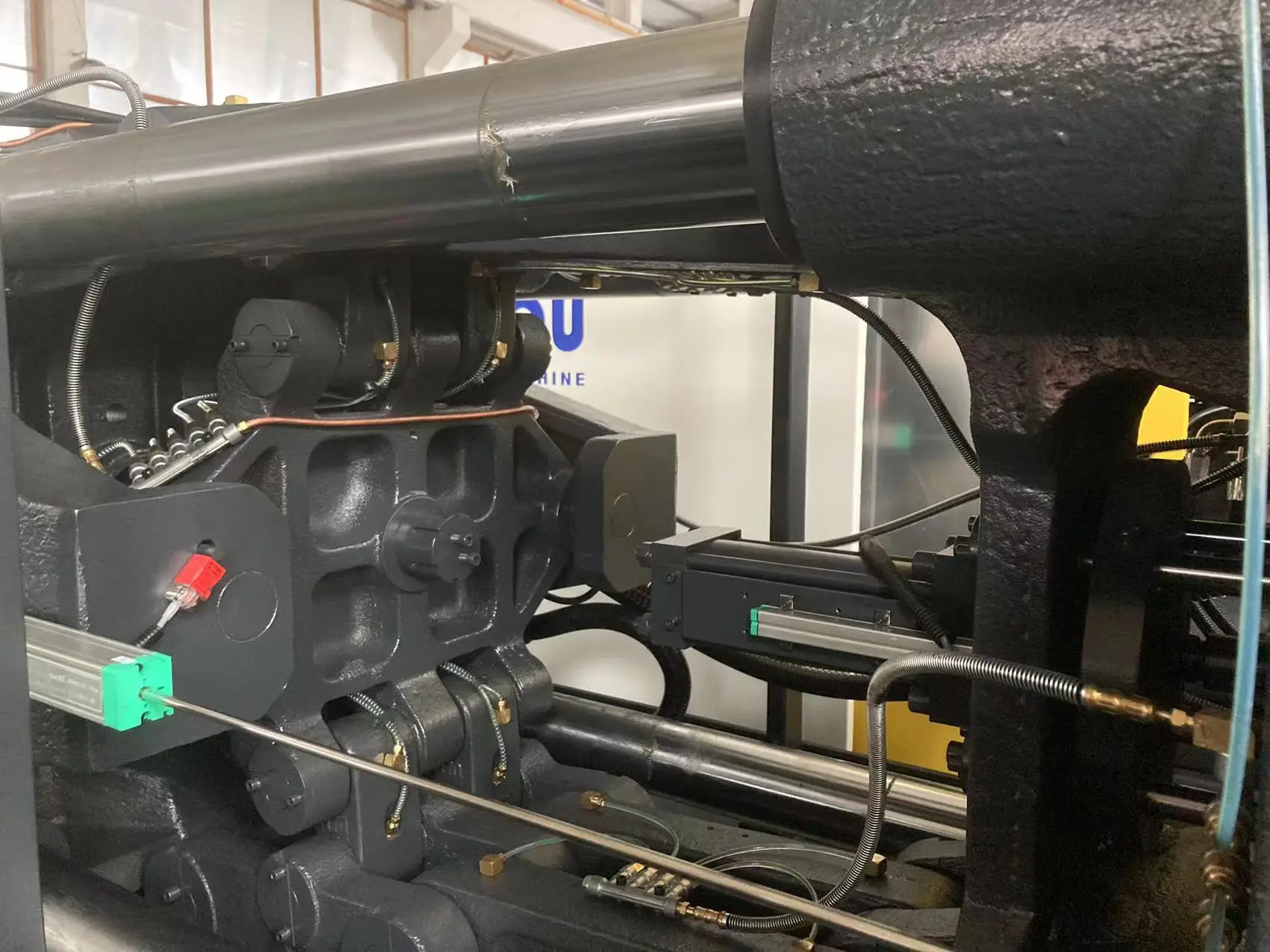

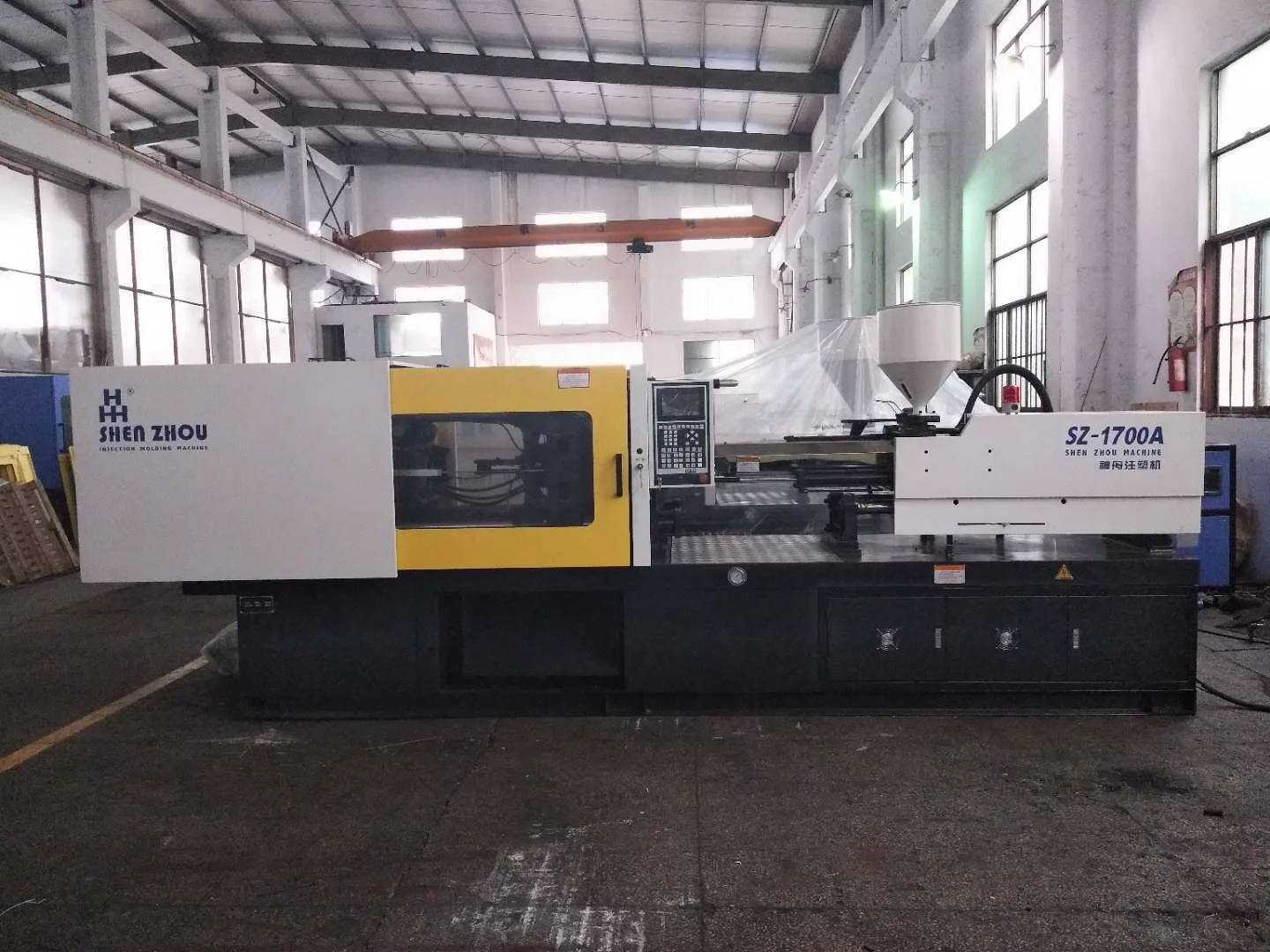

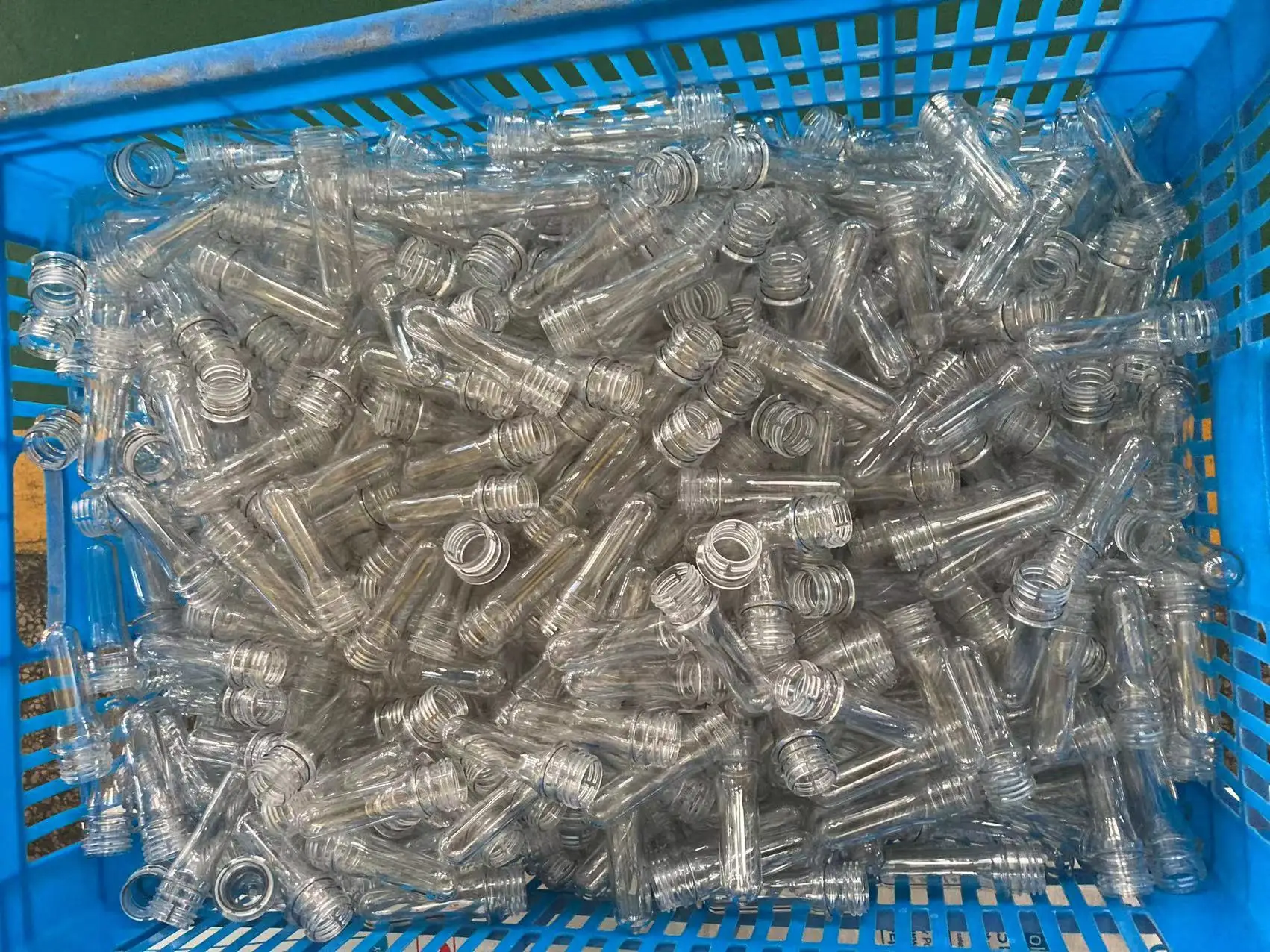

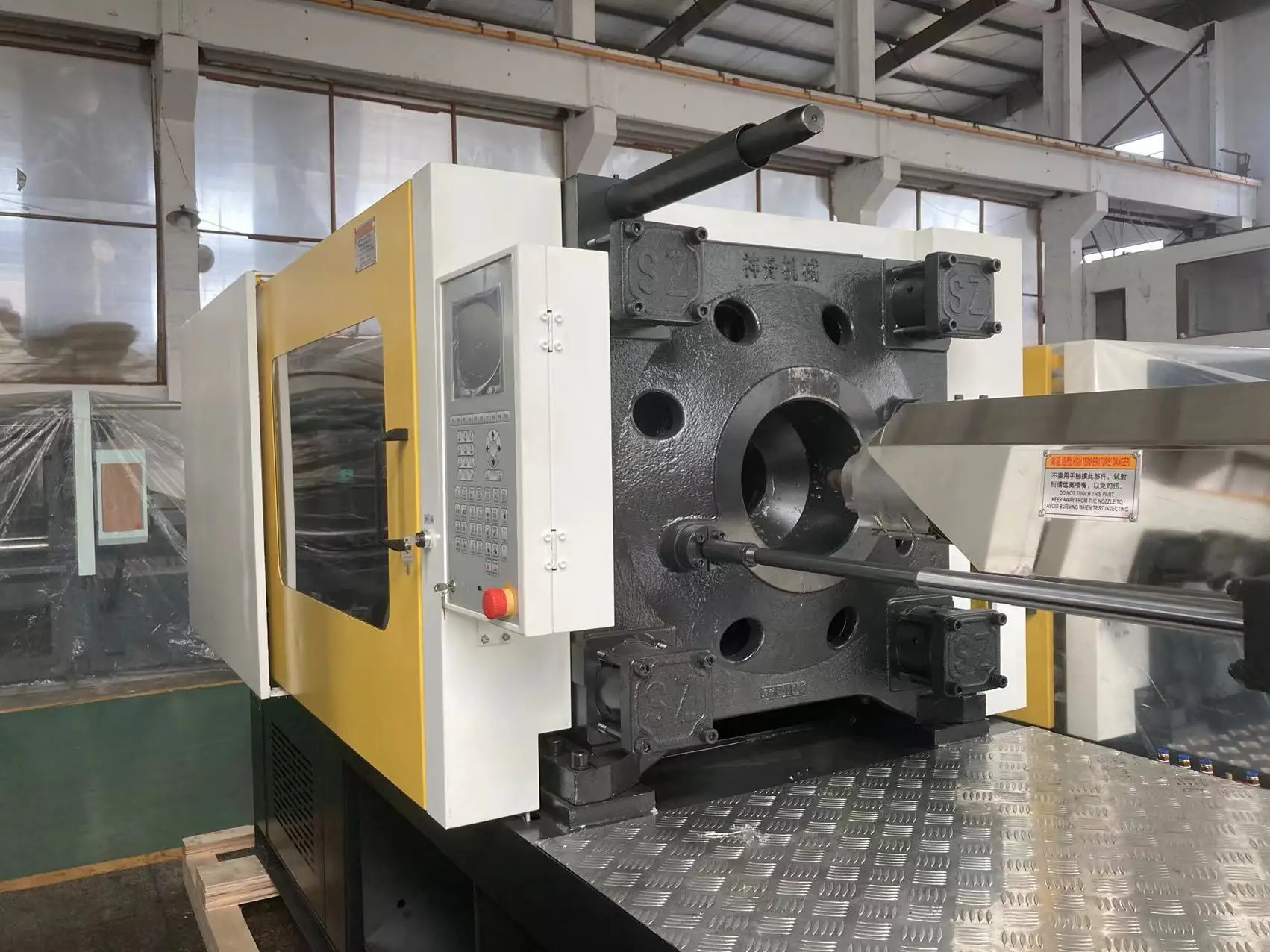

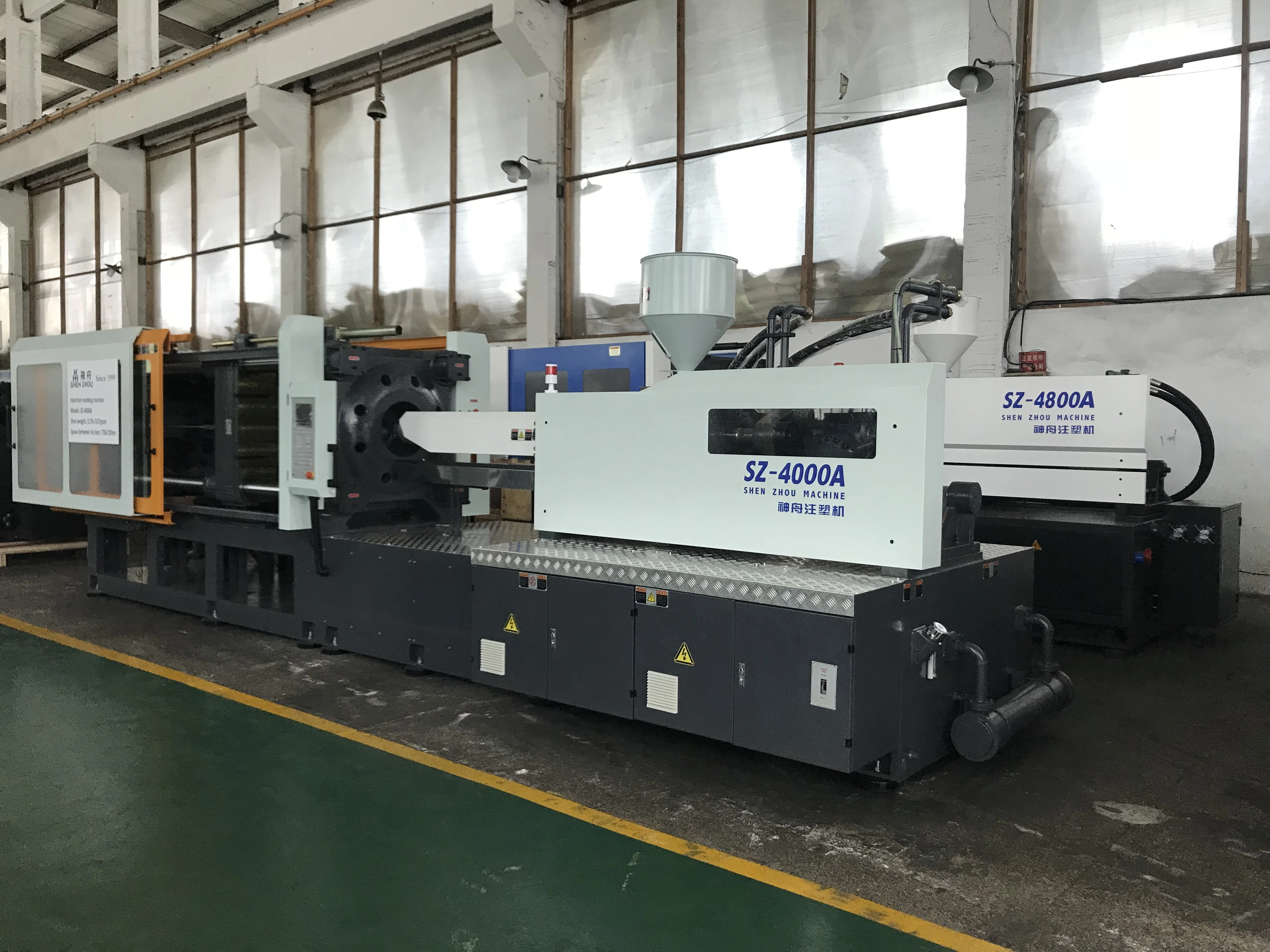

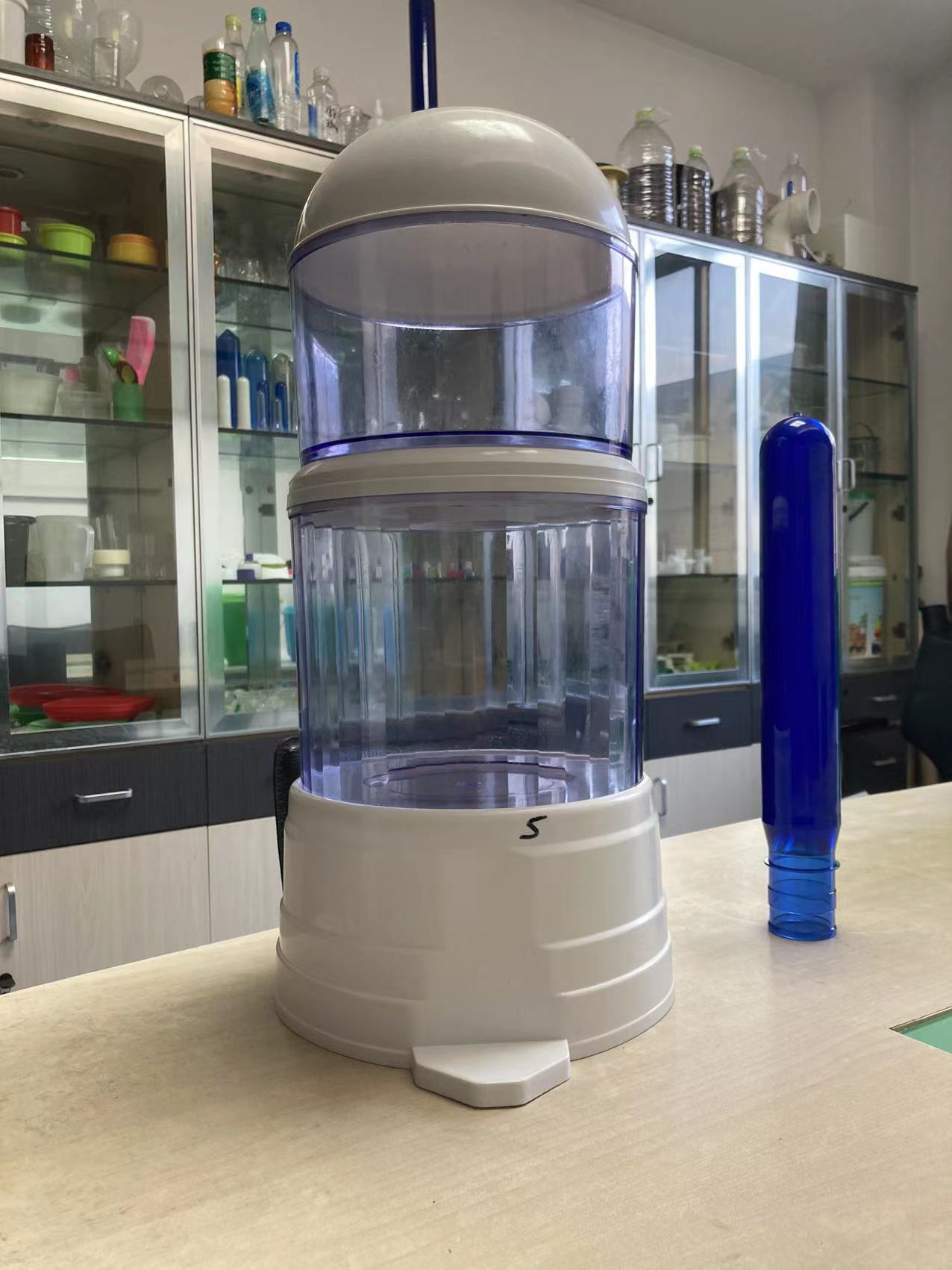

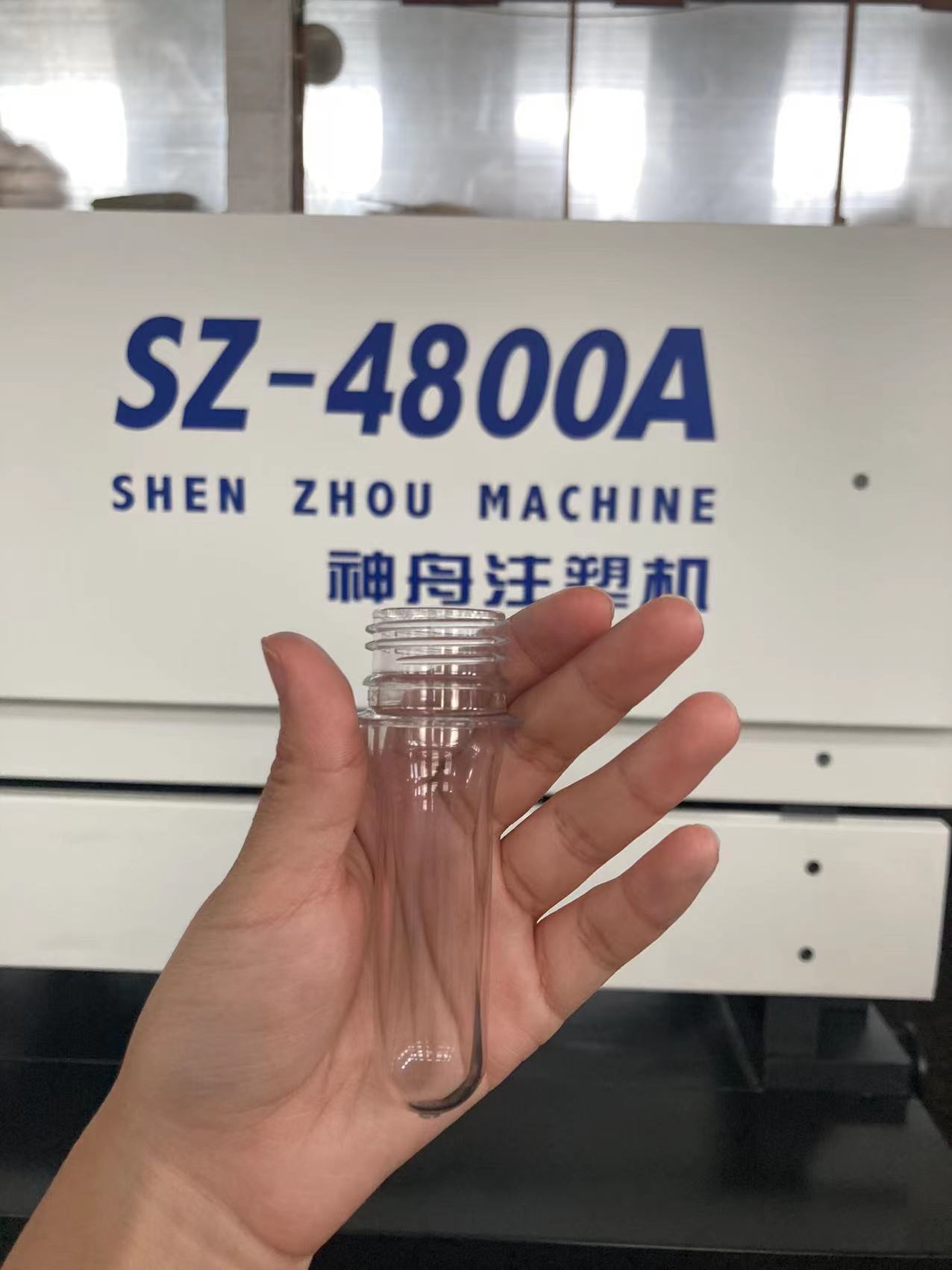

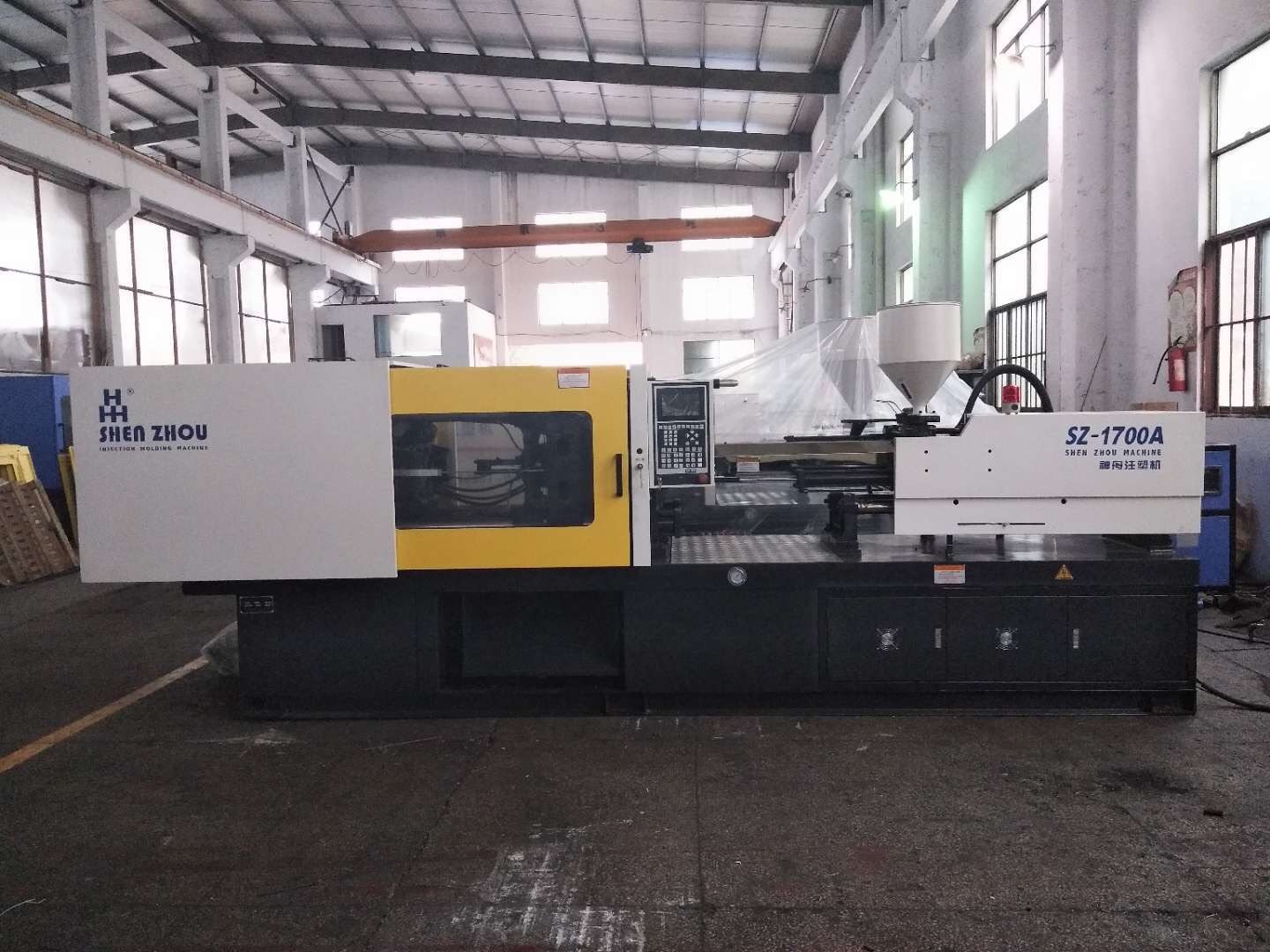

Products show

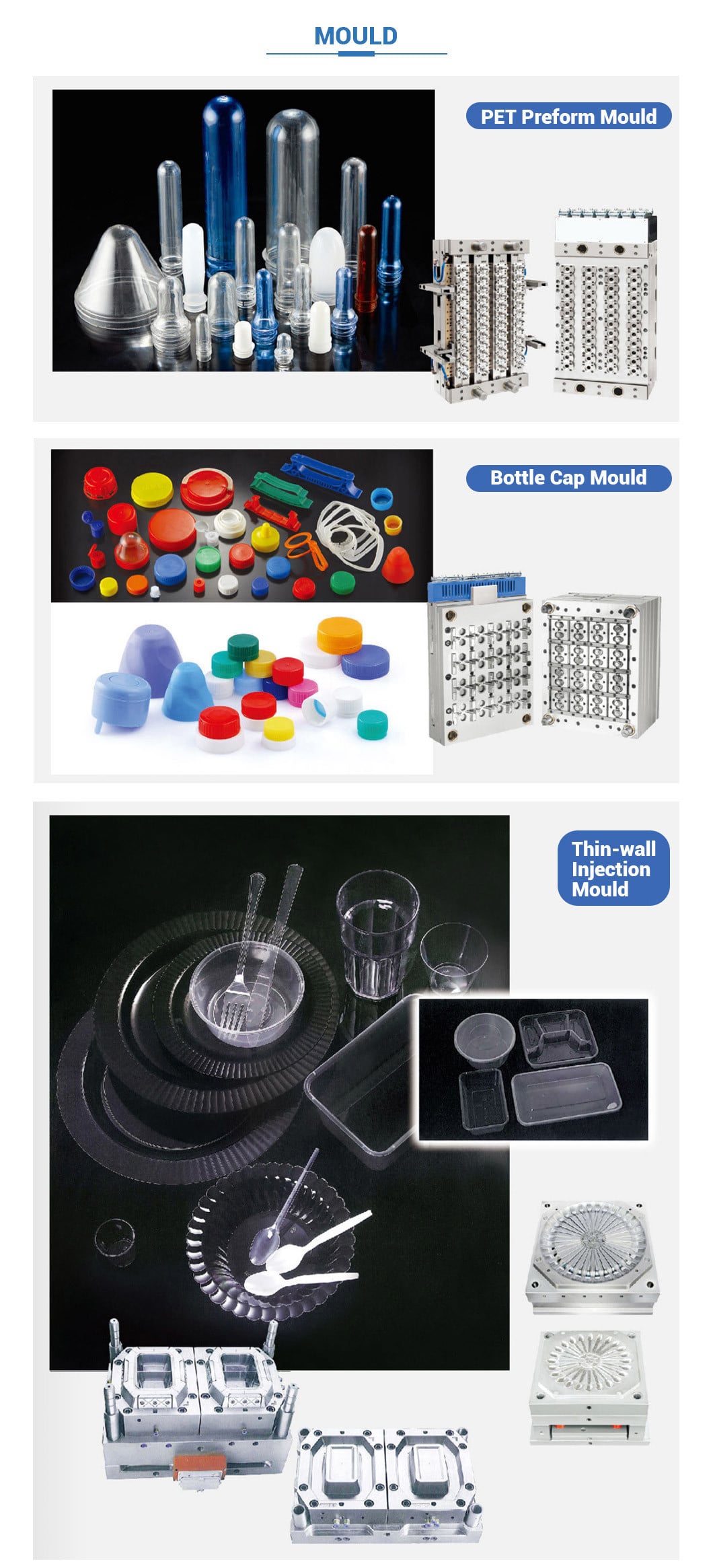

What can we do ？

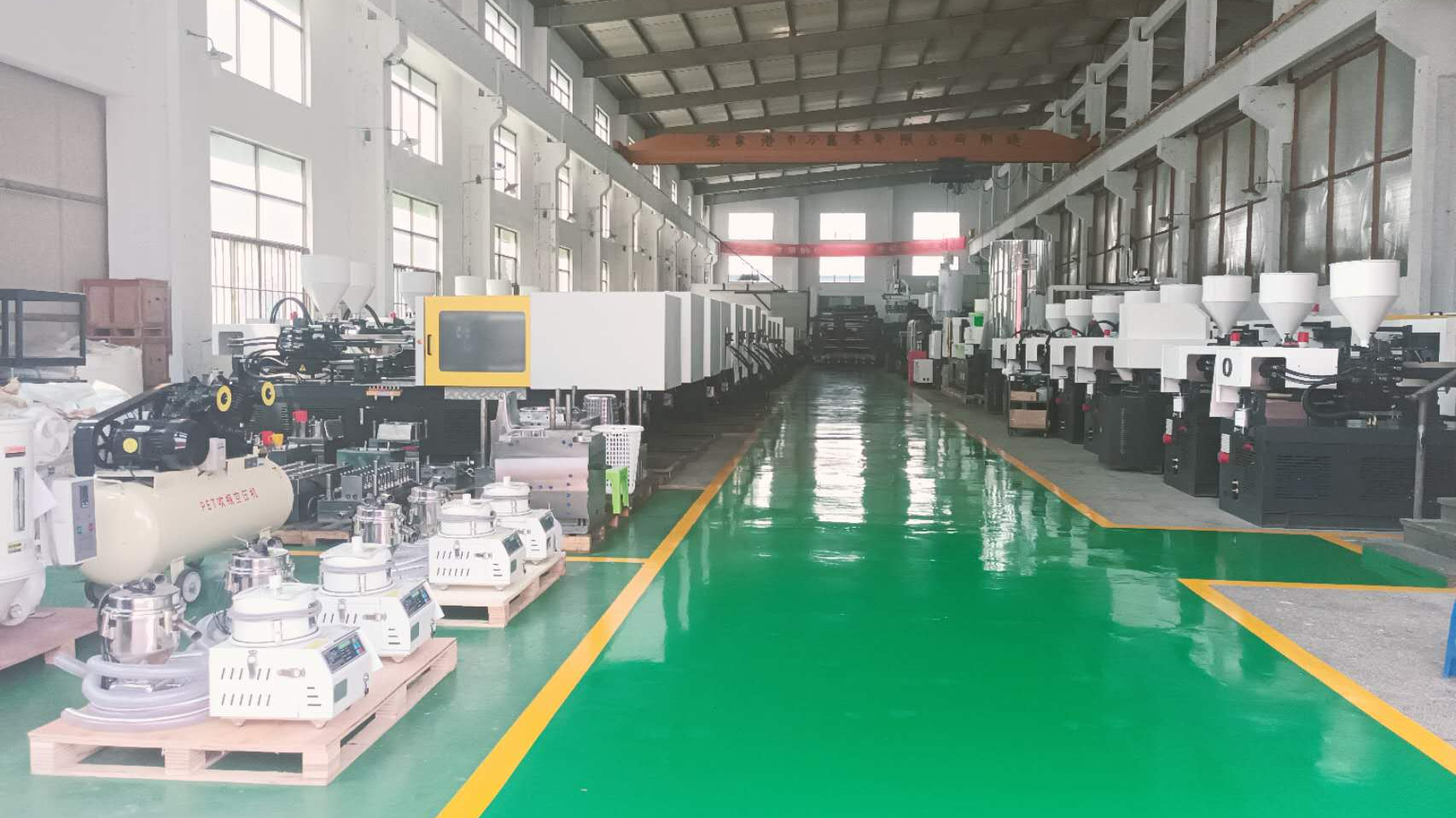

Company Information
packaging
FAQ
1.Q:Are you a factory or trading company?
A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit !
2.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department.
3.Q:What are your normal lead times?
A:Our company typical lead times range from 25-35days after receipt of order.We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks.
4.Q:About the price?
A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions.
5.Q:How is your machine different from other businesses？
A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use.
6.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China.All our clients,from home or abroad, are warmly welcome to visit us!
A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit !
2.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department.
3.Q:What are your normal lead times?
A:Our company typical lead times range from 25-35days after receipt of order.We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks.
4.Q:About the price?
A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions.
5.Q:How is your machine different from other businesses？
A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use.
6.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China.All our clients,from home or abroad, are warmly welcome to visit us!
You are welcome to send us samples, we will customize high-quality machines for you!Best wishes for you!
