EN
The client's name is Obed, from Tanzania. He is our old friend. We have been working with him for more than 15 years and we have
established a deep friendship. At the beginning, Obed was our ordinary customer. After a period of mutual cooperation and
understanding, he has become our technical representative in Tanzania and can provide various technical support to our customers
in Tanzania. At the end of 2020, we will have 23 injection molding machines and a large number of molds sent to Tanzania.
Description
Product Description

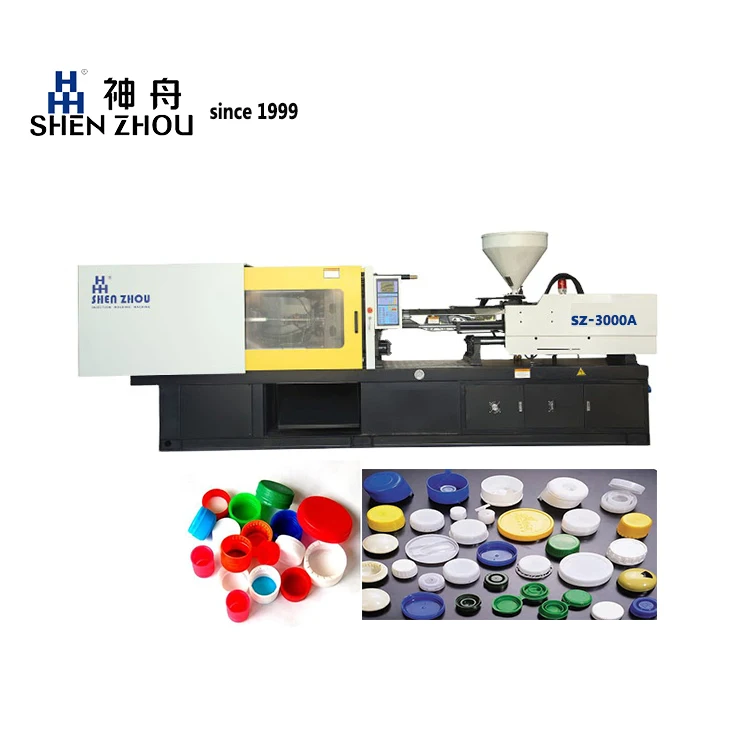

small injection molding machine price
Technical Parameter
INJECTION UNIT |
||||||||
ITEM |
UNIT |
VALUE |
||||||
SCREW DIAMETER |
mm |
30 |
35 |
40 |
||||
SCREW L/D RATIO |
L/D |
24.5 |
21 |
18.4 |
||||
Theoretical Shot Volume |
cm^3 |
113 |
154 |
201 |
||||
SHOW WEIGHT(PS) |
g |
103 |
140 |
183 |
||||
INJECTION PRESSURE |
Mpa |
249 |
183 |
140 |
||||
THEORETICAL INJECTION RATE(PS) |
g/s |
67.5 |
91.8 |
120 |
||||
PLASTICISING CAPACITY |
g/s |
8.3 |
12.5 |
18 |
||||
SCREW TORQUE |
N.m |
510 |
||||||
MAX.SCREW ROTATE SPEED |
r/min |
260 |
||||||
INJECTION STROKE |
mm |
160 |
||||||
CLAMPING UNIT |
||||
ITEM |
UNIT |
VALUE |
||
MAX.CLAMPING FORCE |
KN |
950 |
||
MAX.OPENING STROKE |
mm |
340 |
||
SPACE BETWEEN TIE BARS |
mm |
360*360 |
||
MOULD HEIGHT |
mm |
135~380 |
||
MAX.DAYLIGHT |
mm |
720 |
||
EJECTOR FORCE |
kn |
25.4 |
||
EJECTOR STROKE |
mm |
85 |
||
EJECTOR QUANTITY |
pc |
5 |
||
OTHER |
||||
ITEM |
UNIT |
VALUE |
||
PUMP MOTOR POWER |
KW |
11 |
||
PUMP PRESSURE |
Mpa |
16 |
||
HEATING POWER |
KW |
7.3 |
||
HEATING ZONE |
4 |
|||
SIZE |
m |
4.25*1.2*1.8 |
||
NET WEIGHT |
t |
3.2 |
||
OIL TANK CAPACITY |
L |
260 |
||
INTERNATIONAL DESIGNATION |
950—280 |
|||
Details Images
Why Choose Us
1.One-stop solution.We have more than 20 years of rich experience and a good reputation. We attach great importance to customer experience and satisfaction. In China, we have a certain influence and appeal. We have maintained a good cooperative relationship with a group of excellent global suppliers. As long as you need, we are able to provide you with a whole high-quality production line.
2.We have our own factory and trading company, no middlemen, all products provide you with ex-factory prices, it is more convenient for you to replace related parts (as long as there is a problem, we can provide a solution immediately, we provide you with free parts ), product quality is guaranteed.
3.We promise that our products are efficient and have a long service life to ensure that you can quickly produce in batches.
4.Very short delivery time.
5.Lifelong maintenance of the product, providing professional use guidance services (we can send engineers on-site service if necessary).
6.In the production process of your product, the whole process is visualized, and you can monitor the quality of the
product and the completion progress at any time. All-weather, all-round after-sales service guarantee.
product and the completion progress at any time. All-weather, all-round after-sales service guarantee.
Company Profile
Our company - injection molding machine, blow molding machine, main blower, mold, computer embroidery machine professional manufacturer - located in the national new port city of Zhangjiagang City, Xizhang Town, close to the Yanjiang Expressway and 204 National Road, close to Shanghai, Nanjing, Suzhou, Wuxi Large and medium-sized cities such as Nantong have convenient transportation.
The company has accumulated rich experience in manufacturing injection molding machines for many years, high standard design and precision processing, using imported famous brand hydraulic, electrical and sealing components, and fully creating SZ series automatic computer injection molding machine and peripheral supporting equipment, with its excellent quality and stability. The performance, superior price performance ratio, to the greatest extent to meet the interests and needs of customers.
The company has accumulated rich experience in manufacturing injection molding machines for many years, high standard design and precision processing, using imported famous brand hydraulic, electrical and sealing components, and fully creating SZ series automatic computer injection molding machine and peripheral supporting equipment, with its excellent quality and stability. The performance, superior price performance ratio, to the greatest extent to meet the interests and needs of customers.

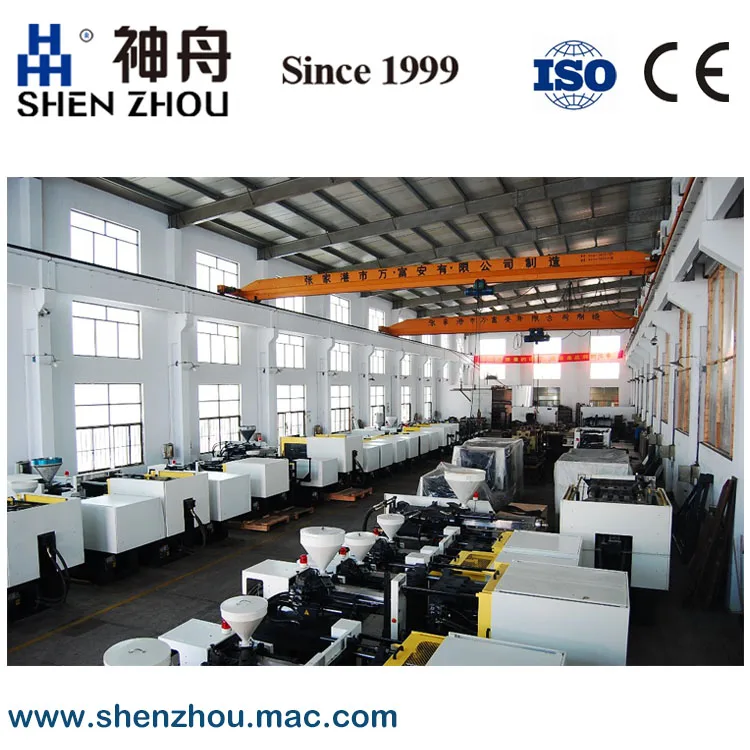

Factory
Exhibition
Customer story
Old friend.
Large Orders.
The order is from Turkmenistan. A customer friend of ours bought 26 injection molding machines of various models and a large
number of molds and auxiliary equipment at a time. After receiving the order, we attach great importance to it, speed up the
operation of the workshop, and complete the scheduled tasks in advance. The picture shows a customer in Uzbekistan. We have a vast
market in this region.
number of molds and auxiliary equipment at a time. After receiving the order, we attach great importance to it, speed up the
operation of the workshop, and complete the scheduled tasks in advance. The picture shows a customer in Uzbekistan. We have a vast
market in this region.
Government program.
This project is a cooperation project between us and Ethiopian AG pipe fitting company in 2019. Our company started cooperation
with Ethiopia long ago. We have delivered more than 15 injection molding machines and more molds to Ethiopia.
with Ethiopia long ago. We have delivered more than 15 injection molding machines and more molds to Ethiopia.
Packing & Delivery
FAQ
1.Q:Are you a factory or trading company?
A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit !
2.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department.
3.Q:What are your normal lead times?
A:Our company typical lead times range from 25-35days after receipt of order.We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks.
4.Q:About the price?
A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions.
5.Q:How is your machine different from other businesses？
A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use.
6.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China.All our clients,from home or abroad, are warmly welcome to visit us!
A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit !
2.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department.
3.Q:What are your normal lead times?
A:Our company typical lead times range from 25-35days after receipt of order.We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks.
4.Q:About the price?
A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions.
5.Q:How is your machine different from other businesses？
A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use.
6.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China.All our clients,from home or abroad, are warmly welcome to visit us!
