Description
|
ITEM |
UNIT |

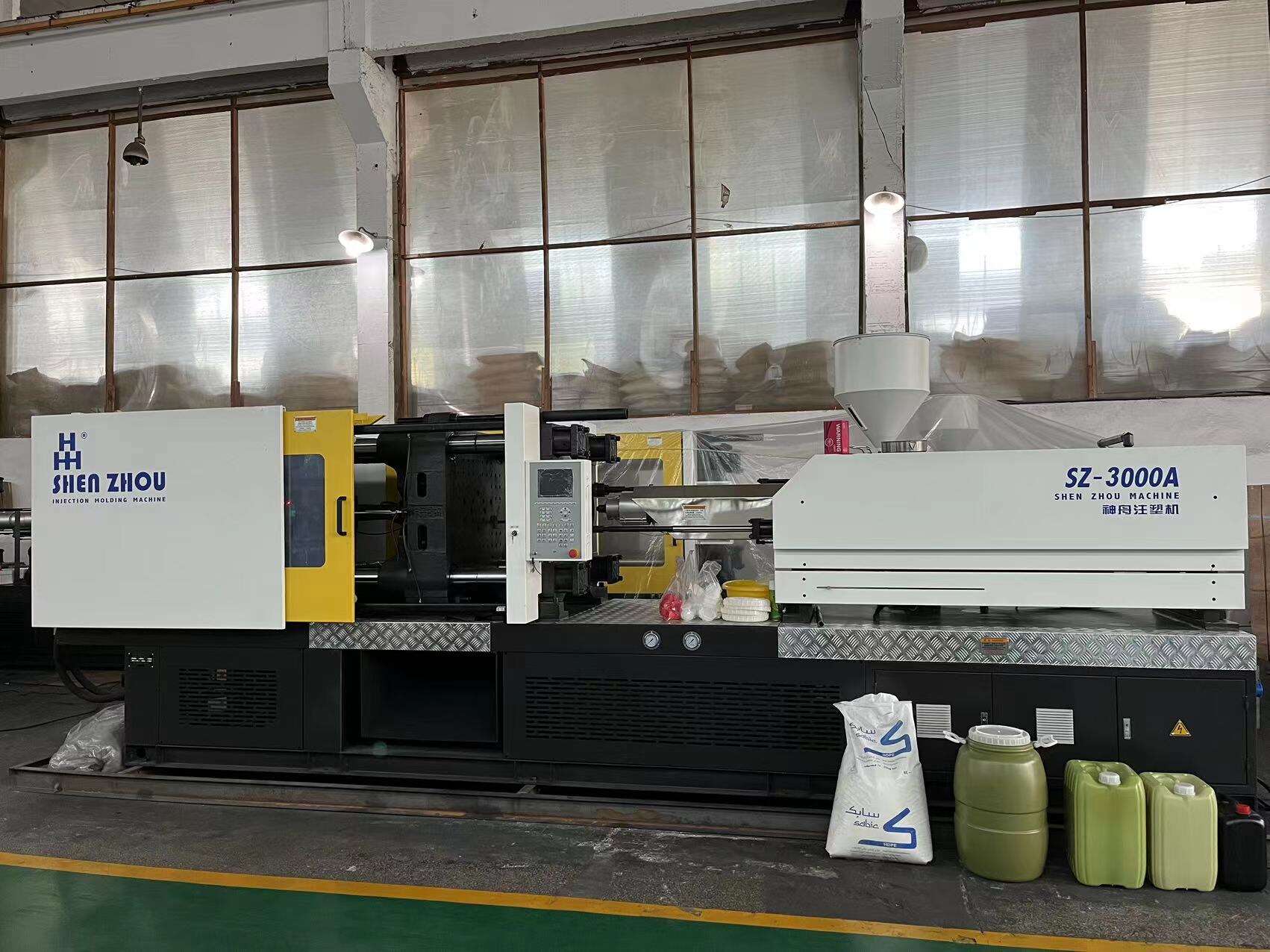

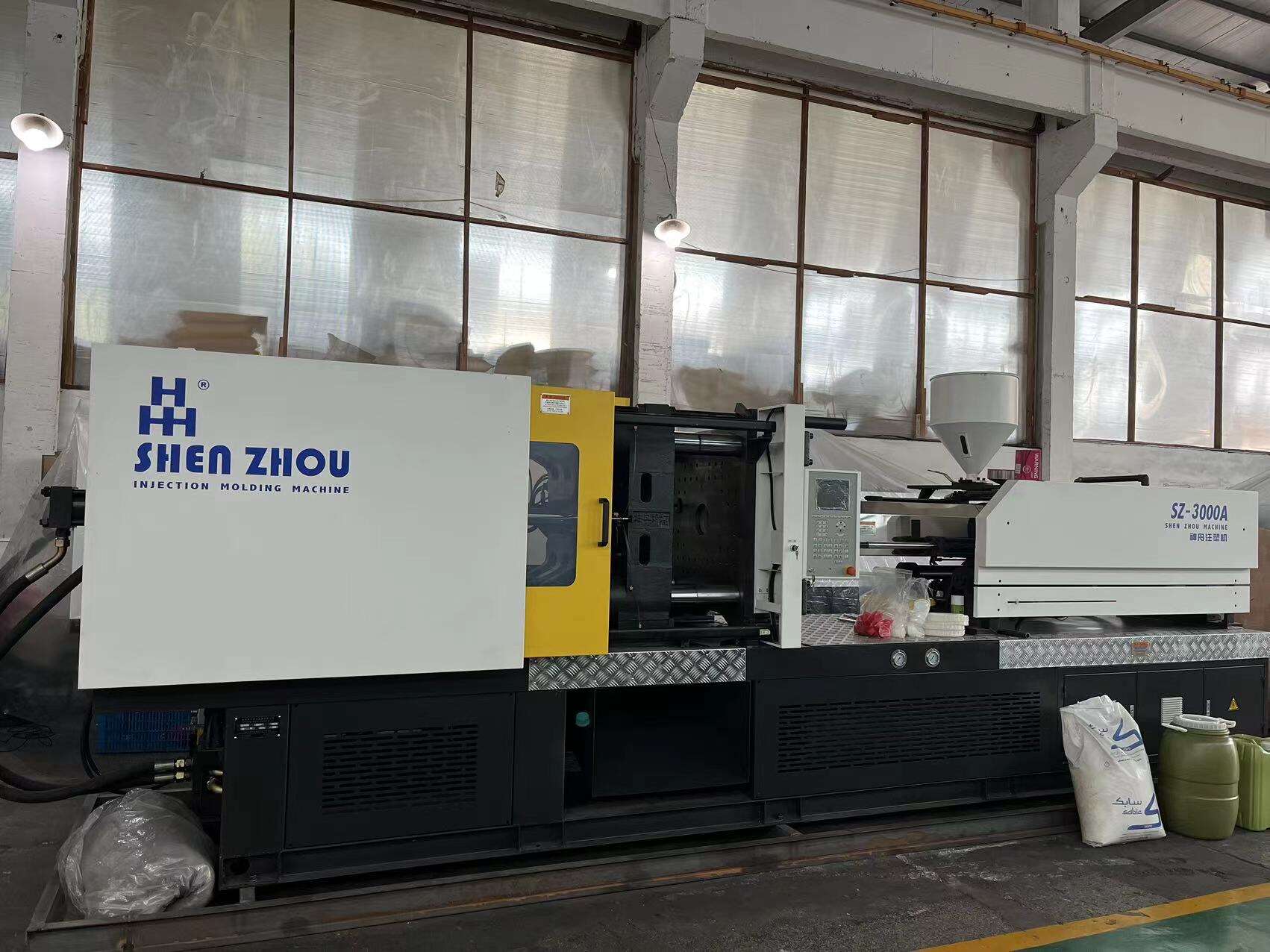

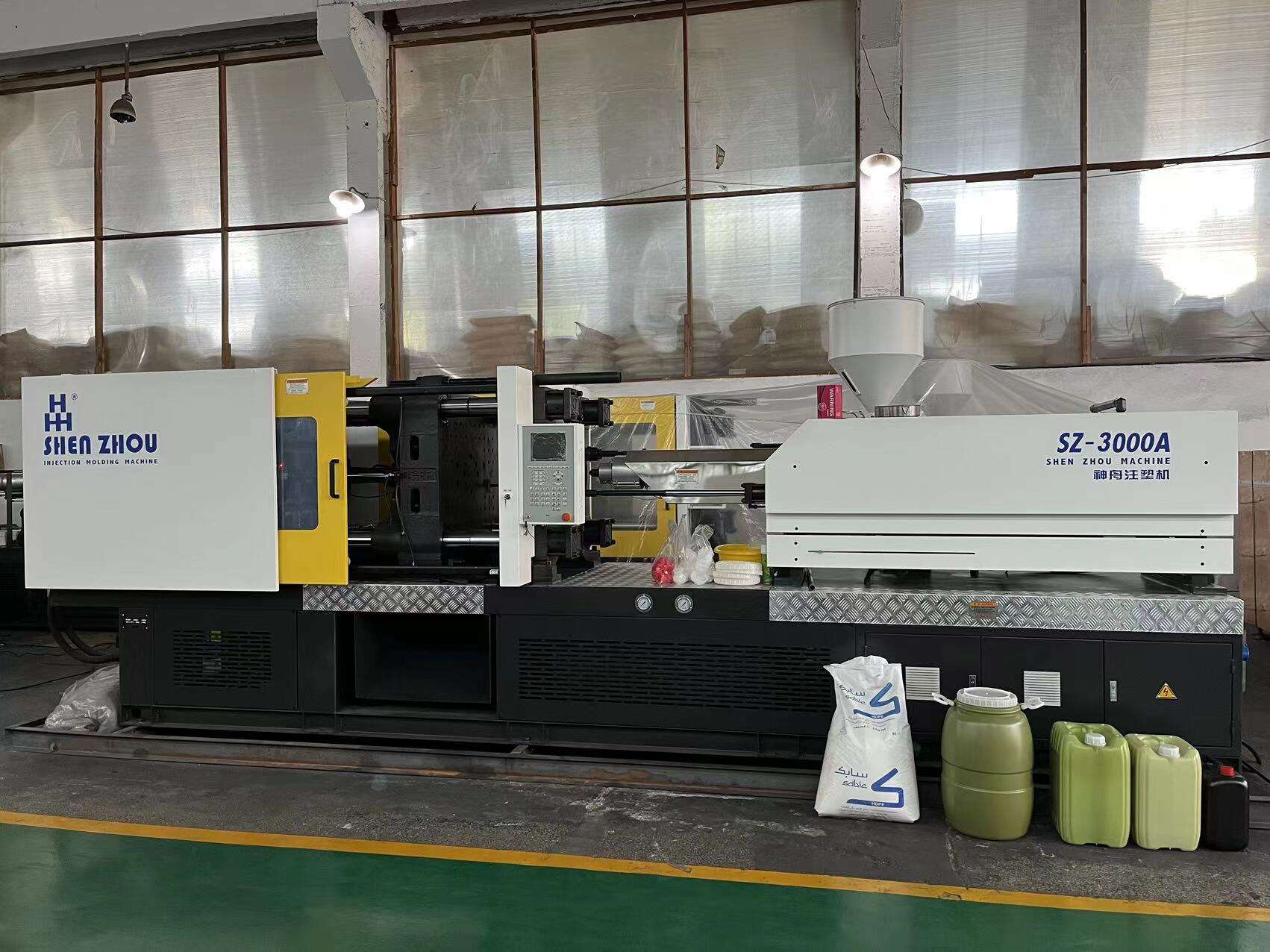

SZ—3000A |
||
|
INJECTION UNIT |
|
|
||
|
SCREW DIAMETER |
mm |
60 |
65 |
70 |
|
SCREW LID RATIO |
L/D |
22.7 |
21 |
19.5 |
|
THEORETICAL SHOT VOLUME |
CM3 |
848 |
995 |
1154 |
|
SHOT WEIGHT(PS) |
g |
772 |
905 |
1050 |
|
INJECTION PRESSURE |
Mpa |
207 |
176 |
152 |
|
THEORETICAL INJECTION RATE(PS) |
g/s |
241 |
283 |
328 |
|
PLASTICISING CAPACITY |
g/s |
35.2 |
43.3 |
51.8 |
|
SCREW TORQUE |
N.m |
2530 |
||
|
MAX.SCREW ROTATE SPEED |
r/min |
150 |
||
|
INJECTION STROKE |
mm |
300 |
||
|
CLAMPING UNIT |
|
|||
|
MAX.CLAMPING FORCE K |
KN |
3000 |
||
|
MAX.OPENING STROKE |
mm |
590 |
||
|
SPACE BETWEEN TIE BARS |
mm |
610×610 |
||
|
MOULD HEIGHT |
mm |
220-630 |
||
|
MAX.DAYLIGHT |
mm |
1220 |
||
|
EJECTOR FORCE |
KN |
70.6 |
||
|
EJECTOR STROKE |
mm |
150 |
||
|
EJECTOR QUANTITY |
|
9 |
||
|
其它 OTHER |
|
|||
|
PUMP MOTOR POWER |
KW |
30 |
||
|
PUMP PRESSURE |
Mpa |
16 |
||
|
HEATING POWER |
KW |
22 |
||
|
HEATING ZONE |
|
5 |
||
|
SIZE |
m |
6.7×1.75×2.25 |
||
|
NET WEIGHT |
t |
11 |
||
|
OIL TANK CAPACITY |
L |
560 |
||
|
INTERNATIONAL DESIGNATION |
|
3000—1750 |
||
