Description
|
项目 ITEM |
UNIT |

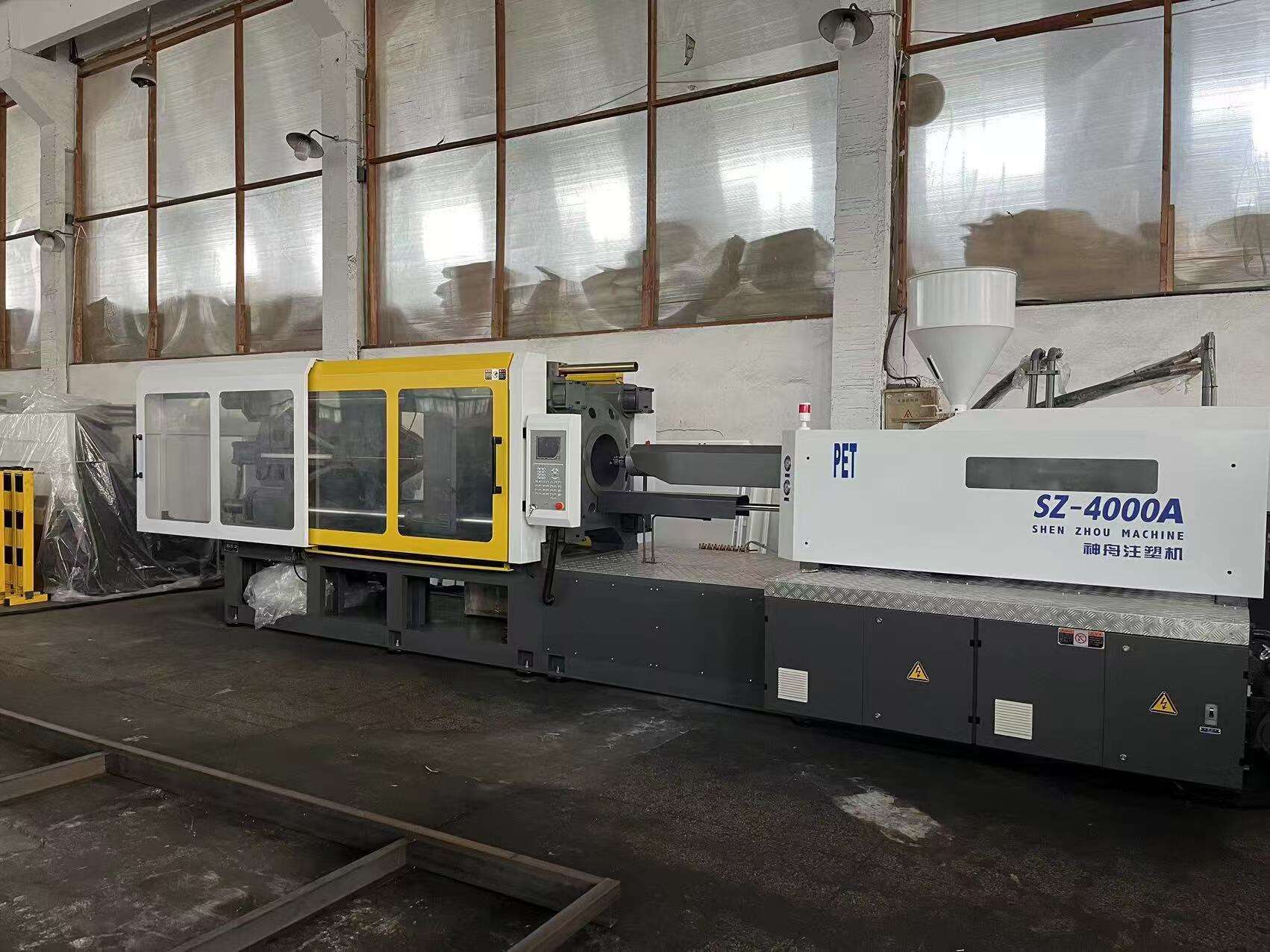

SZ—4000A |
||
|
INJECTION UNIT |
|
|
||
|
SCREW DIAMETER |
mm |
70 |
75 |
80 |
|
SCREW LID RATIO |
L/D |
21.4 |
20 |
18.8 |
|
THEORETICAL SHOT VOLUME |
CM3 |
1293 |
1485 |
1689 |
|
SHOT WEIGHT(PS) |
g |
1176 |
1351 |
1537 |
|
INJECTION PRESSURE |
Mpa |
199 |
173 |
152 |
|
THEORETICAL INJECTION RATE(PS) |
g/s |
366 |
395 |
446 |
|
PLASTICISING CAPACITY |
g/s |
60 |
65 |
70 |
|
SCREW TORQUE |
N.m |
4200 |
||
|
MAX.SCREW ROTATE SPEED |
r/min |
165 |
||
|
INJECTION STROKE |
mm |
335 |
||
|
CLAMPING UNIT |
|
|||
|
MAX.CLAMPING FORCE K |
KN |
4000 |
||
|
MAX.OPENING STROKE |
mm |
700 |
||
|
SPACE BETWEEN TIE BARS |
mm |
720×720 |
||
|
MOULD HEIGHT |
mm |
280-800 |
||
|
MAX.DAYLIGHT |
mm |
1500 |
||
|
EJECTOR FORCE |
KN |
126 |
||
|
EJECTOR STROKE |
mm |
180 |
||
|
EJECTOR QUANTITY |
|
13 |
||
|
OTHER |
|
|||
|
PUMP MOTOR POWER |
KW |
37 |
||
|
PUMP PRESSURE |
Mpa |
16 |
||
|
HEATING POWER |
KW |
25 |
||
|
HEATING ZONE |
|
5 |
||
|
SIZE |
m |
7.15×2.1×2.35 |
||
|
NET WEIGHT |
t |
16.7 |
||
|
OIL TANK CAPACITY |
L |
820 |
||
|
INTERNATIONAL DESIGNATION |
|
4000—2570 |
||
