Description
|
ITEM |
UNIT |

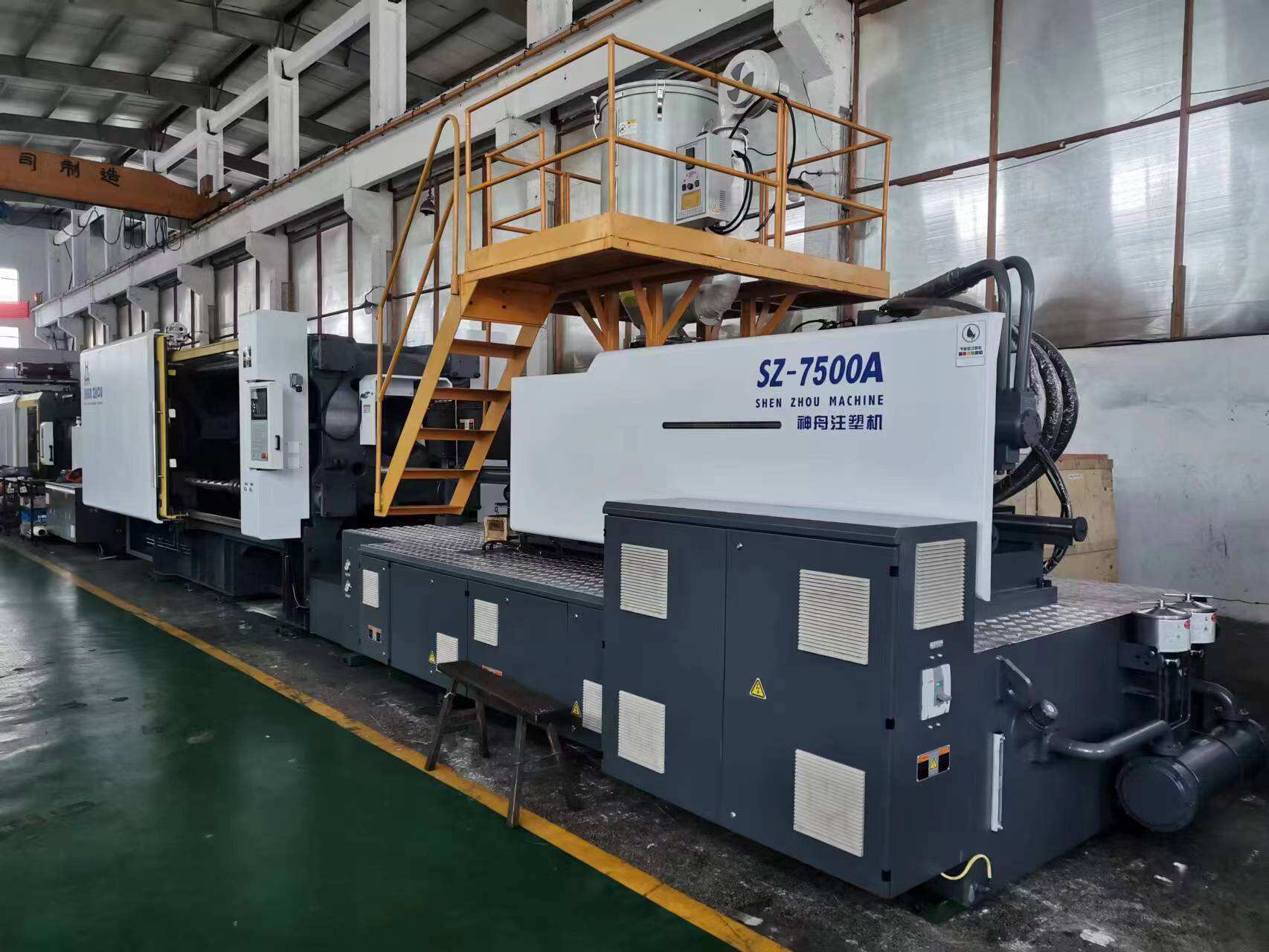

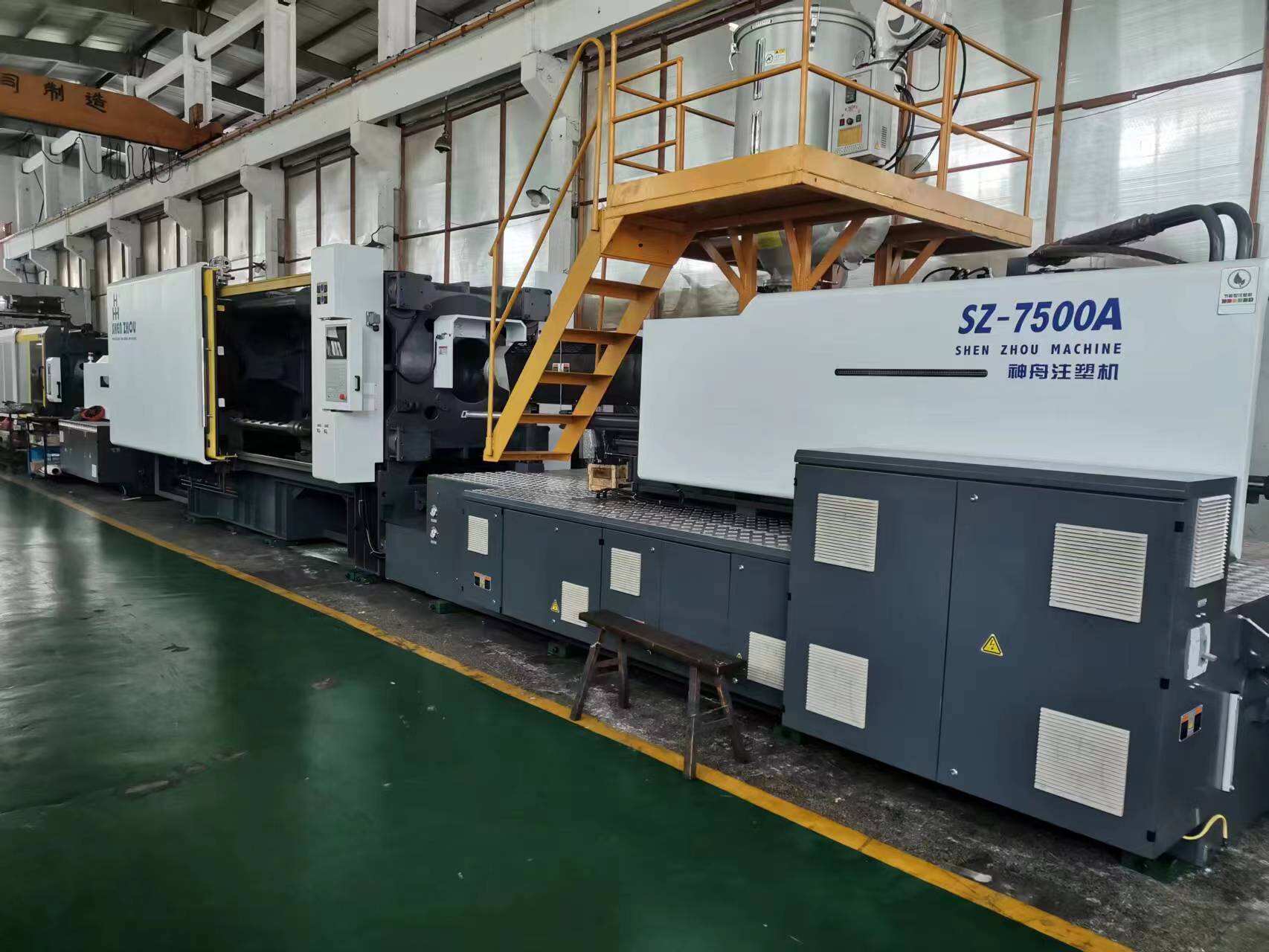

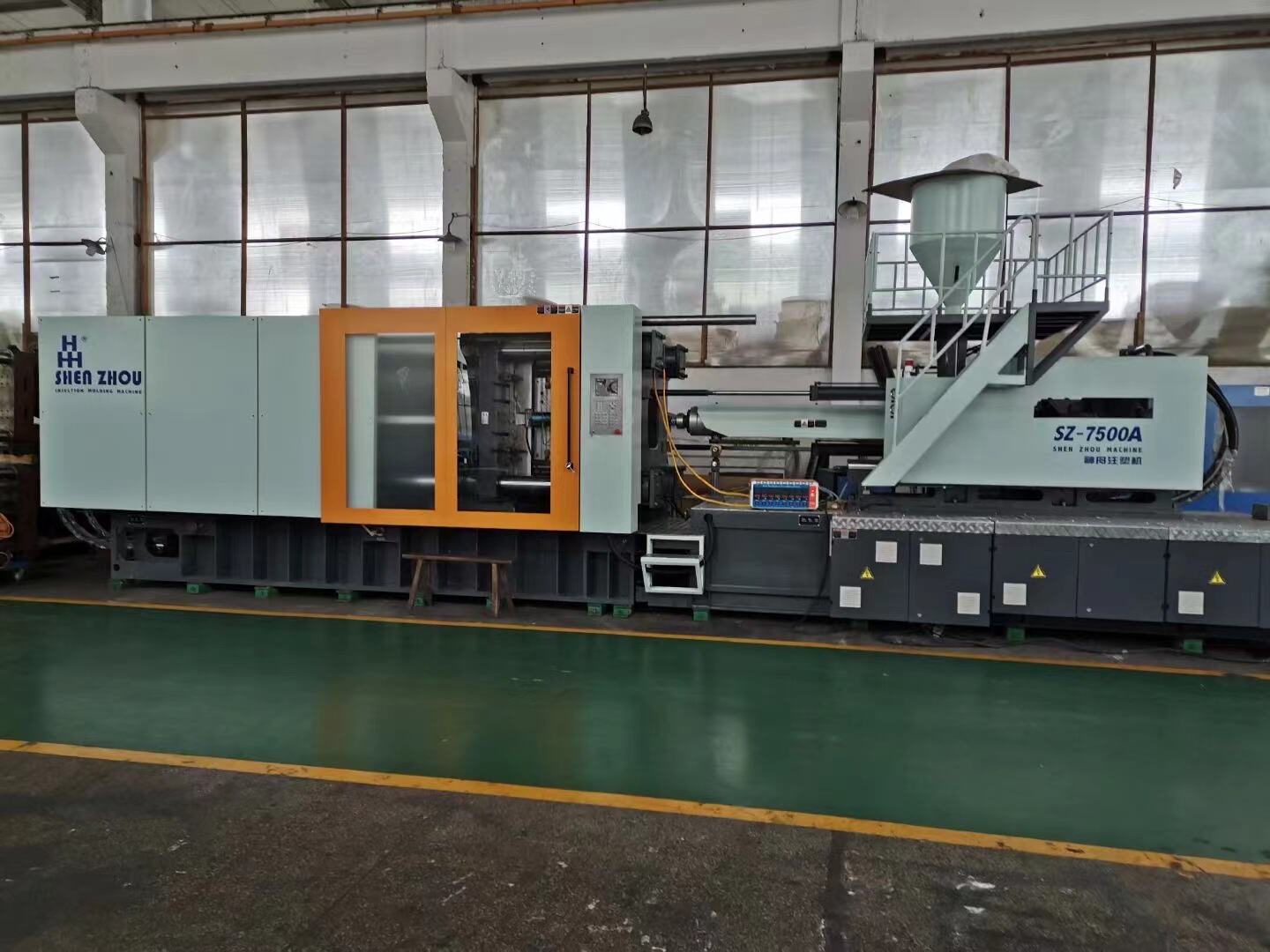

SZ—7500A |
||
|
INJECTION UNIT |
|
|
||
|
SCREW DIAMETER |
mm |
90 |
95 |
105 |
|
SCREW LID RATIO |
L/D |
23.2 |
22 |
19.9 |
|
THEORETICAL SHOT VOLUME |
CM3 |
2861 |
3188 |
3894 |
|
SHOT WEIGHT(PS) |
g |
2603 |
2901 |
3543 |
|
INJECTION PRESSURE |
Mpa |
195 |
175 |
143 |
|
THEORETICAL INJECTION RATE(PS) |
g/s |
560 |
610 |
700 |
|
PLASTICISING CAPACITY |
g/s |
85 |
100 |
110 |
|
SCREW TORQUE |
N.m |
7180 |
||
|
MAX.SCREW ROTATE SPEED |
r/min |
130 |
||
|
INJECTION STROKE |
mm |
450 |
||
|
合模装置 CLAMPING UNIT |
|
|||
|
MAX.CLAMPING FORCE K |
KN |
7500 |
||
|
MAX.OPENING STROKE |
mm |
950 |
||
|
SPACE BETWEEN TIE BARS |
mm |
950×950 |
||
|
MOULD HEIGHT |
mm |
400-960 |
||
|
MAX.DAYLIGHT |
mm |
1910 |
||
|
EJECTOR FORCE |
KN |
200 |
||
|
EJECTOR STROKE |
mm |
280 |
||
|
EJECTOR QUANTITY |
|
17 |
||
|
OTHER |
|
|||
|
PUMP MOTOR POWER |
KW |
67 |
||
|
PUMP PRESSURE |
Mpa |
16 |
||
|
HEATING POWER |
KW |
46.45 |
||
|
HEATING ZONE |
|
6 |
||
|
SIZE |
m |
10.1×2.6×2.8 |
||
|
NET WEIGHT |
t |
40 |
||
|
OIL TANK CAPACITY |
L |
1500 |
||
|
INTERNATIONAL DESIGNATION |
|
7500—5580 |
||
