Description
| Mold information | content |
| Product Material | ABS,PP,PC,PA,PMMA,PS,POM and etc. |
| Moldbase | FUTABA,LKM,HASCO,DME you can choose |
| Cavity material | 45#,50#,P20,H13, 718 2738, NAK80, S136, SKD61 etc |
| Runner | Cold/Hot runner |
| Cavity | Multi or single cavity |
| Gate type | Side gate,Sub gate,Pin point gate,Edge gate etc |
| Treatment | Heat treatment and Nitriding,polish ect. |
| HRC | H45~52 |
| Product weight | 50~5000 K |

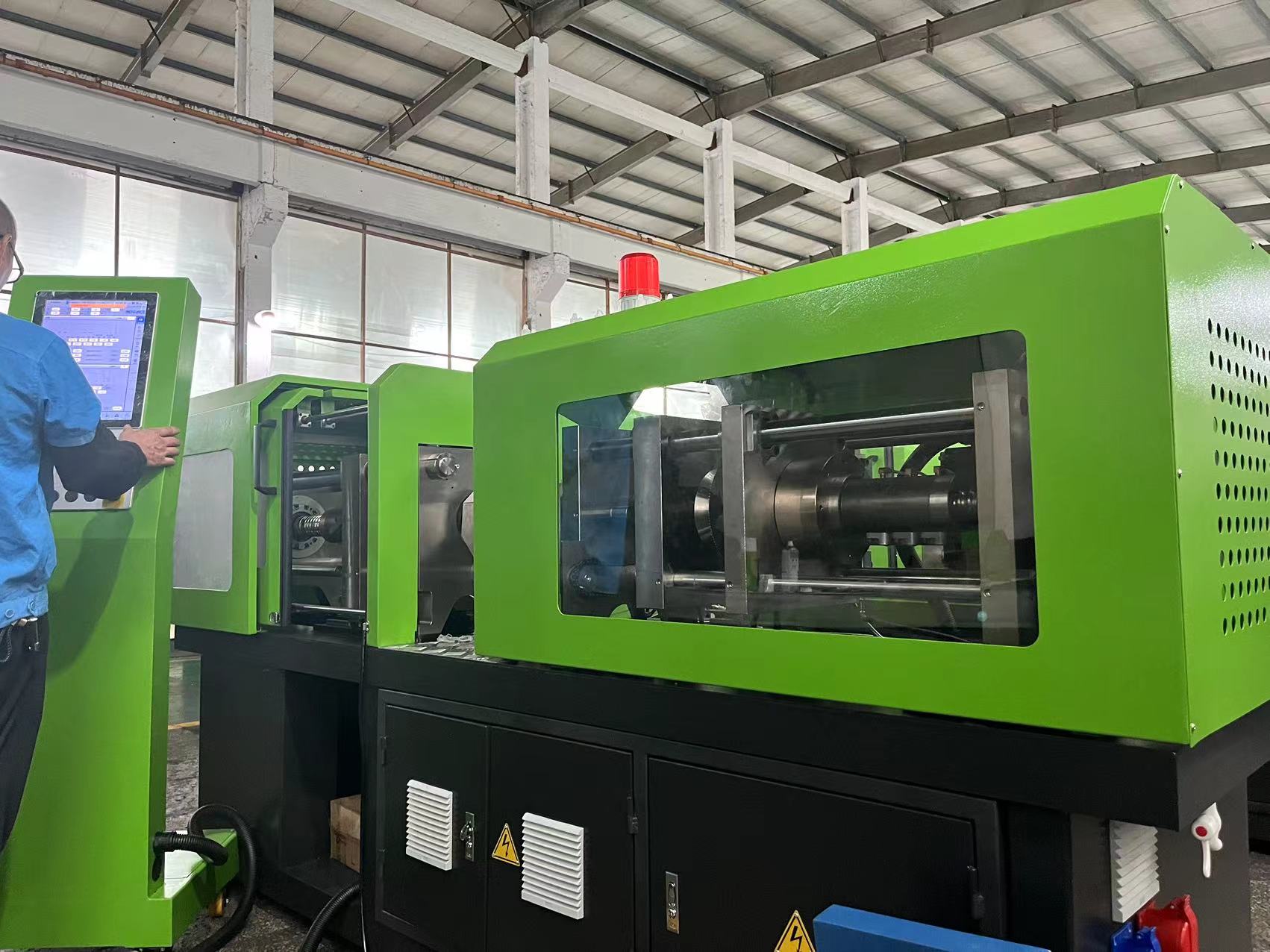

| Machine type | 130ton-550ton |
| The standard of appearance of the products for stripe | MT(Mold Tech),YS,HN series |
| The way of Color contrast | RAL K7,PANTONE |
| Mould material | mould hardness | mould life |
| P20 | HRC 29-33 | 300000 shot |
| H13 | HRC >43 | 1000000 shot |
| 718 | HRC 30-36 | 500000 shot |
| S136 | HRC 48-52 | 50000 shot |
| 2344 | HRC >48 | 800000 shot |
